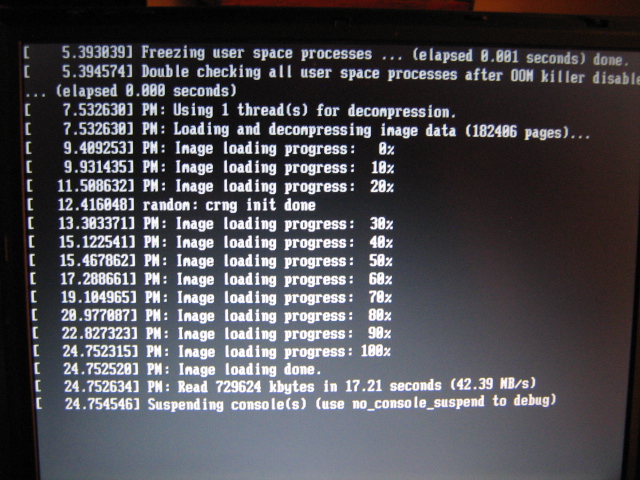

Package: src:linux Version: 4.8.5-1 Severity: normal Dear Maintainer, When resuming from hibernation my T60 hangs after the grub boot screen. There is only a flashing cursor in the top left corner. I use the Fn-F12 keyboard combination to hibernate my machine and the power-on button to resume. Passing the boot parameter earlyprintk=vga gives the final message, "Suspending console(s) (use no_console_suspend to debug)". A photo of the final screen of messages is attached. Unexpectedly, passing both boot parameters: "earlyprintk=vga" and "no_console_suspend" provides a workaround for my problem! I was only expecting to get debugging information when I passed the second boot parameter and I was surprised when the machine resumed successfully. I have not tried to find any new information that passing no_console_suspend may have generated. I note that both parameters need to be there for a successful resume. Leaving the default parameter, "quiet" and issuing only the "no_console_suspend" parameter does not work. "quiet" needs to be changed to earlyprintk=vga as well. The last kernel I know of that works for resuming from hibernation is 4.6.0-1-686-pae. The first kernel I know of where resuming fails is 4.7.0-1-686-pae. Greetings, Tony -- Package-specific info: ** Version: Linux version 4.8.0-1-686-pae (debian-kernel@lists.debian.org) (gcc version 5.4.1 20161019 (Debian 5.4.1-3) ) #1 SMP Debian 4.8.5-1 (2016-10-28) ** Command line: BOOT_IMAGE=/boot/vmlinuz-4.8.0-1-686-pae root=UUID=2c96ab98-a825-4057-a6e7-efbcfc80ba64 ro initrd=/install/initrd.gz quiet ** Tainted: POE (12289) * Proprietary module has been loaded. * Out-of-tree module has been loaded. * Unsigned module has been loaded. ** Kernel log: [ 18.973903] nsc-ircc 00:05: [irq 3] [ 18.973906] nsc-ircc 00:05: [dma 1] [ 18.974396] nsc-ircc 00:05: activated [ 18.974440] nsc-ircc, chip->init [ 18.974454] nsc-ircc, Found chip at base=0x164e [ 18.974495] nsc-ircc, driver loaded (Dag Brattli) [ 18.974802] IrDA: Registered device irda0 [ 18.974804] nsc-ircc, Using dongle: IBM31T1100 or Temic TFDS6000/TFDS6500 [ 19.031163] i801_smbus 0000:00:1f.3: SMBus using PCI interrupt [ 19.118932] pci 0000:00:1e.0: enabling device (0005 -> 0007) [ 19.119047] yenta_cardbus 0000:15:00.0: CardBus bridge found [17aa:2012] [ 19.119073] yenta_cardbus 0000:15:00.0: Using INTVAL to route CSC interrupts to PCI [ 19.119075] yenta_cardbus 0000:15:00.0: Routing CardBus interrupts to PCI [ 19.119081] yenta_cardbus 0000:15:00.0: TI: mfunc 0x01d01002, devctl 0x64 [ 19.167319] ACPI Warning: SystemIO range 0x0000000000001028-0x000000000000102F conflicts with OpRegion 0x0000000000001000-0x000000000000107F (\_SB.PCI0.LPC.PMIO) (20160422/utaddress-255) [ 19.167329] ACPI: If an ACPI driver is available for this device, you should use it instead of the native driver [ 19.167332] ACPI Warning: SystemIO range 0x00000000000011B0-0x00000000000011BF conflicts with OpRegion 0x0000000000001180-0x00000000000011BF (\_SB.PCI0.LPC.LPIO) (20160422/utaddress-255) [ 19.167338] ACPI: If an ACPI driver is available for this device, you should use it instead of the native driver [ 19.167339] ACPI Warning: SystemIO range 0x0000000000001180-0x00000000000011AF conflicts with OpRegion 0x0000000000001180-0x00000000000011BF (\_SB.PCI0.LPC.LPIO) (20160422/utaddress-255) [ 19.167344] ACPI: If an ACPI driver is available for this device, you should use it instead of the native driver [ 19.167345] lpc_ich: Resource conflict(s) found affecting gpio_ich [ 19.211042] snd_hda_codec_analog hdaudioC0D0: autoconfig for AD1981: line_outs=1 (0x5/0x0/0x0/0x0/0x0) type:speaker [ 19.211047] snd_hda_codec_analog hdaudioC0D0: speaker_outs=0 (0x0/0x0/0x0/0x0/0x0) [ 19.211049] snd_hda_codec_analog hdaudioC0D0: hp_outs=0 (0x0/0x0/0x0/0x0/0x0) [ 19.211051] snd_hda_codec_analog hdaudioC0D0: mono: mono_out=0x0 [ 19.211053] snd_hda_codec_analog hdaudioC0D0: dig-out=0xa/0x0 [ 19.211055] snd_hda_codec_analog hdaudioC0D0: inputs: [ 19.211058] snd_hda_codec_analog hdaudioC0D0: Mic=0x8 [ 19.211060] snd_hda_codec_analog hdaudioC0D0: CD=0x19 [ 19.216822] input: HDA Digital PCBeep as /devices/pci0000:00/0000:00:1b.0/sound/card0/input9 [ 19.304539] sd 0:0:0:0: Attached scsi generic sg0 type 0 [ 19.304619] sr 1:0:0:0: Attached scsi generic sg1 type 5 [ 19.364800] yenta_cardbus 0000:15:00.0: ISA IRQ mask 0x0cb0, PCI irq 16 [ 19.364807] yenta_cardbus 0000:15:00.0: Socket status: 30000007 [ 19.364816] yenta_cardbus 0000:15:00.0: pcmcia: parent PCI bridge window: [io 0xa000-0xdfff] [ 19.364820] pcmcia_socket pcmcia_socket0: cs: IO port probe 0xa000-0xdfff: [ 19.366540] excluding 0xa000-0xa0ff 0xa400-0xa4ff [ 19.394517] yenta_cardbus 0000:15:00.0: pcmcia: parent PCI bridge window: [mem 0xe4300000-0xe7ffffff] [ 19.394521] pcmcia_socket pcmcia_socket0: cs: memory probe 0xe4300000-0xe7ffffff: [ 19.394524] excluding 0xe4300000-0xe46cffff [ 19.394537] yenta_cardbus 0000:15:00.0: pcmcia: parent PCI bridge window: [mem 0xe0000000-0xe3ffffff 64bit pref] [ 19.394540] pcmcia_socket pcmcia_socket0: cs: memory probe 0xe0000000-0xe3ffffff: [ 19.394548] excluding 0xe0000000-0xe3ffffff [ 19.454956] iwl3945: Intel(R) PRO/Wireless 3945ABG/BG Network Connection driver for Linux, in-tree:s [ 19.454959] iwl3945: Copyright(c) 2003-2011 Intel Corporation [ 19.455034] iwl3945 0000:03:00.0: can't disable ASPM; OS doesn't have ASPM control [ 19.508682] iwl3945 0000:03:00.0: Tunable channels: 11 802.11bg, 13 802.11a channels [ 19.508686] iwl3945 0000:03:00.0: Detected Intel Wireless WiFi Link 3945ABG [ 19.572194] kvm: disabled by bios [ 19.605629] kvm: disabled by bios [ 19.636456] input: PC Speaker as /devices/platform/pcspkr/input/input10 [ 19.656202] leds_ss4200: no LED devices found [ 19.759254] ieee80211 phy0: Selected rate control algorithm 'iwl-3945-rs' [ 20.159079] intel_powerclamp: No package C-state available [ 20.201016] intel_powerclamp: No package C-state available [ 20.236484] intel_powerclamp: No package C-state available [ 20.446659] pcmcia_socket pcmcia_socket0: cs: IO port probe 0x100-0x3af: [ 20.448110] excluding 0x170-0x177 0x1f0-0x1f7 0x2f8-0x2ff 0x370-0x377 [ 20.449185] pcmcia_socket pcmcia_socket0: cs: IO port probe 0x3e0-0x4ff: [ 20.449715] excluding 0x3f0-0x3f7 0x4d0-0x4d7 [ 20.450222] pcmcia_socket pcmcia_socket0: cs: IO port probe 0x820-0x8ff: [ 20.451040] clean [ 20.451073] pcmcia_socket pcmcia_socket0: cs: IO port probe 0xc00-0xcf7: [ 20.451977] clean [ 20.452041] pcmcia_socket pcmcia_socket0: cs: memory probe 0x0c0000-0x0fffff: [ 20.452054] excluding 0xc0000-0xd3fff 0xdc000-0xfffff [ 20.452109] pcmcia_socket pcmcia_socket0: cs: memory probe 0xa0000000-0xa0ffffff: [ 20.452141] clean [ 20.452174] pcmcia_socket pcmcia_socket0: cs: memory probe 0x60000000-0x60ffffff: [ 20.452197] excluding 0x60000000-0x60ffffff [ 20.452242] pcmcia_socket pcmcia_socket0: cs: IO port probe 0xa00-0xaff: [ 20.453215] clean [ 20.956097] floppy0: no floppy controllers found [ 21.005473] iTCO_vendor_support: vendor-support=0 [ 21.246433] iTCO_wdt: Intel TCO WatchDog Timer Driver v1.11 [ 21.246522] iTCO_wdt: Found a ICH7-M or ICH7-U TCO device (Version=2, TCOBASE=0x1060) [ 21.247114] iTCO_wdt: initialized. heartbeat=30 sec (nowayout=0) [ 22.890898] wl: loading out-of-tree module taints kernel. [ 22.890909] wl: module license 'MIXED/Proprietary' taints kernel. [ 22.890911] Disabling lock debugging due to kernel taint [ 22.900782] wl: module verification failed: signature and/or required key missing - tainting kernel [ 23.632982] Adding 2421756k swap on /dev/sda5. Priority:-1 extents:1 across:2421756k FS [ 43.644576] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready [ 43.832644] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready [ 43.856908] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready [ 44.017789] iwl3945 0000:03:00.0: firmware: direct-loading firmware iwlwifi-3945-2.ucode [ 44.017801] iwl3945 0000:03:00.0: loaded firmware version 15.32.2.9 [ 44.099763] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready [ 44.181686] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready [ 44.738412] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready [ 47.085443] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready [ 47.178133] wlan0: authenticate with 94:87:7c:0e:ac:c0 [ 47.182123] wlan0: send auth to 94:87:7c:0e:ac:c0 (try 1/3) [ 47.183866] wlan0: authenticated [ 47.184153] wlan0: associating with AP with corrupt probe response [ 47.188101] wlan0: associate with 94:87:7c:0e:ac:c0 (try 1/3) [ 47.190905] wlan0: RX AssocResp from 94:87:7c:0e:ac:c0 (capab=0xc31 status=0 aid=1) [ 47.192486] wlan0: associated [ 47.192557] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready [ 49.861543] fuse init (API version 7.25) ** Model information ** Loaded modules: fuse ctr ccm snd_hrtimer snd_seq_midi snd_seq_midi_event snd_rawmidi snd_seq snd_seq_device wl(POE) iTCO_wdt iTCO_vendor_support joydev evdev coretemp arc4 serio_raw pcspkr pcmcia kvm iwl3945 iwlegacy mac80211 irqbypass sg acpi_cpufreq snd_hda_codec_analog snd_hda_codec_generic lpc_ich cfg80211 mfd_core yenta_socket pcmcia_rsrc pcmcia_core i2c_i801 i2c_smbus rng_core snd_hda_intel snd_hda_codec snd_hda_core snd_hwdep snd_pcm_oss snd_mixer_oss thinkpad_acpi nvram nsc_ircc rfkill ac battery irda crc_ccitt snd_pcm snd_timer shpchp video button snd soundcore tpm_tis tpm_tis_core tpm binfmt_misc radeon ttm drm_kms_helper drm i2c_algo_bit loop sunrpc parport_pc ppdev lp parport ip_tables x_tables autofs4 ext4 crc16 jbd2 crc32c_generic fscrypto ecb xts lrw gf128mul ablk_helper cryptd aes_i586 mbcache sd_mod sr_mod cdrom ata_generic ata_piix psmouse libata scsi_mod ehci_pci uhci_hcd ehci_hcd usbcore e1000e usb_common ptp pps_core thermal ** PCI devices: 00:00.0 Host bridge [0600]: Intel Corporation Mobile 945GM/PM/GMS, 943/940GML and 945GT Express Memory Controller Hub [8086:27a0] (rev 03) Subsystem: Lenovo ThinkPad T60 [17aa:2015] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ >SERR- <PERR- INTx- Latency: 0 Capabilities: <access denied> 00:01.0 PCI bridge [0604]: Intel Corporation Mobile 945GM/PM/GMS, 943/940GML and 945GT Express PCI Express Root Port [8086:27a1] (rev 03) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 24 Bus: primary=00, secondary=01, subordinate=01, sec-latency=0 I/O behind bridge: 00002000-00002fff Memory behind bridge: ee100000-ee1fffff Prefetchable memory behind bridge: 00000000d8000000-00000000dfffffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA+ VGA+ MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport Kernel modules: shpchp 00:1b.0 Audio device [0403]: Intel Corporation NM10/ICH7 Family High Definition Audio Controller [8086:27d8] (rev 02) Subsystem: Lenovo ThinkPad R60/T60/X60 series [17aa:2010] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 30 Region 0: Memory at ee400000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: snd_hda_intel Kernel modules: snd_hda_intel 00:1c.0 PCI bridge [0604]: Intel Corporation NM10/ICH7 Family PCI Express Port 1 [8086:27d0] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 25 Bus: primary=00, secondary=02, subordinate=02, sec-latency=0 I/O behind bridge: 00003000-00003fff Memory behind bridge: ee000000-ee0fffff Prefetchable memory behind bridge: 0000000080000000-00000000801fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport Kernel modules: shpchp 00:1c.1 PCI bridge [0604]: Intel Corporation NM10/ICH7 Family PCI Express Port 2 [8086:27d2] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 26 Bus: primary=00, secondary=03, subordinate=03, sec-latency=0 I/O behind bridge: 00004000-00005fff Memory behind bridge: ec000000-edffffff Prefetchable memory behind bridge: 00000000e4000000-00000000e40fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport Kernel modules: shpchp 00:1c.2 PCI bridge [0604]: Intel Corporation NM10/ICH7 Family PCI Express Port 3 [8086:27d4] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin C routed to IRQ 27 Bus: primary=00, secondary=04, subordinate=0b, sec-latency=0 I/O behind bridge: 00006000-00007fff Memory behind bridge: e8000000-e9ffffff Prefetchable memory behind bridge: 00000000e4100000-00000000e41fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport Kernel modules: shpchp 00:1c.3 PCI bridge [0604]: Intel Corporation NM10/ICH7 Family PCI Express Port 4 [8086:27d6] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 28 Bus: primary=00, secondary=0c, subordinate=13, sec-latency=0 I/O behind bridge: 00008000-00009fff Memory behind bridge: ea000000-ebffffff Prefetchable memory behind bridge: 00000000e4200000-00000000e42fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport Kernel modules: shpchp 00:1d.0 USB controller [0c03]: Intel Corporation NM10/ICH7 Family USB UHCI Controller #1 [8086:27c8] (rev 02) (prog-if 00 [UHCI]) Subsystem: Lenovo ThinkPad R60/T60/X60 series [17aa:200a] Control: I/O+ Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 16 Region 4: I/O ports at 1800 [size=32] Kernel driver in use: uhci_hcd Kernel modules: uhci_hcd 00:1d.1 USB controller [0c03]: Intel Corporation NM10/ICH7 Family USB UHCI Controller #2 [8086:27c9] (rev 02) (prog-if 00 [UHCI]) Subsystem: Lenovo ThinkPad R60/T60/X60 series [17aa:200a] Control: I/O+ Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin B routed to IRQ 17 Region 4: I/O ports at 1820 [size=32] Kernel driver in use: uhci_hcd Kernel modules: uhci_hcd 00:1d.2 USB controller [0c03]: Intel Corporation NM10/ICH7 Family USB UHCI Controller #3 [8086:27ca] (rev 02) (prog-if 00 [UHCI]) Subsystem: Lenovo ThinkPad R60/T60/X60 series [17aa:200a] Control: I/O+ Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin C routed to IRQ 18 Region 4: I/O ports at 1840 [size=32] Kernel driver in use: uhci_hcd Kernel modules: uhci_hcd 00:1d.3 USB controller [0c03]: Intel Corporation NM10/ICH7 Family USB UHCI Controller #4 [8086:27cb] (rev 02) (prog-if 00 [UHCI]) Subsystem: Lenovo ThinkPad R60/T60/X60 series [17aa:200a] Control: I/O+ Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin D routed to IRQ 19 Region 4: I/O ports at 1860 [size=32] Kernel driver in use: uhci_hcd Kernel modules: uhci_hcd 00:1d.7 USB controller [0c03]: Intel Corporation NM10/ICH7 Family USB2 EHCI Controller [8086:27cc] (rev 02) (prog-if 20 [EHCI]) Subsystem: Lenovo ThinkPad R60/T60/X60 series [17aa:200b] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin D routed to IRQ 19 Region 0: Memory at ee404000 (32-bit, non-prefetchable) [size=1K] Capabilities: <access denied> Kernel driver in use: ehci-pci Kernel modules: ehci_pci 00:1e.0 PCI bridge [0604]: Intel Corporation 82801 Mobile PCI Bridge [8086:2448] (rev e2) (prog-if 01 [Subtractive decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Bus: primary=00, secondary=15, subordinate=18, sec-latency=32 I/O behind bridge: 0000a000-0000dfff Memory behind bridge: e4300000-e7ffffff Prefetchable memory behind bridge: 00000000e0000000-00000000e3ffffff Secondary status: 66MHz- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> 00:1f.0 ISA bridge [0601]: Intel Corporation 82801GBM (ICH7-M) LPC Interface Bridge [8086:27b9] (rev 02) Subsystem: Lenovo ThinkPad R60/T60/X60 series [17aa:2009] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Capabilities: <access denied> Kernel driver in use: lpc_ich Kernel modules: intel_rng, lpc_ich, leds_ss4200 00:1f.2 IDE interface [0101]: Intel Corporation 82801GBM/GHM (ICH7-M Family) SATA Controller [IDE mode] [8086:27c4] (rev 02) (prog-if 80 [Master]) Subsystem: Lenovo ThinkPad T60 [17aa:200e] Control: I/O+ Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin B routed to IRQ 16 Region 0: I/O ports at 01f0 [size=8] Region 1: I/O ports at 03f4 Region 2: I/O ports at 0170 [size=8] Region 3: I/O ports at 0374 Region 4: I/O ports at 18b0 [size=16] Capabilities: <access denied> Kernel driver in use: ata_piix Kernel modules: ata_piix, ata_generic 00:1f.3 SMBus [0c05]: Intel Corporation NM10/ICH7 Family SMBus Controller [8086:27da] (rev 02) Subsystem: Lenovo ThinkPad R60/T60/X60 series [17aa:200f] Control: I/O+ Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Interrupt: pin A routed to IRQ 23 Region 4: I/O ports at 18e0 [size=32] Kernel driver in use: i801_smbus Kernel modules: i2c_i801 01:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] RV515/M52 [Mobility Radeon X1300] [1002:7149] (prog-if 00 [VGA controller]) Subsystem: Lenovo RV515/M52 [Mobility Radeon X1300] [17aa:2005] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 16 Region 0: Memory at d8000000 (32-bit, prefetchable) [size=128M] Region 1: I/O ports at 2000 [size=256] Region 2: Memory at ee100000 (32-bit, non-prefetchable) [size=64K] [virtual] Expansion ROM at 000c0000 [disabled] [size=128K] Capabilities: <access denied> Kernel driver in use: radeon Kernel modules: radeon 02:00.0 Ethernet controller [0200]: Intel Corporation 82573L Gigabit Ethernet Controller [8086:109a] Subsystem: Lenovo ThinkPad T60 [17aa:2001] Physical Slot: 2 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 29 Region 0: Memory at ee000000 (32-bit, non-prefetchable) [size=128K] Region 2: I/O ports at 3000 [size=32] Capabilities: <access denied> Kernel driver in use: e1000e Kernel modules: e1000e 03:00.0 Network controller [0280]: Intel Corporation PRO/Wireless 3945ABG [Golan] Network Connection [8086:4227] (rev 02) Subsystem: Intel Corporation PRO/Wireless 3945ABG [Golan] Network Connection [8086:1010] Physical Slot: 3 Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 31 Region 0: Memory at edf00000 (32-bit, non-prefetchable) [size=4K] Capabilities: <access denied> Kernel driver in use: iwl3945 Kernel modules: iwl3945, wl 15:00.0 CardBus bridge [0607]: Texas Instruments PCI1510 PC card Cardbus Controller [104c:ac56] Subsystem: Lenovo ThinkPad T60/R60 series [17aa:2012] Physical Slot: 1 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 168, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 16 Region 0: Memory at e4300000 (32-bit, non-prefetchable) [size=4K] Bus: primary=15, secondary=16, subordinate=17, sec-latency=176 Memory window 0: e0000000-e3ffffff (prefetchable) Memory window 1: 84000000-87ffffff I/O window 0: 0000a000-0000a0ff I/O window 1: 0000a400-0000a4ff BridgeCtl: Parity- SERR- ISA- VGA- MAbort- >Reset+ 16bInt+ PostWrite+ 16-bit legacy interface ports at 0001 Capabilities: <access denied> Kernel driver in use: yenta_cardbus Kernel modules: yenta_socket ** USB devices: Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 005 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub Bus 004 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub Bus 003 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub Bus 001 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub -- System Information: Debian Release: stretch/sid APT prefers unstable APT policy: (500, 'unstable') Architecture: i386 (i686) Kernel: Linux 4.8.0-1-686-pae (SMP w/2 CPU cores) Locale: LANG=en_US.UTF-8, LC_CTYPE=en_US.UTF-8 (charmap=UTF-8) Shell: /bin/sh linked to /bin/dash Init: systemd (via /run/systemd/system) Versions of packages linux-image-4.8.0-1-686-pae depends on: ii initramfs-tools [linux-initramfs-tool] 0.125 ii kmod 22-1.1 ii linux-base 4.5 Versions of packages linux-image-4.8.0-1-686-pae recommends: ii firmware-linux-free 3.4 ii irqbalance 1.1.0-2 Versions of packages linux-image-4.8.0-1-686-pae suggests: ii debian-kernel-handbook 1.0.17 ii grub-pc 2.02~beta2-36 ii linux-doc-4.8 4.8.5-1 Versions of packages linux-image-4.8.0-1-686-pae is related to: ii firmware-amd-graphics 20160824-1 ii firmware-atheros 20160824-1 ii firmware-bnx2 20160824-1 ii firmware-bnx2x 20160824-1 ii firmware-brcm80211 20160824-1 pn firmware-cavium <none> pn firmware-intel-sound <none> ii firmware-intelwimax 20160824-1 ii firmware-ipw2x00 20160824-1 ii firmware-ivtv 20160824-1 ii firmware-iwlwifi 20160824-1 ii firmware-libertas 20160824-1 ii firmware-linux-nonfree 20160824-1 ii firmware-misc-nonfree 20160824-1 ii firmware-myricom 20160824-1 ii firmware-netxen 20160824-1 ii firmware-qlogic 20160824-1 ii firmware-realtek 20160824-1 pn firmware-samsung <none> pn firmware-siano <none> pn firmware-ti-connectivity <none> pn xen-hypervisor <none> -- no debconf information
Attachment:
Description: JPEG image
