Package: xserver-xorg-video-intel
Version: 2:2.99.917-1
Severity: important
Hi,
How to reproduce: Suspend the machine (e.g. by running "systemctl
suspend"). When the system is woken up again, the graphics display is
stuck for about 5 seconds, and any subsequent redraws of urxvt windows
is completely garbled, GTK applications are just filled rectangles of
gray or black.
I’m using the "intel" X driver with the (default) SNA accelleration
method. Switching to UXA instead fixes the garbled graphics problem,
but after a suspend/wakeup cycle, accelleration is not working at all
any more, so this is not a real fix.

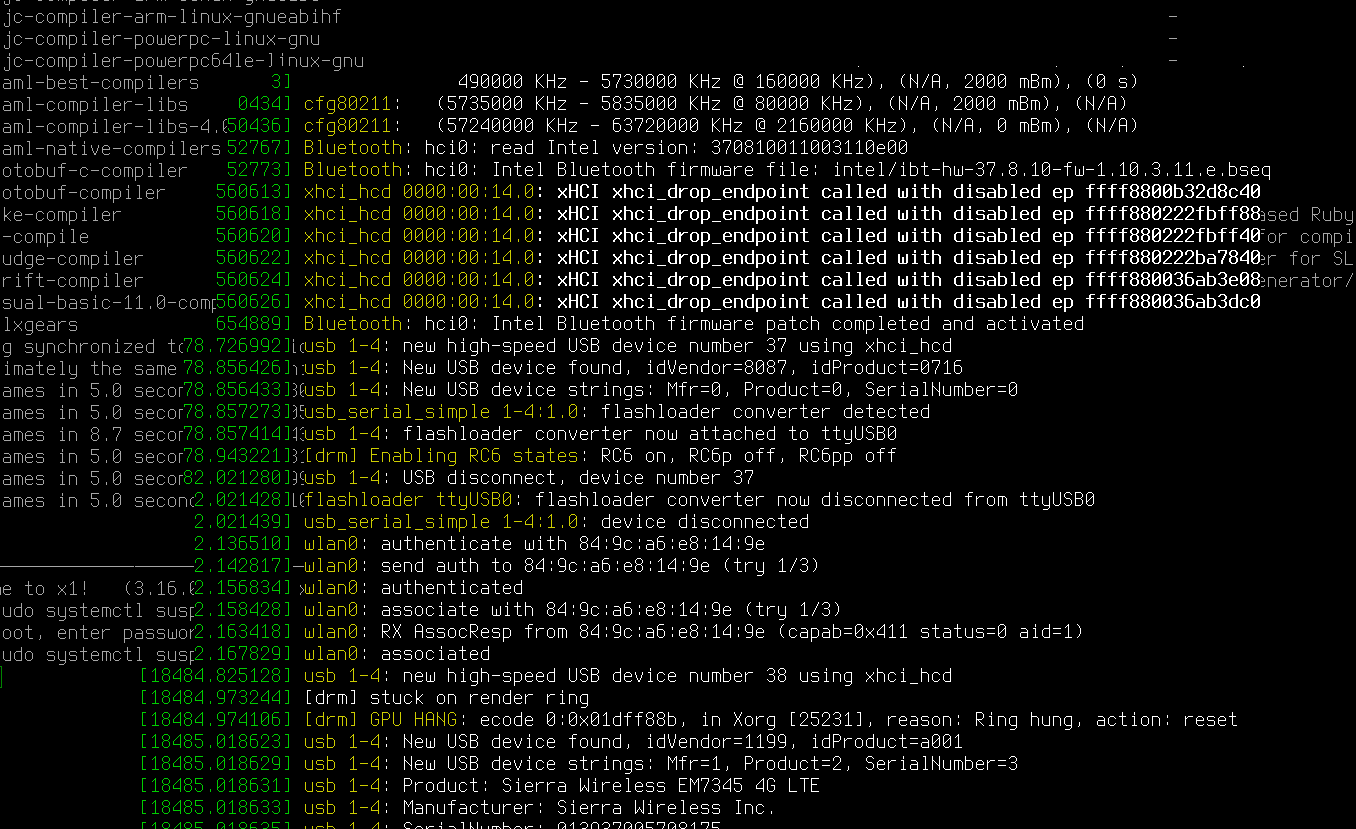

The important part from the Kernel log:
[18964.460761] [drm] stuck on render ring
[18964.462418] [drm] GPU HANG: ecode 0:0x01dff88b, in Xorg [18341], reason: Ring hung, action: reset
[18966.462759] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
There is an easy workaround I discovered while playing around. As soon
as you run "glxgears" for a few seconds and quit it, then possibly
switch workspaces to force a complete screen redraw, all corruptions
are gone and don’t return until the next suspend. If you suspend while
"glxgears" is running, no GPU hang and no screen corruption occurs.
I’m running Debian unstable on a Thinkpad X1 Carbon (3rd gen, model
20BS).
Julius
-- Package-specific info:
/etc/X11/X does not exist.
/etc/X11/X is not a symlink.
/etc/X11/X is not executable.
VGA-compatible devices on PCI bus:
----------------------------------
00:02.0 VGA compatible controller [0300]: Intel Corporation Broadwell-U Integrated Graphics [8086:1616] (rev 09)
/etc/X11/xorg.conf does not exist.
/etc/X11/xorg.conf.d does not exist.
/etc/modprobe.d contains no KMS configuration files.
Kernel version (/proc/version):
-------------------------------
Linux version 3.16.0-4-amd64 (debian-kernel@lists.debian.org) (gcc version 4.8.4 (Debian 4.8.4-1) ) #1 SMP Debian 3.16.7-ckt11-1 (2015-05-24)
Xorg X server log files on system:
----------------------------------
-rw-r--r-- 1 root root 3657 Jun 12 02:25 /var/log/Xorg.2.log
-rw-r--r-- 1 root root 3657 Jun 12 02:25 /var/log/Xorg.3.log
-rw-r--r-- 1 root root 3657 Jun 12 02:25 /var/log/Xorg.4.log
-rw-r--r-- 1 root root 3657 Jun 12 02:25 /var/log/Xorg.5.log
-rw-r--r-- 1 root root 21307 Jun 12 03:31 /var/log/Xorg.1.log
-rw-r--r-- 1 root root 22720 Jun 12 20:19 /var/log/Xorg.0.log
Contents of most recent Xorg X server log file (/var/log/Xorg.0.log):
---------------------------------------------------------------------
[ 18702.078]
X.Org X Server 1.17.1
Release Date: 2015-02-10
[ 18702.078] X Protocol Version 11, Revision 0
[ 18702.078] Build Operating System: Linux 3.16.0-4-amd64 x86_64 Debian
[ 18702.078] Current Operating System: Linux x1 3.16.0-4-amd64 #1 SMP Debian 3.16.7-ckt11-1 (2015-05-24) x86_64
[ 18702.078] Kernel command line: BOOT_IMAGE=/vmlinuz-3.16.0-4-amd64 root=/dev/mapper/debian--vg-root ro
[ 18702.078] Build Date: 04 May 2015 11:22:06PM
[ 18702.078] xorg-server 2:1.17.1-2 (http://www.debian.org/support)
[ 18702.078] Current version of pixman: 0.32.6
[ 18702.078] Before reporting problems, check http://wiki.x.org
to make sure that you have the latest version.
[ 18702.078] Markers: (--) probed, (**) from config file, (==) default setting,
(++) from command line, (!!) notice, (II) informational,
(WW) warning, (EE) error, (NI) not implemented, (??) unknown.
[ 18702.079] (==) Log file: "/var/log/Xorg.0.log", Time: Fri Jun 12 20:19:31 2015
[ 18702.079] (==) Using system config directory "/usr/share/X11/xorg.conf.d"
[ 18702.079] (==) No Layout section. Using the first Screen section.
[ 18702.079] (==) No screen section available. Using defaults.
[ 18702.079] (**) |-->Screen "Default Screen Section" (0)
[ 18702.079] (**) | |-->Monitor "<default monitor>"
[ 18702.079] (==) No monitor specified for screen "Default Screen Section".
Using a default monitor configuration.
[ 18702.079] (==) Automatically adding devices
[ 18702.079] (==) Automatically enabling devices
[ 18702.079] (==) Automatically adding GPU devices
[ 18702.079] (WW) The directory "/usr/share/fonts/X11/cyrillic" does not exist.
[ 18702.079] Entry deleted from font path.
[ 18702.079] (==) FontPath set to:
/usr/share/fonts/X11/misc,
/usr/share/fonts/X11/100dpi/:unscaled,
/usr/share/fonts/X11/75dpi/:unscaled,
/usr/share/fonts/X11/Type1,
/usr/share/fonts/X11/100dpi,
/usr/share/fonts/X11/75dpi,
built-ins
[ 18702.079] (==) ModulePath set to "/usr/lib/xorg/modules"
[ 18702.079] (II) The server relies on udev to provide the list of input devices.
If no devices become available, reconfigure udev or disable AutoAddDevices.
[ 18702.079] (II) Loader magic: 0x7f8f284a9d80
[ 18702.079] (II) Module ABI versions:
[ 18702.079] X.Org ANSI C Emulation: 0.4
[ 18702.079] X.Org Video Driver: 19.0
[ 18702.079] X.Org XInput driver : 21.0
[ 18702.079] X.Org Server Extension : 9.0
[ 18702.079] (II) xfree86: Adding drm device (/dev/dri/card0)
[ 18702.080] (--) PCI:*(0:0:2:0) 8086:1616:17aa:2227 rev 9, Mem @ 0xf0000000/16777216, 0xe0000000/268435456, I/O @ 0x00003000/64
[ 18702.080] (II) LoadModule: "glx"
[ 18702.081] (II) Loading /usr/lib/xorg/modules/extensions/libglx.so
[ 18702.081] (II) Module glx: vendor="X.Org Foundation"
[ 18702.081] compiled for 1.17.1, module version = 1.0.0
[ 18702.081] ABI class: X.Org Server Extension, version 9.0
[ 18702.081] (==) AIGLX enabled
[ 18702.081] (==) Matched intel as autoconfigured driver 0
[ 18702.081] (==) Matched intel as autoconfigured driver 1
[ 18702.082] (==) Matched modesetting as autoconfigured driver 2
[ 18702.082] (==) Matched fbdev as autoconfigured driver 3
[ 18702.082] (==) Matched vesa as autoconfigured driver 4
[ 18702.082] (==) Assigned the driver to the xf86ConfigLayout
[ 18702.082] (II) LoadModule: "intel"
[ 18702.082] (II) Loading /usr/lib/xorg/modules/drivers/intel_drv.so
[ 18702.082] (II) Module intel: vendor="X.Org Foundation"
[ 18702.082] compiled for 1.17.1, module version = 2.99.917
[ 18702.082] Module class: X.Org Video Driver
[ 18702.082] ABI class: X.Org Video Driver, version 19.0
[ 18702.082] (II) LoadModule: "modesetting"
[ 18702.082] (II) Loading /usr/lib/xorg/modules/drivers/modesetting_drv.so
[ 18702.084] (II) Module modesetting: vendor="X.Org Foundation"
[ 18702.084] compiled for 1.17.1, module version = 1.17.1
[ 18702.084] Module class: X.Org Video Driver
[ 18702.084] ABI class: X.Org Video Driver, version 19.0
[ 18702.084] (II) LoadModule: "fbdev"
[ 18702.084] (II) Loading /usr/lib/xorg/modules/drivers/fbdev_drv.so
[ 18702.085] (II) Module fbdev: vendor="X.Org Foundation"
[ 18702.085] compiled for 1.17.1, module version = 0.4.4
[ 18702.085] Module class: X.Org Video Driver
[ 18702.085] ABI class: X.Org Video Driver, version 19.0
[ 18702.085] (II) LoadModule: "vesa"
[ 18702.085] (II) Loading /usr/lib/xorg/modules/drivers/vesa_drv.so
[ 18702.085] (II) Module vesa: vendor="X.Org Foundation"
[ 18702.085] compiled for 1.17.1, module version = 2.3.3
[ 18702.085] Module class: X.Org Video Driver
[ 18702.085] ABI class: X.Org Video Driver, version 19.0
[ 18702.085] (II) intel: Driver for Intel(R) Integrated Graphics Chipsets:
i810, i810-dc100, i810e, i815, i830M, 845G, 854, 852GM/855GM, 865G,
915G, E7221 (i915), 915GM, 945G, 945GM, 945GME, Pineview GM,
Pineview G, 965G, G35, 965Q, 946GZ, 965GM, 965GME/GLE, G33, Q35, Q33,
GM45, 4 Series, G45/G43, Q45/Q43, G41, B43
[ 18702.085] (II) intel: Driver for Intel(R) HD Graphics: 2000-6000
[ 18702.085] (II) intel: Driver for Intel(R) Iris(TM) Graphics: 5100, 6100
[ 18702.085] (II) intel: Driver for Intel(R) Iris(TM) Pro Graphics: 5200, 6200, P6300
[ 18702.085] (II) modesetting: Driver for Modesetting Kernel Drivers: kms
[ 18702.085] (II) FBDEV: driver for framebuffer: fbdev
[ 18702.086] (II) VESA: driver for VESA chipsets: vesa
[ 18702.086] (++) using VT number 7
[ 18702.086] (II) intel(0): Using Kernel Mode Setting driver: i915, version 1.6.0 20080730
[ 18702.086] (II) intel(0): SNA compiled: xserver-xorg-video-intel 2:2.99.917-1 (Vincent Cheng <vcheng@debian.org>)
[ 18702.086] (WW) Falling back to old probe method for modesetting
[ 18702.086] (WW) Falling back to old probe method for fbdev
[ 18702.086] (II) Loading sub module "fbdevhw"
[ 18702.086] (II) LoadModule: "fbdevhw"
[ 18702.086] (II) Loading /usr/lib/xorg/modules/libfbdevhw.so
[ 18702.086] (II) Module fbdevhw: vendor="X.Org Foundation"
[ 18702.086] compiled for 1.17.1, module version = 0.0.2
[ 18702.086] ABI class: X.Org Video Driver, version 19.0
[ 18702.086] (WW) Falling back to old probe method for vesa
[ 18702.087] (--) intel(0): Integrated Graphics Chipset: Intel(R) HD graphics 5500
[ 18702.087] (--) intel(0): CPU: x86-64, sse2, sse3, ssse3, sse4.1, sse4.2, avx, avx2
[ 18702.087] (II) intel(0): Creating default Display subsection in Screen section
"Default Screen Section" for depth/fbbpp 24/32
[ 18702.087] (==) intel(0): Depth 24, (--) framebuffer bpp 32
[ 18702.087] (==) intel(0): RGB weight 888
[ 18702.087] (==) intel(0): Default visual is TrueColor
[ 18702.087] (II) intel(0): Output eDP1 has no monitor section
[ 18702.087] (--) intel(0): Found backlight control interface intel_backlight (type 'raw') for output eDP1
[ 18702.087] (II) intel(0): Enabled output eDP1
[ 18702.087] (II) intel(0): Output DP1 has no monitor section
[ 18702.087] (II) intel(0): Enabled output DP1
[ 18702.087] (II) intel(0): Output HDMI1 has no monitor section
[ 18702.087] (II) intel(0): Enabled output HDMI1
[ 18702.087] (II) intel(0): Output DP2 has no monitor section
[ 18702.087] (II) intel(0): Enabled output DP2
[ 18702.087] (II) intel(0): Output HDMI2 has no monitor section
[ 18702.087] (II) intel(0): Enabled output HDMI2
[ 18702.087] (--) intel(0): Using a maximum size of 256x256 for hardware cursors
[ 18702.087] (II) intel(0): Output VIRTUAL1 has no monitor section
[ 18702.087] (II) intel(0): Enabled output VIRTUAL1
[ 18702.087] (--) intel(0): Output eDP1 using initial mode 2560x1440 on pipe 0
[ 18702.087] (==) intel(0): TearFree disabled
[ 18702.087] (==) intel(0): DPI set to (96, 96)
[ 18702.087] (II) Loading sub module "dri2"
[ 18702.087] (II) LoadModule: "dri2"
[ 18702.087] (II) Module "dri2" already built-in
[ 18702.087] (II) Loading sub module "present"
[ 18702.087] (II) LoadModule: "present"
[ 18702.087] (II) Module "present" already built-in
[ 18702.087] (II) UnloadModule: "modesetting"
[ 18702.087] (II) Unloading modesetting
[ 18702.087] (II) UnloadModule: "fbdev"
[ 18702.087] (II) Unloading fbdev
[ 18702.087] (II) UnloadSubModule: "fbdevhw"
[ 18702.087] (II) Unloading fbdevhw
[ 18702.087] (II) UnloadModule: "vesa"
[ 18702.087] (II) Unloading vesa
[ 18702.087] (==) Depth 24 pixmap format is 32 bpp
[ 18702.087] (II) intel(0): SNA initialized with Broadwell backend
[ 18702.087] (==) intel(0): Backing store enabled
[ 18702.087] (==) intel(0): Silken mouse enabled
[ 18702.087] (II) intel(0): HW Cursor enabled
[ 18702.087] (II) intel(0): RandR 1.2 enabled, ignore the following RandR disabled message.
[ 18702.088] (==) intel(0): DPMS enabled
[ 18702.088] (==) intel(0): display hotplug detection enabled
[ 18702.088] (II) intel(0): [DRI2] Setup complete
[ 18702.088] (II) intel(0): [DRI2] DRI driver: i965
[ 18702.088] (II) intel(0): [DRI2] VDPAU driver: i965
[ 18702.088] (II) intel(0): direct rendering: DRI2 enabled
[ 18702.088] (II) intel(0): hardware support for Present enabled
[ 18702.088] (--) RandR disabled
[ 18702.092] (II) SELinux: Disabled on system
[ 18702.112] (II) AIGLX: enabled GLX_MESA_copy_sub_buffer
[ 18702.112] (II) AIGLX: enabled GLX_ARB_create_context
[ 18702.112] (II) AIGLX: enabled GLX_ARB_create_context_profile
[ 18702.112] (II) AIGLX: enabled GLX_EXT_create_context_es2_profile
[ 18702.112] (II) AIGLX: enabled GLX_INTEL_swap_event
[ 18702.112] (II) AIGLX: enabled GLX_SGI_swap_control and GLX_MESA_swap_control
[ 18702.112] (II) AIGLX: enabled GLX_EXT_framebuffer_sRGB
[ 18702.112] (II) AIGLX: enabled GLX_ARB_fbconfig_float
[ 18702.112] (II) AIGLX: GLX_EXT_texture_from_pixmap backed by buffer objects
[ 18702.112] (II) AIGLX: enabled GLX_ARB_create_context_robustness
[ 18702.112] (II) AIGLX: Loaded and initialized i965
[ 18702.112] (II) GLX: Initialized DRI2 GL provider for screen 0
[ 18702.115] (II) intel(0): switch to mode 2560x1440@60.0 on eDP1 using pipe 0, position (0, 0), rotation normal, reflection none
[ 18702.132] (II) intel(0): Setting screen physical size to 677 x 381
[ 18702.156] (II) config/udev: Adding input device Power Button (/dev/input/event3)
[ 18702.156] (**) Power Button: Applying InputClass "evdev keyboard catchall"
[ 18702.156] (II) LoadModule: "evdev"
[ 18702.156] (II) Loading /usr/lib/xorg/modules/input/evdev_drv.so
[ 18702.157] (II) Module evdev: vendor="X.Org Foundation"
[ 18702.157] compiled for 1.16.4, module version = 2.9.2
[ 18702.157] Module class: X.Org XInput Driver
[ 18702.157] ABI class: X.Org XInput driver, version 21.0
[ 18702.157] (II) Using input driver 'evdev' for 'Power Button'
[ 18702.157] (**) Power Button: always reports core events
[ 18702.157] (**) evdev: Power Button: Device: "/dev/input/event3"
[ 18702.157] (--) evdev: Power Button: Vendor 0 Product 0x1
[ 18702.157] (--) evdev: Power Button: Found keys
[ 18702.157] (II) evdev: Power Button: Configuring as keyboard
[ 18702.157] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXPWRBN:00/input/input4/event3"
[ 18702.157] (II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD, id 6)
[ 18702.157] (**) Option "xkb_rules" "evdev"
[ 18702.157] (**) Option "xkb_model" "pc105"
[ 18702.157] (**) Option "xkb_layout" "de"
[ 18702.157] (**) Option "xkb_variant" "neo"
[ 18702.171] (II) config/udev: Adding input device Video Bus (/dev/input/event11)
[ 18702.171] (**) Video Bus: Applying InputClass "evdev keyboard catchall"
[ 18702.171] (II) Using input driver 'evdev' for 'Video Bus'
[ 18702.171] (**) Video Bus: always reports core events
[ 18702.171] (**) evdev: Video Bus: Device: "/dev/input/event11"
[ 18702.171] (--) evdev: Video Bus: Vendor 0 Product 0x6
[ 18702.171] (--) evdev: Video Bus: Found keys
[ 18702.171] (II) evdev: Video Bus: Configuring as keyboard
[ 18702.171] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:00/input/input13/event11"
[ 18702.171] (II) XINPUT: Adding extended input device "Video Bus" (type: KEYBOARD, id 7)
[ 18702.171] (**) Option "xkb_rules" "evdev"
[ 18702.171] (**) Option "xkb_model" "pc105"
[ 18702.171] (**) Option "xkb_layout" "de"
[ 18702.171] (**) Option "xkb_variant" "neo"
[ 18702.172] (II) config/udev: Adding input device Lid Switch (/dev/input/event1)
[ 18702.172] (II) No input driver specified, ignoring this device.
[ 18702.172] (II) This device may have been added with another device file.
[ 18702.172] (II) config/udev: Adding input device Sleep Button (/dev/input/event2)
[ 18702.172] (**) Sleep Button: Applying InputClass "evdev keyboard catchall"
[ 18702.172] (II) Using input driver 'evdev' for 'Sleep Button'
[ 18702.172] (**) Sleep Button: always reports core events
[ 18702.172] (**) evdev: Sleep Button: Device: "/dev/input/event2"
[ 18702.172] (--) evdev: Sleep Button: Vendor 0 Product 0x3
[ 18702.172] (--) evdev: Sleep Button: Found keys
[ 18702.172] (II) evdev: Sleep Button: Configuring as keyboard
[ 18702.172] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0E:00/input/input3/event2"
[ 18702.172] (II) XINPUT: Adding extended input device "Sleep Button" (type: KEYBOARD, id 8)
[ 18702.172] (**) Option "xkb_rules" "evdev"
[ 18702.172] (**) Option "xkb_model" "pc105"
[ 18702.172] (**) Option "xkb_layout" "de"
[ 18702.172] (**) Option "xkb_variant" "neo"
[ 18702.173] (II) config/udev: Adding input device HDA Intel HDMI HDMI/DP,pcm=3 (/dev/input/event12)
[ 18702.173] (II) No input driver specified, ignoring this device.
[ 18702.173] (II) This device may have been added with another device file.
[ 18702.173] (II) config/udev: Adding input device HDA Intel HDMI HDMI/DP,pcm=7 (/dev/input/event13)
[ 18702.173] (II) No input driver specified, ignoring this device.
[ 18702.173] (II) This device may have been added with another device file.
[ 18702.173] (II) config/udev: Adding input device HDA Intel HDMI HDMI/DP,pcm=8 (/dev/input/event14)
[ 18702.173] (II) No input driver specified, ignoring this device.
[ 18702.173] (II) This device may have been added with another device file.
[ 18702.173] (II) config/udev: Adding input device Integrated Camera (/dev/input/event6)
[ 18702.173] (**) Integrated Camera: Applying InputClass "evdev keyboard catchall"
[ 18702.173] (II) Using input driver 'evdev' for 'Integrated Camera'
[ 18702.173] (**) Integrated Camera: always reports core events
[ 18702.173] (**) evdev: Integrated Camera: Device: "/dev/input/event6"
[ 18702.173] (--) evdev: Integrated Camera: Vendor 0x4f2 Product 0xb45d
[ 18702.173] (--) evdev: Integrated Camera: Found keys
[ 18702.173] (II) evdev: Integrated Camera: Configuring as keyboard
[ 18702.173] (**) Option "config_info" "udev:/sys/devices/pci0000:00/0000:00:14.0/usb1/1-8/1-8:1.0/input/input9/event6"
[ 18702.173] (II) XINPUT: Adding extended input device "Integrated Camera" (type: KEYBOARD, id 9)
[ 18702.173] (**) Option "xkb_rules" "evdev"
[ 18702.173] (**) Option "xkb_model" "pc105"
[ 18702.173] (**) Option "xkb_layout" "de"
[ 18702.173] (**) Option "xkb_variant" "neo"
[ 18702.174] (II) config/udev: Adding input device HDA Digital PCBeep (/dev/input/event7)
[ 18702.174] (II) No input driver specified, ignoring this device.
[ 18702.174] (II) This device may have been added with another device file.
[ 18702.174] (II) config/udev: Adding input device HDA Intel PCH Mic (/dev/input/event8)
[ 18702.174] (II) No input driver specified, ignoring this device.
[ 18702.174] (II) This device may have been added with another device file.
[ 18702.174] (II) config/udev: Adding input device HDA Intel PCH Headphone (/dev/input/event9)
[ 18702.174] (II) No input driver specified, ignoring this device.
[ 18702.174] (II) This device may have been added with another device file.
[ 18702.174] (II) config/udev: Adding input device AT Translated Set 2 keyboard (/dev/input/event0)
[ 18702.174] (**) AT Translated Set 2 keyboard: Applying InputClass "evdev keyboard catchall"
[ 18702.174] (II) Using input driver 'evdev' for 'AT Translated Set 2 keyboard'
[ 18702.174] (**) AT Translated Set 2 keyboard: always reports core events
[ 18702.174] (**) evdev: AT Translated Set 2 keyboard: Device: "/dev/input/event0"
[ 18702.174] (--) evdev: AT Translated Set 2 keyboard: Vendor 0x1 Product 0x1
[ 18702.174] (--) evdev: AT Translated Set 2 keyboard: Found keys
[ 18702.174] (II) evdev: AT Translated Set 2 keyboard: Configuring as keyboard
[ 18702.174] (**) Option "config_info" "udev:/sys/devices/platform/i8042/serio0/input/input0/event0"
[ 18702.174] (II) XINPUT: Adding extended input device "AT Translated Set 2 keyboard" (type: KEYBOARD, id 10)
[ 18702.174] (**) Option "xkb_rules" "evdev"
[ 18702.174] (**) Option "xkb_model" "pc105"
[ 18702.174] (**) Option "xkb_layout" "de"
[ 18702.174] (**) Option "xkb_variant" "neo"
[ 18702.174] (II) config/udev: Adding input device SynPS/2 Synaptics TouchPad (/dev/input/event10)
[ 18702.174] (**) SynPS/2 Synaptics TouchPad: Applying InputClass "evdev touchpad catchall"
[ 18702.174] (**) SynPS/2 Synaptics TouchPad: Applying InputClass "touchpad catchall"
[ 18702.174] (**) SynPS/2 Synaptics TouchPad: Applying InputClass "Default clickpad buttons"
[ 18702.174] (II) LoadModule: "synaptics"
[ 18702.175] (II) Loading /usr/lib/xorg/modules/input/synaptics_drv.so
[ 18702.175] (II) Module synaptics: vendor="X.Org Foundation"
[ 18702.175] compiled for 1.16.4, module version = 1.8.2
[ 18702.175] Module class: X.Org XInput Driver
[ 18702.175] ABI class: X.Org XInput driver, version 21.0
[ 18702.175] (II) Using input driver 'synaptics' for 'SynPS/2 Synaptics TouchPad'
[ 18702.175] (**) SynPS/2 Synaptics TouchPad: always reports core events
[ 18702.175] (**) Option "Device" "/dev/input/event10"
[ 18702.276] (II) synaptics: SynPS/2 Synaptics TouchPad: found clickpad property
[ 18702.276] (--) synaptics: SynPS/2 Synaptics TouchPad: x-axis range 1266 - 5676 (res 45)
[ 18702.276] (--) synaptics: SynPS/2 Synaptics TouchPad: y-axis range 1096 - 4758 (res 68)
[ 18702.276] (--) synaptics: SynPS/2 Synaptics TouchPad: pressure range 0 - 255
[ 18702.276] (--) synaptics: SynPS/2 Synaptics TouchPad: finger width range 0 - 15
[ 18702.276] (--) synaptics: SynPS/2 Synaptics TouchPad: buttons: left double triple
[ 18702.276] (--) synaptics: SynPS/2 Synaptics TouchPad: Vendor 0x2 Product 0x7
[ 18702.276] (**) Option "SoftButtonAreas" "50% 0 82% 0 0 0 0 0"
[ 18702.276] (--) synaptics: SynPS/2 Synaptics TouchPad: touchpad found
[ 18702.276] (**) SynPS/2 Synaptics TouchPad: always reports core events
[ 18702.348] (**) Option "config_info" "udev:/sys/devices/platform/i8042/serio1/input/input6/event10"
[ 18702.348] (II) XINPUT: Adding extended input device "SynPS/2 Synaptics TouchPad" (type: TOUCHPAD, id 11)
[ 18702.348] (**) synaptics: SynPS/2 Synaptics TouchPad: (accel) MinSpeed is now constant deceleration 2.5
[ 18702.348] (**) synaptics: SynPS/2 Synaptics TouchPad: (accel) MaxSpeed is now 1.75
[ 18702.348] (**) synaptics: SynPS/2 Synaptics TouchPad: (accel) AccelFactor is now 0.035
[ 18702.348] (**) SynPS/2 Synaptics TouchPad: (accel) keeping acceleration scheme 1
[ 18702.348] (**) SynPS/2 Synaptics TouchPad: (accel) acceleration profile 1
[ 18702.348] (**) SynPS/2 Synaptics TouchPad: (accel) acceleration factor: 2.000
[ 18702.348] (**) SynPS/2 Synaptics TouchPad: (accel) acceleration threshold: 4
[ 18702.348] (--) synaptics: SynPS/2 Synaptics TouchPad: touchpad found
[ 18702.348] (II) config/udev: Adding input device SynPS/2 Synaptics TouchPad (/dev/input/mouse0)
[ 18702.348] (**) SynPS/2 Synaptics TouchPad: Ignoring device from InputClass "touchpad ignore duplicates"
[ 18702.348] (II) config/udev: Adding input device TPPS/2 IBM TrackPoint (/dev/input/event15)
[ 18702.349] (**) TPPS/2 IBM TrackPoint: Applying InputClass "evdev pointer catchall"
[ 18702.349] (II) Using input driver 'evdev' for 'TPPS/2 IBM TrackPoint'
[ 18702.349] (**) TPPS/2 IBM TrackPoint: always reports core events
[ 18702.349] (**) evdev: TPPS/2 IBM TrackPoint: Device: "/dev/input/event15"
[ 18702.349] (--) evdev: TPPS/2 IBM TrackPoint: Vendor 0x2 Product 0xa
[ 18702.349] (--) evdev: TPPS/2 IBM TrackPoint: Found 3 mouse buttons
[ 18702.349] (--) evdev: TPPS/2 IBM TrackPoint: Found relative axes
[ 18702.349] (--) evdev: TPPS/2 IBM TrackPoint: Found x and y relative axes
[ 18702.349] (II) evdev: TPPS/2 IBM TrackPoint: Configuring as mouse
[ 18702.349] (**) evdev: TPPS/2 IBM TrackPoint: YAxisMapping: buttons 4 and 5
[ 18702.349] (**) evdev: TPPS/2 IBM TrackPoint: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200
[ 18702.349] (**) Option "config_info" "udev:/sys/devices/platform/i8042/serio1/serio2/input/input12/event15"
[ 18702.349] (II) XINPUT: Adding extended input device "TPPS/2 IBM TrackPoint" (type: MOUSE, id 12)
[ 18702.349] (II) evdev: TPPS/2 IBM TrackPoint: initialized for relative axes.
[ 18702.349] (**) TPPS/2 IBM TrackPoint: (accel) keeping acceleration scheme 1
[ 18702.349] (**) TPPS/2 IBM TrackPoint: (accel) acceleration profile 0
[ 18702.349] (**) TPPS/2 IBM TrackPoint: (accel) acceleration factor: 2.000
[ 18702.349] (**) TPPS/2 IBM TrackPoint: (accel) acceleration threshold: 4
[ 18702.349] (II) config/udev: Adding input device TPPS/2 IBM TrackPoint (/dev/input/mouse1)
[ 18702.349] (II) No input driver specified, ignoring this device.
[ 18702.349] (II) This device may have been added with another device file.
[ 18702.349] (II) config/udev: Adding input device PC Speaker (/dev/input/event4)
[ 18702.349] (II) No input driver specified, ignoring this device.
[ 18702.349] (II) This device may have been added with another device file.
[ 18702.350] (II) config/udev: Adding input device ThinkPad Extra Buttons (/dev/input/event5)
[ 18702.350] (**) ThinkPad Extra Buttons: Applying InputClass "evdev keyboard catchall"
[ 18702.350] (II) Using input driver 'evdev' for 'ThinkPad Extra Buttons'
[ 18702.350] (**) ThinkPad Extra Buttons: always reports core events
[ 18702.350] (**) evdev: ThinkPad Extra Buttons: Device: "/dev/input/event5"
[ 18702.350] (--) evdev: ThinkPad Extra Buttons: Vendor 0x17aa Product 0x5054
[ 18702.350] (--) evdev: ThinkPad Extra Buttons: Found keys
[ 18702.350] (II) evdev: ThinkPad Extra Buttons: Configuring as keyboard
[ 18702.350] (**) Option "config_info" "udev:/sys/devices/platform/thinkpad_acpi/input/input5/event5"
[ 18702.350] (II) XINPUT: Adding extended input device "ThinkPad Extra Buttons" (type: KEYBOARD, id 13)
[ 18702.350] (**) Option "xkb_rules" "evdev"
[ 18702.350] (**) Option "xkb_model" "pc105"
[ 18702.350] (**) Option "xkb_layout" "de"
[ 18702.350] (**) Option "xkb_variant" "neo"
[ 18702.549] (II) intel(0): EDID vendor "LGD", prod id 1049
[ 18702.549] (II) intel(0): Printing DDC gathered Modelines:
[ 18702.549] (II) intel(0): Modeline "2560x1440"x0.0 237.80 2560 2608 2640 2720 1440 1442 1445 1457 +hsync -vsync (87.4 kHz eP)
udev information:
-----------------
P: /devices/LNXSYSTM:00/LNXPWRBN:00/input/input4
E: DEVPATH=/devices/LNXSYSTM:00/LNXPWRBN:00/input/input4
E: EV=3
E: ID_FOR_SEAT=input-acpi-LNXPWRBN_00
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-LNXPWRBN:00
E: ID_PATH_TAG=acpi-LNXPWRBN_00
E: KEY=10000000000000 0
E: MODALIAS=input:b0019v0000p0001e0000-e0,1,k74,ramlsfw
E: NAME="Power Button"
E: PHYS="LNXPWRBN/button/input0"
E: PRODUCT=19/0/1/0
E: PROP=0
E: SUBSYSTEM=input
E: TAGS=:seat:
E: USEC_INITIALIZED=637425
P: /devices/LNXSYSTM:00/LNXPWRBN:00/input/input4/event3
N: input/event3
E: BACKSPACE=guess
E: DEVNAME=/dev/input/event3
E: DEVPATH=/devices/LNXSYSTM:00/LNXPWRBN:00/input/input4/event3
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-LNXPWRBN:00
E: ID_PATH_TAG=acpi-LNXPWRBN_00
E: MAJOR=13
E: MINOR=67
E: SUBSYSTEM=input
E: TAGS=:power-switch:
E: USEC_INITIALIZED=655987
E: XKBLAYOUT=de
E: XKBMODEL=pc105
E: XKBVARIANT=neo
P: /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:00/input/input13
E: DEVPATH=/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:00/input/input13
E: EV=3
E: ID_FOR_SEAT=input-acpi-LNXVIDEO_00
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-LNXVIDEO:00
E: ID_PATH_TAG=acpi-LNXVIDEO_00
E: KEY=3e000b00000000 0 0 0
E: MODALIAS=input:b0019v0000p0006e0000-e0,1,kE0,E1,E3,F1,F2,F3,F4,F5,ramlsfw
E: NAME="Video Bus"
E: PHYS="LNXVIDEO/video/input0"
E: PRODUCT=19/0/6/0
E: PROP=0
E: SUBSYSTEM=input
E: TAGS=:seat:
E: USEC_INITIALIZED=818556
P: /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:00/input/input13/event11
N: input/event11
E: BACKSPACE=guess
E: DEVNAME=/dev/input/event11
E: DEVPATH=/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:00/input/input13/event11
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-LNXVIDEO:00
E: ID_PATH_TAG=acpi-LNXVIDEO_00
E: MAJOR=13
E: MINOR=75
E: SUBSYSTEM=input
E: TAGS=:power-switch:
E: USEC_INITIALIZED=818665
E: XKBLAYOUT=de
E: XKBMODEL=pc105
E: XKBVARIANT=neo
P: /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0D:00/input/input2
E: DEVPATH=/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0D:00/input/input2
E: EV=21
E: ID_FOR_SEAT=input-acpi-PNP0C0D_00
E: ID_INPUT=1
E: ID_PATH=acpi-PNP0C0D:00
E: ID_PATH_TAG=acpi-PNP0C0D_00
E: MODALIAS=input:b0019v0000p0005e0000-e0,5,kramlsfw0,
E: NAME="Lid Switch"
E: PHYS="PNP0C0D/button/input0"
E: PRODUCT=19/0/5/0
E: PROP=0
E: SUBSYSTEM=input
E: SW=1
E: TAGS=:seat:
E: USEC_INITIALIZED=636569
P: /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0D:00/input/input2/event1
N: input/event1
E: DEVNAME=/dev/input/event1
E: DEVPATH=/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0D:00/input/input2/event1
E: ID_INPUT=1
E: ID_PATH=acpi-PNP0C0D:00
E: ID_PATH_TAG=acpi-PNP0C0D_00
E: MAJOR=13
E: MINOR=65
E: SUBSYSTEM=input
E: TAGS=:power-switch:
E: USEC_INITIALIZED=655104
P: /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0E:00/input/input3
E: DEVPATH=/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0E:00/input/input3
E: EV=3
E: ID_FOR_SEAT=input-acpi-PNP0C0E_00
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-PNP0C0E:00
E: ID_PATH_TAG=acpi-PNP0C0E_00
E: KEY=4000 0 0
E: MODALIAS=input:b0019v0000p0003e0000-e0,1,k8E,ramlsfw
E: NAME="Sleep Button"
E: PHYS="PNP0C0E/button/input0"
E: PRODUCT=19/0/3/0
E: PROP=0
E: SUBSYSTEM=input
E: TAGS=:seat:
E: USEC_INITIALIZED=636771
P: /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0E:00/input/input3/event2
N: input/event2
E: BACKSPACE=guess
E: DEVNAME=/dev/input/event2
E: DEVPATH=/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0E:00/input/input3/event2
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-PNP0C0E:00
E: ID_PATH_TAG=acpi-PNP0C0E_00
E: MAJOR=13
E: MINOR=66
E: SUBSYSTEM=input
E: TAGS=:power-switch:
E: USEC_INITIALIZED=655516
E: XKBLAYOUT=de
E: XKBMODEL=pc105
E: XKBVARIANT=neo
P: /devices/pci0000:00/0000:00:03.0/sound/card0/input14
E: DEVPATH=/devices/pci0000:00/0000:00:03.0/sound/card0/input14
E: EV=21
E: ID_FOR_SEAT=input-pci-0000_00_03_0
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:03.0
E: ID_PATH_TAG=pci-0000_00_03_0
E: MODALIAS=input:b0000v0000p0000e0000-e0,5,kramlsfw6,8,
E: NAME="HDA Intel HDMI HDMI/DP,pcm=3"
E: PHYS="ALSA"
E: PRODUCT=0/0/0/0
E: PROP=0
E: SUBSYSTEM=input
E: SW=140
E: TAGS=:seat:
E: USEC_INITIALIZED=829762
P: /devices/pci0000:00/0000:00:03.0/sound/card0/input14/event12
N: input/event12
E: DEVNAME=/dev/input/event12
E: DEVPATH=/devices/pci0000:00/0000:00:03.0/sound/card0/input14/event12
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:03.0
E: ID_PATH_TAG=pci-0000_00_03_0
E: MAJOR=13
E: MINOR=76
E: SUBSYSTEM=input
E: USEC_INITIALIZED=830423
P: /devices/pci0000:00/0000:00:03.0/sound/card0/input15
E: DEVPATH=/devices/pci0000:00/0000:00:03.0/sound/card0/input15
E: EV=21
E: ID_FOR_SEAT=input-pci-0000_00_03_0
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:03.0
E: ID_PATH_TAG=pci-0000_00_03_0
E: MODALIAS=input:b0000v0000p0000e0000-e0,5,kramlsfw6,8,
E: NAME="HDA Intel HDMI HDMI/DP,pcm=7"
E: PHYS="ALSA"
E: PRODUCT=0/0/0/0
E: PROP=0
E: SUBSYSTEM=input
E: SW=140
E: TAGS=:seat:
E: USEC_INITIALIZED=830446
P: /devices/pci0000:00/0000:00:03.0/sound/card0/input15/event13
N: input/event13
E: DEVNAME=/dev/input/event13
E: DEVPATH=/devices/pci0000:00/0000:00:03.0/sound/card0/input15/event13
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:03.0
E: ID_PATH_TAG=pci-0000_00_03_0
E: MAJOR=13
E: MINOR=77
E: SUBSYSTEM=input
E: USEC_INITIALIZED=830625
P: /devices/pci0000:00/0000:00:03.0/sound/card0/input16
E: DEVPATH=/devices/pci0000:00/0000:00:03.0/sound/card0/input16
E: EV=21
E: ID_FOR_SEAT=input-pci-0000_00_03_0
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:03.0
E: ID_PATH_TAG=pci-0000_00_03_0
E: MODALIAS=input:b0000v0000p0000e0000-e0,5,kramlsfw6,8,
E: NAME="HDA Intel HDMI HDMI/DP,pcm=8"
E: PHYS="ALSA"
E: PRODUCT=0/0/0/0
E: PROP=0
E: SUBSYSTEM=input
E: SW=140
E: TAGS=:seat:
E: USEC_INITIALIZED=830673
P: /devices/pci0000:00/0000:00:03.0/sound/card0/input16/event14
N: input/event14
E: DEVNAME=/dev/input/event14
E: DEVPATH=/devices/pci0000:00/0000:00:03.0/sound/card0/input16/event14
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:03.0
E: ID_PATH_TAG=pci-0000_00_03_0
E: MAJOR=13
E: MINOR=78
E: SUBSYSTEM=input
E: USEC_INITIALIZED=830765
P: /devices/pci0000:00/0000:00:14.0/usb1/1-8/1-8:1.0/input/input9
E: DEVPATH=/devices/pci0000:00/0000:00:14.0/usb1/1-8/1-8:1.0/input/input9
E: EV=3
E: ID_BUS=usb
E: ID_FOR_SEAT=input-pci-0000_00_14_0-usb-0_8_1_0
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_MODEL=Integrated_Camera
E: ID_MODEL_ENC=Integrated\x20Camera
E: ID_MODEL_ID=b45d
E: ID_PATH=pci-0000:00:14.0-usb-0:8:1.0
E: ID_PATH_TAG=pci-0000_00_14_0-usb-0_8_1_0
E: ID_REVISION=0029
E: ID_SERIAL=Chicony_Electronics_Co._Ltd._Integrated_Camera_0x0001
E: ID_SERIAL_SHORT=0x0001
E: ID_TYPE=video
E: ID_USB_DRIVER=uvcvideo
E: ID_USB_INTERFACES=:0e0100:0e0200:
E: ID_USB_INTERFACE_NUM=00
E: ID_VENDOR=Chicony_Electronics_Co._Ltd.
E: ID_VENDOR_ENC=Chicony\x20Electronics\x20Co.\x2cLtd.
E: ID_VENDOR_ID=04f2
E: KEY=100000 0 0 0
E: MODALIAS=input:b0003v04F2pB45De0029-e0,1,kD4,ramlsfw
E: NAME="Integrated Camera"
E: PHYS="usb-0000:00:14.0-8/button"
E: PRODUCT=3/4f2/b45d/29
E: PROP=0
E: SUBSYSTEM=input
E: TAGS=:seat:
E: USEC_INITIALIZED=662321
P: /devices/pci0000:00/0000:00:14.0/usb1/1-8/1-8:1.0/input/input9/event6
N: input/event6
S: input/by-id/usb-Chicony_Electronics_Co._Ltd._Integrated_Camera_0x0001-event-if00
S: input/by-path/pci-0000:00:14.0-usb-0:8:1.0-event
E: BACKSPACE=guess
E: DEVLINKS=/dev/input/by-id/usb-Chicony_Electronics_Co._Ltd._Integrated_Camera_0x0001-event-if00 /dev/input/by-path/pci-0000:00:14.0-usb-0:8:1.0-event
E: DEVNAME=/dev/input/event6
E: DEVPATH=/devices/pci0000:00/0000:00:14.0/usb1/1-8/1-8:1.0/input/input9/event6
E: ID_BUS=usb
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_MODEL=Integrated_Camera
E: ID_MODEL_ENC=Integrated\x20Camera
E: ID_MODEL_ID=b45d
E: ID_PATH=pci-0000:00:14.0-usb-0:8:1.0
E: ID_PATH_TAG=pci-0000_00_14_0-usb-0_8_1_0
E: ID_REVISION=0029
E: ID_SERIAL=Chicony_Electronics_Co._Ltd._Integrated_Camera_0x0001
E: ID_SERIAL_SHORT=0x0001
E: ID_TYPE=video
E: ID_USB_DRIVER=uvcvideo
E: ID_USB_INTERFACES=:0e0100:0e0200:
E: ID_USB_INTERFACE_NUM=00
E: ID_VENDOR=Chicony_Electronics_Co._Ltd.
E: ID_VENDOR_ENC=Chicony\x20Electronics\x20Co.\x2cLtd.
E: ID_VENDOR_ID=04f2
E: MAJOR=13
E: MINOR=70
E: SUBSYSTEM=input
E: USEC_INITIALIZED=662587
E: XKBLAYOUT=de
E: XKBMODEL=pc105
E: XKBVARIANT=neo
P: /devices/pci0000:00/0000:00:1b.0/sound/card1/hdaudioC1D0/input8
E: DEVPATH=/devices/pci0000:00/0000:00:1b.0/sound/card1/hdaudioC1D0/input8
E: EV=40001
E: ID_FOR_SEAT=input-pci-0000_00_1b_0
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:1b.0
E: ID_PATH_TAG=pci-0000_00_1b_0
E: MODALIAS=input:b0001v10ECp0292e0001-e0,12,kramls1,2,fw
E: NAME="HDA Digital PCBeep"
E: PHYS="card1/codec#0/beep0"
E: PRODUCT=1/10ec/292/1
E: PROP=0
E: SND=6
E: SUBSYSTEM=input
E: TAGS=:seat:
E: USEC_INITIALIZED=662752
P: /devices/pci0000:00/0000:00:1b.0/sound/card1/hdaudioC1D0/input8/event7
N: input/event7
E: DEVNAME=/dev/input/event7
E: DEVPATH=/devices/pci0000:00/0000:00:1b.0/sound/card1/hdaudioC1D0/input8/event7
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:1b.0
E: ID_PATH_TAG=pci-0000_00_1b_0
E: MAJOR=13
E: MINOR=71
E: SUBSYSTEM=input
E: USEC_INITIALIZED=662769
P: /devices/pci0000:00/0000:00:1b.0/sound/card1/input10
E: DEVPATH=/devices/pci0000:00/0000:00:1b.0/sound/card1/input10
E: EV=21
E: ID_FOR_SEAT=input-pci-0000_00_1b_0
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:1b.0
E: ID_PATH_TAG=pci-0000_00_1b_0
E: MODALIAS=input:b0000v0000p0000e0000-e0,5,kramlsfw4,
E: NAME="HDA Intel PCH Mic"
E: PHYS="ALSA"
E: PRODUCT=0/0/0/0
E: PROP=0
E: SUBSYSTEM=input
E: SW=10
E: TAGS=:seat:
E: USEC_INITIALIZED=663065
P: /devices/pci0000:00/0000:00:1b.0/sound/card1/input10/event8
N: input/event8
E: DEVNAME=/dev/input/event8
E: DEVPATH=/devices/pci0000:00/0000:00:1b.0/sound/card1/input10/event8
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:1b.0
E: ID_PATH_TAG=pci-0000_00_1b_0
E: MAJOR=13
E: MINOR=72
E: SUBSYSTEM=input
E: USEC_INITIALIZED=663831
P: /devices/pci0000:00/0000:00:1b.0/sound/card1/input11
E: DEVPATH=/devices/pci0000:00/0000:00:1b.0/sound/card1/input11
E: EV=21
E: ID_FOR_SEAT=input-pci-0000_00_1b_0
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:1b.0
E: ID_PATH_TAG=pci-0000_00_1b_0
E: MODALIAS=input:b0000v0000p0000e0000-e0,5,kramlsfw2,
E: NAME="HDA Intel PCH Headphone"
E: PHYS="ALSA"
E: PRODUCT=0/0/0/0
E: PROP=0
E: SUBSYSTEM=input
E: SW=4
E: TAGS=:seat:
E: USEC_INITIALIZED=665474
P: /devices/pci0000:00/0000:00:1b.0/sound/card1/input11/event9
N: input/event9
E: DEVNAME=/dev/input/event9
E: DEVPATH=/devices/pci0000:00/0000:00:1b.0/sound/card1/input11/event9
E: ID_INPUT=1
E: ID_PATH=pci-0000:00:1b.0
E: ID_PATH_TAG=pci-0000_00_1b_0
E: MAJOR=13
E: MINOR=73
E: SUBSYSTEM=input
E: USEC_INITIALIZED=665931
P: /devices/platform/i8042/serio0/input/input0
E: DEVPATH=/devices/platform/i8042/serio0/input/input0
E: EV=120013
E: ID_FOR_SEAT=input-platform-i8042-serio-0
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_INPUT_KEYBOARD=1
E: ID_PATH=platform-i8042-serio-0
E: ID_PATH_TAG=platform-i8042-serio-0
E: ID_SERIAL=noserial
E: KEY=402000000 3803078f800d001 feffffdfffefffff fffffffffffffffe
E: LED=7
E: MODALIAS=input:b0011v0001p0001eAB54-e0,1,4,11,14,k71,72,73,74,75,76,77,79,7A,7B,7C,7D,7E,7F,80,8C,8E,8F,9B,9C,9D,9E,9F,A3,A4,A5,A6,AC,AD,B7,B8,B9,D9,E2,ram4,l0,1,2,sfw
E: MSC=10
E: NAME="AT Translated Set 2 keyboard"
E: PHYS="isa0060/serio0/input0"
E: PRODUCT=11/1/1/ab54
E: PROP=0
E: SUBSYSTEM=input
E: TAGS=:seat:
E: USEC_INITIALIZED=39204
P: /devices/platform/i8042/serio0/input/input0/event0
N: input/event0
S: input/by-path/platform-i8042-serio-0-event-kbd
E: BACKSPACE=guess
E: DEVLINKS=/dev/input/by-path/platform-i8042-serio-0-event-kbd
E: DEVNAME=/dev/input/event0
E: DEVPATH=/devices/platform/i8042/serio0/input/input0/event0
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_INPUT_KEYBOARD=1
E: ID_PATH=platform-i8042-serio-0
E: ID_PATH_TAG=platform-i8042-serio-0
E: ID_SERIAL=noserial
E: MAJOR=13
E: MINOR=64
E: SUBSYSTEM=input
E: USEC_INITIALIZED=654370
E: XKBLAYOUT=de
E: XKBMODEL=pc105
E: XKBVARIANT=neo
P: /devices/platform/i8042/serio1/input/input6
E: ABS=660800011000003
E: DEVPATH=/devices/platform/i8042/serio1/input/input6
E: EV=b
E: ID_FOR_SEAT=input-platform-i8042-serio-1
E: ID_INPUT=1
E: ID_INPUT_TOUCHPAD=1
E: ID_PATH=platform-i8042-serio-1
E: ID_PATH_TAG=platform-i8042-serio-1
E: ID_SERIAL=noserial
E: KEY=e520 10000 0 0 0 0
E: MODALIAS=input:b0011v0002p0007e01B1-e0,1,3,k110,145,148,14A,14D,14E,14F,ra0,1,18,1C,2F,35,36,39,3A,mlsfw
E: NAME="SynPS/2 Synaptics TouchPad"
E: PHYS="isa0060/serio1/input0"
E: PRODUCT=11/2/7/1b1
E: PROP=5
E: SUBSYSTEM=input
E: TAGS=:seat:
E: USEC_INITIALIZED=514547
P: /devices/platform/i8042/serio1/input/input6/event10
N: input/event10
S: input/by-path/platform-i8042-serio-1-event-mouse
E: DEVLINKS=/dev/input/by-path/platform-i8042-serio-1-event-mouse
E: DEVNAME=/dev/input/event10
E: DEVPATH=/devices/platform/i8042/serio1/input/input6/event10
E: ID_INPUT=1
E: ID_INPUT_TOUCHPAD=1
E: ID_PATH=platform-i8042-serio-1
E: ID_PATH_TAG=platform-i8042-serio-1
E: ID_SERIAL=noserial
E: MAJOR=13
E: MINOR=74
E: SUBSYSTEM=input
E: USEC_INITIALIZED=514717
P: /devices/platform/i8042/serio1/input/input6/mouse0
N: input/mouse0
S: input/by-path/platform-i8042-serio-1-mouse
E: DEVLINKS=/dev/input/by-path/platform-i8042-serio-1-mouse
E: DEVNAME=/dev/input/mouse0
E: DEVPATH=/devices/platform/i8042/serio1/input/input6/mouse0
E: ID_INPUT=1
E: ID_INPUT_TOUCHPAD=1
E: ID_PATH=platform-i8042-serio-1
E: ID_PATH_TAG=platform-i8042-serio-1
E: ID_SERIAL=noserial
E: MAJOR=13
E: MINOR=32
E: SUBSYSTEM=input
E: USEC_INITIALIZED=514695
P: /devices/platform/i8042/serio1/serio2/input/input12
E: DEVPATH=/devices/platform/i8042/serio1/serio2/input/input12
E: EV=7
E: ID_FOR_SEAT=input-platform-i8042-serio-2
E: ID_INPUT=1
E: ID_INPUT_MOUSE=1
E: ID_PATH=platform-i8042-serio-2
E: ID_PATH_TAG=platform-i8042-serio-2
E: ID_SERIAL=noserial
E: KEY=70000 0 0 0 0
E: MODALIAS=input:b0011v0002p000Ae0000-e0,1,2,k110,111,112,r0,1,amlsfw
E: NAME="TPPS/2 IBM TrackPoint"
E: PHYS="synaptics-pt/serio0/input0"
E: PRODUCT=11/2/a/0
E: PROP=0
E: REL=3
E: SUBSYSTEM=input
E: TAGS=:seat:
E: USEC_INITIALIZED=18680162
P: /devices/platform/i8042/serio1/serio2/input/input12/event15
N: input/event15
S: input/by-path/platform-i8042-serio-2-event-mouse
E: DEVLINKS=/dev/input/by-path/platform-i8042-serio-2-event-mouse
E: DEVNAME=/dev/input/event15
E: DEVPATH=/devices/platform/i8042/serio1/serio2/input/input12/event15
E: ID_INPUT=1
E: ID_INPUT_MOUSE=1
E: ID_PATH=platform-i8042-serio-2
E: ID_PATH_TAG=platform-i8042-serio-2
E: ID_SERIAL=noserial
E: MAJOR=13
E: MINOR=79
E: SUBSYSTEM=input
E: USEC_INITIALIZED=18680359
P: /devices/platform/i8042/serio1/serio2/input/input12/mouse1
N: input/mouse1
S: input/by-path/platform-i8042-serio-2-mouse
E: DEVLINKS=/dev/input/by-path/platform-i8042-serio-2-mouse
E: DEVNAME=/dev/input/mouse1
E: DEVPATH=/devices/platform/i8042/serio1/serio2/input/input12/mouse1
E: ID_INPUT=1
E: ID_INPUT_MOUSE=1
E: ID_PATH=platform-i8042-serio-2
E: ID_PATH_TAG=platform-i8042-serio-2
E: ID_SERIAL=noserial
E: MAJOR=13
E: MINOR=33
E: SUBSYSTEM=input
E: USEC_INITIALIZED=680344
P: /devices/platform/pcspkr/input/input7
E: DEVPATH=/devices/platform/pcspkr/input/input7
E: EV=40001
E: ID_FOR_SEAT=input-platform-pcspkr
E: ID_INPUT=1
E: ID_PATH=platform-pcspkr
E: ID_PATH_TAG=platform-pcspkr
E: ID_SERIAL=noserial
E: MODALIAS=input:b0010v001Fp0001e0100-e0,12,kramls1,2,fw
E: NAME="PC Speaker"
E: PHYS="isa0061/input0"
E: PRODUCT=10/1f/1/100
E: PROP=0
E: SND=6
E: SUBSYSTEM=input
E: TAGS=:seat:
E: USEC_INITIALIZED=657647
P: /devices/platform/pcspkr/input/input7/event4
N: input/event4
S: input/by-path/platform-pcspkr-event-spkr
E: DEVLINKS=/dev/input/by-path/platform-pcspkr-event-spkr
E: DEVNAME=/dev/input/event4
E: DEVPATH=/devices/platform/pcspkr/input/input7/event4
E: ID_INPUT=1
E: ID_PATH=platform-pcspkr
E: ID_PATH_TAG=platform-pcspkr
E: ID_SERIAL=noserial
E: MAJOR=13
E: MINOR=68
E: SUBSYSTEM=input
E: USEC_INITIALIZED=657711
P: /devices/platform/thinkpad_acpi/input/input5
E: DEVPATH=/devices/platform/thinkpad_acpi/input/input5
E: EV=33
E: ID_FOR_SEAT=input-platform-thinkpad_acpi
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=platform-thinkpad_acpi
E: ID_PATH_TAG=platform-thinkpad_acpi
E: KEY=18040000 0 10000000000000 0 1501b02102004 c000080021104000 10e000000000000 0
E: MODALIAS=input:b0019v17AAp5054e4101-e0,1,4,5,k71,72,73,78,8E,94,98,9D,AB,BE,BF,C2,CD,D4,D9,E0,E1,E3,E4,EC,EE,F0,174,1D2,1DB,1DC,ram4,lsfw3,
E: MSC=10
E: NAME="ThinkPad Extra Buttons"
E: PHYS="thinkpad_acpi/input0"
E: PRODUCT=19/17aa/5054/4101
E: PROP=0
E: SUBSYSTEM=input
E: SW=8
E: TAGS=:seat:
E: USEC_INITIALIZED=658079
P: /devices/platform/thinkpad_acpi/input/input5/event5
N: input/event5
S: input/by-path/platform-thinkpad_acpi-event
E: BACKSPACE=guess
E: DEVLINKS=/dev/input/by-path/platform-thinkpad_acpi-event
E: DEVNAME=/dev/input/event5
E: DEVPATH=/devices/platform/thinkpad_acpi/input/input5/event5
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=platform-thinkpad_acpi
E: ID_PATH_TAG=platform-thinkpad_acpi
E: KEYBOARD_KEY_01=screenlock
E: KEYBOARD_KEY_02=battery
E: KEYBOARD_KEY_03=sleep
E: KEYBOARD_KEY_04=wlan
E: KEYBOARD_KEY_06=switchvideomode
E: KEYBOARD_KEY_07=f21
E: KEYBOARD_KEY_08=f24
E: KEYBOARD_KEY_0b=suspend
E: KEYBOARD_KEY_0f=brightnessup
E: KEYBOARD_KEY_10=brightnessdown
E: KEYBOARD_KEY_11=kbdillumtoggle
E: KEYBOARD_KEY_13=zoom
E: KEYBOARD_KEY_14=volumeup
E: KEYBOARD_KEY_15=volumedown
E: KEYBOARD_KEY_16=mute
E: KEYBOARD_KEY_17=prog1
E: KEYBOARD_KEY_1a=f20
E: MAJOR=13
E: MINOR=69
E: SUBSYSTEM=input
E: TAGS=:power-switch:
E: USEC_INITIALIZED=658537
E: XKBLAYOUT=de
E: XKBMODEL=pc105
E: XKBVARIANT=neo
DRM Information from dmesg:
---------------------------
[ 4142.569028] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[ 4148.550985] [drm] stuck on render ring
[ 4148.551806] [drm] GPU HANG: ecode 0:0x01dff88b, in Xorg [25231], reason: Ring hung, action: reset
[ 4150.553018] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[ 4928.612966] ata4.00: supports DRM functions and may not be fully accessible
[ 4928.616149] ata4.00: supports DRM functions and may not be fully accessible
[ 4930.325626] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[ 4935.366635] [drm] stuck on render ring
[ 4935.367482] [drm] GPU HANG: ecode 0:0x01dff88b, in Xorg [25231], reason: Ring hung, action: reset
[ 4937.368657] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[ 5110.713007] ata4.00: supports DRM functions and may not be fully accessible
[ 5110.716151] ata4.00: supports DRM functions and may not be fully accessible
[ 5111.545293] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[ 5117.551204] [drm] stuck on render ring
[ 5117.552901] [drm] GPU HANG: ecode 0:0x01dff88b, in Xorg [25231], reason: Ring hung, action: reset
[ 5119.553208] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[14020.163404] ata4.00: supports DRM functions and may not be fully accessible
[14020.166943] ata4.00: supports DRM functions and may not be fully accessible
[14021.452255] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[14027.494343] [drm] stuck on render ring
[14027.495945] [drm] GPU HANG: ecode 0:0x01dff88b, in Xorg [25231], reason: Ring hung, action: reset
[14029.496364] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18395.516497] ata4.00: supports DRM functions and may not be fully accessible
[18395.518963] ata4.00: supports DRM functions and may not be fully accessible
[18396.845009] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18456.551219] ata4.00: supports DRM functions and may not be fully accessible
[18456.554650] ata4.00: supports DRM functions and may not be fully accessible
[18457.931987] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18477.642072] ata4.00: supports DRM functions and may not be fully accessible
[18477.645302] ata4.00: supports DRM functions and may not be fully accessible
[18478.943221] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18484.973244] [drm] stuck on render ring
[18484.974106] [drm] GPU HANG: ecode 0:0x01dff88b, in Xorg [25231], reason: Ring hung, action: reset
[18486.975266] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18739.743111] ata4.00: supports DRM functions and may not be fully accessible
[18739.746409] ata4.00: supports DRM functions and may not be fully accessible
[18741.196469] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18746.225514] [drm] stuck on render ring
[18746.226375] [drm] GPU HANG: ecode 0:0x01dff88b, in Xorg [18341], reason: Ring hung, action: reset
[18748.227524] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18801.836085] ata4.00: supports DRM functions and may not be fully accessible
[18801.839337] ata4.00: supports DRM functions and may not be fully accessible
[18803.284877] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18808.265907] [drm] stuck on render ring
[18808.267228] [drm] GPU HANG: ecode 0:0x01dff88b, in Xorg [18341], reason: Ring hung, action: reset
[18810.267900] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18957.663036] ata4.00: supports DRM functions and may not be fully accessible
[18957.665965] ata4.00: supports DRM functions and may not be fully accessible
[18958.418779] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[18964.460761] [drm] stuck on render ring
[18964.462418] [drm] GPU HANG: ecode 0:0x01dff88b, in Xorg [18341], reason: Ring hung, action: reset
[18966.462759] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
[19028.895489] ata4.00: supports DRM functions and may not be fully accessible
[19028.898234] ata4.00: supports DRM functions and may not be fully accessible
[19030.493122] [drm] Enabling RC6 states: RC6 on, RC6p off, RC6pp off
-- System Information:
Debian Release: stretch/sid
APT prefers testing
APT policy: (500, 'testing')
Architecture: amd64 (x86_64)
Kernel: Linux 3.16.0-4-amd64 (SMP w/4 CPU cores)
Locale: LANG=en_US.UTF-8, LC_CTYPE=en_US.UTF-8 (charmap=UTF-8) (ignored: LC_ALL set to en_US.UTF-8)
Shell: /bin/sh linked to /bin/dash
Init: systemd (via /run/systemd/system)
Versions of packages xserver-xorg-video-intel depends on:
ii libc6 2.19-18
ii libdrm-intel1 2.4.60-3
ii libdrm2 2.4.60-3
ii libpciaccess0 0.13.3-1
ii libpixman-1-0 0.32.6-3
ii libudev1 215-18
ii libx11-6 2:1.6.3-1
ii libx11-xcb1 2:1.6.3-1
ii libxcb-dri2-0 1.10-3+b1
ii libxcb-dri3-0 1.10-3+b1
ii libxcb-sync1 1.10-3+b1
ii libxcb-util0 0.3.8-3
ii libxcb1 1.10-3+b1
ii libxcursor1 1:1.1.14-1+b1
ii libxdamage1 1:1.1.4-2+b1
ii libxext6 2:1.3.3-1
ii libxfixes3 1:5.0.1-2+b2
ii libxinerama1 2:1.1.3-1+b1
ii libxrandr2 2:1.4.2-1+b1
ii libxrender1 1:0.9.8-1+b1
ii libxshmfence1 1.2-1
ii libxtst6 2:1.2.2-1+b1
ii libxv1 2:1.0.10-1+b1
ii libxvmc1 2:1.0.9-1
ii xserver-xorg-core [xorg-video-abi-19] 2:1.17.1-2
xserver-xorg-video-intel recommends no packages.
xserver-xorg-video-intel suggests no packages.
-- no debconf information
Attachment:
Description: PNG image
