Package: xserver-xorg-video-nouveau
Version: 1:1.0.1-1
Severity: normal
Dear Maintainer,
since the recent nouveau updates I’m encountering missing graphics on various
programs (e.g. gtk’s filechooser, LibreOffice, Iceape, Pidgin,
xfce4-panel’s pager and on
lightdm’s gtk-greeter).

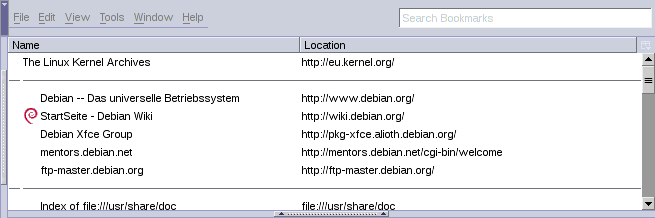

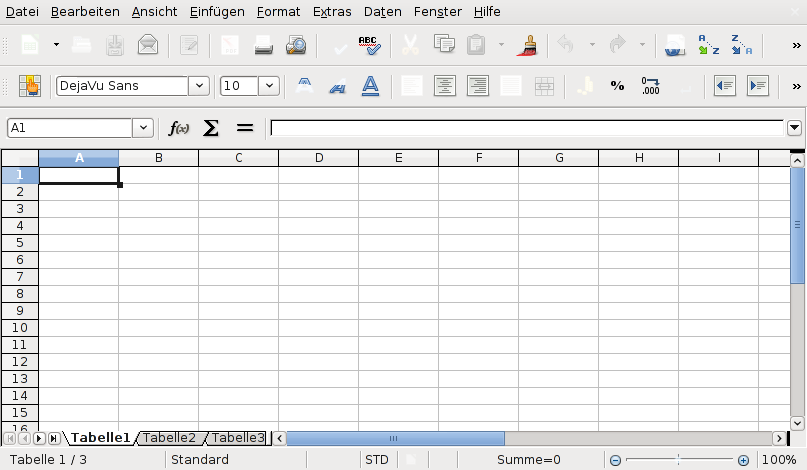

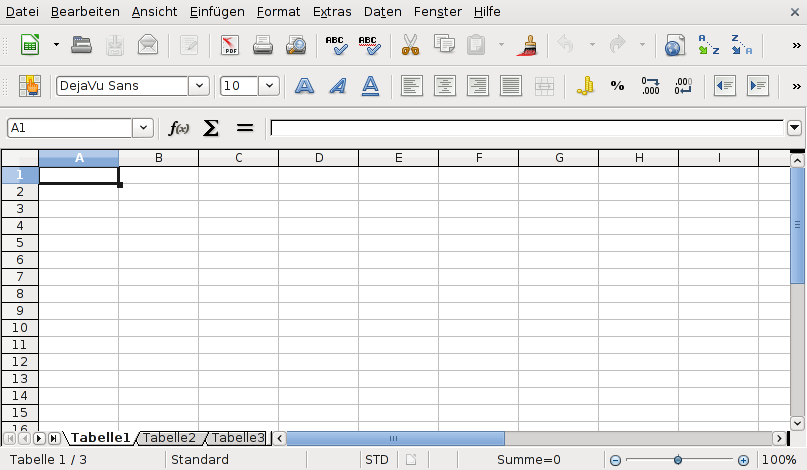

See attached screenshots for some examples.
Tested broken versions are 1:0.0.16+git20120529+ace77b6-1,
1:0.0.16+git20120614+36d3f8c-1, 1:1.0.1-1.
Last good version was 1:0.0.16+git20120322+ab7291d-1.
-- Package-specific info:
X server symlink status:
------------------------
lrwxrwxrwx 1 root root 13 Aug 23 2007 /etc/X11/X -> /usr/bin/Xorg
-rwxr-xr-x 1 root root 2027892 May 20 12:31 /usr/bin/Xorg
VGA-compatible devices on PCI bus:
----------------------------------
01:00.0 VGA compatible controller [0300]: NVIDIA Corporation NV11 [GeForce2
MX/MX 400] [10de:0110] (rev b2)
Xorg X server configuration file status:
----------------------------------------
-rw-r--r-- 1 root root 1107 Aug 23 2010 /etc/X11/xorg.conf
Contents of /etc/X11/xorg.conf:
-------------------------------
Section "ServerLayout"
Identifier "Default"
Screen "Screen0"
EndSection
Section "ServerFlags"
# switch off monitor after <OffTime> minutes of inactivity
Option "OffTime" "10"
# don't load default input devices; just use input hotplugging
Option "AllowEmptyInput" "true"
# don't include default 'FontPath'
Option "UseDefaultFontPath" "false"
EndSection
Section "Files"
ModulePath "/usr/lib/xorg/modules"
FontPath "/usr/share/fonts/X11/misc"
FontPath "/usr/share/fonts/X11/100dpi/:unscaled"
FontPath "/var/lib/defoma/x-ttcidfont-conf.d/dirs/TrueType"
FontPath "/usr/local/share/fonts/gmk"
FontPath "/usr/share/fonts/X11/100dpi"
FontPath "/usr/share/fonts/X11/Type1"
FontPath "/usr/share/fonts/X11/75dpi/:unscaled"
FontPath "/usr/share/fonts/X11/75dpi"
EndSection
Section "Device"
Identifier "Card0"
Driver "nouveau"
EndSection
Section "Screen"
Identifier "Screen0"
Device "Card0"
EndSection
Section "Extensions"
Option "Composite" "Disable"
EndSection
Contents of /etc/X11/xorg.conf.d:
---------------------------------
total 4
-rw-r--r-- 1 root root 213 Apr 28 2010 99-keyboard.conf
/etc/modprobe.d contains no KMS configuration files.
Kernel version (/proc/version):
-------------------------------
Linux version 3.4.0 (root@gerrit) (gcc version 4.7.0 (Debian 4.7.0-8) ) #6
PREEMPT Tue May 22 16:36:30 CEST 2012
Xorg X server log files on system:
----------------------------------
-rw-r--r-- 1 root root 12540 Mar 19 2010 /var/log/Xorg.20.log
-rw-r--r-- 1 root root 9261 Nov 8 2010 /var/log/Xorg.3.log
-rw-r--r-- 1 root root 9261 Nov 8 2010 /var/log/Xorg.2.log
-rw-r--r-- 1 root root 9261 Nov 8 2010 /var/log/Xorg.5.log
-rw-r--r-- 1 root root 9261 Nov 8 2010 /var/log/Xorg.4.log
-rw-r--r-- 1 root root 31105 Jun 26 11:38 /var/log/Xorg.0.log
-rw-r--r-- 1 root root 30735 Jun 26 11:59 /var/log/Xorg.1.log
Contents of most recent Xorg X server log file (/var/log/Xorg.1.log):
---------------------------------------------------------------------
[ 11769.904]
X.Org X Server 1.12.1.902 (1.12.2 RC 2)
Release Date: 2012-05-19
[ 11769.905] X Protocol Version 11, Revision 0
[ 11769.905] Build Operating System: Linux 2.6.32-5-686-bigmem i686 Debian
[ 11769.905] Current Operating System: Linux gerrit 3.4.0 #6 PREEMPT Tue May 22
16:36:30 CEST 2012 i686
[ 11769.905] Kernel command line: BOOT_IMAGE=/boot/vmlinuz-3.4.0 root=/dev/sda2
ro quiet
[ 11769.905] Build Date: 20 May 2012 10:23:38AM
[ 11769.905] xorg-server 2:1.12.1.902-1 (Cyril Brulebois <kibi@debian.org>)
[ 11769.905] Current version of pixman: 0.26.0
[ 11769.905] Before reporting problems, check http://wiki.x.org
to make sure that you have the latest version.
[ 11769.905] Markers: (--) probed, (**) from config file, (==) default setting,
(++) from command line, (!!) notice, (II) informational,
(WW) warning, (EE) error, (NI) not implemented, (??) unknown.
[ 11769.905] (==) Log file: "/var/log/Xorg.1.log", Time: Tue Jun 26 11:57:52
2012
[ 11769.906] (==) Using config file: "/etc/X11/xorg.conf"
[ 11769.906] (==) Using config directory: "/etc/X11/xorg.conf.d"
[ 11769.906] (==) Using system config directory "/usr/share/X11/xorg.conf.d"
[ 11769.939] (==) ServerLayout "Default"
[ 11769.939] (**) |-->Screen "Screen0" (0)
[ 11769.939] (**) | |-->Monitor "<default monitor>"
[ 11769.940] (**) | |-->Device "Card0"
[ 11769.940] (==) No monitor specified for screen "Screen0".
Using a default monitor configuration.
[ 11769.940] (**) Option "OffTime" "10"
[ 11769.940] (**) Option "UseDefaultFontPath" "false"
[ 11769.940] (==) Automatically adding devices
[ 11769.940] (==) Automatically enabling devices
[ 11769.950] (WW) The directory "/var/lib/defoma/x-ttcidfont-
conf.d/dirs/TrueType" does not exist.
[ 11769.951] Entry deleted from font path.
[ 11769.956] (**) FontPath set to:
/usr/share/fonts/X11/misc,
/usr/share/fonts/X11/100dpi/:unscaled,
/usr/local/share/fonts/gmk,
/usr/share/fonts/X11/100dpi,
/usr/share/fonts/X11/Type1,
/usr/share/fonts/X11/75dpi/:unscaled,
/usr/share/fonts/X11/75dpi
[ 11769.956] (**) ModulePath set to "/usr/lib/xorg/modules"
[ 11769.956] (**) Extension "Composite" is disabled
[ 11769.956] (II) The server relies on udev to provide the list of input
devices.
If no devices become available, reconfigure udev or disable
AutoAddDevices.
[ 11769.956] (II) Loader magic: 0xb772d5a0
[ 11769.956] (II) Module ABI versions:
[ 11769.956] X.Org ANSI C Emulation: 0.4
[ 11769.956] X.Org Video Driver: 12.0
[ 11769.956] X.Org XInput driver : 16.0
[ 11769.956] X.Org Server Extension : 6.0
[ 11769.957] (--) PCI:*(0:1:0:0) 10de:0110:1048:0c64 rev 178, Mem @
0xd6000000/16777216, 0xd8000000/134217728, BIOS @ 0x????????/65536
[ 11769.957] (WW) Open ACPI failed (/var/run/acpid.socket) (No such file or
directory)
[ 11769.957] (II) LoadModule: "extmod"
[ 11769.958] (II) Loading /usr/lib/xorg/modules/extensions/libextmod.so
[ 11769.958] (II) Module extmod: vendor="X.Org Foundation"
[ 11769.958] compiled for 1.12.1.902, module version = 1.0.0
[ 11769.958] Module class: X.Org Server Extension
[ 11769.958] ABI class: X.Org Server Extension, version 6.0
[ 11769.958] (II) Loading extension SELinux
[ 11769.958] (II) Loading extension MIT-SCREEN-SAVER
[ 11769.958] (II) Loading extension XFree86-VidModeExtension
[ 11769.958] (II) Loading extension XFree86-DGA
[ 11769.958] (II) Loading extension DPMS
[ 11769.958] (II) Loading extension XVideo
[ 11769.958] (II) Loading extension XVideo-MotionCompensation
[ 11769.958] (II) Loading extension X-Resource
[ 11769.958] (II) LoadModule: "dbe"
[ 11769.959] (II) Loading /usr/lib/xorg/modules/extensions/libdbe.so
[ 11769.964] (II) Module dbe: vendor="X.Org Foundation"
[ 11769.965] compiled for 1.12.1.902, module version = 1.0.0
[ 11769.965] Module class: X.Org Server Extension
[ 11769.965] ABI class: X.Org Server Extension, version 6.0
[ 11769.965] (II) Loading extension DOUBLE-BUFFER
[ 11769.965] (II) LoadModule: "glx"
[ 11769.965] (II) Loading /usr/lib/xorg/modules/extensions/libglx.so
[ 11769.981] (II) Module glx: vendor="X.Org Foundation"
[ 11769.981] compiled for 1.12.1.902, module version = 1.0.0
[ 11769.981] ABI class: X.Org Server Extension, version 6.0
[ 11769.981] (==) AIGLX enabled
[ 11769.981] (II) Loading extension GLX
[ 11769.981] (II) LoadModule: "record"
[ 11769.981] (II) Loading /usr/lib/xorg/modules/extensions/librecord.so
[ 11769.986] (II) Module record: vendor="X.Org Foundation"
[ 11769.986] compiled for 1.12.1.902, module version = 1.13.0
[ 11769.986] Module class: X.Org Server Extension
[ 11769.986] ABI class: X.Org Server Extension, version 6.0
[ 11769.986] (II) Loading extension RECORD
[ 11769.986] (II) LoadModule: "dri"
[ 11769.986] (II) Loading /usr/lib/xorg/modules/extensions/libdri.so
[ 11769.994] (II) Module dri: vendor="X.Org Foundation"
[ 11769.994] compiled for 1.12.1.902, module version = 1.0.0
[ 11769.994] ABI class: X.Org Server Extension, version 6.0
[ 11769.994] (II) Loading extension XFree86-DRI
[ 11769.994] (II) LoadModule: "dri2"
[ 11769.995] (II) Loading /usr/lib/xorg/modules/extensions/libdri2.so
[ 11770.009] (II) Module dri2: vendor="X.Org Foundation"
[ 11770.009] compiled for 1.12.1.902, module version = 1.2.0
[ 11770.009] ABI class: X.Org Server Extension, version 6.0
[ 11770.009] (II) Loading extension DRI2
[ 11770.009] (II) LoadModule: "nouveau"
[ 11770.009] (II) Loading /usr/lib/xorg/modules/drivers/nouveau_drv.so
[ 11770.009] (II) Module nouveau: vendor="X.Org Foundation"
[ 11770.009] compiled for 1.12.1.902, module version = 1.0.1
[ 11770.009] Module class: X.Org Video Driver
[ 11770.009] ABI class: X.Org Video Driver, version 12.0
[ 11770.009] (II) NOUVEAU driver Date: Tue Jun 19 10:12:37 2012 +1000
[ 11770.009] (II) NOUVEAU driver for NVIDIA chipset families :
[ 11770.010] RIVA TNT (NV04)
[ 11770.010] RIVA TNT2 (NV05)
[ 11770.010] GeForce 256 (NV10)
[ 11770.010] GeForce 2 (NV11, NV15)
[ 11770.010] GeForce 4MX (NV17, NV18)
[ 11770.010] GeForce 3 (NV20)
[ 11770.010] GeForce 4Ti (NV25, NV28)
[ 11770.010] GeForce FX (NV3x)
[ 11770.010] GeForce 6 (NV4x)
[ 11770.010] GeForce 7 (G7x)
[ 11770.010] GeForce 8 (G8x)
[ 11770.010] GeForce GTX 200 (NVA0)
[ 11770.010] GeForce GTX 400 (NVC0)
[ 11770.010] (++) using VT number 7
[ 11770.010] drmOpenDevice: node name is /dev/dri/card0
[ 11770.010] drmOpenDevice: open result is 7, (OK)
[ 11770.010] drmOpenByBusid: Searching for BusID pci:0000:01:00.0
[ 11770.010] drmOpenDevice: node name is /dev/dri/card0
[ 11770.010] drmOpenDevice: open result is 7, (OK)
[ 11770.010] drmOpenByBusid: drmOpenMinor returns 7
[ 11770.011] drmOpenByBusid: drmGetBusid reports pci:0000:01:00.0
[ 11770.011] (II) [drm] nouveau interface version: 1.0.0
[ 11770.011] (WW) VGA arbiter: cannot open kernel arbiter, no multi-card
support
[ 11770.011] (II) Loading sub module "dri"
[ 11770.011] (II) LoadModule: "dri"
[ 11770.011] (II) Loading /usr/lib/xorg/modules/extensions/libdri.so
[ 11770.011] (II) Module dri: vendor="X.Org Foundation"
[ 11770.011] compiled for 1.12.1.902, module version = 1.0.0
[ 11770.011] ABI class: X.Org Server Extension, version 6.0
[ 11770.011] (II) NOUVEAU(0): Loaded DRI module
[ 11770.011] drmOpenDevice: node name is /dev/dri/card0
[ 11770.011] drmOpenDevice: open result is 7, (OK)
[ 11770.011] drmOpenDevice: node name is /dev/dri/card0
[ 11770.011] drmOpenDevice: open result is 7, (OK)
[ 11770.011] drmOpenByBusid: Searching for BusID pci:0000:01:00.0
[ 11770.011] drmOpenDevice: node name is /dev/dri/card0
[ 11770.011] drmOpenDevice: open result is 7, (OK)
[ 11770.011] drmOpenByBusid: drmOpenMinor returns 7
[ 11770.011] drmOpenByBusid: drmGetBusid reports pci:0000:01:00.0
[ 11770.011] (II) [drm] DRM interface version 1.4
[ 11770.011] (II) [drm] DRM open master succeeded.
[ 11770.011] (--) NOUVEAU(0): Chipset: "NVIDIA NV11"
[ 11770.011] (II) NOUVEAU(0): Creating default Display subsection in Screen
section
"Screen0" for depth/fbbpp 24/32
[ 11770.012] (==) NOUVEAU(0): Depth 24, (--) framebuffer bpp 32
[ 11770.012] (==) NOUVEAU(0): RGB weight 888
[ 11770.012] (==) NOUVEAU(0): Default visual is TrueColor
[ 11770.012] (==) NOUVEAU(0): Using HW cursor
[ 11770.012] (==) NOUVEAU(0): GLX sync to VBlank disabled.
[ 11770.012] (==) NOUVEAU(0): Page flipping enabled
[ 11770.012] (==) NOUVEAU(0): Swap limit set to 2 [Max allowed 2]
[ 11770.042] (II) NOUVEAU(0): Output VGA-1 has no monitor section
[ 11770.074] (II) NOUVEAU(0): EDID for output VGA-1
[ 11770.074] (II) NOUVEAU(0): Manufacturer: PTS Model: 899 Serial#: 16843009
[ 11770.074] (II) NOUVEAU(0): Year: 2007 Week: 32
[ 11770.074] (II) NOUVEAU(0): EDID Version: 1.3
[ 11770.074] (II) NOUVEAU(0): Analog Display Input, Input Voltage Level:
0.700/0.300 V
[ 11770.074] (II) NOUVEAU(0): Sync: Separate
[ 11770.074] (II) NOUVEAU(0): Max Image Size [cm]: horiz.: 47 vert.: 30
[ 11770.074] (II) NOUVEAU(0): Gamma: 2.20
[ 11770.074] (II) NOUVEAU(0): DPMS capabilities: StandBy Suspend Off; RGB/Color
Display
[ 11770.074] (II) NOUVEAU(0): First detailed timing is preferred mode
[ 11770.074] (II) NOUVEAU(0): redX: 0.644 redY: 0.333 greenX: 0.286 greenY:
0.603
[ 11770.074] (II) NOUVEAU(0): blueX: 0.152 blueY: 0.079 whiteX: 0.313 whiteY:
0.329
[ 11770.074] (II) NOUVEAU(0): Supported established timings:
[ 11770.074] (II) NOUVEAU(0): 720x400@70Hz
[ 11770.074] (II) NOUVEAU(0): 640x480@60Hz
[ 11770.074] (II) NOUVEAU(0): 640x480@72Hz
[ 11770.075] (II) NOUVEAU(0): 640x480@75Hz
[ 11770.075] (II) NOUVEAU(0): 800x600@60Hz
[ 11770.075] (II) NOUVEAU(0): 800x600@72Hz
[ 11770.075] (II) NOUVEAU(0): 800x600@75Hz
[ 11770.075] (II) NOUVEAU(0): 1024x768@60Hz
[ 11770.075] (II) NOUVEAU(0): 1024x768@70Hz
[ 11770.075] (II) NOUVEAU(0): 1024x768@75Hz
[ 11770.075] (II) NOUVEAU(0): 1280x1024@75Hz
[ 11770.075] (II) NOUVEAU(0): Manufacturer's mask: 0
[ 11770.075] (II) NOUVEAU(0): Supported standard timings:
[ 11770.075] (II) NOUVEAU(0): #0: hsize: 1280 vsize 1024 refresh: 60 vid:
32897
[ 11770.075] (II) NOUVEAU(0): #1: hsize: 1680 vsize 1050 refresh: 60 vid:
179
[ 11770.075] (II) NOUVEAU(0): #2: hsize: 1440 vsize 900 refresh: 60 vid: 149
[ 11770.075] (II) NOUVEAU(0): #3: hsize: 1440 vsize 900 refresh: 75 vid:
3989
[ 11770.075] (II) NOUVEAU(0): Supported detailed timing:
[ 11770.075] (II) NOUVEAU(0): clock: 146.2 MHz Image Size: 474 x 296 mm
[ 11770.075] (II) NOUVEAU(0): h_active: 1680 h_sync: 1784 h_sync_end 1960
h_blank_end 2240 h_border: 0
[ 11770.075] (II) NOUVEAU(0): v_active: 1050 v_sync: 1053 v_sync_end 1059
v_blanking: 1089 v_border: 0
[ 11770.075] (II) NOUVEAU(0): Supported detailed timing:
[ 11770.075] (II) NOUVEAU(0): clock: 106.5 MHz Image Size: 474 x 296 mm
[ 11770.075] (II) NOUVEAU(0): h_active: 1440 h_sync: 1520 h_sync_end 1672
h_blank_end 1904 h_border: 0
[ 11770.075] (II) NOUVEAU(0): v_active: 900 v_sync: 903 v_sync_end 909
v_blanking: 934 v_border: 0
[ 11770.075] (II) NOUVEAU(0): Ranges: V min: 56 V max: 76 Hz, H min: 31 H max:
80 kHz, PixClock max 155 MHz
[ 11770.075] (II) NOUVEAU(0): Serial No: 708011254
[ 11770.075] (II) NOUVEAU(0): EDID (in hex):
[ 11770.075] (II) NOUVEAU(0): 00ffffffffffff004293990801010101
[ 11770.075] (II) NOUVEAU(0): 20110103082f1e78ead515a455499a27
[ 11770.075] (II) NOUVEAU(0): 145054adcf008180b3009500950f0101
[ 11770.075] (II) NOUVEAU(0): 01010101010121399030621a274068b0
[ 11770.075] (II) NOUVEAU(0): 3600da281100001c9a29a0d051842230
[ 11770.075] (II) NOUVEAU(0): 50983600da281100001c000000fd0038
[ 11770.075] (II) NOUVEAU(0): 4c1f500f000a202020202020000000ff
[ 11770.075] (II) NOUVEAU(0): 003730383031313235340a202020006b
[ 11770.075] (II) NOUVEAU(0): EDID vendor "PTS", prod id 2201
[ 11770.075] (II) NOUVEAU(0): Using EDID range info for horizontal sync
[ 11770.075] (II) NOUVEAU(0): Using EDID range info for vertical refresh
[ 11770.075] (II) NOUVEAU(0): Printing DDC gathered Modelines:
[ 11770.075] (II) NOUVEAU(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960
2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz eP)
[ 11770.075] (II) NOUVEAU(0): Modeline "1440x900"x0.0 106.50 1440 1520 1672
1904 900 903 909 934 -hsync +vsync (55.9 kHz e)
[ 11770.075] (II) NOUVEAU(0): Modeline "800x600"x0.0 40.00 800 840 968 1056
600 601 605 628 +hsync +vsync (37.9 kHz e)
[ 11770.075] (II) NOUVEAU(0): Modeline "640x480"x0.0 31.50 640 656 720 840
480 481 484 500 -hsync -vsync (37.5 kHz e)
[ 11770.075] (II) NOUVEAU(0): Modeline "640x480"x0.0 31.50 640 664 704 832
480 489 492 520 -hsync -vsync (37.9 kHz e)
[ 11770.075] (II) NOUVEAU(0): Modeline "640x480"x0.0 25.18 640 656 752 800
480 490 492 525 -hsync -vsync (31.5 kHz e)
[ 11770.075] (II) NOUVEAU(0): Modeline "720x400"x0.0 28.32 720 738 846 900
400 412 414 449 -hsync +vsync (31.5 kHz e)
[ 11770.075] (II) NOUVEAU(0): Modeline "1280x1024"x0.0 135.00 1280 1296 1440
1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz e)
[ 11770.075] (II) NOUVEAU(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136
1312 768 769 772 800 +hsync +vsync (60.0 kHz e)
[ 11770.075] (II) NOUVEAU(0): Modeline "1024x768"x0.0 75.00 1024 1048 1184
1328 768 771 777 806 -hsync -vsync (56.5 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184
1344 768 771 777 806 -hsync -vsync (48.4 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "800x600"x0.0 49.50 800 816 896 1056
600 601 604 625 +hsync +vsync (46.9 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "800x600"x0.0 50.00 800 856 976 1040
600 637 643 666 +hsync +vsync (48.1 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440
1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "1440x900"x0.0 136.75 1440 1536 1688
1936 900 903 909 942 -hsync +vsync (70.6 kHz e)
[ 11770.076] (II) NOUVEAU(0): Printing probed modes for output VGA-1
[ 11770.076] (II) NOUVEAU(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960
2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz eP)
[ 11770.076] (II) NOUVEAU(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440
1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440
1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "1440x900"x75.0 136.75 1440 1536 1688
1936 900 903 909 942 -hsync +vsync (70.6 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "1440x900"x59.9 106.50 1440 1520 1672
1904 900 903 909 934 -hsync +vsync (55.9 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "1024x768"x75.1 78.80 1024 1040 1136
1312 768 769 772 800 +hsync +vsync (60.1 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184
1328 768 771 777 806 -hsync -vsync (56.5 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184
1344 768 771 777 806 -hsync -vsync (48.4 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "800x600"x72.2 50.00 800 856 976 1040
600 637 643 666 +hsync +vsync (48.1 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "800x600"x75.0 49.50 800 816 896 1056
600 601 604 625 +hsync +vsync (46.9 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "800x600"x60.3 40.00 800 840 968 1056
600 601 605 628 +hsync +vsync (37.9 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "640x480"x72.8 31.50 640 664 704 832
480 489 491 520 -hsync -vsync (37.9 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "640x480"x75.0 31.50 640 656 720 840
480 481 484 500 -hsync -vsync (37.5 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "640x480"x60.0 25.20 640 656 752 800
480 490 492 525 -hsync -vsync (31.5 kHz e)
[ 11770.076] (II) NOUVEAU(0): Modeline "720x400"x70.1 28.32 720 738 846 900
400 412 414 449 -hsync +vsync (31.5 kHz e)
[ 11770.076] (II) NOUVEAU(0): Output VGA-1 connected
[ 11770.076] (II) NOUVEAU(0): Using exact sizes for initial modes
[ 11770.076] (II) NOUVEAU(0): Output VGA-1 using initial mode 1680x1050
[ 11770.076] (II) NOUVEAU(0): Using default gamma of (1.0, 1.0, 1.0) unless
otherwise stated.
[ 11770.076] (--) NOUVEAU(0): Virtual size is 1680x1050 (pitch 0)
[ 11770.076] (**) NOUVEAU(0): Driver mode "1680x1050": 146.2 MHz (scaled from
0.0 MHz), 65.3 kHz, 60.0 Hz
[ 11770.076] (II) NOUVEAU(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960
2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz eP)
[ 11770.076] (**) NOUVEAU(0): Driver mode "1280x1024": 135.0 MHz (scaled from
0.0 MHz), 80.0 kHz, 75.0 Hz
[ 11770.076] (II) NOUVEAU(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440
1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz e)
[ 11770.076] (**) NOUVEAU(0): Driver mode "1280x1024": 108.0 MHz (scaled from
0.0 MHz), 64.0 kHz, 60.0 Hz
[ 11770.076] (II) NOUVEAU(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440
1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz e)
[ 11770.076] (**) NOUVEAU(0): Driver mode "1440x900": 136.8 MHz (scaled from
0.0 MHz), 70.6 kHz, 75.0 Hz
[ 11770.076] (II) NOUVEAU(0): Modeline "1440x900"x75.0 136.75 1440 1536 1688
1936 900 903 909 942 -hsync +vsync (70.6 kHz e)
[ 11770.076] (**) NOUVEAU(0): Driver mode "1440x900": 106.5 MHz (scaled from
0.0 MHz), 55.9 kHz, 59.9 Hz
[ 11770.076] (II) NOUVEAU(0): Modeline "1440x900"x59.9 106.50 1440 1520 1672
1904 900 903 909 934 -hsync +vsync (55.9 kHz e)
[ 11770.076] (**) NOUVEAU(0): Driver mode "1024x768": 78.8 MHz (scaled from
0.0 MHz), 60.1 kHz, 75.1 Hz
[ 11770.076] (II) NOUVEAU(0): Modeline "1024x768"x75.1 78.80 1024 1040 1136
1312 768 769 772 800 +hsync +vsync (60.1 kHz e)
[ 11770.076] (**) NOUVEAU(0): Driver mode "1024x768": 75.0 MHz (scaled from
0.0 MHz), 56.5 kHz, 70.1 Hz
[ 11770.076] (II) NOUVEAU(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184
1328 768 771 777 806 -hsync -vsync (56.5 kHz e)
[ 11770.076] (**) NOUVEAU(0): Driver mode "1024x768": 65.0 MHz (scaled from
0.0 MHz), 48.4 kHz, 60.0 Hz
[ 11770.076] (II) NOUVEAU(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184
1344 768 771 777 806 -hsync -vsync (48.4 kHz e)
[ 11770.077] (**) NOUVEAU(0): Driver mode "800x600": 50.0 MHz (scaled from 0.0
MHz), 48.1 kHz, 72.2 Hz
[ 11770.077] (II) NOUVEAU(0): Modeline "800x600"x72.2 50.00 800 856 976 1040
600 637 643 666 +hsync +vsync (48.1 kHz e)
[ 11770.077] (**) NOUVEAU(0): Driver mode "800x600": 49.5 MHz (scaled from 0.0
MHz), 46.9 kHz, 75.0 Hz
[ 11770.077] (II) NOUVEAU(0): Modeline "800x600"x75.0 49.50 800 816 896 1056
600 601 604 625 +hsync +vsync (46.9 kHz e)
[ 11770.077] (**) NOUVEAU(0): Driver mode "800x600": 40.0 MHz (scaled from 0.0
MHz), 37.9 kHz, 60.3 Hz
[ 11770.077] (II) NOUVEAU(0): Modeline "800x600"x60.3 40.00 800 840 968 1056
600 601 605 628 +hsync +vsync (37.9 kHz e)
[ 11770.077] (**) NOUVEAU(0): Driver mode "640x480": 31.5 MHz (scaled from 0.0
MHz), 37.9 kHz, 72.8 Hz
[ 11770.077] (II) NOUVEAU(0): Modeline "640x480"x72.8 31.50 640 664 704 832
480 489 491 520 -hsync -vsync (37.9 kHz e)
[ 11770.077] (**) NOUVEAU(0): Driver mode "640x480": 31.5 MHz (scaled from 0.0
MHz), 37.5 kHz, 75.0 Hz
[ 11770.077] (II) NOUVEAU(0): Modeline "640x480"x75.0 31.50 640 656 720 840
480 481 484 500 -hsync -vsync (37.5 kHz e)
[ 11770.077] (**) NOUVEAU(0): Driver mode "640x480": 25.2 MHz (scaled from 0.0
MHz), 31.5 kHz, 60.0 Hz
[ 11770.077] (II) NOUVEAU(0): Modeline "640x480"x60.0 25.20 640 656 752 800
480 490 492 525 -hsync -vsync (31.5 kHz e)
[ 11770.077] (**) NOUVEAU(0): Driver mode "720x400": 28.3 MHz (scaled from 0.0
MHz), 31.5 kHz, 70.1 Hz
[ 11770.077] (II) NOUVEAU(0): Modeline "720x400"x70.1 28.32 720 738 846 900
400 412 414 449 -hsync +vsync (31.5 kHz e)
[ 11770.077] (**) NOUVEAU(0): Display dimensions: (470, 300) mm
[ 11770.077] (**) NOUVEAU(0): DPI set to (90, 88)
[ 11770.077] (II) Loading sub module "fb"
[ 11770.077] (II) LoadModule: "fb"
[ 11770.077] (II) Loading /usr/lib/xorg/modules/libfb.so
[ 11770.086] (II) Module fb: vendor="X.Org Foundation"
[ 11770.086] compiled for 1.12.1.902, module version = 1.0.0
[ 11770.086] ABI class: X.Org ANSI C Emulation, version 0.4
[ 11770.086] (II) Loading sub module "exa"
[ 11770.086] (II) LoadModule: "exa"
[ 11770.086] (II) Loading /usr/lib/xorg/modules/libexa.so
[ 11770.094] (II) Module exa: vendor="X.Org Foundation"
[ 11770.094] compiled for 1.12.1.902, module version = 2.5.0
[ 11770.095] ABI class: X.Org Video Driver, version 12.0
[ 11770.095] (II) Loading sub module "shadowfb"
[ 11770.095] (II) LoadModule: "shadowfb"
[ 11770.095] (II) Loading /usr/lib/xorg/modules/libshadowfb.so
[ 11770.096] (II) Module shadowfb: vendor="X.Org Foundation"
[ 11770.096] compiled for 1.12.1.902, module version = 1.0.0
[ 11770.096] ABI class: X.Org ANSI C Emulation, version 0.4
[ 11770.096] (--) Depth 24 pixmap format is 32 bpp
[ 11770.096] (II) NOUVEAU(0): Opened GPU channel 1
[ 11770.097] (II) NOUVEAU(0): [DRI2] Setup complete
[ 11770.097] (II) NOUVEAU(0): [DRI2] DRI driver: nouveau_vieux
[ 11770.097] (II) NOUVEAU(0): [DRI2] VDPAU driver: nouveau_vieux
[ 11770.097] (II) EXA(0): Driver allocated offscreen pixmaps
[ 11770.097] (II) EXA(0): Driver registered support for the following
operations:
[ 11770.097] (II) Solid
[ 11770.097] (II) Copy
[ 11770.097] (II) Composite (RENDER acceleration)
[ 11770.097] (II) UploadToScreen
[ 11770.097] (II) DownloadFromScreen
[ 11770.097] (==) NOUVEAU(0): Backing store disabled
[ 11770.097] (==) NOUVEAU(0): Silken mouse enabled
[ 11770.097] (==) NOUVEAU(0): DPMS enabled
[ 11770.097] (II) NOUVEAU(0): RandR 1.2 enabled, ignore the following RandR
disabled message.
[ 11770.098] (--) RandR disabled
[ 11770.098] (II) Initializing built-in extension Generic Event Extension
[ 11770.098] (II) Initializing built-in extension SHAPE
[ 11770.098] (II) Initializing built-in extension MIT-SHM
[ 11770.098] (II) Initializing built-in extension XInputExtension
[ 11770.098] (II) Initializing built-in extension XTEST
[ 11770.098] (II) Initializing built-in extension BIG-REQUESTS
[ 11770.098] (II) Initializing built-in extension SYNC
[ 11770.098] (II) Initializing built-in extension XKEYBOARD
[ 11770.098] (II) Initializing built-in extension XC-MISC
[ 11770.098] (II) Initializing built-in extension SECURITY
[ 11770.098] (II) Initializing built-in extension XINERAMA
[ 11770.098] (II) Initializing built-in extension XFIXES
[ 11770.098] (II) Initializing built-in extension RENDER
[ 11770.098] (II) Initializing built-in extension RANDR
[ 11770.098] (II) Initializing built-in extension COMPOSITE
[ 11770.098] (II) Initializing built-in extension DAMAGE
[ 11770.098] (II) SELinux: Disabled on system
[ 11770.147] (II) AIGLX: enabled GLX_MESA_copy_sub_buffer
[ 11770.147] (II) AIGLX: enabled GLX_INTEL_swap_event
[ 11770.147] (II) AIGLX: enabled GLX_SGI_swap_control and GLX_MESA_swap_control
[ 11770.147] (II) AIGLX: GLX_EXT_texture_from_pixmap backed by buffer objects
[ 11770.148] (II) AIGLX: Loaded and initialized nouveau_vieux
[ 11770.148] (II) GLX: Initialized DRI2 GL provider for screen 0
[ 11770.160] (II) NOUVEAU(0): NVEnterVT is called.
[ 11770.182] (II) NOUVEAU(0): Setting screen physical size to 444 x 277
[ 11770.182] resize called 1680 1050
[ 11770.640] (II) config/udev: Adding input device Power Button
(/dev/input/event1)
[ 11770.640] (**) Power Button: Applying InputClass "evdev keyboard catchall"
[ 11770.640] (**) Power Button: Applying InputClass "keyboard-general"
[ 11770.640] (II) LoadModule: "evdev"
[ 11770.641] (II) Loading /usr/lib/xorg/modules/input/evdev_drv.so
[ 11770.649] (II) Module evdev: vendor="X.Org Foundation"
[ 11770.650] compiled for 1.12.1, module version = 2.7.0
[ 11770.650] Module class: X.Org XInput Driver
[ 11770.650] ABI class: X.Org XInput driver, version 16.0
[ 11770.650] (II) Using input driver 'evdev' for 'Power Button'
[ 11770.650] (**) Power Button: always reports core events
[ 11770.650] (**) evdev: Power Button: Device: "/dev/input/event1"
[ 11770.650] (--) evdev: Power Button: Vendor 0 Product 0x1
[ 11770.650] (--) evdev: Power Button: Found keys
[ 11770.650] (II) evdev: Power Button: Configuring as keyboard
[ 11770.650] (**) Option "config_info"
"udev:/sys/devices/LNXSYSTM:00/LNXPWRBN:00/input/input1/event1"
[ 11770.650] (II) XINPUT: Adding extended input device "Power Button" (type:
KEYBOARD, id 6)
[ 11770.650] (**) Option "xkb_rules" "evdev"
[ 11770.650] (**) Option "xkb_model" "pc105"
[ 11770.650] (**) Option "xkb_layout" "de"
[ 11770.650] (**) Option "xkb_variant" "nodeadkeys"
[ 11770.650] (**) Option "xkb_options" "lv3:ralt_switch,compose:caps"
[ 11770.711] (II) config/udev: Adding input device Power Button
(/dev/input/event0)
[ 11770.711] (**) Power Button: Applying InputClass "evdev keyboard catchall"
[ 11770.711] (**) Power Button: Applying InputClass "keyboard-general"
[ 11770.711] (II) Using input driver 'evdev' for 'Power Button'
[ 11770.711] (**) Power Button: always reports core events
[ 11770.711] (**) evdev: Power Button: Device: "/dev/input/event0"
[ 11770.711] (--) evdev: Power Button: Vendor 0 Product 0x1
[ 11770.711] (--) evdev: Power Button: Found keys
[ 11770.712] (II) evdev: Power Button: Configuring as keyboard
[ 11770.712] (**) Option "config_info"
"udev:/sys/devices/LNXSYSTM:00/device:00/PNP0C0C:00/input/input0/event0"
[ 11770.712] (II) XINPUT: Adding extended input device "Power Button" (type:
KEYBOARD, id 7)
[ 11770.712] (**) Option "xkb_rules" "evdev"
[ 11770.712] (**) Option "xkb_model" "pc105"
[ 11770.712] (**) Option "xkb_layout" "de"
[ 11770.712] (**) Option "xkb_variant" "nodeadkeys"
[ 11770.712] (**) Option "xkb_options" "lv3:ralt_switch,compose:caps"
[ 11770.713] (II) config/udev: Adding input device AT Translated Set 2 keyboard
(/dev/input/event2)
[ 11770.713] (**) AT Translated Set 2 keyboard: Applying InputClass "evdev
keyboard catchall"
[ 11770.713] (**) AT Translated Set 2 keyboard: Applying InputClass "keyboard-
general"
[ 11770.713] (II) Using input driver 'evdev' for 'AT Translated Set 2 keyboard'
[ 11770.713] (**) AT Translated Set 2 keyboard: always reports core events
[ 11770.713] (**) evdev: AT Translated Set 2 keyboard: Device:
"/dev/input/event2"
[ 11770.713] (--) evdev: AT Translated Set 2 keyboard: Vendor 0x1 Product 0x1
[ 11770.713] (--) evdev: AT Translated Set 2 keyboard: Found keys
[ 11770.713] (II) evdev: AT Translated Set 2 keyboard: Configuring as keyboard
[ 11770.713] (**) Option "config_info"
"udev:/sys/devices/platform/i8042/serio0/input/input2/event2"
[ 11770.713] (II) XINPUT: Adding extended input device "AT Translated Set 2
keyboard" (type: KEYBOARD, id 8)
[ 11770.714] (**) Option "xkb_rules" "evdev"
[ 11770.714] (**) Option "xkb_model" "pc105"
[ 11770.714] (**) Option "xkb_layout" "de"
[ 11770.714] (**) Option "xkb_variant" "nodeadkeys"
[ 11770.714] (**) Option "xkb_options" "lv3:ralt_switch,compose:caps"
[ 11770.715] (II) config/udev: Adding input device ImPS/2 Generic Wheel Mouse
(/dev/input/event3)
[ 11770.715] (**) ImPS/2 Generic Wheel Mouse: Applying InputClass "evdev
pointer catchall"
[ 11770.715] (II) Using input driver 'evdev' for 'ImPS/2 Generic Wheel Mouse'
[ 11770.715] (**) ImPS/2 Generic Wheel Mouse: always reports core events
[ 11770.715] (**) evdev: ImPS/2 Generic Wheel Mouse: Device:
"/dev/input/event3"
[ 11770.715] (--) evdev: ImPS/2 Generic Wheel Mouse: Vendor 0x2 Product 0x5
[ 11770.715] (--) evdev: ImPS/2 Generic Wheel Mouse: Found 3 mouse buttons
[ 11770.715] (--) evdev: ImPS/2 Generic Wheel Mouse: Found scroll wheel(s)
[ 11770.715] (--) evdev: ImPS/2 Generic Wheel Mouse: Found relative axes
[ 11770.715] (--) evdev: ImPS/2 Generic Wheel Mouse: Found x and y relative
axes
[ 11770.715] (II) evdev: ImPS/2 Generic Wheel Mouse: Configuring as mouse
[ 11770.715] (II) evdev: ImPS/2 Generic Wheel Mouse: Adding scrollwheel support
[ 11770.715] (**) evdev: ImPS/2 Generic Wheel Mouse: YAxisMapping: buttons 4
and 5
[ 11770.715] (**) evdev: ImPS/2 Generic Wheel Mouse: EmulateWheelButton: 4,
EmulateWheelInertia: 10, EmulateWheelTimeout: 200
[ 11770.715] (**) Option "config_info"
"udev:/sys/devices/platform/i8042/serio1/input/input3/event3"
[ 11770.715] (II) XINPUT: Adding extended input device "ImPS/2 Generic Wheel
Mouse" (type: MOUSE, id 9)
[ 11770.715] (II) evdev: ImPS/2 Generic Wheel Mouse: initialized for relative
axes.
[ 11770.716] (**) ImPS/2 Generic Wheel Mouse: (accel) keeping acceleration
scheme 1
[ 11770.716] (**) ImPS/2 Generic Wheel Mouse: (accel) acceleration profile 0
[ 11770.716] (**) ImPS/2 Generic Wheel Mouse: (accel) acceleration factor:
2.000
[ 11770.716] (**) ImPS/2 Generic Wheel Mouse: (accel) acceleration threshold: 4
[ 11859.518] (II) NOUVEAU(0): EDID vendor "PTS", prod id 2201
[ 11859.518] (II) NOUVEAU(0): Using hsync ranges from config file
[ 11859.518] (II) NOUVEAU(0): Using vrefresh ranges from config file
[ 11859.518] (II) NOUVEAU(0): Printing DDC gathered Modelines:
[ 11859.518] (II) NOUVEAU(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960
2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz eP)
[ 11859.518] (II) NOUVEAU(0): Modeline "1440x900"x0.0 106.50 1440 1520 1672
1904 900 903 909 934 -hsync +vsync (55.9 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "800x600"x0.0 40.00 800 840 968 1056
600 601 605 628 +hsync +vsync (37.9 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "640x480"x0.0 31.50 640 656 720 840
480 481 484 500 -hsync -vsync (37.5 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "640x480"x0.0 31.50 640 664 704 832
480 489 492 520 -hsync -vsync (37.9 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "640x480"x0.0 25.18 640 656 752 800
480 490 492 525 -hsync -vsync (31.5 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "720x400"x0.0 28.32 720 738 846 900
400 412 414 449 -hsync +vsync (31.5 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "1280x1024"x0.0 135.00 1280 1296 1440
1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136
1312 768 769 772 800 +hsync +vsync (60.0 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "1024x768"x0.0 75.00 1024 1048 1184
1328 768 771 777 806 -hsync -vsync (56.5 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184
1344 768 771 777 806 -hsync -vsync (48.4 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "800x600"x0.0 49.50 800 816 896 1056
600 601 604 625 +hsync +vsync (46.9 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "800x600"x0.0 50.00 800 856 976 1040
600 637 643 666 +hsync +vsync (48.1 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440
1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz e)
[ 11859.518] (II) NOUVEAU(0): Modeline "1440x900"x0.0 136.75 1440 1536 1688
1936 900 903 909 942 -hsync +vsync (70.6 kHz e)
[ 11859.525] resize called 1680 1050
udev information:
-----------------
P: /devices/LNXSYSTM:00/LNXPWRBN:00/input/input1
E: DEVPATH=/devices/LNXSYSTM:00/LNXPWRBN:00/input/input1
E: EV=3
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-LNXPWRBN:00
E: ID_PATH_TAG=acpi-LNXPWRBN_00
E: KEY=100000 0 0 0
E: MODALIAS=input:b0019v0000p0001e0000-e0,1,k74,ramlsfw
E: NAME="Power Button"
E: PHYS="LNXPWRBN/button/input0"
E: PRODUCT=19/0/1/0
E: PROP=0
E: SUBSYSTEM=input
E: UDEV_LOG=3
E: USEC_INITIALIZED=3335673
P: /devices/LNXSYSTM:00/LNXPWRBN:00/input/input1/event1
N: input/event1
E: BACKSPACE=guess
E: DEVNAME=/dev/input/event1
E: DEVPATH=/devices/LNXSYSTM:00/LNXPWRBN:00/input/input1/event1
E: DMI_VENDOR=System Manufacturer
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-LNXPWRBN:00
E: ID_PATH_TAG=acpi-LNXPWRBN_00
E: MAJOR=13
E: MINOR=65
E: SUBSYSTEM=input
E: UDEV_LOG=3
E: USEC_INITIALIZED=3384456
E: XKBLAYOUT=de
E: XKBMODEL=pc105
E: XKBOPTIONS=lv3:ralt_switch,compose:caps
E: XKBVARIANT=nodeadkeys
P: /devices/LNXSYSTM:00/device:00/PNP0C0C:00/input/input0
E: DEVPATH=/devices/LNXSYSTM:00/device:00/PNP0C0C:00/input/input0
E: EV=3
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-PNP0C0C:00
E: ID_PATH_TAG=acpi-PNP0C0C_00
E: KEY=100000 0 0 0
E: MODALIAS=input:b0019v0000p0001e0000-e0,1,k74,ramlsfw
E: NAME="Power Button"
E: PHYS="PNP0C0C/button/input0"
E: PRODUCT=19/0/1/0
E: PROP=0
E: SUBSYSTEM=input
E: UDEV_LOG=3
E: USEC_INITIALIZED=3348325
P: /devices/LNXSYSTM:00/device:00/PNP0C0C:00/input/input0/event0
N: input/event0
E: BACKSPACE=guess
E: DEVNAME=/dev/input/event0
E: DEVPATH=/devices/LNXSYSTM:00/device:00/PNP0C0C:00/input/input0/event0
E: DMI_VENDOR=System Manufacturer
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_PATH=acpi-PNP0C0C:00
E: ID_PATH_TAG=acpi-PNP0C0C_00
E: MAJOR=13
E: MINOR=64
E: SUBSYSTEM=input
E: UDEV_LOG=3
E: USEC_INITIALIZED=3384912
E: XKBLAYOUT=de
E: XKBMODEL=pc105
E: XKBOPTIONS=lv3:ralt_switch,compose:caps
E: XKBVARIANT=nodeadkeys
P: /devices/platform/i8042/serio0/input/input2
E: DEVPATH=/devices/platform/i8042/serio0/input/input2
E: EV=120013
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_INPUT_KEYBOARD=1
E: ID_PATH=platform-i8042-serio-0
E: ID_PATH_TAG=platform-i8042-serio-0
E: ID_SERIAL=noserial
E: KEY=4 2000000 3803078 f800d001 feffffdf ffefffff ffffffff fffffffe
E: LED=7
E:
MODALIAS=input:b0011v0001p0001eAB41-e0,1,4,11,14,k71,72,73,74,75,76,77,79,7A,7B,7C,7D,7E,7F,80,8C,8E,8F,9B,9C,9D,9E,9F,A3,A4,A5,A6,AC,AD,B7,B8,B9,D9,E2,ram4,l0,1,2,sfw
E: MSC=10
E: NAME="AT Translated Set 2 keyboard"
E: PHYS="isa0060/serio0/input0"
E: PRODUCT=11/1/1/ab41
E: PROP=0
E: SUBSYSTEM=input
E: UDEV_LOG=3
E: USEC_INITIALIZED=3442130
P: /devices/platform/i8042/serio0/input/input2/event2
N: input/event2
S: input/by-path/platform-i8042-serio-0-event-kbd
E: BACKSPACE=guess
E: DEVLINKS=/dev/input/by-path/platform-i8042-serio-0-event-kbd
E: DEVNAME=/dev/input/event2
E: DEVPATH=/devices/platform/i8042/serio0/input/input2/event2
E: DMI_VENDOR=System Manufacturer
E: ID_INPUT=1
E: ID_INPUT_KEY=1
E: ID_INPUT_KEYBOARD=1
E: ID_PATH=platform-i8042-serio-0
E: ID_PATH_TAG=platform-i8042-serio-0
E: ID_SERIAL=noserial
E: MAJOR=13
E: MINOR=66
E: SUBSYSTEM=input
E: UDEV_LOG=3
E: USEC_INITIALIZED=3459230
E: XKBLAYOUT=de
E: XKBMODEL=pc105
E: XKBOPTIONS=lv3:ralt_switch,compose:caps
E: XKBVARIANT=nodeadkeys
P: /devices/platform/i8042/serio1/input/input3
E: DEVPATH=/devices/platform/i8042/serio1/input/input3
E: EV=7
E: ID_INPUT=1
E: ID_INPUT_MOUSE=1
E: ID_PATH=platform-i8042-serio-1
E: ID_PATH_TAG=platform-i8042-serio-1
E: ID_SERIAL=noserial
E: KEY=70000 0 0 0 0 0 0 0 0
E: MODALIAS=input:b0011v0002p0005e0000-e0,1,2,k110,111,112,r0,1,8,amlsfw
E: NAME="ImPS/2 Generic Wheel Mouse"
E: PHYS="isa0060/serio1/input0"
E: PRODUCT=11/2/5/0
E: PROP=0
E: REL=103
E: SUBSYSTEM=input
E: UDEV_LOG=3
E: USEC_INITIALIZED=3444088
P: /devices/platform/i8042/serio1/input/input3/event3
N: input/event3
S: input/by-path/platform-i8042-serio-1-event-mouse
E: DEVLINKS=/dev/input/by-path/platform-i8042-serio-1-event-mouse
E: DEVNAME=/dev/input/event3
E: DEVPATH=/devices/platform/i8042/serio1/input/input3/event3
E: ID_INPUT=1
E: ID_INPUT_MOUSE=1
E: ID_PATH=platform-i8042-serio-1
E: ID_PATH_TAG=platform-i8042-serio-1
E: ID_SERIAL=noserial
E: MAJOR=13
E: MINOR=67
E: SUBSYSTEM=input
E: UDEV_LOG=3
E: USEC_INITIALIZED=3464136
DRM Information from dmesg:
---------------------------
[ 0.126540] Linux agpgart interface v0.103
[ 0.126561] agpgart: Detected VIA KT266/KY266x/KT333 chipset
[ 0.130956] agpgart-via 0000:00:00.0: AGP aperture is 64M @ 0xe0000000
[ 0.131120] [drm] Initialized drm 1.1.0 20060810
[ 0.131744] [drm] nouveau 0000:01:00.0: Detected an NV10 generation card
(0x011000b2)
[ 0.133299] [drm] nouveau 0000:01:00.0: Checking PRAMIN for VBIOS
[ 0.161237] [drm] nouveau 0000:01:00.0: ... appears to be valid
[ 0.161241] [drm] nouveau 0000:01:00.0: Using VBIOS from PRAMIN
[ 0.161423] [drm] nouveau 0000:01:00.0: BMP BIOS found
[ 0.161427] [drm] nouveau 0000:01:00.0: BMP version 5.20
[ 0.161432] [drm] nouveau 0000:01:00.0: Bios version 03.11.01.30
[ 0.161648] [drm] nouveau 0000:01:00.0: MXM: no VBIOS data, nothing to do
[ 0.161653] [drm] nouveau 0000:01:00.0: DCB version 1.5
[ 0.161660] [drm] nouveau 0000:01:00.0: DCB outp 00: f0003f00 000088b8
[ 0.161665] [drm] nouveau 0000:01:00.0: DCB outp 01: f2204001 ffffffff
[ 0.161669] [drm] nouveau 0000:01:00.0: DCB outp 02: f2244001 ffffffff
[ 0.161918] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table 0 at offset
0xAB70
[ 0.161937] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table 1 at offset
0xB25E
[ 0.161945] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table 2 at offset
0xAB8B
[ 0.161965] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table 3 at offset
0xB205
[ 0.161976] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table 4 at offset
0xAC1E
[ 0.161981] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table 5 at offset
0xAD72
[ 0.162024] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table 6 at offset
0xAC43
[ 0.183116] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table 7 at offset
0xAD0D
[ 0.183350] [drm] nouveau 0000:01:00.0: Detected 64MiB VRAM (SDRAM)
[ 0.183587] agpgart-via 0000:00:00.0: AGP 2.0 bridge
[ 0.183617] agpgart-via 0000:00:00.0: putting AGP V2 device into 4x mode
[ 0.183672] nouveau 0000:01:00.0: putting AGP V2 device into 4x mode
[ 0.183678] [drm] nouveau 0000:01:00.0: 64 MiB GART (aperture)
[ 0.183778] [drm] nouveau 0000:01:00.0: Saving VGA fonts
[ 0.222045] [drm] nouveau 0000:01:00.0: TV-1 has no encoders, removing
[ 0.222940] [drm] Supports vblank timestamp caching Rev 1 (10.10.2010).
[ 0.222944] [drm] No driver support for vblank timestamp query.
[ 0.382024] [drm] nouveau 0000:01:00.0: 0 available performance level(s)
[ 0.382031] [drm] nouveau 0000:01:00.0: c: core 199MHz memory 334MHz
[ 0.383750] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[ 0.433484] [drm] nouveau 0000:01:00.0: allocated 1680x1050 fb: 0x48000, bo
ee82b600
[ 0.494281] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[ 0.494286] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[ 0.497388] drm: registered panic notifier
[ 0.497397] [drm] Initialized nouveau 1.0.0 20120316 for 0000:01:00.0 on
minor 0
[ 29.316860] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[ 29.337180] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[ 29.337190] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[ 4740.065138] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[ 4805.080105] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[ 6116.278119] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[ 6278.011029] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[10595.154658] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[10598.874743] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[10598.874753] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[11371.464867] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[11371.486082] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[11371.486092] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[11372.207829] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[11372.228145] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[11372.228155] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[11394.160682] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[11394.198043] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[11394.198054] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[11399.591783] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[11399.620882] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[11399.620894] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[11403.187514] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[11403.208040] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[11403.208045] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[11427.711625] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[11427.740028] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[11427.740039] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[11769.609180] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[11769.629474] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[11769.629482] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
[11770.161731] [drm] nouveau 0000:01:00.0: Setting dpms mode 3 on vga encoder
(output 0)
[11770.183498] [drm] nouveau 0000:01:00.0: Setting dpms mode 0 on vga encoder
(output 0)
[11770.183509] [drm] nouveau 0000:01:00.0: Output VGA-1 is running on CRTC 0
using output A
-- System Information:
Debian Release: wheezy/sid
APT prefers unstable
APT policy: (500, 'unstable'), (1, 'experimental')
Architecture: i386 (i686)
Kernel: Linux 3.4.0 (PREEMPT)
Locale: LANG=de_DE.UTF-8, LC_CTYPE=de_DE.UTF-8 (charmap=UTF-8)
Shell: /bin/sh linked to /bin/bash
Versions of packages xserver-xorg-video-nouveau depends on:
ii libc6 2.13-33
ii libdrm2 2.4.33-3
ii libudev0 175-3.1
ii xserver-xorg-core [xorg-video-abi-12] 2:1.12.1.902-1
Versions of packages xserver-xorg-video-nouveau recommends:
ii libgl1-mesa-dri 8.0.3-1
xserver-xorg-video-nouveau suggests no packages.
-- no debconf information
Attachment:
Description: PNG image
Attachment:
Description: PNG image
Attachment:
Description: PNG image
Attachment:
Description: PNG image
Attachment:
Description: PNG image
Attachment:
Description: PNG image
