Bug#470084: mesa: Graphics corruption in 3d games on Intel 965
Package: mesa
Version: 7.0.3~rc2-1
Severity: normal
I am experiencing graphics corruption in several 3D games since

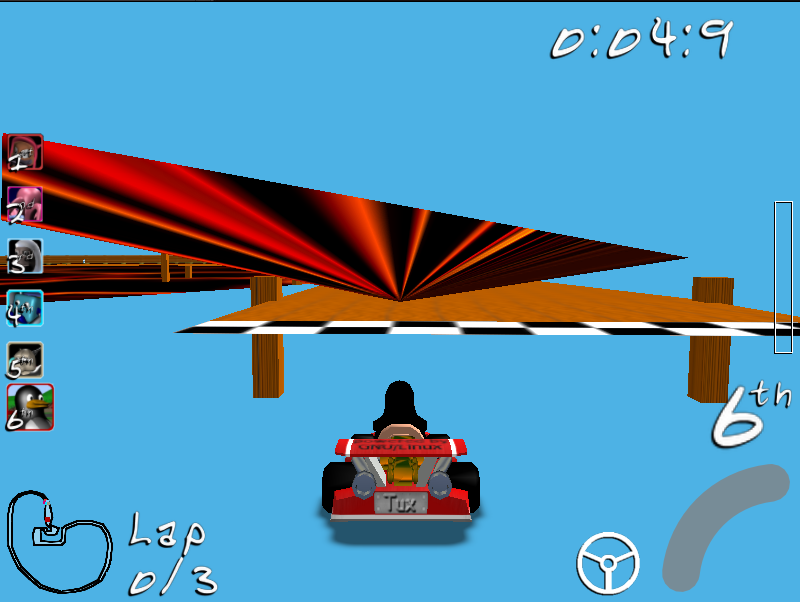

installing the mesa 7.0.3-rc2 updates. A screenshot is attached
illustrating the effect as it is rather difficult to describe. I have
observed this in supertuxkart, planet penguin racer, armagetron, and
open arena, both with and without compiz running.Glxgears
does not report any anomolies. My graphics processor is an Intel GMA
x3100 (965
chipset).
-- System Information:
Debian Release: lenny/sid
APT prefers testing
APT policy: (500, 'testing')
Architecture: i386 (i686)
Kernel: Linux 2.6.22-3-686 (SMP w/2 CPU cores)
Locale: LANG=en_US.UTF-8, LC_CTYPE=en_US.UTF-8 (charmap=UTF-8)
Shell: /bin/sh linked to /bin/bash
glxgears -info
GL_RENDERER = Mesa DRI Intel(R) 965GM 4.1.3002 x86/MMX/SSE2
GL_VERSION = 1.4 Mesa 7.0.3-rc2
GL_VENDOR = Tungsten Graphics, Inc
GL_EXTENSIONS = GL_ARB_depth_texture GL_ARB_fragment_program
GL_ARB_imaging GL_ARB_multisample GL_ARB_multitexture
GL_ARB_point_parameters GL_ARB_shadow GL_ARB_texture_border_clamp
GL_ARB_texture_compression GL_ARB_texture_cube_map
GL_ARB_texture_env_add GL_ARB_texture_env_combine
GL_ARB_texture_env_crossbar GL_ARB_texture_env_dot3
GL_ARB_texture_mirrored_repeat GL_ARB_texture_non_power_of_two
GL_ARB_texture_rectangle GL_ARB_transpose_matrix
GL_ARB_vertex_buffer_object GL_ARB_vertex_program GL_ARB_window_pos
GL_EXT_abgr GL_EXT_bgra GL_EXT_blend_color
GL_EXT_blend_equation_separate GL_EXT_blend_func_separate
GL_EXT_blend_logic_op GL_EXT_blend_minmax GL_EXT_blend_subtract
GL_EXT_clip_volume_hint GL_EXT_cull_vertex GL_EXT_compiled_vertex_array
GL_EXT_convolution GL_EXT_copy_texture GL_EXT_draw_range_elements
GL_EXT_fog_coord GL_EXT_histogram GL_EXT_multi_draw_arrays
GL_EXT_packed_pixels GL_EXT_point_parameters GL_EXT_polygon_offset
GL_EXT_rescale_normal GL_EXT_secondary_color
GL_EXT_separate_specular_color GL_EXT_shadow_funcs GL_EXT_stencil_wrap
GL_EXT_subtexture GL_EXT_texture GL_EXT_texture3D
GL_EXT_texture_edge_clamp GL_EXT_texture_env_add
GL_EXT_texture_env_combine GL_EXT_texture_env_dot3
GL_EXT_texture_filter_anisotropic GL_EXT_texture_lod_bias
GL_EXT_texture_object GL_EXT_texture_rectangle GL_EXT_vertex_array
GL_3DFX_texture_compression_FXT1 GL_APPLE_client_storage
GL_APPLE_packed_pixels GL_ATI_blend_equation_separate
GL_IBM_rasterpos_clip GL_IBM_texture_mirrored_repeat
GL_INGR_blend_func_separate GL_MESA_pack_invert GL_MESA_ycbcr_texture
GL_MESA_window_pos GL_NV_blend_square GL_NV_light_max_exponent
GL_NV_texture_rectangle GL_NV_texgen_reflection GL_OES_read_format
GL_SGI_color_matrix GL_SGI_color_table GL_SGIS_generate_mipmap
GL_SGIS_texture_border_clamp GL_SGIS_texture_edge_clamp
GL_SGIS_texture_lod GL_SGIX_depth_texture GL_SUN_multi_draw_arrays
3916 frames in 5.0 seconds = 781.257 FPS
4735 frames in 5.0 seconds = 947.000 FPS
name of display: :0.0
display: :0 screen: 0
direct rendering: Yes
server glx vendor string: SGI
server glx version string: 1.2
server glx extensions:
GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_texture_from_pixmap,
GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_copy_sub_buffer,
GLX_OML_swap_method, GLX_SGI_make_current_read, GLX_SGI_swap_control,
GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_visual_select_group
client glx vendor string: SGI
client glx version string: 1.4
client glx extensions:
GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context,
GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_allocate_memory,
GLX_MESA_copy_sub_buffer, GLX_MESA_swap_control,
GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_OML_sync_control,
GLX_SGI_make_current_read, GLX_SGI_swap_control, GLX_SGI_video_sync,
GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
GLX_SGIX_visual_select_group, GLX_EXT_texture_from_pixmap
GLX version: 1.2
GLX extensions:
GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context,
GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_copy_sub_buffer,
GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method,
GLX_SGI_make_current_read, GLX_SGI_swap_control, GLX_SGI_video_sync,
GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_visual_select_group
OpenGL vendor string: Tungsten Graphics, Inc
OpenGL renderer string: Mesa DRI Intel(R) 965GM 4.1.3002 x86/MMX/SSE2
OpenGL version string: 1.4 Mesa 7.0.3-rc2
OpenGL extensions:
GL_ARB_depth_texture, GL_ARB_fragment_program, GL_ARB_imaging,
GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_point_parameters,
GL_ARB_shadow, GL_ARB_texture_border_clamp, GL_ARB_texture_compression,
GL_ARB_texture_cube_map, GL_ARB_texture_env_add,
GL_ARB_texture_env_combine, GL_ARB_texture_env_crossbar,
GL_ARB_texture_env_dot3, GL_ARB_texture_mirrored_repeat,
GL_ARB_texture_non_power_of_two, GL_ARB_texture_rectangle,
GL_ARB_transpose_matrix, GL_ARB_vertex_buffer_object,
GL_ARB_vertex_program, GL_ARB_window_pos, GL_EXT_abgr, GL_EXT_bgra,
GL_EXT_blend_color, GL_EXT_blend_equation_separate,
GL_EXT_blend_func_separate, GL_EXT_blend_logic_op, GL_EXT_blend_minmax,
GL_EXT_blend_subtract, GL_EXT_clip_volume_hint, GL_EXT_cull_vertex,
GL_EXT_compiled_vertex_array, GL_EXT_convolution, GL_EXT_copy_texture,
GL_EXT_draw_range_elements, GL_EXT_fog_coord, GL_EXT_histogram,
GL_EXT_multi_draw_arrays, GL_EXT_packed_pixels, GL_EXT_point_parameters,
GL_EXT_polygon_offset, GL_EXT_rescale_normal, GL_EXT_secondary_color,
GL_EXT_separate_specular_color, GL_EXT_shadow_funcs, GL_EXT_stencil_wrap,
GL_EXT_subtexture, GL_EXT_texture, GL_EXT_texture3D,
GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add,
GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3,
GL_EXT_texture_filter_anisotropic, GL_EXT_texture_lod_bias,
GL_EXT_texture_object, GL_EXT_texture_rectangle, GL_EXT_vertex_array,
GL_3DFX_texture_compression_FXT1, GL_APPLE_client_storage,
GL_APPLE_packed_pixels, GL_ATI_blend_equation_separate,
GL_IBM_rasterpos_clip, GL_IBM_texture_mirrored_repeat,
GL_INGR_blend_func_separate, GL_MESA_pack_invert, GL_MESA_ycbcr_texture,
GL_MESA_window_pos, GL_NV_blend_square, GL_NV_light_max_exponent,
GL_NV_texture_rectangle, GL_NV_texgen_reflection, GL_OES_read_format,
GL_SGI_color_matrix, GL_SGI_color_table, GL_SGIS_generate_mipmap,
GL_SGIS_texture_border_clamp, GL_SGIS_texture_edge_clamp,
GL_SGIS_texture_lod, GL_SGIX_depth_texture, GL_SUN_multi_draw_arrays
visual x bf lv rg d st colorbuffer ax dp st accumbuffer ms cav
id dep cl sp sz l ci b ro r g b a bf th cl r g b a ns b eat
----------------------------------------------------------------------
0x23 24 tc 0 32 0 r y . 8 8 8 8 0 0 0 0 0 0 0 0 0 None
0x24 24 tc 0 32 0 r . . 8 8 8 8 0 0 0 0 0 0 0 0 0 None
0x25 24 tc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None
0x26 24 tc 0 32 0 r . . 8 8 8 8 0 24 8 0 0 0 0 0 0 None
0x27 24 tc 0 32 0 r y . 8 8 8 8 0 0 0 16 16 16 16 0 0 Slow
0x28 24 tc 0 32 0 r . . 8 8 8 8 0 0 0 16 16 16 16 0 0 Slow
0x29 24 tc 0 32 0 r y . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow
0x2a 24 tc 0 32 0 r . . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow
0x2b 24 dc 0 32 0 r y . 8 8 8 8 0 0 0 0 0 0 0 0 0 None
0x2c 24 dc 0 32 0 r . . 8 8 8 8 0 0 0 0 0 0 0 0 0 None
0x2d 24 dc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None
0x2e 24 dc 0 32 0 r . . 8 8 8 8 0 24 8 0 0 0 0 0 0 None
0x2f 24 dc 0 32 0 r y . 8 8 8 8 0 0 0 16 16 16 16 0 0 Slow
0x30 24 dc 0 32 0 r . . 8 8 8 8 0 0 0 16 16 16 16 0 0 Slow
0x31 24 dc 0 32 0 r y . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow
0x32 24 dc 0 32 0 r . . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow
0x65 32 tc 0 32 0 r . . 8 8 8 8 0 0 0 0 0 0 0 0 0 Ncon
