Bug#285943: marked as done (xserver-xfree86: [mga] antialiased fonts get colored outlines (problem goes away when fbdev driver used) on MGA G550 AGP rev 1)

To: Brice Goglin <Brice.Goglin@ens-lyon.org>
Subject: Bug#285943: marked as done (xserver-xfree86: [mga] antialiased fonts get colored outlines (problem goes away when fbdev driver used) on MGA G550 AGP rev 1)
From: owner@bugs.debian.org (Debian Bug Tracking System)
Date: Sat, 27 Jan 2007 06:19:13 -0800
Message-id: <[🔎] handler.285943.D285943.11699059143243.ackdone@bugs.debian.org>
References: <45BB587E.60301@ens-lyon.org> <41C1AA34.20408@freestart.hu>

Your message dated Sat, 27 Jan 2007 14:49:50 +0100
with message-id <45BB587E.60301@ens-lyon.org>
and subject line Bug#285943: xserver-xfree86: [mga] antialiased fonts get colored outlines (problem goes away when fbdev driver used) on MGA G550 AGP rev 1
has caused the attached Bug report to be marked as done.

This means that you claim that the problem has been dealt with.
If this is not the case it is now your responsibility to reopen the
Bug report if necessary, and/or fix the problem forthwith.

(NB: If you are a system administrator and have no idea what I am
talking about this indicates a serious mail system misconfiguration
somewhere.  Please contact me immediately.)

Debian bug tracking system administrator
(administrator, Debian Bugs database)

--- Begin Message ---

To: submit@bugs.debian.org
Subject: Font antialiasing looks bad (looks like an mga driver related problem)
From: Hársfalvi Levente <hlpublic@freestart.hu>
Date: Thu, 16 Dec 2004 16:31:00 +0100
Message-id: <41C1AA34.20408@freestart.hu>

Package: xserver-xfree86
Version: 4.3.0.dfsg.1-9

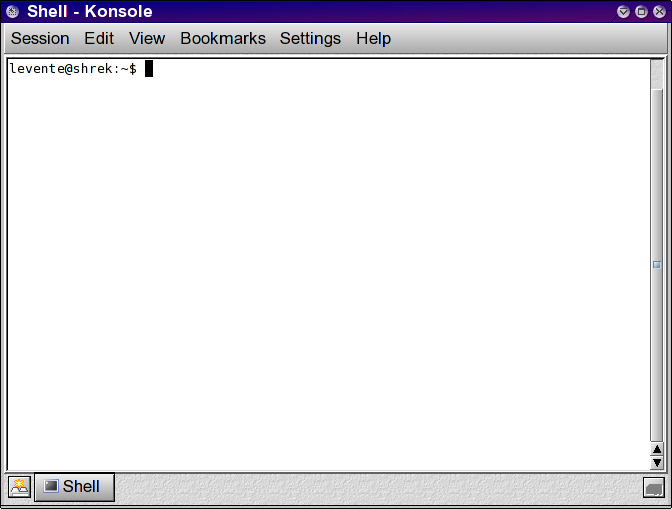

When I configure X to use the mga driver, X font aliasing looks ugly(see attached screenshot). The fonts get a colored outline in result ofthe antialiasing filter. Looks like there's some problem in the 2dfiltering routine. If I make a switch to the fbdev driver (reconfigure Xto use fbdev), everything goes well (see second screenshot).

I downloaded the latest mga driver from Matrox and gave it a try, withthe same results.

My videocard is a G550 ( Matrox Graphics, Inc. MGA G550 AGP rev 1 ). TheDisplay is a Sony SDMX-82 18" TFT, DVI cable, I'm using it in 1280x102424bit.

I'm using Debian GNU/Linux Sid with a self-compiled 2.6.8 kernel andlibc6 2.3.2.ds1-19.

(Attached: config files and screenshots for both mga and fbdevconfiguration.)



Best regards,


L.

# XF86Config-4 (XFree86 X Window System server configuration file)
#
# This file was generated by dexconf, the Debian X Configuration tool, using
# values from the debconf database.
#
# Edit this file with caution, and see the XF86Config-4 manual page.
# (Type "man XF86Config-4" at the shell prompt.)
#
# This file is automatically updated on xserver-xfree86 package upgrades *only*
# if it has not been modified since the last upgrade of the xserver-xfree86
# package.
#
# If you have edited this file but would like it to be automatically updated
# again, run the following commands as root:
#
#   cp /etc/X11/XF86Config-4 /etc/X11/XF86Config-4.custom
#   md5sum /etc/X11/XF86Config-4 >/var/lib/xfree86/XF86Config-4.md5sum
#   dpkg-reconfigure xserver-xfree86

Section "Files"
	FontPath	"unix/:7100"			# local font server
	# if the local font server has problems, we can fall back on these
	FontPath	"/usr/lib/X11/fonts/misc"
	FontPath	"/usr/lib/X11/fonts/cyrillic"
	FontPath	"/usr/lib/X11/fonts/100dpi/:unscaled"
	FontPath	"/usr/lib/X11/fonts/75dpi/:unscaled"
	FontPath	"/usr/lib/X11/fonts/Type1"
	FontPath	"/usr/lib/X11/fonts/CID"
	FontPath	"/usr/lib/X11/fonts/Speedo"
	FontPath	"/usr/lib/X11/fonts/100dpi"
	FontPath	"/usr/lib/X11/fonts/75dpi"
EndSection

Section "Module"
	Load	"GLcore"
	Load	"bitmap"
	Load	"dbe"
	Load	"ddc"
	Load	"dri"
	Load	"extmod"
	Load	"freetype"
	Load	"glx"
	Load	"int10"
	Load	"record"
	Load	"speedo"
	Load	"type1"
	Load	"vbe"
EndSection

Section "InputDevice"
	Identifier	"Generic Keyboard"
	Driver		"keyboard"
	Option		"CoreKeyboard"
	Option		"XkbRules"	"xfree86"
	Option		"XkbModel"	"pc105"
	Option		"XkbLayout"	"hu"
EndSection

Section "InputDevice"
	Identifier	"Configured Mouse"
	Driver		"mouse"
	Option		"CorePointer"
	Option		"Device"		"/dev/psaux"
	Option		"Protocol"		"MouseManPlusPS/2"
	Option		"Emulate3Buttons"	"true"
	Option		"ZAxisMapping"		"4 5"
EndSection
Section "InputDevice"
	Identifier	"Generic Mouse"
	Driver		"mouse"
	Option		"SendCoreEvents"	"true"
	Option		"Device"		"/dev/input/mice"
	Option		"Protocol"		"ImPS/2"
	Option		"Emulate3Buttons"	"true"
	Option		"ZAxisMapping"		"4 5"
EndSection

Section "Device"
	Identifier	"G550"
	Driver		"fbdev"
EndSection

Section "Monitor"
	Identifier	"SDM-X82"
	HorizSync	30-65
	VertRefresh	50-75
	Option		"DPMS"
EndSection

Section "Screen"
	Identifier	"Default Screen"
	Device		"G550"
	Monitor		"SDM-X82"
	DefaultDepth	24
	SubSection "Display"
		Depth		1
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		4
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		8
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		15
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		16
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		24
		Modes		"1280x1024"
	EndSubSection
EndSection

Section "ServerLayout"
	Identifier	"Default Layout"
	Screen		"Default Screen"
	InputDevice	"Generic Keyboard"
	InputDevice	"Configured Mouse"
	InputDevice	"Generic Mouse"
EndSection

Section "DRI"
	Mode	0666
EndSection

# XF86Config-4 (XFree86 X Window System server configuration file)
#
# This file was generated by dexconf, the Debian X Configuration tool, using
# values from the debconf database.
#
# Edit this file with caution, and see the XF86Config-4 manual page.
# (Type "man XF86Config-4" at the shell prompt.)
#
# This file is automatically updated on xserver-xfree86 package upgrades *only*
# if it has not been modified since the last upgrade of the xserver-xfree86
# package.
#
# If you have edited this file but would like it to be automatically updated
# again, run the following commands as root:
#
#   cp /etc/X11/XF86Config-4 /etc/X11/XF86Config-4.custom
#   md5sum /etc/X11/XF86Config-4 >/var/lib/xfree86/XF86Config-4.md5sum
#   dpkg-reconfigure xserver-xfree86

Section "Files"
	FontPath	"unix/:7100"			# local font server
	# if the local font server has problems, we can fall back on these
	FontPath	"/usr/lib/X11/fonts/misc"
	FontPath	"/usr/lib/X11/fonts/cyrillic"
	FontPath	"/usr/lib/X11/fonts/100dpi/:unscaled"
	FontPath	"/usr/lib/X11/fonts/75dpi/:unscaled"
	FontPath	"/usr/lib/X11/fonts/Type1"
	FontPath	"/usr/lib/X11/fonts/CID"
	FontPath	"/usr/lib/X11/fonts/Speedo"
	FontPath	"/usr/lib/X11/fonts/100dpi"
	FontPath	"/usr/lib/X11/fonts/75dpi"
EndSection

Section "Module"
	Load	"GLcore"
	Load	"bitmap"
	Load	"dbe"
	Load	"ddc"
	Load	"dri"
	Load	"extmod"
	Load	"freetype"
	Load	"glx"
	Load	"int10"
	Load	"record"
	Load	"speedo"
	Load	"type1"
	Load	"vbe"
EndSection

Section "InputDevice"
	Identifier	"Generic Keyboard"
	Driver		"keyboard"
	Option		"CoreKeyboard"
	Option		"XkbRules"	"xfree86"
	Option		"XkbModel"	"pc105"
	Option		"XkbLayout"	"hu"
EndSection

Section "InputDevice"
	Identifier	"Configured Mouse"
	Driver		"mouse"
	Option		"CorePointer"
	Option		"Device"		"/dev/psaux"
	Option		"Protocol"		"MouseManPlusPS/2"
	Option		"Emulate3Buttons"	"true"
	Option		"ZAxisMapping"		"4 5"
EndSection
Section "InputDevice"
	Identifier	"Generic Mouse"
	Driver		"mouse"
	Option		"SendCoreEvents"	"true"
	Option		"Device"		"/dev/input/mice"
	Option		"Protocol"		"ImPS/2"
	Option		"Emulate3Buttons"	"true"
	Option		"ZAxisMapping"		"4 5"
EndSection

Section "Device"
	Identifier	"G550"
	Driver		"mga"
EndSection

Section "Monitor"
	Identifier	"SDM-X82"
	HorizSync	30-65
	VertRefresh	50-75
	Option		"DPMS"
EndSection

Section "Screen"
	Identifier	"Default Screen"
	Device		"G550"
	Monitor		"SDM-X82"
	DefaultDepth	24
	SubSection "Display"
		Depth		1
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		4
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		8
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		15
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		16
		Modes		"1280x1024"
	EndSubSection
	SubSection "Display"
		Depth		24
		Modes		"1280x1024"
	EndSubSection
EndSection

Section "ServerLayout"
	Identifier	"Default Layout"
	Screen		"Default Screen"
	InputDevice	"Generic Keyboard"
	InputDevice	"Configured Mouse"
	InputDevice	"Generic Mouse"
EndSection

Section "DRI"
	Mode	0666
EndSection

--- End Message ---

--- Begin Message ---

To: 285943-done@bugs.debian.org

Subject: Re: Bug#285943: xserver-xfree86: [mga] antialiased fonts get colored outlines (problem goes away when fbdev driver used) on MGA G550 AGP rev 1

From: Brice Goglin <Brice.Goglin@ens-lyon.org>

Date: Sat, 27 Jan 2007 14:49:50 +0100

Message-id: <45BB587E.60301@ens-lyon.org>

In-reply-to: <[🔎] 45BB5175.9080105@freestart.hu>

References: <[🔎] 45B14DD5.5010201@ens-lyon.org> <[🔎] 45BB5175.9080105@freestart.hu>
Closing, as suggested by the submitter, since he does not use Debian
anymore.
Feel free to reopen if you ever reproduce the problem.

Brice
--- End Message ---
