Re: ADSL y 2 Tarjetas Red
Hola Matias lo prometido es deuda te doy la salida de
dmesg:
Linux version 2.4.18-bf2.4 (root@zombie) (gcc version
2.95.4 20011002 (Debian prerelease)) #1 Son Apr 14
09:53:28 CEST 2002
BIOS-provided physical RAM map:
BIOS-88: 0000000000000000 - 000000000009f000 (usable)
BIOS-88: 0000000000100000 - 0000000001000000 (usable)
found SMP MP-table at 000f4ff0
hm, page 000f4000 reserved twice.
hm, page 000f5000 reserved twice.
hm, page 000f2000 reserved twice.
hm, page 000f3000 reserved twice.
On node 0 totalpages: 32768
zone(0): 4096 pages.
zone(1): 28672 pages.
zone(2): 0 pages.
Intel MultiProcessor Specification v1.4
Virtual Wire compatibility mode.
OEM ID: COMPAQ Product ID: PROLIANT APIC at:
0xFEE00000
Processor #0 Pentium(tm) Pro APIC version 16
I/O APIC #2 Version 17 at 0xFEC00000.
Processors: 1
Kernel command line: auto BOOT_IMAGE=Linux ro root=801
mem=128M
Initializing CPU#0
Detected 199.459 MHz processor.
Console: colour VGA+ 80x25
Calibrating delay loop... 397.31 BogoMIPS
Memory: 125680k/131072k available (1783k kernel code,
5004k reserved, 549k data, 280k init, 0k highmem)
Dentry-cache hash table entries: 16384 (order: 5,
131072 bytes)
Inode-cache hash table entries: 8192 (order: 4, 65536
bytes)
Mount-cache hash table entries: 2048 (order: 2, 16384
bytes)
Buffer-cache hash table entries: 8192 (order: 3, 32768
bytes)
Page-cache hash table entries: 32768 (order: 5, 131072
bytes)
CPU: Before vendor init, caps: 0000fbff 00000000
00000000, vendor = 0
CPU: L1 I cache: 8K, L1 D cache: 8K
CPU: L2 cache: 256K
CPU: After vendor init, caps: 0000fbff 00000000
00000000 00000000
Intel machine check architecture supported.
Intel machine check reporting enabled on CPU#0.
CPU: After generic, caps: 0000fbff 00000000
00000000 00000000
CPU: Common caps: 0000fbff 00000000
00000000 00000000
CPU: Intel Pentium Pro stepping 07
Checking 'hlt' instruction... OK.
Checking for popad bug... OK.
POSIX conformance testing by UNIFIX
enabled ExtINT on CPU#0
ESR value before enabling vector: 00000000
ESR value after enabling vector: 00000000
ENABLING IO-APIC IRQs
Setting 2 in the phys_id_present_map
...changing IO-APIC physical APIC ID to 2 ... ok.
init IO_APIC IRQs
IO-APIC (apicid-pin) 2-0, 2-13, 2-16, 2-17, 2-18,
2-19, 2-20, 2-21, 2-22, 2-23, 2-25, 2-26, 2-27 not
connected.
..TIMER: vector=0x31 pin1=2 pin2=0
..MP-BIOS bug: 8254 timer not connected to IO-APIC
...trying to set up timer (IRQ0) through the 8259A ...
..... (found pin 0) ...works.
number of MP IRQ sources: 16.
number of IO-APIC #2 registers: 28.
testing the IO APIC.......................
IO APIC #2......
.... register #00: 02000000
....... : physical APIC id: 02
.... register #01: 001B0011
....... : max redirection entries: 001B
....... : PRQ implemented: 0
....... : IO APIC version: 0011
.... register #02: 00000000
....... : arbitration: 00
.... IRQ redirection table:
NR Log Phy Mask Trig IRR Pol Stat Dest Deli Vect:
00 001 01 0 0 0 0 0 1 1 31
01 001 01 0 0 0 0 0 1 1 39
02 000 00 1 0 0 0 0 0 0 00
03 001 01 0 0 0 0 0 1 1 41
04 001 01 0 0 0 0 0 1 1 49
05 001 01 1 1 0 1 0 1 1 51
06 001 01 0 0 0 0 0 1 1 59
07 001 01 0 0 0 0 0 1 1 61
08 001 01 0 0 0 0 0 1 1 69
09 001 01 1 1 0 1 0 1 1 71
0a 001 01 1 1 0 1 0 1 1 79
0b 001 01 1 1 0 1 0 1 1 81
0c 001 01 0 0 0 0 0 1 1 89
0d 000 00 1 0 0 0 0 0 0 00
0e 001 01 0 0 0 0 0 1 1 91
0f 001 01 0 0 0 0 0 1 1 99
10 000 00 1 0 0 0 0 0 0 00
11 000 00 1 0 0 0 0 0 0 00
12 000 00 1 0 0 0 0 0 0 00
13 000 00 1 0 0 0 0 0 0 00
14 000 00 1 0 0 0 0 0 0 00
15 000 00 1 0 0 0 0 0 0 00
16 000 00 1 0 0 0 0 0 0 00
17 000 00 1 0 0 0 0 0 0 00
18 001 01 0 0 0 0 0 1 1 A1
19 000 00 0 0 0 0 0 0 6 FF
1a 001 01 0 0 0 0 0 0 6 FF
1b 001 01 0 0 0 0 0 0 5 FF
IRQ to pin mappings:
IRQ0 -> 0:2
IRQ1 -> 0:1
IRQ3 -> 0:3
IRQ4 -> 0:4
IRQ5 -> 0:5
IRQ6 -> 0:6
IRQ7 -> 0:7
IRQ8 -> 0:8
IRQ9 -> 0:9
IRQ10 -> 0:10
IRQ11 -> 0:11
IRQ12 -> 0:12
IRQ13 -> 0:24
IRQ14 -> 0:14
IRQ15 -> 0:15
.................................... done.
Using local APIC timer interrupts.
calibrating APIC timer ...
..... CPU clock speed is 199.4471 MHz.
..... host bus clock speed is 66.4820 MHz.
cpu: 0, clocks: 664820, slice: 332410
CPU0<T0:664816,T1:332400,D:6,S:332410,C:664820>
mtrr: v1.40 (20010327) Richard Gooch
(rgooch@atnf.csiro.au)
mtrr: detected mtrr type: Intel
PCI: PCI BIOS revision 2.10 entry at 0xf0068, last
bus=1
PCI: Using configuration type 1
PCI: Probing PCI hardware
PCI: Device 00:00 not found by BIOS
PCI: Device 00:a0 not found by BIOS
Limiting direct PCI/PCI transfers.
Linux NET4.0 for Linux 2.4
Based upon Swansea University Computer Society
NET3.039
Initializing RT netlink socket
Starting kswapd
VFS: Diskquotas version dquot_6.4.0 initialized
Journalled Block Device driver loaded
vga16fb: initializing
vga16fb: mapped to 0xc00a0000
Console: switching to colour frame buffer device 80x30
fb0: VGA16 VGA frame buffer device
pty: 256 Unix98 ptys configured
Serial driver version 5.05c (2001-07-08) with
MANY_PORTS SHARE_IRQ SERIAL_PCI enabled
ttyS00 at 0x03f8 (irq = 4) is a 16550A
ttyS01 at 0x02f8 (irq = 3) is a 16550A
Real Time Clock Driver v1.10e
block: 128 slots per queue, batch=32
RAMDISK driver initialized: 16 RAM disks of 4096K size
1024 blocksize
Uniform Multi-Platform E-IDE driver Revision: 6.31
ide: Assuming 33MHz system bus speed for PIO modes;
override with idebus=xx
hdb: CD-ROM CDU77E, ATAPI CD/DVD-ROM drive
ide0 at 0x1f0-0x1f7,0x3f6 on irq 14
hdb: ATAPI 4X CD-ROM drive, 128kB Cache
Uniform CD-ROM driver Revision: 3.12
ide-floppy driver 0.97.sv
Floppy drive(s): fd0 is 1.44M
FDC 0 is a National Semiconductor PC87306
Loading I2O Core - (c) Copyright 1999 Red Hat Software
I2O configuration manager v 0.04.
(C) Copyright 1999 Red Hat Software
loop: loaded (max 8 devices)
Compaq CISS Driver (v 2.4.5)
8139too Fast Ethernet driver 0.9.24
eth0: D-Link DFE-538TX (RealTek RTL8139) at
0xc881a100, 00:05:5d:2a:70:cd, IRQ 9
eth0: Identified 8139 chip type 'RTL-8139C'
HDLC support module revision 1.02 for Linux 2.4
Cronyx Ltd, Synchronous PPP and CISCO HDLC (c) 1994
Linux port (c) 1998 Building Number Three Ltd & Jan
"Yenya" Kasprzak.
ide-floppy driver 0.97.sv
Promise Fasttrak(tm) Softwareraid driver 0.03beta: No
raid array found
Highpoint HPT370 Softwareraid driver for linux version
0.01
No raid array found
SCSI subsystem driver Revision: 1.00
Red Hat/Adaptec aacraid driver, Apr 14 2002
sym53c8xx: at PCI bus 0, device 18, function 0
sym53c8xx: 53c875 detected
sym53c8xx: at PCI bus 1, device 9, function 0
sym53c8xx: 53c875 detected
sym53c875-0: rev 0x3 on pci bus 0 device 18 function 0
irq 5
sym53c875-0: ID 7, Fast-20, Parity Checking
sym53c875-1: rev 0x3 on pci bus 1 device 9 function 0
irq 11
sym53c875-1: ID 7, Fast-20, Parity Checking
scsi0 : sym53c8xx-1.7.3c-20010512
scsi1 : sym53c8xx-1.7.3c-20010512
Vendor: ARCHIVE Model: Python 27871-XXX Rev: 1214
Type: Sequential-Access ANSI SCSI
revision: 02
sym53c875-1-<0,*>: FAST-5 WIDE SCSI 10.0 MB/s (200.0
ns, offset 15)
Vendor: COMPAQ Model: ST34371W Rev: 0682
Type: Direct-Access ANSI SCSI
revision: 02
DC390: 0 adapters found
3ware Storage Controller device driver for Linux
v1.02.00.016.
3w-xxxx: No cards with valid units found.
Attached scsi disk sda at scsi1, channel 0, id 0, lun
0
sym53c875-1-<0,*>: FAST-5 WIDE SCSI 10.0 MB/s (200.0
ns, offset 15)
SCSI device sda: 8386000 512-byte hdwr sectors (4294
MB)
Partition check:
sda: sda1 sda2 < sda5 sda6 >
i2o_scsi.c: Version 0.0.1
chain_pool: 0 bytes @ c1204ac0
(512 byte buffers X 4 can_queue X 0 i2o controllers)
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP, IGMP
IP: routing cache hash table of 1024 buckets, 8Kbytes
TCP: Hash tables configured (established 8192 bind
8192)
NET4: Unix domain sockets 1.0/SMP for Linux NET4.0.
VFS: Mounted root (ext2 filesystem) readonly.
Freeing unused kernel memory: 280k freed
Adding Swap: 255584k swap-space (priority -1)
CSLIP: code copyright 1989 Regents of the University
of California
PPP generic driver version 2.4.1
PPP Deflate Compression module registered
PPP BSD Compression module registered
st: Version 20020205, bufsize 32768, wrt 30720, max
init. bufs 4, s/g segs 16
Attached scsi tape st0 at scsi0, channel 0, id 6, lun
0
isapnp: Scanning for PnP cards...
isapnp: No Plug & Play device found
eth1: 3c5x9 at 0x300, 10baseT port, address 00 10 5a
e0 d5 a1, IRQ 10.
3c509.c:1.18a 17Nov2001becker@scyld.com
http://www.scyld.com/network/3c509.html
ip_tables: (C) 2000-2002 Netfilter core team
ip_conntrack (1024 buckets, 8192 max)
eth1: Setting Rx mode to 1 addresses.
eth0: Setting 100mbps full-duplex based on
auto-negotiated partner ability 41e1.

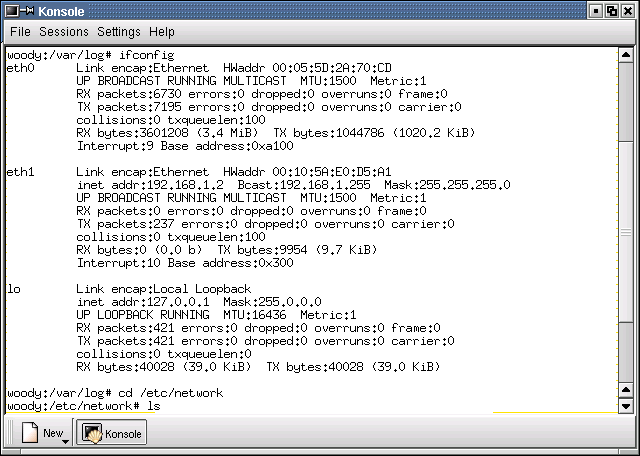

Por otro lado en archivo adjunto (capture la pantalla)
va
lo que me muestra al correr ifconfig, sabes hay cosas
ahy
en la eth1 que estan en cero, no se pero bueno dame
tus comentarios
Chao Matias y amigos ojala alguien me saque de este
rollo.
Fernando Villarroel N.
--- Matias <listas@nnss.reop.net> wrote:
> El Fri, 12 Sep 2003 08:13:45 -0700 (PDT)
> FERNANDO VILLARROEL <fvillarroel@yahoo.com>
> escribió:
>
> > Hola amigos, haber probe haciendo lo que me
> > indicaron; es decir
> > borre todo:
> >
> > iptables -F
> >
> > Acepte todo
> >
> > iptables -A INPUT -j ACCEPT
> > iptables -A FORWARD -j ACCEPT
> > iptables -A OUTPUT -j ACCEPT
> >
> > Probe ping
> >
> > #ping 192.168.1.4
> >
> > No tuve respuesta no logro ver la LAN.
> >
> > Necesito quizas que me expliquen con manzanas, lo
> > anterior
> > de acuerdo a vuestros consejos debio funcionar,
> > echenme una
> > manito por favor.
> >
> > Fernando Villarroel N
> >
> Hola:
> ¿Cuál es la salida del ifconfig? ¿Hay algo raro en
> /var/log/messages
> || dmesg?
>
>
>
>
>
>
>
>
>
>
> --
> Atentamente, yo <Matías>
> Nunca hay libertad en una invasión
> http://nnss.reop.net
> http://savannah.gnu.org/projects/tasklist
>
>
> --
> To UNSUBSCRIBE, email to
> debian-user-spanish-request@lists.debian.org
> with a subject of "unsubscribe". Trouble? Contact
> listmaster@lists.debian.org
>
