Your message dated Sun, 09 May 2021 07:31:25 -0700 (PDT) with message-id <6097f23d.1c69fb81.2f3ab.e179@mx.google.com> and subject line Closing this bug (BTS maintenance for src:linux bugs) has caused the Debian Bug report #812366, regarding linux-image-3.16.0-4-amd64: Kernel panic due to reading /sys/block/bcache?/bcache/writeback_rate_debug (bch_cached_dev_show) to be marked as done. This means that you claim that the problem has been dealt with. If this is not the case it is now your responsibility to reopen the Bug report if necessary, and/or fix the problem forthwith. (NB: If you are a system administrator and have no idea what this message is talking about, this may indicate a serious mail system misconfiguration somewhere. Please contact owner@bugs.debian.org immediately.) -- 812366: https://bugs.debian.org/cgi-bin/bugreport.cgi?bug=812366 Debian Bug Tracking System Contact owner@bugs.debian.org with problems
--- Begin Message ---
- To: Debian Bug Tracking System <submit@bugs.debian.org>
- Subject: linux-image-3.16.0-4-amd64: Kernel panic due to reading /sys/block/bcache?/bcache/writeback_rate_debug (bch_cached_dev_show)
- From: Dmitry Yu Okunev <dyokunev@ut.mephi.ru>
- Date: Fri, 22 Jan 2016 22:21:19 +0300
- Message-id: <20160122192119.14699.89659.reportbug@prism.ut.mephi.ru>

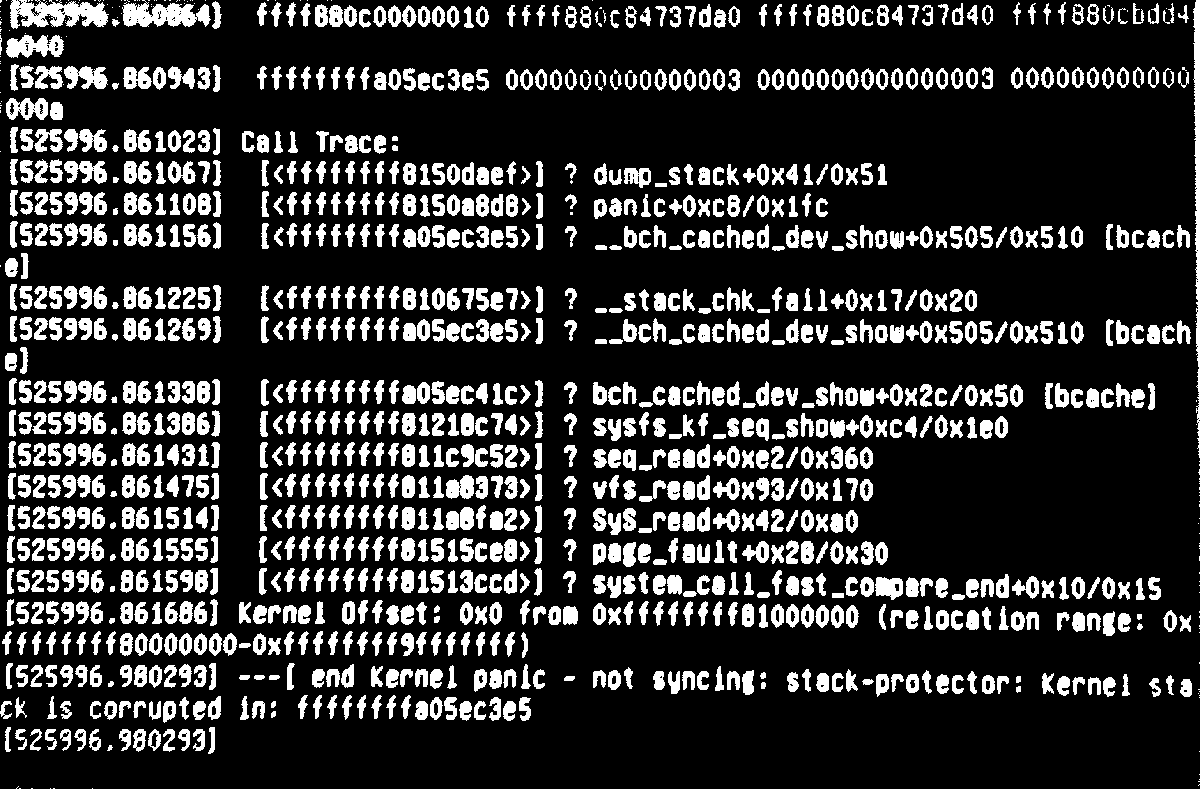

Package: src:linux Version: 3.16.7-ckt20-1+deb8u1 Severity: normal Tags: upstream Hello. I experienced a bug in module "bcache" of linux kernel (a reduced photo is attached, a less reduced photo you can download from [1]). [1] https://devel.mephi.ru/dyokunev/public/raw/master/debian/bugreport/2016/bcache-panic/photo_kernelbug-bch_cached_dev_show.jpg The server is in production so I have no ability to repeat the bug and I tried to recognize a text on the photo (sorry if there're any typos): [525996.860864] ffff880c00000010 ffff880c84737630 ffff880c84737d40 ffff880cbdd4a040 [525996.860943] ffffffffaOSecaeS 0000000000000003 0000000000000003 000000000000000a [525996.861023] Call Trace: {525996.861067] [<ffffffff8150daef>] ? dump_stack+0x41/0x51 [525996.861108] [<ffffffff8150a8d8>] ? panic+0xc8/0x1fc [525996.861156] [<ffffffffa05ec3e5>l ? __bch_cached_dev_show+0x505/0x510 [bcache] [525996.861225} [<ffffffff810675e7>] ? __stack_chk_fail+0x17/0x20 [525996.861269) [<ffffffffa05ec3e5>] ? __bch_cached_dev_show+0x505/0x510 [bcache] [525996.861338] [<ffffffffa05ec41c>] ? bch_cached_dev_show+0x2c/0x50 [bcache] [525996.861386] [<ffffffff81218c74>] ? sysfs_kf_seq_show+0xc4/0x1e0 [525996.861431] [<ffffffff811c9c52>] ? seq_read+0xe2/0x360 [525996.861475] [<ffffffff011a8313>] ? vfs_read+0x93/0x170 [525996.861514] [<ffffffff811asfa2>] ? SyS_read+0x42/0xa0 [525996.861555] [<ffffffff81515cea>] ? page_fault+0x28/0x30 [525996.861598] [<ffffffff81513ccd>] ? system_call_fast_compare_end+0x10/0x15 [525996.861686] Kernel Offset: 0x0 from 0xffffffff81000000 (relocation range: 0xffffffff80000000-0xffffffff9ffffff) [525996.980293] ---[ end Kernel panic - not syncing: stack-protector: Kernel stack is corrupted in: ffffffffa05ec3e5 I googled the issue and found [2]. Indeed I was reading files /sys/block/bcache{0,1,2,3}/bcache/writeback_rate_debug every second for debugging purposes. I stopped the processes, reading "writeback_rate_debug" and the bug didn't appear again. [2] http://www.spinics.net/lists/linux-bcache/msg03173.html Seems the bug is related to vanilla kernel code but Debian has own patches on the kernel, so I filled this report. Best regards, Dmitry, tel. 8 (495) 788-56-99, ext. 8255. -- Package-specific info: ** Version: Linux version 3.16.0-4-amd64 (debian-kernel@lists.debian.org) (gcc version 4.8.4 (Debian 4.8.4-1) ) #1 SMP Debian 3.16.7-ckt20-1+deb8u1 (2015-12-14) ** Command line: BOOT_IMAGE=/boot/vmlinuz-3.16.0-4-amd64 root=UUID=598c2749-c8c2-41ff-ac76-056ea007eb9e ro ** Tainted: O (4096) * Out-of-tree module has been loaded. ** Model information sys_vendor: Supermicro product_name: SYS-6028R-WTR product_version: 0123456789 chassis_vendor: Supermicro chassis_version: 0123456789 bios_vendor: American Megatrends Inc. bios_version: 1.0c board_vendor: Supermicro board_name: X10DRW-i board_version: 1.02 ** Loaded modules: fuse btrfs xor raid6_pq ufs qnx4 hfsplus hfs minix ntfs vfat msdos fat jfs xfs dm_mod iscsi_trgt(O) cpuid md_mod drbd lru_cache libcrc32c crc32c_generic crc32c_intel nfsd auth_rpcgss oid_registry nfs_acl lockd sunrpc fcoe libfcoe libfc scsi_transport_fc scsi_tgt 8021q garp stp mrp llc mlx4_ib ib_sa ib_mad ib_core ib_addr mlx4_en mlx4_core vxlan x86_pkg_temp_thermal intel_powerclamp intel_rapl coretemp kvm_intel iTCO_wdt kvm iTCO_vendor_support crc32_pclmul aesni_intel aes_x86_64 lrw gf128mul glue_helper ablk_helper cryptd joydev pcspkr mei_me lpc_ich ioatdma shpchp mei i2c_i801 mfd_core evdev wmi tpm_tis tpm ipmi_si ipmi_msghandler processor thermal_sys acpi_power_meter acpi_pad button ext4 crc16 mbcache jbd2 hid_generic usbhid hid bcache sg sd_mod crc_t10dif crct10dif_generic crct10dif_pclmul crct10dif_common ahci libahci ehci_pci igb i2c_algo_bit xhci_hcd ehci_hcd libata megaraid_sas i2c_core dca usbcore ptp scsi_mod usb_common pps_core ** PCI devices: 00:00.0 Host bridge [0600]: Intel Corporation Haswell-E DMI2 [8086:2f00] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Interrupt: pin A routed to IRQ 0 Capabilities: <access denied> 00:01.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 1 [8086:2f02] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=01, subordinate=01, sec-latency=0 I/O behind bridge: 00006000-00006fff Memory behind bridge: c7400000-c74fffff Prefetchable memory behind bridge: 0000000090000000-00000000900fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:02.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 2 [8086:2f04] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=02, subordinate=02, sec-latency=0 I/O behind bridge: 00005000-00005fff Memory behind bridge: c7100000-c73fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:02.2 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 2 [8086:2f06] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=03, subordinate=03, sec-latency=0 Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:03.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 3 [8086:2f08] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=04, subordinate=04, sec-latency=0 Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:04.0 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 0 [8086:2f20] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 31 Region 0: Memory at c752c000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 00:04.1 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 1 [8086:2f21] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 39 Region 0: Memory at c7528000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 00:04.2 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 2 [8086:2f22] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin C routed to IRQ 31 Region 0: Memory at c7524000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 00:04.3 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 3 [8086:2f23] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 39 Region 0: Memory at c7520000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 00:04.4 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 4 [8086:2f24] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 31 Region 0: Memory at c751c000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 00:04.5 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 5 [8086:2f25] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 39 Region 0: Memory at c7518000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 00:04.6 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 6 [8086:2f26] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin C routed to IRQ 31 Region 0: Memory at c7514000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 00:04.7 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 7 [8086:2f27] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 39 Region 0: Memory at c7510000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 00:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: <access denied> 00:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: <access denied> 00:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: <access denied> 00:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 02) (prog-if 20 [IO(X)-APIC]) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Region 0: Memory at c7539000 (32-bit, non-prefetchable) [size=4K] Capabilities: <access denied> 00:11.0 Unassigned class [ff00]: Intel Corporation Wellsburg SPSR [8086:8d7c] (rev 05) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Capabilities: <access denied> 00:11.4 SATA controller [0106]: Intel Corporation Wellsburg sSATA Controller [AHCI mode] [8086:8d62] (rev 05) (prog-if 01 [AHCI 1.0]) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 123 Region 0: I/O ports at 7110 [size=8] Region 1: I/O ports at 7100 [size=4] Region 2: I/O ports at 70f0 [size=8] Region 3: I/O ports at 70e0 [size=4] Region 4: I/O ports at 7020 [size=32] Region 5: Memory at c7538000 (32-bit, non-prefetchable) [size=2K] Capabilities: <access denied> Kernel driver in use: ahci 00:14.0 USB controller [0c03]: Intel Corporation Wellsburg USB xHCI Host Controller [8086:8d31] (rev 05) (prog-if 30 [XHCI]) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin D routed to IRQ 19 Region 0: Memory at c7500000 (64-bit, non-prefetchable) [size=64K] Capabilities: <access denied> Kernel driver in use: xhci_hcd 00:16.0 Communication controller [0780]: Intel Corporation Wellsburg MEI Controller #1 [8086:8d3a] (rev 05) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 11 Region 0: Memory at c7537000 (64-bit, non-prefetchable) [size=16] Capabilities: <access denied> 00:16.1 Communication controller [0780]: Intel Corporation Wellsburg MEI Controller #2 [8086:8d3b] (rev 05) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin B routed to IRQ 10 Region 0: Memory at c7536000 (64-bit, non-prefetchable) [size=16] Capabilities: <access denied> 00:1a.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #2 [8086:8d2d] (rev 05) (prog-if 20 [EHCI]) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin C routed to IRQ 18 Region 0: Memory at c7534000 (32-bit, non-prefetchable) [size=1K] Capabilities: <access denied> Kernel driver in use: ehci-pci 00:1c.0 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #1 [8086:8d10] (rev d5) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=05, subordinate=05, sec-latency=0 Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:1c.4 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #5 [8086:8d18] (rev d5) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=00, secondary=06, subordinate=07, sec-latency=0 I/O behind bridge: 00004000-00004fff Memory behind bridge: c6000000-c70fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA+ MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:1d.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #1 [8086:8d26] (rev 05) (prog-if 20 [EHCI]) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin C routed to IRQ 18 Region 0: Memory at c7533000 (32-bit, non-prefetchable) [size=1K] Capabilities: <access denied> Kernel driver in use: ehci-pci 00:1f.0 ISA bridge [0601]: Intel Corporation Wellsburg LPC Controller [8086:8d44] (rev 05) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Capabilities: <access denied> Kernel driver in use: lpc_ich 00:1f.2 SATA controller [0106]: Intel Corporation Wellsburg 6-Port SATA Controller [AHCI mode] [8086:8d02] (rev 05) (prog-if 01 [AHCI 1.0]) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 124 Region 0: I/O ports at 7070 [size=8] Region 1: I/O ports at 7060 [size=4] Region 2: I/O ports at 7050 [size=8] Region 3: I/O ports at 7040 [size=4] Region 4: I/O ports at 7000 [size=32] Region 5: Memory at c7532000 (32-bit, non-prefetchable) [size=2K] Capabilities: <access denied> Kernel driver in use: ahci 00:1f.3 SMBus [0c05]: Intel Corporation Wellsburg SMBus Controller [8086:8d22] (rev 05) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Interrupt: pin C routed to IRQ 18 Region 0: Memory at c7531000 (64-bit, non-prefetchable) [size=256] Region 4: I/O ports at 0580 [size=32] Kernel driver in use: i801_smbus 00:1f.6 Signal processing controller [1180]: Intel Corporation Wellsburg Thermal Subsystem [8086:8d24] (rev 05) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin C routed to IRQ 5 Region 0: Memory at c7530000 (64-bit, non-prefetchable) [size=4K] Capabilities: <access denied> 01:00.0 Ethernet controller [0200]: Intel Corporation I350 Gigabit Network Connection [8086:1521] (rev 01) Subsystem: Super Micro Computer Inc Device [15d9:1521] Physical Slot: 14 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 26 Region 0: Memory at c7420000 (32-bit, non-prefetchable) [size=128K] Region 2: I/O ports at 6020 [size=32] Region 3: Memory at c7444000 (32-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: igb 01:00.1 Ethernet controller [0200]: Intel Corporation I350 Gigabit Network Connection [8086:1521] (rev 01) Subsystem: Super Micro Computer Inc Device [15d9:1521] Physical Slot: 14 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 28 Region 0: Memory at c7400000 (32-bit, non-prefetchable) [size=128K] Region 2: I/O ports at 6000 [size=32] Region 3: Memory at c7440000 (32-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: igb 02:00.0 RAID bus controller [0104]: LSI Logic / Symbios Logic MegaRAID SAS-3 3008 [Fury] [1000:005f] (rev 02) Subsystem: LSI Logic / Symbios Logic Device [1000:9341] Physical Slot: 3 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 32 Region 0: I/O ports at 5000 [size=256] Region 1: Memory at c7300000 (64-bit, non-prefetchable) [size=64K] Region 3: Memory at c7200000 (64-bit, non-prefetchable) [size=1M] Expansion ROM at c7100000 [disabled] [size=1M] Capabilities: <access denied> Kernel driver in use: megaraid_sas 06:00.0 PCI bridge [0604]: ASPEED Technology, Inc. AST1150 PCI-to-PCI Bridge [1a03:1150] (rev 03) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=06, secondary=07, subordinate=07, sec-latency=32 I/O behind bridge: 00004000-00004fff Memory behind bridge: c6000000-c70fffff Secondary status: 66MHz+ FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA+ MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> 07:00.0 VGA compatible controller [0300]: ASPEED Technology, Inc. ASPEED Graphics Family [1a03:2000] (rev 30) (prog-if 00 [VGA controller]) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 11 Region 0: Memory at c6000000 (32-bit, non-prefetchable) [size=16M] Region 1: Memory at c7000000 (32-bit, non-prefetchable) [size=128K] Region 2: I/O ports at 4000 [size=128] Expansion ROM at <unassigned> [disabled] Capabilities: <access denied> 7f:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:13.4 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fac] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:13.5 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fad] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:15.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 2 Thermal Control [8086:2fb4] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:15.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 3 Thermal Control [8086:2fb5] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:15.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 2 ERROR Registers [8086:2fb6] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:15.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 3 ERROR Registers [8086:2fb7] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Region 0: Memory at <ignored> (32-bit, prefetchable) [disabled] 7f:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 7f:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- 80:03.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 3 [8086:2f08] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=80, secondary=81, subordinate=81, sec-latency=0 Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 80:03.2 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 3 [8086:2f0a] (rev 02) (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Bus: primary=80, secondary=82, subordinate=82, sec-latency=0 Memory behind bridge: fbd00000-fbefffff Prefetchable memory behind bridge: 00000000c8000000-00000000e87fffff Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR- BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 80:04.0 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 0 [8086:2f20] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 55 Region 0: Memory at fbf1c000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 80:04.1 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 1 [8086:2f21] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 63 Region 0: Memory at fbf18000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 80:04.2 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 2 [8086:2f22] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin C routed to IRQ 55 Region 0: Memory at fbf14000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 80:04.3 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 3 [8086:2f23] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 63 Region 0: Memory at fbf10000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 80:04.4 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 4 [8086:2f24] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 55 Region 0: Memory at fbf0c000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 80:04.5 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 5 [8086:2f25] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 63 Region 0: Memory at fbf08000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 80:04.6 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 6 [8086:2f26] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin C routed to IRQ 55 Region 0: Memory at fbf04000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 80:04.7 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 7 [8086:2f27] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 63 Region 0: Memory at fbf00000 (64-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: ioatdma 80:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: <access denied> 80:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: <access denied> 80:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Capabilities: <access denied> 80:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 02) (prog-if 20 [IO(X)-APIC]) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Region 0: Memory at fbf20000 (32-bit, non-prefetchable) [size=4K] Capabilities: <access denied> 82:00.0 Network controller [0280]: Mellanox Technologies MT27500 Family [ConnectX-3] [15b3:1003] Subsystem: Mellanox Technologies Device [15b3:0076] Physical Slot: 1 Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin A routed to IRQ 66 Region 0: Memory at fbe00000 (64-bit, non-prefetchable) [size=1M] Region 2: Memory at c8000000 (64-bit, prefetchable) [size=8M] Expansion ROM at fbd00000 [disabled] [size=1M] Capabilities: <access denied> Kernel driver in use: mlx4_core ff:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.4 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fac] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.5 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fad] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:15.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 2 Thermal Control [8086:2fb4] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:15.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 3 Thermal Control [8086:2fb5] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:15.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 2 ERROR Registers [8086:2fb6] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:15.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 3 ERROR Registers [8086:2fb7] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Region 0: Memory at <ignored> (32-bit, prefetchable) [disabled] ff:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 02) Subsystem: Super Micro Computer Inc Device [15d9:0821] Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ff:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 02) Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- ** USB devices: Bus 004 Device 002: ID 8087:8002 Intel Corp. Bus 004 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 003 Device 002: ID 8087:800a Intel Corp. Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 001 Device 004: ID 0557:2419 ATEN International Co., Ltd Bus 001 Device 003: ID 0557:7000 ATEN International Co., Ltd Hub Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub -- System Information: Debian Release: 8.2 APT prefers stable APT policy: (1100, 'stable'), (800, 'testing'), (700, 'unstable'), (500, 'stable-updates') Architecture: amd64 (x86_64) Kernel: Linux 3.16.0-4-amd64 (SMP w/24 CPU cores) Locale: LANG=en_US.UTF-8, LC_CTYPE=en_US.UTF-8 (charmap=UTF-8) Shell: /bin/sh linked to /bin/dash Init: sysvinit (via /sbin/init) Versions of packages linux-image-3.16.0-4-amd64 depends on: ii debconf [debconf-2.0] 1.5.56 ii initramfs-tools [linux-initramfs-tool] 0.120 ii kmod 18-3 ii linux-base 3.5 Versions of packages linux-image-3.16.0-4-amd64 recommends: ii firmware-linux-free 3.3 ii irqbalance 1.0.6-3 Versions of packages linux-image-3.16.0-4-amd64 suggests: pn debian-kernel-handbook <none> ii grub-efi 2.02~beta2-22+deb8u1 ii linux-doc-3.16 3.16.7-ckt20-1+deb8u1 Versions of packages linux-image-3.16.0-4-amd64 is related to: pn firmware-atheros <none> pn firmware-bnx2 <none> pn firmware-bnx2x <none> pn firmware-brcm80211 <none> pn firmware-intelwimax <none> pn firmware-ipw2x00 <none> pn firmware-ivtv <none> pn firmware-iwlwifi <none> pn firmware-libertas <none> ii firmware-linux 0.43 ii firmware-linux-nonfree 0.43 pn firmware-myricom <none> pn firmware-netxen <none> pn firmware-qlogic <none> pn firmware-ralink <none> pn firmware-realtek <none> pn xen-hypervisor <none> -- debconf information excludedAttachment: photo_kernelbug-bch_cached_dev_show.png
Description: PNG image
--- End Message ---
--- Begin Message ---
- To: 812366-done@bugs.debian.org
- Cc: 812366-submitter@bugs.debian.org
- Subject: Closing this bug (BTS maintenance for src:linux bugs)
- From: carnil@debian.org
- Date: Sun, 09 May 2021 07:31:25 -0700 (PDT)
- Message-id: <6097f23d.1c69fb81.2f3ab.e179@mx.google.com>
Hi This bug was filed for a very old kernel or the bug is old itself without resolution. If you can reproduce it with - the current version in unstable/testing - the latest kernel from backports please reopen the bug, see https://www.debian.org/Bugs/server-control for details. Regards, Salvatore
--- End Message ---
