Package: src:linux
Version: 4.9.30-1
Severity: important
File: linux
Dear Maintainer,
*** Reporter, please consider answering these questions, where
appropriate ***
Since updating the kernel from linux-image-4.9.0-2-amd64 (4.9.18-1) to
linux-image-4.9.0-3-amd64 (4.9.30-1) all VMs report - just for the
"primary" interface this:
TCP: ens192: Driver has suspect GRO implementation, TCP performance may
be compromised.
I can't see any performance impact. This happens on all our vSphere 6.0
and 6.5 hosts (running on HPE ProLiant DL 360 G8 - G9 HW / ProLiant ML
350 G9 and so on).
Why is this bug important? Because on one VM this also produces a kernel

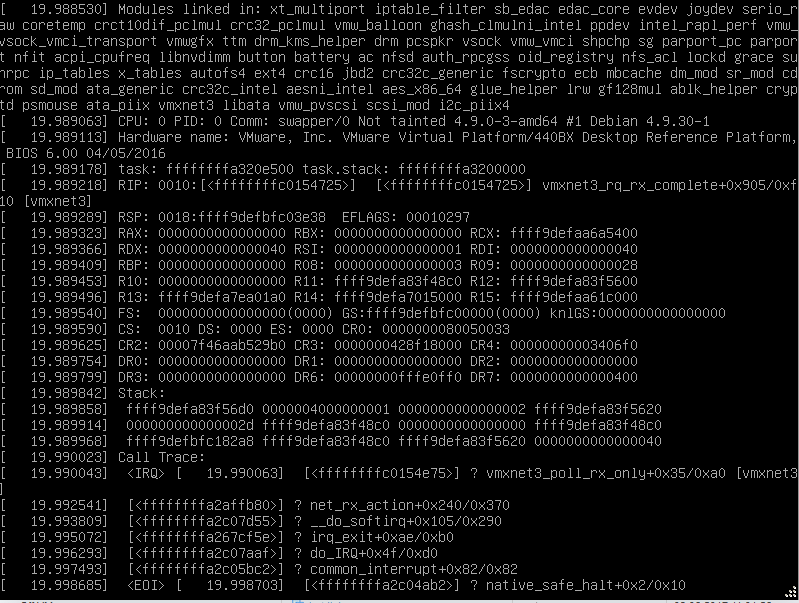

panic after some time (minutes or hours). I just could get the panic
attached as screenshot. The only "big" difference between the crashing
host and the others may be, that it is also running PM2, NPM, NodeJS and
a NFS kernel server.
If I boot the VM with 4.9.30-1 and deactivate gro and lro with:
ethtool -K ens192 gro off
ethtool -K ens192 lro off
.. it does not crash.
Booting 4.9.18-1 and everything is completly fine ;)
*** End of the template - remove these template lines ***
-- Package-specific info:
** Version:
Linux version 4.9.0-3-amd64 (debian-kernel@lists.debian.org) (gcc
version 6.3.0 20170516 (Debian 6.3.0-18) ) #1 SMP Debian 4.9.30-1
(2017-06-04)
** Command line:
BOOT_IMAGE=/vmlinuz-4.9.0-3-amd64 root=/dev/mapper/bet--lb1--vg-root ro
apparmor=1 security=apparmor quiet
** Not tainted
** Kernel log:
[ 6.006289] VMCI host device registered (name=vmci, major=10, minor=58)
[ 6.006291] Initialized host personality
[ 6.008750] NET: Registered protocol family 40
[ 6.061820] [drm] Initialized
[ 6.063361] shpchp: Standard Hot Plug PCI Controller Driver version: 0.4
[ 6.072414] sd 0:0:0:0: Attached scsi generic sg0 type 0
[ 6.072760] sd 0:0:1:0: Attached scsi generic sg1 type 0
[ 6.073001] sr 2:0:0:0: Attached scsi generic sg2 type 5
[ 6.093289] [drm] DMA map mode: Using physical TTM page addresses.
[ 6.093376] [drm] Capabilities:
[ 6.093378] [drm] Rect copy.
[ 6.093380] [drm] Cursor.
[ 6.093381] [drm] Cursor bypass.
[ 6.093382] [drm] Cursor bypass 2.
[ 6.093384] [drm] 8bit emulation.
[ 6.093385] [drm] Alpha cursor.
[ 6.093387] [drm] Extended Fifo.
[ 6.093388] [drm] Multimon.
[ 6.093389] [drm] Pitchlock.
[ 6.093391] [drm] Irq mask.
[ 6.093392] [drm] Display Topology.
[ 6.093394] [drm] GMR.
[ 6.093395] [drm] Traces.
[ 6.093396] [drm] GMR2.
[ 6.093398] [drm] Screen Object 2.
[ 6.093399] [drm] Command Buffers.
[ 6.093401] [drm] Command Buffers 2.
[ 6.093402] [drm] Guest Backed Resources.
[ 6.093404] [drm] DX Features.
[ 6.093406] [drm] Max GMR ids is 64
[ 6.093407] [drm] Max number of GMR pages is 65536
[ 6.093409] [drm] Max dedicated hypervisor surface memory is 0 kiB
[ 6.093411] [drm] Maximum display memory size is 4096 kiB
[ 6.093413] [drm] VRAM at 0xe8000000 size is 4096 kiB
[ 6.093415] [drm] MMIO at 0xfe000000 size is 256 kiB
[ 6.093418] [drm] global init.
[ 6.093788] [TTM] Zone kernel: Available graphics memory: 8218496 kiB
[ 6.093791] [TTM] Zone dma32: Available graphics memory: 2097152 kiB
[ 6.093793] [TTM] Initializing pool allocator
[ 6.093801] [TTM] Initializing DMA pool allocator
[ 6.093967] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).
[ 6.093970] [drm] No driver support for vblank timestamp query.
[ 6.094439] [drm] Screen Target Display device initialized
[ 6.094511] [drm] width 640
[ 6.094526] [drm] height 480
[ 6.094539] [drm] bpp 32
[ 6.096045] [drm] Fifo max 0x00040000 min 0x00001000 cap 0x0000077f
[ 6.096266] [drm] Using command buffers with DMA pool.
[ 6.096275] [drm] DX: no.
[ 6.096992] fbcon: svgadrmfb (fb0) is primary device
[ 6.098822] Console: switching to colour frame buffer device 100x37
[ 6.108919] RAPL PMU: API unit is 2^-32 Joules, 3 fixed counters,
10737418240 ms ovfl timer
[ 6.108922] RAPL PMU: hw unit of domain pp0-core 2^-0 Joules
[ 6.108924] RAPL PMU: hw unit of domain package 2^-0 Joules
[ 6.108926] RAPL PMU: hw unit of domain dram 2^-16 Joules
[ 6.110841] [drm] Initialized vmwgfx 2.12.0 20170221 for 0000:00:0f.0
on minor 0
[ 6.128966] input: PC Speaker as /devices/platform/pcspkr/input/input5
[ 6.222337] EDAC MC: Ver: 3.0.0
[ 6.223301] ppdev: user-space parallel port driver
[ 6.228664] EDAC sbridge: Seeking for: PCI ID 8086:6fa0
[ 6.228672] EDAC sbridge: Ver: 1.1.1
[ 6.658958] Adding 4194300k swap on /dev/mapper/bet--lb1--vg-swap_1.
Priority:-1 extents:1 across:4194300k FS
[ 6.726225] EXT4-fs (sda1): mounting ext3 file system using the ext4
subsystem
[ 6.736071] EXT4-fs (sda1): mounted filesystem with ordered data
mode. Opts: (null)
[ 7.050618] audit: type=1400 audit(1496999015.567:2):
apparmor="STATUS" operation="profile_load" name="klogd" pid=515
comm="apparmor_parser"
[ 7.055235] audit: type=1400 audit(1496999015.571:3):
apparmor="STATUS" operation="profile_load" name="/usr/lib/dovecot/anvil"
pid=518 comm="apparmor_parser"
[ 7.083208] audit: type=1400 audit(1496999015.599:4):
apparmor="STATUS" operation="profile_load" name="/usr/lib/dovecot/auth"
pid=519 comm="apparmor_parser"
[ 7.084573] audit: type=1400 audit(1496999015.599:5):
apparmor="STATUS" operation="profile_load"
name="/usr/lib/dovecot/config" pid=520 comm="apparmor_parser"
[ 7.085460] audit: type=1400 audit(1496999015.599:6):
apparmor="STATUS" operation="profile_load" name="syslogd" pid=516
comm="apparmor_parser"
[ 7.085707] audit: type=1400 audit(1496999015.603:7):
apparmor="STATUS" operation="profile_load" name="ping" pid=514
comm="apparmor_parser"
[ 7.086784] audit: type=1400 audit(1496999015.603:8):
apparmor="STATUS" operation="profile_load"
name="/usr/lib/dovecot/deliver" pid=521 comm="apparmor_parser"
[ 7.097872] audit: type=1400 audit(1496999015.615:9):
apparmor="STATUS" operation="profile_load" name="/usr/lib/dovecot/dict"
pid=522 comm="apparmor_parser"
[ 7.101938] audit: type=1400 audit(1496999015.619:10):
apparmor="STATUS" operation="profile_load" name="/usr/lib/dovecot/imap"
pid=525 comm="apparmor_parser"
[ 7.105855] audit: type=1400 audit(1496999015.623:11):
apparmor="STATUS" operation="profile_load"
name="/usr/lib/dovecot/dovecot-auth" pid=523 comm="apparmor_parser"
[ 9.197745] floppy0: no floppy controllers found
[ 9.294980] vmxnet3 0000:0b:00.0 ens192: intr type 3, mode 0, 5
vectors allocated
[ 9.295132] vmxnet3 0000:0b:00.0 ens192: NIC Link is Up 10000 Mbps
[ 9.374247] vmxnet3 0000:13:00.0 ens224: intr type 3, mode 0, 5
vectors allocated
[ 9.374511] vmxnet3 0000:13:00.0 ens224: NIC Link is Up 10000 Mbps
[ 9.706736] NFSD: Using /var/lib/nfs/v4recovery as the NFSv4 state
recovery directory
[ 9.706964] NFSD: starting 90-second grace period (net ffffffffae0d6440)
[ 12.199607] TCP: ens192: Driver has suspect GRO implementation, TCP
performance may be compromised.
[ 1957.902275] SGI XFS with ACLs, security attributes, realtime, no
debug enabled
[ 1957.918603] JFS: nTxBlock = 8192, nTxLock = 65536
[ 1957.949396] ntfs: driver 2.1.32 [Flags: R/O MODULE].
[ 1957.978817] QNX4 filesystem 0.2.3 registered.
[ 1958.063860] raid6: sse2x1 gen() 3931 MB/s
[ 1958.131854] raid6: sse2x1 xor() 2829 MB/s
[ 1958.199861] raid6: sse2x2 gen() 4747 MB/s
[ 1958.267847] raid6: sse2x2 xor() 5481 MB/s
[ 1958.335846] raid6: sse2x4 gen() 10238 MB/s
[ 1958.403852] raid6: sse2x4 xor() 7176 MB/s
[ 1958.471850] raid6: avx2x1 gen() 13857 MB/s
[ 1958.539848] raid6: avx2x2 gen() 15994 MB/s
[ 1958.607846] raid6: avx2x4 gen() 18384 MB/s
[ 1958.607848] raid6: using algorithm avx2x4 gen() 18384 MB/s
[ 1958.607849] raid6: using avx2x2 recovery algorithm
[ 1958.615753] xor: automatically using best checksumming function avx
[ 1958.663737] Btrfs loaded, crc32c=crc32c-intel
[ 1958.672988] fuse init (API version 7.26)
** Model information
sys_vendor: VMware, Inc.
product_name: VMware Virtual Platform
product_version: None
chassis_vendor: No Enclosure
chassis_version: N/A
bios_vendor: Phoenix Technologies LTD
bios_version: 6.00
board_vendor: Intel Corporation
board_name: 440BX Desktop Reference Platform
board_version: None
** Loaded modules:
fuse
btrfs
xor
raid6_pq
ufs
qnx4
hfsplus
hfs
minix
ntfs
vfat
msdos
fat
jfs
xfs
libcrc32c
binfmt_misc
xt_multiport
iptable_filter
joydev
evdev
vmw_balloon
serio_raw
sb_edac
ppdev
edac_core
coretemp
crct10dif_pclmul
crc32_pclmul
ghash_clmulni_intel
pcspkr
intel_rapl_perf
vmwgfx
ttm
drm_kms_helper
sg
shpchp
drm
nfit
libnvdimm
vmw_vsock_vmci_transport
vsock
vmw_vmci
battery
parport_pc
parport
ac
button
acpi_cpufreq
nfsd
auth_rpcgss
oid_registry
nfs_acl
lockd
grace
sunrpc
ip_tables
x_tables
autofs4
ext4
crc16
jbd2
crc32c_generic
fscrypto
ecb
mbcache
dm_mod
sr_mod
cdrom
sd_mod
ata_generic
crc32c_intel
aesni_intel
aes_x86_64
glue_helper
lrw
gf128mul
ablk_helper
cryptd
psmouse
vmxnet3
ata_piix
vmw_pvscsi
libata
scsi_mod
i2c_piix4
** Network interface configuration:
source /etc/network/interfaces.d/*
auto lo
iface lo inet loopback
auto ens192
iface ens192 inet static
address XXXXX/24
gateway XXXXXX
up route add -net XXXXX netmask 255.255.255.0 ens192
up route add -net XXXX netmask 255.255.255.0 ens192
auto ens224
iface ens224 inet static
address 10.220.14.115/24
** Network status:
*** IP interfaces and addresses:
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN
group default qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens192: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP
group default qlen 1000
link/ether 00:0c:29:13:7e:48 brd ff:ff:ff:ff:ff:ff
inet XXXXXXXX brd XXXXXX scope global ens192
valid_lft forever preferred_lft forever
inet6 XXXXX scope link
valid_lft forever preferred_lft forever
3: ens224: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP
group default qlen 1000
link/ether 00:0c:29:13:7e:52 brd ff:ff:ff:ff:ff:ff
inet 10.220.14.115/24 brd 10.220.14.255 scope global ens224
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe13:7e52/64 scope link
valid_lft forever preferred_lft forever
*** Device statistics:
Inter-| Receive | Transmit
face |bytes packets errs drop fifo frame compressed
multicast|bytes packets errs drop fifo colls carrier compressed
lo: 17464586858 6028042 0 0 0 0 0 0
17464586858 6028042 0 0 0 0 0 0
ens192: 954450942 12676164 0 1024 0 0 0 0
19905072176 6191115 0 0 0 0 0 0
ens224: 5134281559 1023267 0 63 0 0 0 0
103645590 932124 0 0 0 0 0 0
*** Protocol statistics:
Ip:
Forwarding: 2
13692087 total packets received
29545 with invalid addresses
0 forwarded
0 incoming packets discarded
13662542 incoming packets delivered
13131663 requests sent out
Icmp:
81203 ICMP messages received
21 input ICMP message failed
ICMP input histogram:
destination unreachable: 1361
timeout in transit: 2
echo requests: 79840
79840 ICMP messages sent
0 ICMP messages failed
ICMP output histogram:
echo replies: 79840
IcmpMsg:
InType3: 1361
InType8: 79840
InType11: 2
OutType0: 79840
Tcp:
466940 active connection openings
425650 passive connection openings
165 failed connection attempts
1590 connection resets received
22 connections established
13343649 segments received
21262778 segments sent out
85432 segments retransmitted
9 bad segments received
16068 resets sent
InCsumErrors: 2
Udp:
237658 packets received
0 packets to unknown port received
0 packet receive errors
237661 packets sent
0 receive buffer errors
0 send buffer errors
IgnoredMulti: 18
UdpLite:
TcpExt:
144 resets received for embryonic SYN_RECV sockets
388487 TCP sockets finished time wait in fast timer
3808 packetes rejected in established connections because of timestamp
91356 delayed acks sent
52 delayed acks further delayed because of locked socket
Quick ack mode was activated 9598 times
26 SYNs to LISTEN sockets dropped
151148 packets directly queued to recvmsg prequeue
593 bytes directly in process context from backlog
TCPDirectCopyFromPrequeue: 31758994
1464727 packet headers predicted
145894 packet headers predicted and directly queued to user
4831374 acknowledgments not containing data payload received
3448866 predicted acknowledgments
336 times recovered from packet loss due to fast retransmit
TCPSackRecovery: 13249
TCPSACKReneging: 43
Detected reordering 74 times using FACK
Detected reordering 153 times using SACK
Detected reordering 292 times using time stamp
362 congestion windows fully recovered without slow start
304 congestion windows partially recovered using Hoe heuristic
TCPDSACKUndo: 466
1184 congestion windows recovered without slow start after partial ack
TCPLostRetransmit: 1874
11 timeouts after reno fast retransmit
TCPSackFailures: 633
301 timeouts in loss state
66333 fast retransmits
1529 forward retransmits
3907 retransmits in slow start
TCPTimeouts: 2157
TCPLossProbes: 9331
TCPLossProbeRecovery: 418
TCPRenoRecoveryFail: 40
TCPSackRecoveryFail: 618
TCPDSACKOldSent: 9765
TCPDSACKOfoSent: 6
TCPDSACKRecv: 5431
TCPDSACKOfoRecv: 130
3520 connections reset due to unexpected data
66 connections reset due to early user close
460 connections aborted due to timeout
TCPSACKDiscard: 24
TCPDSACKIgnoredOld: 64
TCPDSACKIgnoredNoUndo: 1750
TCPSpuriousRTOs: 581
TCPSackShifted: 133133
TCPSackMerged: 160722
TCPSackShiftFallback: 50845
TCPDeferAcceptDrop: 122282
TCPRcvCoalesce: 764158
TCPOFOQueue: 1701
TCPOFOMerge: 6
TCPChallengeACK: 55
TCPSYNChallenge: 7
TCPFastOpenCookieReqd: 6
TCPSpuriousRtxHostQueues: 1
TCPAutoCorking: 117285
TCPFromZeroWindowAdv: 2
TCPToZeroWindowAdv: 2
TCPWantZeroWindowAdv: 2799
TCPSynRetrans: 537
TCPOrigDataSent: 17095220
TCPHystartTrainDetect: 5649
TCPHystartTrainCwnd: 206733
TCPHystartDelayDetect: 3803
TCPHystartDelayCwnd: 279811
TCPACKSkippedSynRecv: 8
TCPACKSkippedPAWS: 3074
TCPACKSkippedSeq: 892
TCPACKSkippedTimeWait: 6
TCPACKSkippedChallenge: 24
TCPWinProbe: 318
IpExt:
InMcastPkts: 14
InBcastPkts: 18
InOctets: 23083899569
OutOctets: 37373022934
InMcastOctets: 504
InBcastOctets: 1404
InNoECTPkts: 13676041
InECT0Pkts: 16031
InCEPkts: 15
** PCI devices:
00:00.0 Host bridge [0600]: Intel Corporation 440BX/ZX/DX -
82443BX/ZX/DX Host bridge [8086:7190] (rev 01)
Subsystem: VMware Virtual Machine Chipset [15ad:1976]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Kernel driver in use: agpgart-intel
00:01.0 PCI bridge [0604]: Intel Corporation 440BX/ZX/DX - 82443BX/ZX/DX
AGP bridge [8086:7191] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle+ MemWINV+ VGASnoop-
ParErr- Stepping- SERR+ FastB2B- DisINTx-
Status: Cap- 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Bus: primary=00, secondary=01, subordinate=01, sec-latency=64
Secondary status: 66MHz+ FastB2B+ ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B+
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Kernel modules: shpchp
00:07.0 ISA bridge [0601]: Intel Corporation 82371AB/EB/MB PIIX4 ISA
[8086:7110] (rev 08)
Subsystem: VMware Virtual Machine Chipset [15ad:1976]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
00:07.1 IDE interface [0101]: Intel Corporation 82371AB/EB/MB PIIX4 IDE
[8086:7111] (rev 01) (prog-if 8a [Master SecP PriP])
Subsystem: VMware Virtual Machine Chipset [15ad:1976]
Control: I/O+ Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64
Region 0: [virtual] Memory at 000001f0 (32-bit,
non-prefetchable) [size=8]
Region 1: [virtual] Memory at 000003f0 (type 3, non-prefetchable)
Region 2: [virtual] Memory at 00000170 (32-bit,
non-prefetchable) [size=8]
Region 3: [virtual] Memory at 00000370 (type 3, non-prefetchable)
Region 4: I/O ports at 1060 [size=16]
Kernel driver in use: ata_piix
Kernel modules: ata_piix, ata_generic
00:07.3 Bridge [0680]: Intel Corporation 82371AB/EB/MB PIIX4 ACPI
[8086:7113] (rev 08)
Subsystem: VMware Virtual Machine Chipset [15ad:1976]
Control: I/O+ Mem- BusMaster- SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin ? routed to IRQ 9
Kernel modules: i2c_piix4
00:07.7 System peripheral [0880]: VMware Virtual Machine Communication
Interface [15ad:0740] (rev 10)
Subsystem: VMware Virtual Machine Communication Interface
[15ad:0740]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64 (1500ns min, 63750ns max)
Interrupt: pin A routed to IRQ 16
Region 0: I/O ports at 1080 [size=64]
Region 1: Memory at febfe000 (64-bit, non-prefetchable) [size=8K]
Capabilities: [40] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [58] MSI-X: Enable+ Count=2 Masked-
Vector table: BAR=1 offset=00000000
PBA: BAR=1 offset=00001000
Kernel driver in use: vmw_vmci
Kernel modules: vmw_vmci
00:0f.0 VGA compatible controller [0300]: VMware SVGA II Adapter
[15ad:0405] (prog-if 00 [VGA controller])
Subsystem: VMware SVGA II Adapter [15ad:0405]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64, Cache Line Size: 32 bytes
Interrupt: pin A routed to IRQ 16
Region 0: I/O ports at 1070 [size=16]
Region 1: Memory at e8000000 (32-bit, prefetchable) [size=128M]
Region 2: Memory at fe000000 (32-bit, non-prefetchable) [size=8M]
[virtual] Expansion ROM at 000c0000 [disabled] [size=128K]
Capabilities: [40] Vendor Specific Information: Len=00 <?>
Capabilities: [44] PCI Advanced Features
AFCap: TP+ FLR+
AFCtrl: FLR-
AFStatus: TP-
Kernel driver in use: vmwgfx
Kernel modules: vmwgfx
00:11.0 PCI bridge [0604]: VMware PCI bridge [15ad:0790] (rev 02)
(prog-if 01 [Subtractive decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64, Cache Line Size: 32 bytes
Bus: primary=00, secondary=02, subordinate=02, sec-latency=68
I/O behind bridge: 00002000-00003fff
Memory behind bridge: fd600000-fdffffff
Prefetchable memory behind bridge: 00000000e7b00000-00000000e7ffffff
Secondary status: 66MHz- FastB2B+ ParErr- DEVSEL=medium >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI bridge [15ad:0790]
00:15.0 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 24
Bus: primary=00, secondary=03, subordinate=03, sec-latency=0
I/O behind bridge: 00004000-00004fff
Memory behind bridge: fd500000-fd5fffff
Prefetchable memory behind bridge: 00000000c0000000-00000000c01fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive+ BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #160, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power-
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet+ Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4041
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.1 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 25
Bus: primary=00, secondary=04, subordinate=04, sec-latency=0
I/O behind bridge: 00008000-00008fff
Memory behind bridge: fd100000-fd1fffff
Prefetchable memory behind bridge: 00000000e7900000-00000000e79fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #161, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4051
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.2 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 26
Bus: primary=00, secondary=05, subordinate=05, sec-latency=0
I/O behind bridge: 0000c000-0000cfff
Memory behind bridge: fcd00000-fcdfffff
Prefetchable memory behind bridge: 00000000e7500000-00000000e75fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #162, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4061
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.3 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 27
Bus: primary=00, secondary=06, subordinate=06, sec-latency=0
Memory behind bridge: fc900000-fc9fffff
Prefetchable memory behind bridge: 00000000e7100000-00000000e71fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #163, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4071
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.4 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 28
Bus: primary=00, secondary=07, subordinate=07, sec-latency=0
Memory behind bridge: fc500000-fc5fffff
Prefetchable memory behind bridge: 00000000e6d00000-00000000e6dfffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #164, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4081
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.5 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 29
Bus: primary=00, secondary=08, subordinate=08, sec-latency=0
Memory behind bridge: fc100000-fc1fffff
Prefetchable memory behind bridge: 00000000e6900000-00000000e69fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #165, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4091
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.6 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 30
Bus: primary=00, secondary=09, subordinate=09, sec-latency=0
Memory behind bridge: fbd00000-fbdfffff
Prefetchable memory behind bridge: 00000000e6500000-00000000e65fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #166, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40a1
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:15.7 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 31
Bus: primary=00, secondary=0a, subordinate=0a, sec-latency=0
Memory behind bridge: fb900000-fb9fffff
Prefetchable memory behind bridge: 00000000e6100000-00000000e61fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #167, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40b1
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:16.0 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 32
Bus: primary=00, secondary=0b, subordinate=0b, sec-latency=0
I/O behind bridge: 00005000-00005fff
Memory behind bridge: fd400000-fd4fffff
Prefetchable memory behind bridge: 00000000c0200000-00000000c03fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive+ BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #192, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power-
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet+ Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40c1
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:16.1 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 33
Bus: primary=00, secondary=0c, subordinate=0c, sec-latency=0
I/O behind bridge: 00009000-00009fff
Memory behind bridge: fd000000-fd0fffff
Prefetchable memory behind bridge: 00000000e7800000-00000000e78fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #193, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40d1
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:16.2 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 34
Bus: primary=00, secondary=0d, subordinate=0d, sec-latency=0
I/O behind bridge: 0000d000-0000dfff
Memory behind bridge: fcc00000-fccfffff
Prefetchable memory behind bridge: 00000000e7400000-00000000e74fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #194, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40e1
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:16.3 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 35
Bus: primary=00, secondary=0e, subordinate=0e, sec-latency=0
Memory behind bridge: fc800000-fc8fffff
Prefetchable memory behind bridge: 00000000e7000000-00000000e70fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #195, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4022
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:16.4 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 36
Bus: primary=00, secondary=0f, subordinate=0f, sec-latency=0
Memory behind bridge: fc400000-fc4fffff
Prefetchable memory behind bridge: 00000000e6c00000-00000000e6cfffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #196, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4042
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:16.5 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 37
Bus: primary=00, secondary=10, subordinate=10, sec-latency=0
Memory behind bridge: fc000000-fc0fffff
Prefetchable memory behind bridge: 00000000e6800000-00000000e68fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #197, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4052
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:16.6 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 38
Bus: primary=00, secondary=11, subordinate=11, sec-latency=0
Memory behind bridge: fbc00000-fbcfffff
Prefetchable memory behind bridge: 00000000e6400000-00000000e64fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #198, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4062
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:16.7 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 39
Bus: primary=00, secondary=12, subordinate=12, sec-latency=0
Memory behind bridge: fb800000-fb8fffff
Prefetchable memory behind bridge: 00000000e6000000-00000000e60fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #199, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4072
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:17.0 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 40
Bus: primary=00, secondary=13, subordinate=13, sec-latency=0
I/O behind bridge: 00006000-00006fff
Memory behind bridge: fd300000-fd3fffff
Prefetchable memory behind bridge: 00000000c0400000-00000000c05fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive+ BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #224, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power-
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet+ Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4082
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:17.1 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 41
Bus: primary=00, secondary=14, subordinate=14, sec-latency=0
I/O behind bridge: 0000a000-0000afff
Memory behind bridge: fcf00000-fcffffff
Prefetchable memory behind bridge: 00000000e7700000-00000000e77fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #225, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4092
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:17.2 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 42
Bus: primary=00, secondary=15, subordinate=15, sec-latency=0
I/O behind bridge: 0000e000-0000efff
Memory behind bridge: fcb00000-fcbfffff
Prefetchable memory behind bridge: 00000000e7300000-00000000e73fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #226, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40a2
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:17.3 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 43
Bus: primary=00, secondary=16, subordinate=16, sec-latency=0
Memory behind bridge: fc700000-fc7fffff
Prefetchable memory behind bridge: 00000000e6f00000-00000000e6ffffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #227, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40b2
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:17.4 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 44
Bus: primary=00, secondary=17, subordinate=17, sec-latency=0
Memory behind bridge: fc300000-fc3fffff
Prefetchable memory behind bridge: 00000000e6b00000-00000000e6bfffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #228, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40c2
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:17.5 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 45
Bus: primary=00, secondary=18, subordinate=18, sec-latency=0
Memory behind bridge: fbf00000-fbffffff
Prefetchable memory behind bridge: 00000000e6700000-00000000e67fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #229, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40d2
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:17.6 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 46
Bus: primary=00, secondary=19, subordinate=19, sec-latency=0
Memory behind bridge: fbb00000-fbbfffff
Prefetchable memory behind bridge: 00000000e6300000-00000000e63fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #230, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40e2
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:17.7 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 47
Bus: primary=00, secondary=1a, subordinate=1a, sec-latency=0
Memory behind bridge: fb700000-fb7fffff
Prefetchable memory behind bridge: 00000000e5f00000-00000000e5ffffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #231, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4023
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:18.0 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 48
Bus: primary=00, secondary=1b, subordinate=1b, sec-latency=0
I/O behind bridge: 00007000-00007fff
Memory behind bridge: fd200000-fd2fffff
Prefetchable memory behind bridge: 00000000e7a00000-00000000e7afffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #256, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4043
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:18.1 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 49
Bus: primary=00, secondary=1c, subordinate=1c, sec-latency=0
I/O behind bridge: 0000b000-0000bfff
Memory behind bridge: fce00000-fcefffff
Prefetchable memory behind bridge: 00000000e7600000-00000000e76fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #257, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4053
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:18.2 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 50
Bus: primary=00, secondary=1d, subordinate=1d, sec-latency=0
Memory behind bridge: fca00000-fcafffff
Prefetchable memory behind bridge: 00000000e7200000-00000000e72fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #258, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4063
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:18.3 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 51
Bus: primary=00, secondary=1e, subordinate=1e, sec-latency=0
Memory behind bridge: fc600000-fc6fffff
Prefetchable memory behind bridge: 00000000e6e00000-00000000e6efffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #259, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4073
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:18.4 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 52
Bus: primary=00, secondary=1f, subordinate=1f, sec-latency=0
Memory behind bridge: fc200000-fc2fffff
Prefetchable memory behind bridge: 00000000e6a00000-00000000e6afffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #260, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4083
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:18.5 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 53
Bus: primary=00, secondary=20, subordinate=20, sec-latency=0
Memory behind bridge: fbe00000-fbefffff
Prefetchable memory behind bridge: 00000000e6600000-00000000e66fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #261, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 4093
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:18.6 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 54
Bus: primary=00, secondary=21, subordinate=21, sec-latency=0
Memory behind bridge: fba00000-fbafffff
Prefetchable memory behind bridge: 00000000e6200000-00000000e62fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #262, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40a3
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
00:18.7 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev
01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin ? routed to IRQ 55
Bus: primary=00, secondary=22, subordinate=22, sec-latency=0
Memory behind bridge: fb600000-fb6fffff
Prefetchable memory behind bridge: 00000000e5e00000-00000000e5efffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port
[15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0
ExtTag- RBE-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+
Surprise-
Slot #263, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn+ PwrFlt- MRL- PresDet- CmdCplt-
HPIrq+ LinkChg+
Control: AttnInd Unknown, PwrInd Unknown, Power+
Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt-
PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal-
PMEIntEna+ CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee00000 Data: 40b3
Masking: 00000000 Pending: 00000000
Kernel driver in use: pcieport
Kernel modules: shpchp
03:00.0 Serial Attached SCSI controller [0107]: VMware PVSCSI SCSI
Controller [15ad:07c0] (rev 02)
Subsystem: VMware PVSCSI SCSI Controller [15ad:07c0]
Physical Slot: 160
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 18
Region 0: I/O ports at 4000 [size=8]
Region 1: Memory at fd5f8000 (64-bit, non-prefetchable) [size=32K]
[virtual] Expansion ROM at fd500000 [disabled] [size=64K]
Capabilities: [40] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s
<64ns, L1 <1us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE- FLReset+
SlotPowerLimit 0.000W
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
FLReset-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [7c] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [94] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA
PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [9c] MSI-X: Enable+ Count=24 Masked-
Vector table: BAR=1 offset=00006000
PBA: BAR=1 offset=00007000
Capabilities: [100 v1] Device Serial Number ce-bb-1f-b0-50-05-05-6d
Kernel driver in use: vmw_pvscsi
Kernel modules: vmw_pvscsi
0b:00.0 Ethernet controller [0200]: VMware VMXNET3 Ethernet Controller
[15ad:07b0] (rev 01)
Subsystem: VMware VMXNET3 Ethernet Controller [15ad:07b0]
Physical Slot: 192
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin A routed to IRQ 19
Region 0: Memory at fd4fc000 (32-bit, non-prefetchable) [size=4K]
Region 1: Memory at fd4fd000 (32-bit, non-prefetchable) [size=4K]
Region 2: Memory at fd4fe000 (32-bit, non-prefetchable) [size=8K]
Region 3: I/O ports at 5000 [size=16]
[virtual] Expansion ROM at fd400000 [disabled] [size=64K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA
PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [48] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s
<64ns, L1 <1us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE- FLReset-
SlotPowerLimit 0.000W
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [84] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [9c] MSI-X: Enable+ Count=25 Masked-
Vector table: BAR=2 offset=00000000
PBA: BAR=2 offset=00001000
Capabilities: [100 v1] Device Serial Number ff-29-0c-00-48-7e-13-fe
Kernel driver in use: vmxnet3
Kernel modules: vmxnet3
13:00.0 Ethernet controller [0200]: VMware VMXNET3 Ethernet Controller
[15ad:07b0] (rev 01)
Subsystem: VMware VMXNET3 Ethernet Controller [15ad:07b0]
Physical Slot: 224
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop-
ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort-
<TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Interrupt: pin A routed to IRQ 16
Region 0: Memory at fd3fc000 (32-bit, non-prefetchable) [size=4K]
Region 1: Memory at fd3fd000 (32-bit, non-prefetchable) [size=4K]
Region 2: Memory at fd3fe000 (32-bit, non-prefetchable) [size=8K]
Region 3: I/O ports at 6000 [size=16]
[virtual] Expansion ROM at fd300000 [disabled] [size=64K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI- D1+ D2+ AuxCurrent=0mA
PME(D0+,D1+,D2+,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [48] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s
<64ns, L1 <1us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE- FLReset-
SlotPowerLimit 0.000W
DevCtl: Report errors: Correctable- Non-Fatal- Fatal-
Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr-
TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Exit
Latency L0s <64ns, L1 <1us
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk-
DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Not Supported, TimeoutDis-,
LTR-, OBFF Not Supported
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis-,
LTR-, OBFF Disabled
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance-
SpeedDis-
Transmit Margin: Normal Operating Range,
EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB,
EqualizationComplete-, EqualizationPhase1-
EqualizationPhase2-, EqualizationPhase3-,
LinkEqualizationRequest-
Capabilities: [84] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [9c] MSI-X: Enable+ Count=25 Masked-
Vector table: BAR=2 offset=00000000
PBA: BAR=2 offset=00001000
Capabilities: [100 v1] Device Serial Number ff-29-0c-00-52-7e-13-fe
Kernel driver in use: vmxnet3
Kernel modules: vmxnet3
** USB devices:
not available
-- System Information:
Debian Release: 9.0
APT prefers testing
APT policy: (500, 'testing')
Architecture: amd64 (x86_64)
Kernel: Linux 4.9.0-3-amd64 (SMP w/4 CPU cores)
Locale: LANG=de_DE.UTF-8, LC_CTYPE=de_DE.UTF-8 (charmap=UTF-8),
LANGUAGE=de_DE.UTF-8 (charmap=UTF-8)
Shell: /bin/sh linked to /bin/dash
Init: systemd (via /run/systemd/system)
Versions of packages linux-image-4.9.0-3-amd64 depends on:
ii initramfs-tools [linux-initramfs-tool] 0.130
ii kmod 23-2
ii linux-base 4.5
Versions of packages linux-image-4.9.0-3-amd64 recommends:
ii firmware-linux-free 3.4
pn irqbalance <none>
Versions of packages linux-image-4.9.0-3-amd64 suggests:
pn debian-kernel-handbook <none>
ii grub-pc 2.02~beta3-5
pn linux-doc-4.9 <none>
Versions of packages linux-image-4.9.0-3-amd64 is related to:
ii firmware-amd-graphics 20161130-3
pn firmware-atheros <none>
pn firmware-bnx2 <none>
pn firmware-bnx2x <none>
pn firmware-brcm80211 <none>
pn firmware-cavium <none>
pn firmware-intel-sound <none>
pn firmware-intelwimax <none>
pn firmware-ipw2x00 <none>
pn firmware-ivtv <none>
pn firmware-iwlwifi <none>
pn firmware-libertas <none>
ii firmware-linux-nonfree 20161130-3
ii firmware-misc-nonfree 20161130-3
pn firmware-myricom <none>
pn firmware-netxen <none>
pn firmware-qlogic <none>
pn firmware-realtek <none>
pn firmware-samsung <none>
pn firmware-siano <none>
pn firmware-ti-connectivity <none>
pn xen-hypervisor <none>
-- no debconf information
--
/*
Mit freundlichem Gruß / With kind regards,
Patrick Matthäi
GNU/Linux Debian Developer
Blog: http://www.linux-dev.org/
E-Mail: pmatthaei@debian.org
patrick@linux-dev.org
*/
Attachment:
Description: PNG image
