Package: src:linux
Version: 4.3.5-1
Severity: normal
Tags: upstream
Dear Maintainer,
*** Reporter, please consider answering these questions, where appropriate ***
* What led up to the situation?
after upgrading to kernel 4.3.0 in sid a clean shutdown of my system isn't
working correctly anymore. if i try to restart / poweroff via the gnome3-applet

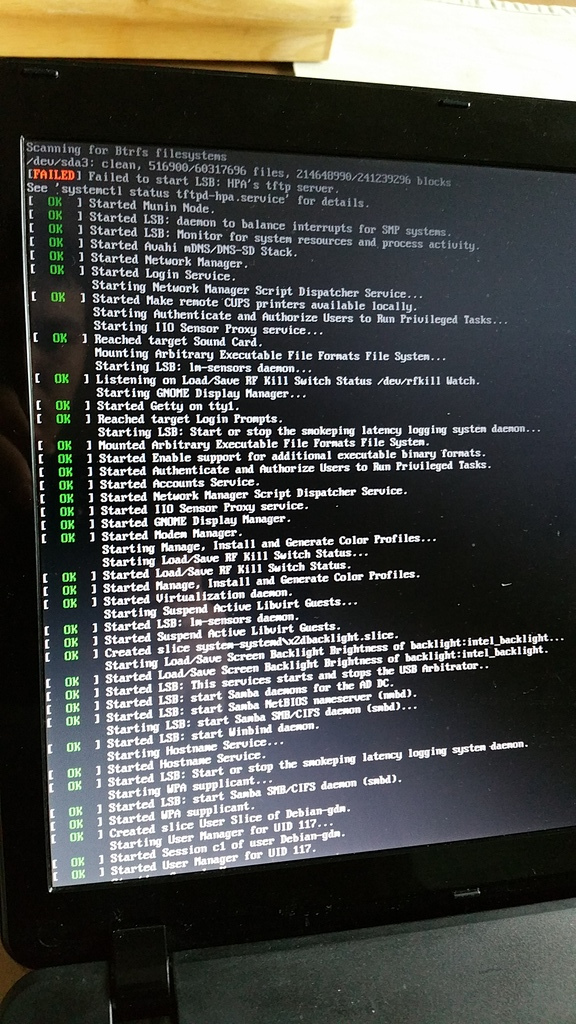

the shutdown is getting initiated but then the screen switches to the console
and nothing is happening anymore as seen in the attached screenshot. i have to
poweroff my system the hard way.
all file systems are unmounted in unclean state. maybe there's a problem with
the x-server as the screen seems to "hang" but the system is running... when
trying to use some of the kernel's magickey-options (sysrq+"reisub") a forced
restart is possible.
* What exactly did you do (or not do) that was effective (or
ineffective)?
when booting a previous version of the kernel (4.2.0) shutdown is working fine.
currently using mainly the older one to avoid problems.
* What outcome did you expect instead?
system is shutting down correctly.
-- Package-specific info:
** Version:
Linux version 4.3.0-1-amd64 (debian-kernel@lists.debian.org) (gcc version 5.3.1
20160121 (Debian 5.3.1-7) ) #1 SMP Debian 4.3.5-1 (2016-02-06)
** Command line:
BOOT_IMAGE=/boot/vmlinuz-4.3.0-1-amd64
root=UUID=9155f589-7688-40c3-ad25-d02de4e1193d ro quiet acpi_backlight=vendor
** Tainted: O (4096)
* Out-of-tree module has been loaded.
** Kernel log:
[ 6.320104] bridge-enp2s0: down
[ 6.320112] bridge-enp2s0: detached
[ 6.321615] IPv6: ADDRCONF(NETDEV_UP): wlp3s0: link is not ready
[ 6.340273] IPv6: ADDRCONF(NETDEV_UP): wlp3s0: link is not ready
[ 6.449009] IPv6: ADDRCONF(NETDEV_UP): wlp3s0: link is not ready
[ 6.486107] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 6.490780] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 6.497396] userif-5: sent link down event.
[ 6.497402] userif-2: sent link down event.
[ 6.497405] userif-5: sent link up event.
[ 6.497407] userif-2: sent link up event.
[ 6.502740] Ebtables v2.0 registered
[ 6.752827] bridge: automatic filtering via arp/ip/ip6tables has been
deprecated. Update your scripts to load br_netfilter if you need this.
[ 6.754712] tun: Universal TUN/TAP device driver, 1.6
[ 6.754716] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 6.823682] device virbr0-nic entered promiscuous mode
[ 6.930739] nf_conntrack version 0.5.0 (65536 buckets, 262144 max)
[ 6.950266] virbr0: port 1(virbr0-nic) entered listening state
[ 6.950283] virbr0: port 1(virbr0-nic) entered listening state
[ 6.993222] virbr0: port 1(virbr0-nic) entered disabled state
[ 7.039380] userif-2: sent link down event.
[ 7.039383] userif-2: sent link up event.
[ 7.039403] userif-5: sent link down event.
[ 7.039405] userif-5: sent link up event.
[ 7.279052] radeon 0000:01:00.0: No connectors reported connected with modes
[ 7.279057] [drm] Cannot find any crtc or sizes - going 1024x768
[ 7.279618] [drm] fb mappable at 0xA0475000
[ 7.279620] [drm] vram apper at 0xA0000000
[ 7.279621] [drm] size 3145728
[ 7.279622] [drm] fb depth is 24
[ 7.279623] [drm] pitch is 4096
[ 7.279736] radeon 0000:01:00.0: fb1: radeondrmfb frame buffer device
[ 7.486839] [drm] Initialized radeon 2.43.0 20080528 for 0000:01:00.0 on
minor 1
[ 7.494829] userif-2: sent link down event.
[ 7.494832] userif-2: sent link up event.
[ 7.495009] userif-5: sent link down event.
[ 7.495011] userif-5: sent link up event.
[ 10.406285] usb 1-1.6: New USB device found, idVendor=0489, idProduct=e03c
[ 10.406295] usb 1-1.6: New USB device strings: Mfr=1, Product=2,
SerialNumber=3
[ 10.406300] usb 1-1.6: Product: Bluetooth USB Host Controller
[ 10.406305] usb 1-1.6: Manufacturer: Atheros Communications
[ 10.406309] usb 1-1.6: SerialNumber: Alaska Day 2006
[ 10.515067] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 10.515071] Bluetooth: BNEP filters: protocol multicast
[ 10.515076] Bluetooth: BNEP socket layer initialized
[ 10.906876] EXT4-fs (sda3): re-mounted. Opts: errors=remount-
ro,data=ordered,commit=600
[ 17.620316] [drm] enabling PCIE gen 2 link speeds, disable with
radeon.pcie_gen2=0
[ 17.625412] [drm] PCIE GART of 1024M enabled (table at 0x0000000000274000).
[ 17.625532] radeon 0000:01:00.0: WB enabled
[ 17.625538] radeon 0000:01:00.0: fence driver on ring 0 use gpu addr
0x0000000080000c00 and cpu addr 0xffff880449c55c00
[ 17.625542] radeon 0000:01:00.0: fence driver on ring 3 use gpu addr
0x0000000080000c0c and cpu addr 0xffff880449c55c0c
[ 17.626320] radeon 0000:01:00.0: fence driver on ring 5 use gpu addr
0x0000000000072118 and cpu addr 0xffffc90002c32118
[ 17.642758] [drm] ring test on 0 succeeded in 1 usecs
[ 17.642770] [drm] ring test on 3 succeeded in 4 usecs
[ 17.672602] wlp3s0: authenticate with c0:c1:c0:18:1d:96
[ 17.697326] wlp3s0: send auth to c0:c1:c0:18:1d:96 (try 1/3)
[ 17.699108] wlp3s0: authenticated
[ 17.699431] ath9k 0000:03:00.0 wlp3s0: disabling HT as WMM/QoS is not
supported by the AP
[ 17.699441] ath9k 0000:03:00.0 wlp3s0: disabling VHT as WMM/QoS is not
supported by the AP
[ 17.699587] wlp3s0: associate with c0:c1:c0:18:1d:96 (try 1/3)
[ 17.702117] wlp3s0: RX AssocResp from c0:c1:c0:18:1d:96 (capab=0x411
status=0 aid=6)
[ 17.702268] wlp3s0: associated
[ 17.702286] IPv6: ADDRCONF(NETDEV_CHANGE): wlp3s0: link becomes ready
[ 17.828550] [drm] ring test on 5 succeeded in 2 usecs
[ 17.828564] [drm] UVD initialized successfully.
[ 17.828663] [drm] ib test on ring 0 succeeded in 0 usecs
[ 17.828750] [drm] ib test on ring 3 succeeded in 0 usecs
[ 18.188662] userif-2: sent link down event.
[ 18.188674] userif-5: sent link down event.
[ 18.188681] userif-2: sent link up event.
[ 18.188685] userif-5: sent link up event.
[ 18.486941] [drm] ib test on ring 5 succeeded
[ 28.700098] Bluetooth: RFCOMM TTY layer initialized
[ 28.700117] Bluetooth: RFCOMM socket layer initialized
[ 28.700130] Bluetooth: RFCOMM ver 1.11
[ 71.135011] device vnet0 entered promiscuous mode
[ 71.159076] virbr0: port 2(vnet0) entered listening state
[ 71.159123] virbr0: port 2(vnet0) entered listening state
[ 71.358757] userif-5: sent link down event.
[ 71.358764] userif-5: sent link up event.
[ 71.359145] userif-2: sent link down event.
[ 71.359152] userif-2: sent link up event.
[ 73.160709] virbr0: port 2(vnet0) entered learning state
[ 74.332572] kvm: zapping shadow pages for mmio generation wraparound
[ 74.343851] kvm: zapping shadow pages for mmio generation wraparound
[ 75.160617] virbr0: topology change detected, propagating
[ 75.160646] virbr0: port 2(vnet0) entered forwarding state
[ 75.360789] userif-2: sent link down event.
[ 75.360799] userif-5: sent link down event.
[ 75.360805] userif-2: sent link up event.
[ 75.360809] userif-5: sent link up event.
[ 215.965416] [drm:intel_atomic_commit [i915]] *ERROR* Atomic update failure
on pipe A (start=13735 end=13736)
[ 416.804201] [drm:intel_atomic_commit [i915]] *ERROR* Atomic update failure
on pipe A (start=25832 end=25833)
[ 634.076467] virbr0: port 2(vnet0) entered disabled state
[ 634.080708] device vnet0 left promiscuous mode
[ 634.080717] virbr0: port 2(vnet0) entered disabled state
[ 634.276044] userif-5: sent link down event.
[ 634.276052] userif-5: sent link up event.
[ 634.280445] userif-2: sent link down event.
[ 634.280453] userif-2: sent link up event.
** Model information
sys_vendor: Packard Bell
product_name: EasyNote LS11HR
product_version: V1.16
chassis_vendor: Packard Bell
chassis_version: V1.16
bios_vendor: Packard Bell
bios_version: V1.16
board_vendor: Packard Bell
board_name: SJV70_HR
board_version: Base Board Version
** Loaded modules:
vhost_net
vhost
macvtap
macvlan
rfcomm
ctr
ccm
bnep
xt_CHECKSUM
iptable_mangle
ipt_MASQUERADE
nf_nat_masquerade_ipv4
iptable_nat
nf_nat_ipv4
nf_nat
nf_conntrack_ipv4
nf_defrag_ipv4
xt_conntrack
nf_conntrack
ipt_REJECT
nf_reject_ipv4
xt_tcpudp
tun
bridge
stp
llc
ebtable_filter
ebtables
ip6table_filter
ip6_tables
iptable_filter
ip_tables
x_tables
vmnet(O)
fuse
vmw_vsock_vmci_transport
vsock
intel_rapl
iosf_mbi
x86_pkg_temp_thermal
intel_powerclamp
coretemp
kvm_intel
kvm
crct10dif_pclmul
crc32_pclmul
vmw_vmci
vmmon(O)
iTCO_wdt
acer_wmi
iTCO_vendor_support
sparse_keymap
snd_hda_codec_hdmi
sha256_ssse3
sha256_generic
snd_hda_codec_realtek
arc4
snd_hda_codec_generic
hmac
drbg
ansi_cprng
ath9k
ath9k_common
ath9k_hw
ath
uvcvideo
aesni_intel
videobuf2_vmalloc
videobuf2_memops
videobuf2_core
ath3k
v4l2_common
mac80211
btusb
aes_x86_64
btrtl
amdkfd
lrw
videodev
btbcm
gf128mul
glue_helper
btintel
snd_hda_intel
joydev
ablk_helper
evdev
bluetooth
media
radeon
cryptd
i915
pcspkr
cfg80211
serio_raw
snd_hda_codec
i2c_i801
ttm
snd_hda_core
snd_hwdep
drm_kms_helper
snd_pcm
rfkill
snd_timer
drm
snd
soundcore
i2c_algo_bit
mei_me
lpc_ich
sg
mei
mfd_core
shpchp
ac
battery
tpm_tis
wmi
video
tpm
button
processor
binfmt_misc
parport_pc
ppdev
lp
parport
loop
dm_crypt
dm_mod
autofs4
ext4
crc16
mbcache
jbd2
btrfs
xor
raid6_pq
sr_mod
cdrom
sd_mod
crc32c_intel
ahci
libahci
libata
psmouse
xhci_pci
scsi_mod
ehci_pci
xhci_hcd
ehci_hcd
usbcore
atl1c
usb_common
** Network interface configuration:
source /etc/network/interfaces.d/*
auto lo
iface lo inet loopback
** Network status:
*** IP interfaces and addresses:
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group
default
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: enp2s0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state
DOWN group default qlen 1000
link/ether dc:0e:a1:15:bc:d5 brd ff:ff:ff:ff:ff:ff
3: wlp3s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group
default qlen 1000
link/ether 94:39:e5:29:28:93 brd ff:ff:ff:ff:ff:ff
inet 192.168.3.1/24 brd 192.168.3.255 scope global dynamic wlp3s0
valid_lft 603694sec preferred_lft 603694sec
inet6 2001:4dd0:ff00:9d08:c41:f79:350:3f28/64 scope global temporary
dynamic
valid_lft 86400sec preferred_lft 14400sec
inet6 2001:4dd0:ff00:9d08:9639:e5ff:fe29:2893/64 scope global mngtmpaddr
noprefixroute dynamic
valid_lft 86400sec preferred_lft 14400sec
inet6 fe80::9639:e5ff:fe29:2893/64 scope link
valid_lft forever preferred_lft forever
4: vmnet1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state
UNKNOWN group default qlen 1000
link/ether 00:50:56:c0:00:01 brd ff:ff:ff:ff:ff:ff
inet 192.168.206.1/24 brd 192.168.206.255 scope global vmnet1
valid_lft forever preferred_lft forever
inet6 fe80::250:56ff:fec0:1/64 scope link
valid_lft forever preferred_lft forever
5: vmnet2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state
UNKNOWN group default qlen 1000
link/ether 00:50:56:c0:00:02 brd ff:ff:ff:ff:ff:ff
inet 172.16.239.1/24 brd 172.16.239.255 scope global vmnet2
valid_lft forever preferred_lft forever
inet6 fe80::250:56ff:fec0:2/64 scope link
valid_lft forever preferred_lft forever
6: vmnet8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state
UNKNOWN group default qlen 1000
link/ether 00:50:56:c0:00:08 brd ff:ff:ff:ff:ff:ff
inet 172.16.95.1/24 brd 172.16.95.255 scope global vmnet8
valid_lft forever preferred_lft forever
inet6 fe80::250:56ff:fec0:8/64 scope link
valid_lft forever preferred_lft forever
7: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state
DOWN group default qlen 1000
link/ether 52:54:00:38:9f:b4 brd ff:ff:ff:ff:ff:ff
inet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0
valid_lft forever preferred_lft forever
8: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc noqueue master virbr0 state
DOWN group default qlen 500
link/ether 52:54:00:38:9f:b4 brd ff:ff:ff:ff:ff:ff
*** Device statistics:
Inter-| Receive | Transmit
face |bytes packets errs drop fifo frame compressed multicast|bytes
packets errs drop fifo colls carrier compressed
enp2s0: 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0
virbr0-nic: 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0
vmnet1: 0 0 0 0 0 0 0 0 0
141 0 0 0 0 0 0
vmnet2: 0 0 0 0 0 0 0 0 0
141 0 0 0 0 0 0
virbr0: 59575 404 0 0 0 0 0 0 98833
238 0 0 0 0 0 0
vmnet8: 0 0 0 0 0 0 0 0 0
139 0 0 0 0 0 0
lo: 34204745 72950 0 0 0 0 0 0 34204745
72950 0 0 0 0 0 0
wlp3s0: 7297758 15051 0 0 0 0 0 0 3565586
15538 0 0 0 0 0 0
*** Protocol statistics:
Ip:
Forwarding: 1
80073 total packets received
392 forwarded
0 incoming packets discarded
79602 incoming packets delivered
81227 requests sent out
40 outgoing packets dropped
2 dropped because of missing route
Icmp:
251 ICMP messages received
0 input ICMP message failed.
ICMP input histogram:
destination unreachable: 89
echo requests: 81
echo replies: 81
259 ICMP messages sent
0 ICMP messages failed
ICMP output histogram:
destination unreachable: 96
echo request: 82
echo replies: 81
IcmpMsg:
InType0: 81
InType3: 89
InType8: 81
OutType0: 81
OutType3: 96
OutType8: 82
Tcp:
483 active connections openings
11 passive connection openings
6 failed connection attempts
27 connection resets received
39 connections established
84783 segments received
85909 segments send out
157 segments retransmited
2 bad segments received.
102 resets sent
Udp:
1775 packets received
95 packets to unknown port received.
0 packet receive errors
1603 packets sent
0 receive buffer errors
0 send buffer errors
IgnoredMulti: 62
UdpLite:
TcpExt:
299 TCP sockets finished time wait in fast timer
1 packets rejects in established connections because of timestamp
1045 delayed acks sent
4 delayed acks further delayed because of locked socket
Quick ack mode was activated 49 times
6 packets directly queued to recvmsg prequeue.
52918 packet headers predicted
3578 acknowledgments not containing data payload received
21498 predicted acknowledgments
2 congestion windows recovered without slow start after partial ack
104 retransmits in slow start
TCPTimeouts: 4
TCPLossProbes: 55
TCPLossProbeRecovery: 2
TCPDSACKOldSent: 52
TCPDSACKRecv: 34
23 connections reset due to unexpected data
25 connections reset due to early user close
TCPDSACKIgnoredNoUndo: 30
TCPSackShiftFallback: 30
TCPRcvCoalesce: 4323
TCPOFOQueue: 256
TCPChallengeACK: 2
TCPSYNChallenge: 2
TCPSpuriousRtxHostQueues: 2
TCPAutoCorking: 456
TCPSynRetrans: 1
TCPOrigDataSent: 59242
TCPHystartTrainDetect: 2
TCPHystartTrainCwnd: 60
TCPHystartDelayDetect: 4
TCPHystartDelayCwnd: 147
TCPKeepAlive: 204
IpExt:
InNoRoutes: 1
InMcastPkts: 195
OutMcastPkts: 204
InBcastPkts: 349
OutBcastPkts: 261
InOctets: 37769499
OutOctets: 35642138
InMcastOctets: 23052
OutMcastOctets: 22700
InBcastOctets: 43907
OutBcastOctets: 35581
InNoECTPkts: 80073
** PCI devices:
00:00.0 Host bridge [0600]: Intel Corporation 2nd Generation Core Processor Family DRAM Controller [8086:0104] (rev 09)
Subsystem: Acer Incorporated [ALI] 2nd Generation Core Processor Family DRAM Controller [1025:0513]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ >SERR- <PERR- INTx-
Latency: 0
Capabilities: <access denied>
00:01.0 PCI bridge [0604]: Intel Corporation Xeon E3-1200/2nd Generation Core Processor Family PCI Express Root Port [8086:0101] (rev 09) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 24
Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
I/O behind bridge: 00003000-00003fff
Memory behind bridge: c0700000-c16fffff
Prefetchable memory behind bridge: 00000000a0000000-00000000afffffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
Kernel modules: shpchp
00:02.0 VGA compatible controller [0300]: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller [8086:0116] (rev 09) (prog-if 00 [VGA controller])
Subsystem: Acer Incorporated [ALI] 2nd Generation Core Processor Family Integrated Graphics Controller [1025:0514]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 35
Region 0: Memory at c0000000 (64-bit, non-prefetchable) [size=4M]
Region 2: Memory at b0000000 (64-bit, prefetchable) [size=256M]
Region 4: I/O ports at 4000 [size=64]
Expansion ROM at <unassigned> [disabled]
Capabilities: <access denied>
Kernel driver in use: i915
Kernel modules: i915
00:16.0 Communication controller [0780]: Intel Corporation 6 Series/C200 Series Chipset Family MEI Controller #1 [8086:1c3a] (rev 04)
Subsystem: Acer Incorporated [ALI] 6 Series/C200 Series Chipset Family MEI Controller [1025:0513]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 34
Region 0: Memory at c1704000 (64-bit, non-prefetchable) [size=16]
Capabilities: <access denied>
Kernel driver in use: mei_me
Kernel modules: mei_me
00:1a.0 USB controller [0c03]: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #2 [8086:1c2d] (rev 04) (prog-if 20 [EHCI])
Subsystem: Acer Incorporated [ALI] 6 Series/C200 Series Chipset Family USB Enhanced Host Controller [1025:0513]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 16
Region 0: Memory at c170a000 (32-bit, non-prefetchable) [size=1K]
Capabilities: <access denied>
Kernel driver in use: ehci-pci
Kernel modules: ehci_pci
00:1b.0 Audio device [0403]: Intel Corporation 6 Series/C200 Series Chipset Family High Definition Audio Controller [8086:1c20] (rev 04)
Subsystem: Acer Incorporated [ALI] 6 Series/C200 Series Chipset Family High Definition Audio Controller [1025:0513]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 36
Region 0: Memory at c1700000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: snd_hda_intel
Kernel modules: snd_hda_intel
00:1c.0 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 1 [8086:1c10] (rev b4) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 17
Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
I/O behind bridge: 00002000-00002fff
Memory behind bridge: c0600000-c06fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
Kernel modules: shpchp
00:1c.1 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 2 [8086:1c12] (rev b4) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 16
Bus: primary=00, secondary=03, subordinate=03, sec-latency=0
Memory behind bridge: c0500000-c05fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
Kernel modules: shpchp
00:1c.3 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 4 [8086:1c16] (rev b4) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin D routed to IRQ 19
Bus: primary=00, secondary=05, subordinate=05, sec-latency=0
Memory behind bridge: c0400000-c04fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
Kernel modules: shpchp
00:1d.0 USB controller [0c03]: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #1 [8086:1c26] (rev 04) (prog-if 20 [EHCI])
Subsystem: Acer Incorporated [ALI] 6 Series/C200 Series Chipset Family USB Enhanced Host Controller [1025:0513]
Control: I/O- Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 23
Region 0: Memory at c1709000 (32-bit, non-prefetchable) [size=1K]
Capabilities: <access denied>
Kernel driver in use: ehci-pci
Kernel modules: ehci_pci
00:1f.0 ISA bridge [0601]: Intel Corporation HM65 Express Chipset Family LPC Controller [8086:1c49] (rev 04)
Subsystem: Acer Incorporated [ALI] HM65 Express Chipset Family LPC Controller [1025:0513]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Capabilities: <access denied>
Kernel driver in use: lpc_ich
Kernel modules: lpc_ich
00:1f.2 SATA controller [0106]: Intel Corporation 6 Series/C200 Series Chipset Family 6 port SATA AHCI Controller [8086:1c03] (rev 04) (prog-if 01 [AHCI 1.0])
Subsystem: Acer Incorporated [ALI] 6 Series/C200 Series Chipset Family 6 port SATA AHCI Controller [1025:0513]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin B routed to IRQ 33
Region 0: I/O ports at 4098 [size=8]
Region 1: I/O ports at 40bc [size=4]
Region 2: I/O ports at 4090 [size=8]
Region 3: I/O ports at 40b8 [size=4]
Region 4: I/O ports at 4060 [size=32]
Region 5: Memory at c1708000 (32-bit, non-prefetchable) [size=2K]
Capabilities: <access denied>
Kernel driver in use: ahci
Kernel modules: ahci
00:1f.3 SMBus [0c05]: Intel Corporation 6 Series/C200 Series Chipset Family SMBus Controller [8086:1c22] (rev 04)
Subsystem: Acer Incorporated [ALI] 6 Series/C200 Series Chipset Family SMBus Controller [1025:0513]
Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin C routed to IRQ 0
Region 0: Memory at c1706000 (64-bit, non-prefetchable) [size=256]
Region 4: I/O ports at 4040 [size=32]
Kernel modules: i2c_i801
01:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Thames [Radeon HD 7500M/7600M Series] [1002:6840] (rev ff) (prog-if ff)
!!! Unknown header type 7f
Kernel driver in use: radeon
Kernel modules: radeon
02:00.0 Ethernet controller [0200]: Qualcomm Atheros AR8151 v2.0 Gigabit Ethernet [1969:1083] (rev c0)
Subsystem: Acer Incorporated [ALI] AR8151 v2.0 Gigabit Ethernet [1025:0513]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 38
Region 0: Memory at c0600000 (64-bit, non-prefetchable) [size=256K]
Region 2: I/O ports at 2000 [size=128]
Capabilities: <access denied>
Kernel driver in use: atl1c
Kernel modules: atl1c
03:00.0 Network controller [0280]: Qualcomm Atheros AR9287 Wireless Network Adapter (PCI-Express) [168c:002e] (rev 01)
Subsystem: Foxconn International, Inc. T77H167.00 [105b:e034]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 17
Region 0: Memory at c0500000 (64-bit, non-prefetchable) [size=64K]
Capabilities: <access denied>
Kernel driver in use: ath9k
Kernel modules: ath9k
05:00.0 USB controller [0c03]: NEC Corporation uPD720200 USB 3.0 Host Controller [1033:0194] (rev 04) (prog-if 30 [XHCI])
Subsystem: Acer Incorporated [ALI] uPD720200 USB 3.0 Host Controller [1025:0513]
Control: I/O- Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 0
Region 0: Memory at c0400000 (64-bit, non-prefetchable) [size=8K]
Capabilities: <access denied>
Kernel driver in use: xhci_hcd
Kernel modules: xhci_pci
** USB devices:
Bus 004 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub
Bus 004 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 005: ID 0489:e03c Foxconn / Hon Hai
Bus 001 Device 003: ID 04fc:2801 Sunplus Technology Co., Ltd
Bus 001 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
-- System Information:
Debian Release: stretch/sid
APT prefers testing
APT policy: (500, 'testing')
Architecture: amd64 (x86_64)
Foreign Architectures: i386
Kernel: Linux 4.3.0-1-amd64 (SMP w/8 CPU cores)
Locale: LANG=en_US.UTF-8, LC_CTYPE=en_US.UTF-8 (charmap=UTF-8)
Shell: /bin/sh linked to /bin/dash
Init: systemd (via /run/systemd/system)
Versions of packages linux-image-4.3.0-1-amd64 depends on:
ii debconf [debconf-2.0] 1.5.58
ii initramfs-tools [linux-initramfs-tool] 0.123
ii kmod 22-1
ii linux-base 4.0
Versions of packages linux-image-4.3.0-1-amd64 recommends:
ii firmware-linux-free 3.4
ii irqbalance 1.1.0-2
Versions of packages linux-image-4.3.0-1-amd64 suggests:
pn debian-kernel-handbook <none>
ii grub-pc 2.02~beta2-36
pn linux-doc-4.3 <none>
Versions of packages linux-image-4.3.0-1-amd64 is related to:
ii firmware-atheros 20160110-1
pn firmware-bnx2 <none>
pn firmware-bnx2x <none>
pn firmware-brcm80211 <none>
pn firmware-intelwimax <none>
pn firmware-ipw2x00 <none>
pn firmware-ivtv <none>
pn firmware-iwlwifi <none>
pn firmware-libertas <none>
pn firmware-linux <none>
ii firmware-linux-nonfree 20160110-1
ii firmware-misc-nonfree [firmware-ralink] 20160110-1
pn firmware-myricom <none>
pn firmware-netxen <none>
pn firmware-qlogic <none>
pn firmware-realtek <none>
pn xen-hypervisor <none>
-- debconf information:
linux-image-4.3.0-1-amd64/postinst/mips-initrd-4.3.0-1-amd64:
linux-image-4.3.0-1-amd64/postinst/depmod-error-initrd-4.3.0-1-amd64: false
linux-image-4.3.0-1-amd64/prerm/removing-running-kernel-4.3.0-1-amd64: true
Attachment:
Description: JPEG image
