Package: src:linux
Version: 3.13.5-1
Severity: grave
Justification: renders package unusable
Up to now, I was using wheezy distro with r8169-dkms driver from 'sid'. After
upgrade to 'jessie' r8169-dkms was removed and I've noticed strange reboots.
r8169 is my second card connected to 100MB switch and it is used only to handle
voip phone, tv and sat receiver. No big traffic was generated when kernel panic
occurs.

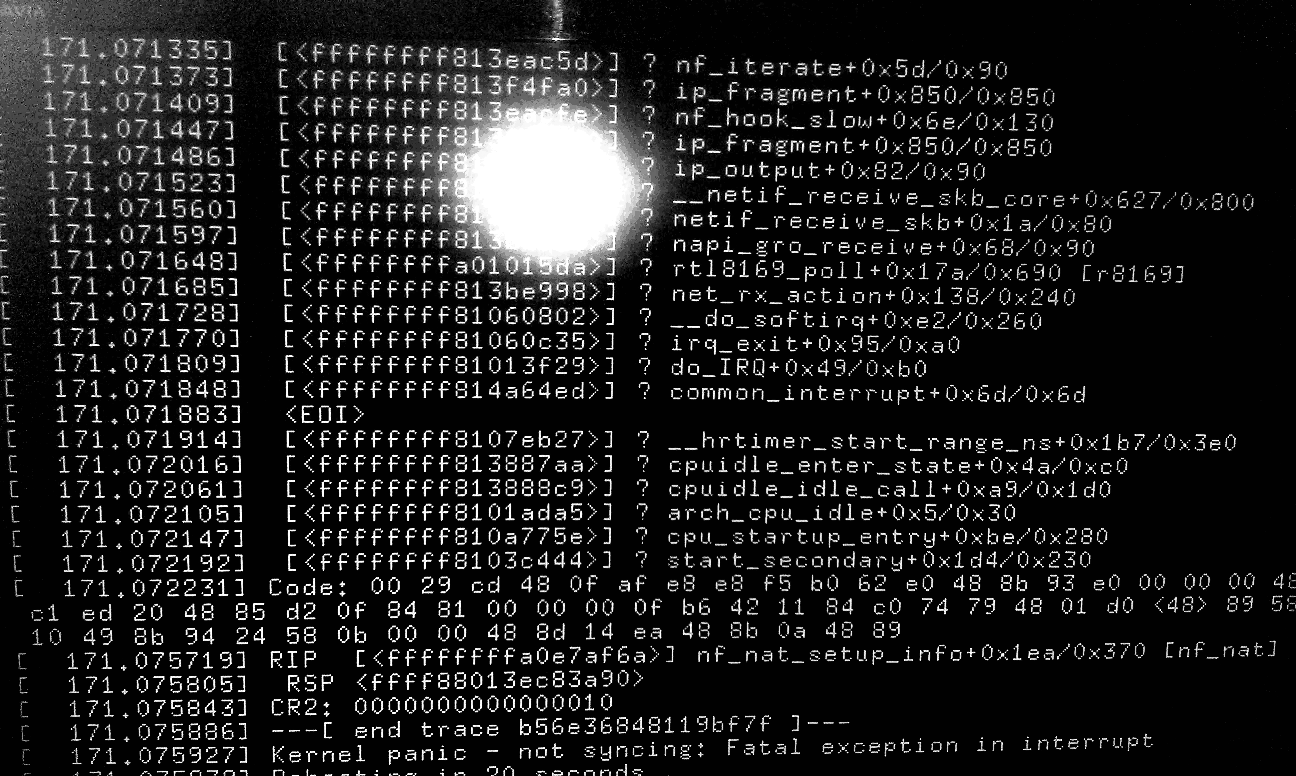

Image with screen during kernel panic in attachement.
Hardware info:
Manufacturer: Gigabyte Technology Co., Ltd.
Product Name: To be filled by O.E.M.
Version: To be filled by O.E.M.
Serial Number: To be filled by O.E.M.
Manufacturer: Gigabyte Technology Co., Ltd.
Version: To Be Filled By O.E.M.
Serial Number: To Be Filled By O.E.M.
Socket Designation: P0
Manufacturer: AuthenticAMD
Version: AMD A4-5300 APU with Radeon(tm) HD Graphics
Upgrade: Socket FM2
02:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411
PCI Express Gigabit Ethernet Controller (rev 06)
-- Package-specific info:
** Version:
Linux version 3.13-1-amd64 (debian-kernel@lists.debian.org) (gcc version 4.8.2
(Debian 4.8.2-14) ) #1 SMP Debian 3.13.5-1 (2014-03-04)
** Command line:
BOOT_IMAGE=/boot/vmlinuz-3.13-1-amd64 root=UUID=c37dcadd-ac3b-
47f9-b066-e47821ac48d7 ro panic=20 ip=off radeon.dpm=1
** Tainted: PCO (5121)
* Proprietary module has been loaded.
* Module from drivers/staging has been loaded.
* Out-of-tree module has been loaded.
** Kernel log:
[ 11.299039] ath: EEPROM indicates we should expect a country code
[ 11.299040] ath: doing EEPROM country->regdmn map search
[ 11.299042] ath: country maps to regdmn code: 0x52
[ 11.299043] ath: Country alpha2 being used: CN
[ 11.299045] ath: Regpair used: 0x52
[ 11.377878] ieee80211 phy0: Atheros AR9271 Rev:1
[ 12.034042] cfg80211: World regulatory domain updated:
[ 12.034088] cfg80211: (start_freq - end_freq @ bandwidth),
(max_antenna_gain, max_eirp)
[ 12.034142] cfg80211: (2402000 KHz - 2472000 KHz @ 40000 KHz), (N/A, 2000
mBm)
[ 12.034187] cfg80211: (2457000 KHz - 2482000 KHz @ 40000 KHz), (N/A, 2000
mBm)
[ 12.034230] cfg80211: (2474000 KHz - 2494000 KHz @ 20000 KHz), (N/A, 2000
mBm)
[ 12.034273] cfg80211: (5170000 KHz - 5250000 KHz @ 80000 KHz), (N/A, 2000
mBm)
[ 12.034314] cfg80211: (5735000 KHz - 5835000 KHz @ 80000 KHz), (N/A, 2000
mBm)
[ 12.034356] cfg80211: (57240000 KHz - 63720000 KHz @ 2160000 KHz), (N/A, 0
mBm)
[ 12.034413] cfg80211: Calling CRDA for country: CN
[ 12.071250] cfg80211: Regulatory domain changed to country: CN
[ 12.071295] cfg80211: (start_freq - end_freq @ bandwidth),
(max_antenna_gain, max_eirp)
[ 12.071339] cfg80211: (2402000 KHz - 2482000 KHz @ 40000 KHz), (N/A, 2000
mBm)
[ 12.071381] cfg80211: (5170000 KHz - 5250000 KHz @ 80000 KHz), (N/A, 2300
mBm)
[ 12.071423] cfg80211: (5250000 KHz - 5330000 KHz @ 80000 KHz), (N/A, 2300
mBm)
[ 12.071464] cfg80211: (5735000 KHz - 5835000 KHz @ 80000 KHz), (N/A, 3000
mBm)
[ 12.071506] cfg80211: (57240000 KHz - 59400000 KHz @ 2160000 KHz), (N/A,
2800 mBm)
[ 12.071548] cfg80211: (59400000 KHz - 63720000 KHz @ 2160000 KHz), (N/A,
4400 mBm)
[ 12.071589] cfg80211: (63720000 KHz - 65880000 KHz @ 2160000 KHz), (N/A,
2800 mBm)
[ 28.013736] EXT4-fs (sda6): re-mounted. Opts: usrquota,grpquota,errors
=remount-ro
[ 28.135473] Adding 1048572k swap on /swap1. Priority:-1 extents:21
across:2400252k
[ 28.144453] Adding 1048572k swap on /swap2. Priority:-2 extents:6
across:1851388k
[ 28.286665] EXT4-fs (dm-0): recovery complete
[ 28.301267] EXT4-fs (dm-0): mounted filesystem with ordered data mode. Opts:
(null)
[ 28.730613] RPC: Registered named UNIX socket transport module.
[ 28.730653] RPC: Registered udp transport module.
[ 28.730687] RPC: Registered tcp transport module.
[ 28.730721] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 28.757239] FS-Cache: Loaded
[ 28.784368] FS-Cache: Netfs 'nfs' registered for caching
[ 28.843032] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).
[ 29.268330] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 29.270640] e100 0000:01:06.0 eth0: NIC Link is Up 100 Mbps Full Duplex
[ 29.270807] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 37.198458] r8169 0000:02:00.0: firmware: direct-loading firmware
rtl_nic/rtl8168e-3.fw
[ 37.316464] r8169 0000:02:00.0 eth1: link down
[ 37.316540] r8169 0000:02:00.0 eth1: link down
[ 37.316628] IPv6: ADDRCONF(NETDEV_UP): eth1: link is not ready
[ 37.842648] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready
[ 37.842818] cfg80211: Calling CRDA for country: CA
[ 37.855245] cfg80211: Regulatory domain changed to country: CA
[ 37.855293] cfg80211: (start_freq - end_freq @ bandwidth),
(max_antenna_gain, max_eirp)
[ 37.855338] cfg80211: (2402000 KHz - 2472000 KHz @ 40000 KHz), (N/A, 3000
mBm)
[ 37.855382] cfg80211: (5170000 KHz - 5250000 KHz @ 80000 KHz), (N/A, 1700
mBm)
[ 37.855425] cfg80211: (5250000 KHz - 5330000 KHz @ 80000 KHz), (N/A, 2400
mBm)
[ 37.855468] cfg80211: (5490000 KHz - 5730000 KHz @ 80000 KHz), (N/A, 2400
mBm)
[ 37.855511] cfg80211: (5735000 KHz - 5835000 KHz @ 80000 KHz), (N/A, 3000
mBm)
[ 37.916113] 8021q: 802.1Q VLAN Support v1.8
[ 38.129222] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready
[ 39.106182] r8169 0000:02:00.0 eth1: link up
[ 39.106235] IPv6: ADDRCONF(NETDEV_CHANGE): eth1: link becomes ready
[ 40.080806] NFSD: Using /var/lib/nfs/v4recovery as the NFSv4 state recovery
directory
[ 40.080863] NFSD: starting 90-second grace period (net ffffffff81886100)
[ 41.368800] tun: Universal TUN/TAP device driver, 1.6
[ 41.368846] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 44.521241] Netfilter messages via NETLINK v0.30.
[ 53.006145] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 65.370888] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 65.373166] e100 0000:01:06.0 eth0: NIC Link is Up 100 Mbps Full Duplex
[ 65.373351] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 67.210033] Adding 2097148k swap on /dev/zram0. Priority:60 extents:1
across:2097148k SS
[ 67.639318] nf_conntrack version 0.5.0 (16384 buckets, 65536 max)
[ 69.283528] ip_set: protocol 6
[ 70.039157] nf_conntrack: automatic helper assignment is deprecated and it
will be removed soon. Use the iptables CT target to attach helpers instead.
[ 74.606523] ctnetlink v0.93: registering with nfnetlink.
[ 79.104766] HTB: quantum of class 100001 is big. Consider r2q change.
[ 79.106359] HTB: quantum of class 101000 is big. Consider r2q change.
[ 79.107628] HTB: quantum of class 102000 is big. Consider r2q change.
[ 79.161280] u32 classifier
[ 79.161317] Performance counters on
[ 79.161349] input device check on
[ 79.161381] Actions configured
[ 152.500561] SGI XFS with ACLs, security attributes, realtime, large
block/inode numbers, no debug enabled
[ 152.507139] JFS: nTxBlock = 8192, nTxLock = 65536
[ 152.541901] NTFS driver 2.1.30 [Flags: R/W MODULE].
[ 152.575307] QNX4 filesystem 0.2.3 registered.
[ 152.596011] xor: automatically using best checksumming function:
[ 152.634706] avx : 4299.000 MB/sec
[ 152.706782] raid6: sse2x1 5972 MB/s
[ 152.774843] raid6: sse2x2 9466 MB/s
[ 152.842902] raid6: sse2x4 11013 MB/s
[ 152.842937] raid6: using algorithm sse2x4 (11013 MB/s)
[ 152.842969] raid6: using ssse3x2 recovery algorithm
[ 152.864182] bio: create slab <bio-2> at 2
[ 152.864353] Btrfs loaded
[ 480.333544] fglrx_pci 0000:00:01.0: irq 52 for MSI/MSI-X
[ 480.334512] <6>[fglrx] Firegl kernel thread PID: 8677
[ 480.334580] <6>[fglrx] Firegl kernel thread PID: 8678
[ 480.334654] <6>[fglrx] Firegl kernel thread PID: 8679
[ 480.334740] <6>[fglrx] IRQ 52 Enabled
[ 480.338218] <6>[fglrx] Reserved FB block: Shared offset:0, size:1000000
[ 480.338220] <6>[fglrx] Reserved FB block: Unshared offset:fc49000, size:3000
[ 480.338222] <6>[fglrx] Reserved FB block: Unshared offset:fc4c000,
size:3b4000
[ 480.338223] <6>[fglrx] Reserved FB block: Unshared offset:1ffee000,
size:12000
[ 489.689676] type=1006 audit(1394876935.628:2): pid=8829 uid=0 old
auid=4294967295 new auid=1000 old ses=4294967295 new ses=1 res=1
** Model information
sys_vendor: Gigabyte Technology Co., Ltd.
product_name: To be filled by O.E.M.
product_version: To be filled by O.E.M.
chassis_vendor: Gigabyte Technology Co., Ltd.
chassis_version: To Be Filled By O.E.M.
bios_vendor: American Megatrends Inc.
bios_version: F2
board_vendor: Gigabyte Technology Co., Ltd.
board_name: F2A55-DS3
board_version: x.x
** Loaded modules:
btrfs
raid6_pq
xor
ufs
qnx4
hfsplus
hfs
minix
ntfs
vfat
msdos
fat
jfs
xfs
libcrc32c
cls_fw
cls_u32
sch_sfq
sch_ingress
sch_dsmark
sch_htb
xt_mark
xt_CLASSIFY
xt_helper
xt_NFQUEUE
nf_conntrack_netlink
iptable_mangle
ipt_MASQUERADE
xt_nat
iptable_nat
nf_nat_ipv4
xt_TCPMSS
xt_tcpmss
xt_tcpudp
xt_conntrack
ipt_REJECT
xt_NFLOG
xt_set
ip_set_hash_net
ip_set
xt_TARPIT(O)
nf_conntrack_irc
nf_conntrack_ipv4
nf_defrag_ipv4
nf_nat_proto_udplite
nf_nat_proto_dccp
nf_nat_pptp
nf_nat_proto_gre
nf_conntrack_pptp
nf_conntrack_proto_gre
nf_nat_sip
nf_conntrack_sip
nf_nat_tftp
nf_conntrack_tftp
nf_nat_ftp
nf_conntrack_ftp
nf_nat
nf_conntrack
ifb
xt_multiport
iptable_filter
ip_tables
x_tables
nfnetlink_log
nfnetlink
tun
binfmt_misc
uinput
ctr
ccm
8021q
garp
stp
mrp
llc
nfsd
auth_rpcgss
oid_registry
nfs_acl
nfs
lockd
fscache
sunrpc
arc4
joydev
ath9k_htc
fglrx(PO)
ath9k_common
ath9k_hw
ath
mac80211
cfg80211
rfkill
evdev
snd_hda_codec_realtek
kvm_amd
snd_hda_codec_hdmi
snd_hda_intel
snd_hda_codec
snd_hwdep
snd_pcm
kvm
k10temp
snd_page_alloc
psmouse
pcspkr
serio_raw
snd_seq
snd_seq_device
snd_timer
snd
soundcore
button
i2c_piix4
i2c_core
acpi_cpufreq
processor
thermal_sys
zram(C)
cpufreq_userspace
cpufreq_stats
cpufreq_powersave
cpufreq_conservative
it87_wdt
it87
hwmon_vid
loop
fuse
parport_pc
ppdev
lp
parport
autofs4
hid_logitech
ff_memless
usbhid
hid
ext4
crc16
mbcache
jbd2
dm_mod
sg
sd_mod
crc_t10dif
crct10dif_pclmul
crct10dif_common
crc32_pclmul
crc32c_intel
ghash_clmulni_intel
aesni_intel
aes_x86_64
lrw
gf128mul
glue_helper
ablk_helper
cryptd
e100
r8169
mii
ahci
libahci
ohci_pci
ohci_hcd
ehci_pci
ehci_hcd
usbcore
usb_common
libata
scsi_mod
** Network interface configuration:
auto lo
iface lo inet loopback
auto eth0
allow-hotplug eth0
iface eth0 inet dhcp
hwaddress ether 00:11:2f:35:c0:ad
hostname spox1
pre-up ifconfig eth0 down;ifconfig eth0 up;
auto eth1
allow-hotplug eth1
iface eth1 inet static
address 192.168.179.1
netmask 255.255.255.0
network 192.168.179.0
auto wlan0
allow-hotplug wlan0
iface wlan0 inet static
address 192.168.178.1
netmask 255.255.255.0
network 192.168.178.0
hostapd /etc/hostapd/wlan0_atheros.conf
iface siemens.spox.org inet ppp
provider siemens.spox.org
** Network status:
*** IP interfaces and addresses:
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group
default
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth1: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast state DOWN group
default qlen 1000
link/ether 94:de:80:05:0b:1c brd ff:ff:ff:ff:ff:ff
3: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc htb state UP group
default qlen 1000
link/ether 00:11:2f:35:c0:ad brd ff:ff:ff:ff:ff:ff
inet 90.156.28.113/22 brd 90.156.31.255 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::211:2fff:fe35:c0ad/64 scope link
valid_lft forever preferred_lft forever
4: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group
default qlen 1000
link/ether f8:d1:11:0b:52:4a brd ff:ff:ff:ff:ff:ff
inet 192.168.178.1/24 brd 192.168.178.255 scope global wlan0
valid_lft forever preferred_lft forever
inet6 fe80::fad1:11ff:fe0b:524a/64 scope link
valid_lft forever preferred_lft forever
5: mon.wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UNKNOWN
group default qlen 1000
link/ieee802.11/radiotap f8:d1:11:0b:52:4a brd ff:ff:ff:ff:ff:ff
6: niziak: <POINTOPOINT,MULTICAST,NOARP,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast
state UNKNOWN group default qlen 500
link/none
inet 192.168.178.1/16 scope global niziak
valid_lft forever preferred_lft forever
7: ifb0: <BROADCAST,NOARP> mtu 1500 qdisc noop state DOWN group default qlen 32
link/ether 62:15:f8:29:ee:85 brd ff:ff:ff:ff:ff:ff
8: ifb1: <BROADCAST,NOARP> mtu 1500 qdisc noop state DOWN group default qlen 32
link/ether 02:51:36:e4:ac:e9 brd ff:ff:ff:ff:ff:ff
9: ifb2: <BROADCAST,NOARP> mtu 1500 qdisc noop state DOWN group default qlen 32
link/ether 5a:d7:2f:d7:dc:f2 brd ff:ff:ff:ff:ff:ff
*** Device statistics:
Inter-| Receive | Transmit
face |bytes packets errs drop fifo frame compressed multicast|bytes
packets errs drop fifo colls carrier compressed
ifb2: 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0
mon.wlan0: 293009 1465 0 0 0 0 0 0 0
0 0 0 0 0 0 0
eth0: 421606124 300875 0 0 0 0 0 0 18288904
163058 0 0 0 0 0 0
eth1: 72792 221 0 0 0 0 0 0 32987
190 0 0 0 0 0 0
lo: 908487 9267 0 0 0 0 0 0 908487
9267 0 0 0 0 0 0
wlan0: 1174399 15021 0 0 0 0 0 0 38487392
27272 0 0 0 0 0 0
niziak: 50077 245 0 0 0 0 0 0 105852
766 0 0 0 0 0 0
ifb0: 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0
ifb1: 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0
*** Protocol statistics:
Ip:
321850 total packets received
41941 forwarded
0 incoming packets discarded
278656 incoming packets delivered
200147 requests sent out
520 dropped because of missing route
2 reassemblies required
1 packets reassembled ok
Icmp:
2633 ICMP messages received
0 input ICMP message failed.
ICMP input histogram:
destination unreachable: 252
echo requests: 1470
echo replies: 911
3736 ICMP messages sent
0 ICMP messages failed
ICMP output histogram:
destination unreachable: 855
echo request: 1411
echo replies: 1470
IcmpMsg:
InType0: 911
InType3: 252
InType8: 1470
OutType0: 1470
OutType3: 855
OutType8: 1411
Tcp:
996 active connections openings
443 passive connection openings
27 failed connection attempts
6 connection resets received
19 connections established
270199 segments received
149561 segments send out
239 segments retransmited
200 bad segments received.
221 resets sent
Udp:
5851 packets received
128 packets to unknown port received.
0 packet receive errors
4582 packets sent
UdpLite:
TcpExt:
7 invalid SYN cookies received
2 resets received for embryonic SYN_RECV sockets
616 TCP sockets finished time wait in fast timer
1 packets rejects in established connections because of timestamp
1701 delayed acks sent
1 delayed acks further delayed because of locked socket
Quick ack mode was activated 56 times
6700 packets directly queued to recvmsg prequeue.
118075 bytes directly in process context from backlog
2287228 bytes directly received in process context from prequeue
233754 packet headers predicted
5940 packets header predicted and directly queued to user
2516 acknowledgments not containing data payload received
6835 predicted acknowledgments
2 congestion windows recovered without slow start by DSACK
114 congestion windows recovered without slow start after partial ack
6 timeouts after SACK recovery
3 timeouts in loss state
147 other TCP timeouts
TCPLossProbes: 60
TCPLossProbeRecovery: 28
53 DSACKs sent for old packets
67 DSACKs received
60 connections reset due to unexpected data
3 connections reset due to early user close
11 connections aborted due to timeout
TCPDSACKIgnoredNoUndo: 25
TCPSpuriousRTOs: 5
TCPDeferAcceptDrop: 50
IPReversePathFilter: 33
TCPRetransFail: 3
TCPRcvCoalesce: 47986
TCPOFOQueue: 14642
TCPChallengeACK: 202
TCPSYNChallenge: 202
TCPSpuriousRtxHostQueues: 12
IpExt:
InNoRoutes: 63
InMcastPkts: 273
OutMcastPkts: 169
InBcastPkts: 278
OutBcastPkts: 123
InOctets: 419230697
OutOctets: 93063632
InMcastOctets: 24321
OutMcastOctets: 21113
InBcastOctets: 53953
OutBcastOctets: 16020
InNoECTPkts: 312127
InECT0Pkts: 9729
** PCI devices:
00:00.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) Processor Root Complex [1022:1410]
Subsystem: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) Processor Root Complex [1022:1410]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
00:00.2 IOMMU [0806]: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) I/O Memory Management Unit [1022:1419]
Subsystem: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) I/O Memory Management Unit [1022:1419]
Control: I/O- Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 40
Capabilities: <access denied>
00:01.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Trinity [Radeon HD 7480D] [1002:9993] (prog-if 00 [VGA controller])
Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Trinity [Radeon HD 7480D] [1002:9993]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 52
Region 0: Memory at c0000000 (32-bit, prefetchable) [size=256M]
Region 1: I/O ports at f000 [size=256]
Region 2: Memory at feb00000 (32-bit, non-prefetchable) [size=256K]
Expansion ROM at <unassigned> [disabled]
Capabilities: <access denied>
Kernel driver in use: fglrx_pci
00:01.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Trinity HDMI Audio Controller [1002:9902]
Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Trinity HDMI Audio Controller [1002:9902]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 51
Region 0: Memory at feb44000 (32-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: snd_hda_intel
00:11.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7801] (rev 40) (prog-if 01 [AHCI 1.0])
Subsystem: Gigabyte Technology Co., Ltd Device [1458:b002]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32
Interrupt: pin A routed to IRQ 43
Region 0: I/O ports at f140 [size=8]
Region 1: I/O ports at f130 [size=4]
Region 2: I/O ports at f120 [size=8]
Region 3: I/O ports at f110 [size=4]
Region 4: I/O ports at f100 [size=16]
Region 5: Memory at feb4f000 (32-bit, non-prefetchable) [size=2K]
Capabilities: <access denied>
Kernel driver in use: ahci
00:12.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] FCH USB OHCI Controller [1022:7807] (rev 11) (prog-if 10 [OHCI])
Subsystem: Gigabyte Technology Co., Ltd Device [1458:5004]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 18
Region 0: Memory at feb4e000 (32-bit, non-prefetchable) [size=4K]
Kernel driver in use: ohci-pci
00:12.2 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] FCH USB EHCI Controller [1022:7808] (rev 11) (prog-if 20 [EHCI])
Subsystem: Gigabyte Technology Co., Ltd Device [1458:5004]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 17
Region 0: Memory at feb4d000 (32-bit, non-prefetchable) [size=256]
Capabilities: <access denied>
Kernel driver in use: ehci-pci
00:13.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] FCH USB OHCI Controller [1022:7807] (rev 11) (prog-if 10 [OHCI])
Subsystem: Gigabyte Technology Co., Ltd Device [1458:5004]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 18
Region 0: Memory at feb4c000 (32-bit, non-prefetchable) [size=4K]
Kernel driver in use: ohci-pci
00:13.2 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] FCH USB EHCI Controller [1022:7808] (rev 11) (prog-if 20 [EHCI])
Subsystem: Gigabyte Technology Co., Ltd Device [1458:5004]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 17
Region 0: Memory at feb4b000 (32-bit, non-prefetchable) [size=256]
Capabilities: <access denied>
Kernel driver in use: ehci-pci
00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:780b] (rev 14)
Subsystem: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:780b]
Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap- 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Kernel driver in use: piix4_smbus
00:14.2 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] FCH Azalia Controller [1022:780d] (rev 01)
Subsystem: Gigabyte Technology Co., Ltd Device [1458:a002]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=slow >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
Region 0: Memory at feb40000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: snd_hda_intel
00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:780e] (rev 11)
Subsystem: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:780e]
Control: I/O+ Mem+ BusMaster+ SpecCycle+ MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
00:14.4 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] FCH PCI Bridge [1022:780f] (rev 40) (prog-if 01 [Subtractive decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop+ ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64
Bus: primary=00, secondary=01, subordinate=01, sec-latency=64
I/O behind bridge: 0000e000-0000efff
Memory behind bridge: fe900000-feafffff
Prefetchable memory behind bridge: d0100000-d01fffff
Secondary status: 66MHz- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
00:14.5 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] FCH USB OHCI Controller [1022:7809] (rev 11) (prog-if 10 [OHCI])
Subsystem: Gigabyte Technology Co., Ltd Device [1458:5004]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32, Cache Line Size: 64 bytes
Interrupt: pin C routed to IRQ 18
Region 0: Memory at feb4a000 (32-bit, non-prefetchable) [size=4K]
Kernel driver in use: ohci-pci
00:15.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Hudson PCI to PCI bridge (PCIE port 0) [1022:43a0] (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
I/O behind bridge: 0000d000-0000dfff
Prefetchable memory behind bridge: 00000000d0000000-00000000d00fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:16.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] FCH USB OHCI Controller [1022:7807] (rev 11) (prog-if 10 [OHCI])
Subsystem: Gigabyte Technology Co., Ltd Device [1458:5004]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 18
Region 0: Memory at feb49000 (32-bit, non-prefetchable) [size=4K]
Kernel driver in use: ohci-pci
00:16.2 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] FCH USB EHCI Controller [1022:7808] (rev 11) (prog-if 20 [EHCI])
Subsystem: Gigabyte Technology Co., Ltd Device [1458:5004]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 17
Region 0: Memory at feb48000 (32-bit, non-prefetchable) [size=256]
Capabilities: <access denied>
Kernel driver in use: ehci-pci
00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) Processor Function 0 [1022:1400]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) Processor Function 1 [1022:1401]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) Processor Function 2 [1022:1402]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) Processor Function 3 [1022:1403]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Capabilities: <access denied>
Kernel driver in use: k10temp
00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) Processor Function 4 [1022:1404]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 15h (Models 10h-1fh) Processor Function 5 [1022:1405]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
01:06.0 Ethernet controller [0200]: Intel Corporation 82557/8/9/0/1 Ethernet Pro 100 [8086:1229] (rev 01)
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32 (2000ns min, 14000ns max)
Interrupt: pin A routed to IRQ 20
Region 0: Memory at d0100000 (32-bit, prefetchable) [size=4K]
Region 1: I/O ports at e000 [size=32]
Region 2: Memory at fea00000 (32-bit, non-prefetchable) [size=1M]
Expansion ROM at fe900000 [disabled] [size=1M]
Kernel driver in use: e100
02:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [10ec:8168] (rev 06)
Subsystem: Gigabyte Technology Co., Ltd Motherboard [1458:e000]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 42
Region 0: I/O ports at d000 [size=256]
Region 2: Memory at d0004000 (64-bit, prefetchable) [size=4K]
Region 4: Memory at d0000000 (64-bit, prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: r8169
** USB devices:
Bus 003 Device 002: ID 0cf3:9271 Atheros Communications, Inc. AR9271 802.11n
Bus 005 Device 002: ID 046d:c517 Logitech, Inc. LX710 Cordless Desktop Laser
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 004 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 005 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 006 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 007 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
-- System Information:
Debian Release: jessie/sid
APT prefers testing
APT policy: (500, 'testing')
Architecture: amd64 (x86_64)
Foreign Architectures: i386
Kernel: Linux 3.13-1-amd64 (SMP w/2 CPU cores)
Locale: LANG=en_US.UTF-8, LC_CTYPE=en_US.UTF-8 (charmap=UTF-8)
Shell: /bin/sh linked to /bin/dash
Versions of packages linux-image-3.13-1-amd64 depends on:
ii debconf [debconf-2.0] 1.5.52
ii initramfs-tools [linux-initramfs-tool] 0.115
ii kmod 16-2
ii linux-base 3.5
ii module-init-tools 16-2
Versions of packages linux-image-3.13-1-amd64 recommends:
ii firmware-linux-free 3.3
Versions of packages linux-image-3.13-1-amd64 suggests:
pn debian-kernel-handbook <none>
ii grub-pc 2.00-22
pn linux-doc-3.13 <none>
Versions of packages linux-image-3.13-1-amd64 is related to:
ii firmware-atheros 0.41
pn firmware-bnx2 <none>
pn firmware-bnx2x <none>
pn firmware-brcm80211 <none>
ii firmware-intelwimax 0.41
pn firmware-ipw2x00 <none>
pn firmware-ivtv <none>
pn firmware-iwlwifi <none>
pn firmware-libertas <none>
ii firmware-linux 0.41
ii firmware-linux-nonfree 0.41
pn firmware-myricom <none>
pn firmware-netxen <none>
pn firmware-qlogic <none>
ii firmware-ralink 0.41
ii firmware-realtek 0.41
pn xen-hypervisor <none>
-- debconf information:
linux-image-3.13-1-amd64/prerm/removing-running-kernel-3.13-1-amd64: true
linux-image-3.13-1-amd64/postinst/depmod-error-initrd-3.13-1-amd64: false
Attachment:
Description: PNG image
