Subject: linux-image-2.6.32-5-amd64: Disk IO error when running debian 6.0.x with buslogic virtual disk and 4G+ mem in a VMware VM
Package: linux-2.6
Version: 2.6.32-45
Severity: important
*** Please type your report below this line ***

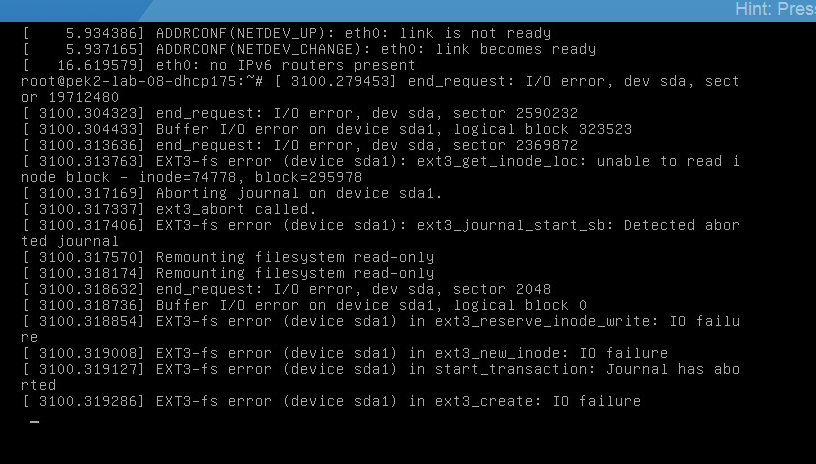

There will be Disk IO error and then rootfs Read-Only when running debian 6.0.x(including 6.0.1, 6.0.4, 6.0.5...) in a VMware VM with buslogic virtual disk
and with 4G+ memory, in which condition linux-image-xxx-amd64 kernel will be used
-- Package-specific info:
** Version:
Linux version 2.6.32-5-amd64 (Debian 2.6.32-45) (dannf@debian.org) (gcc version 4.3.5 (Debian 4.3.5-4) ) #1 SMP Sun May 6 05:12:07 UTC 2012
** Command line:
BOOT_IMAGE=/boot/vmlinuz-2.6.32-5-amd64 root=UUID=03dd9d67-4b9f-4009-a43d-e2b17d2abf47 ro quiet
** Not tainted
** Kernel log:
[ 0.892192] rtc_cmos 00:04: rtc core: registered rtc_cmos as rtc0
[ 0.892365] rtc0: alarms up to one month, y3k, 114 bytes nvram, hpet irqs
[ 0.892376] cpuidle: using governor ladder
[ 0.892378] cpuidle: using governor menu
[ 0.892381] No iBFT detected.
[ 0.892630] TCP cubic registered
[ 0.892713] NET: Registered protocol family 10
[ 0.893363] Mobile IPv6
[ 0.893365] NET: Registered protocol family 17
[ 0.893426] PM: Resume from disk failed.
[ 0.893436] registered taskstats version 1
[ 0.895809] input: AT Translated Set 2 keyboard as /devices/platform/i8042/serio0/input/input1
[ 0.899687] rtc_cmos 00:04: setting system clock to 2012-06-20 05:48:30 UTC (1340171310)
[ 0.899727] Initalizing network drop monitor service
[ 0.899743] Freeing unused kernel memory: 592k freed
[ 0.899855] Write protecting the kernel read-only data: 4224k
[ 0.917010] udev[46]: starting version 164
[ 1.045216] Floppy drive(s): fd0 is 1.44M
[ 1.045694] Intel(R) PRO/1000 Network Driver - version 7.3.21-k5-NAPI
[ 1.045697] Copyright (c) 1999-2006 Intel Corporation.
[ 1.045772] alloc irq_desc for 18 on node -1
[ 1.045774] alloc kstat_irqs on node -1
[ 1.045782] e1000 0000:02:00.0: PCI INT A -> GSI 18 (level, low) -> IRQ 18
[ 1.045900] e1000 0000:02:00.0: setting latency timer to 64
[ 1.047757] SCSI subsystem initialized
[ 1.057984] libata version 3.00 loaded.
[ 1.059766] ata_piix 0000:00:07.1: version 2.13
[ 1.059954] scsi0 : ata_piix
[ 1.060060] scsi1 : ata_piix
[ 1.060094] ata1: PATA max UDMA/33 cmd 0x1f0 ctl 0x3f6 bmdma 0x10e0 irq 14
[ 1.060096] ata2: PATA max UDMA/33 cmd 0x170 ctl 0x376 bmdma 0x10e8 irq 15
[ 1.061701] FDC 0 is a post-1991 82077
[ 1.367218] e1000: 0000:02:00.0: e1000_probe: (PCI:66MHz:32-bit) 00:50:56:a9:bd:2d
[ 1.400793] alloc irq_desc for 17 on node -1
[ 1.400795] alloc kstat_irqs on node -1
[ 1.400804] pci 0000:00:10.0: PCI INT A -> GSI 17 (level, low) -> IRQ 17
[ 1.404281] scsi: ***** BusLogic SCSI Driver Version 2.1.16 of 18 July 2002 *****
[ 1.404284] scsi: Copyright 1995-1998 by Leonard N. Zubkoff <lnz@dandelion.com>
[ 1.417987] scsi2: Configuring BusLogic Model BT-958 PCI Wide Ultra SCSI Host Adapter
[ 1.417990] scsi2: Firmware Version: 5.07B, I/O Address: 0x10C0, IRQ Channel: 17/Level
[ 1.417993] scsi2: PCI Bus: 0, Device: 16, Address: 0xD0002000, Host Adapter SCSI ID: 7
[ 1.417996] scsi2: Parity Checking: Enabled, Extended Translation: Enabled
[ 1.417998] scsi2: Synchronous Negotiation: Ultra, Wide Negotiation: Enabled
[ 1.418000] scsi2: Disconnect/Reconnect: Enabled, Tagged Queuing: Enabled
[ 1.418002] scsi2: Scatter/Gather Limit: 128 of 128 segments, Mailboxes: 211
[ 1.418004] scsi2: Driver Queue Depth: 211, Host Adapter Queue Depth: 192
[ 1.418006] scsi2: Tagged Queue Depth: Automatic, Untagged Queue Depth: 3
[ 1.419036] scsi2: *** BusLogic BT-958 Initialized Successfully ***
[ 3.405822] ata2.00: ATAPI: VMware Virtual IDE CDROM Drive, 00000001, max UDMA/33
[ 3.406191] ata2.00: configured for UDMA/33
[ 3.406545] scsi 1:0:0:0: CD-ROM NECVMWar VMware IDE CDR10 1.00 PQ: 0 ANSI: 5
[ 3.413048] sr0: scsi3-mmc drive: 1x/1x writer dvd-ram cd/rw xa/form2 cdda tray
[ 3.413050] Uniform CD-ROM driver Revision: 3.20
[ 3.413269] sr 1:0:0:0: Attached scsi CD-ROM sr0
[ 3.419065] sr 1:0:0:0: Attached scsi generic sg0 type 5
[ 3.422776] scsi2 : BusLogic BT-958
[ 3.423284] scsi 2:0:0:0: Direct-Access VMware Virtual disk 1.0 PQ: 0 ANSI: 2
[ 3.423992] scsi 2:0:0:0: Attached scsi generic sg1 type 0
[ 3.427488] sd 2:0:0:0: [sda] 33554432 512-byte logical blocks: (17.1 GB/16.0 GiB)
[ 3.427510] sd 2:0:0:0: [sda] Write Protect is off
[ 3.427512] sd 2:0:0:0: [sda] Mode Sense: 61 00 00 00
[ 3.427531] sd 2:0:0:0: [sda] Cache data unavailable
[ 3.427533] sd 2:0:0:0: [sda] Assuming drive cache: write through
[ 3.427767] sd 2:0:0:0: [sda] Cache data unavailable
[ 3.427769] sd 2:0:0:0: [sda] Assuming drive cache: write through
[ 3.427852] sda: sda1 sda2 < sda5 >
[ 3.428670] sd 2:0:0:0: [sda] Cache data unavailable
[ 3.428673] sd 2:0:0:0: [sda] Assuming drive cache: write through
[ 3.428868] sd 2:0:0:0: [sda] Attached SCSI disk
[ 3.447202] e1000: eth0: e1000_probe: Intel(R) PRO/1000 Network Connection
[ 3.601948] scsi2: Tagged Queuing now active for Target 0
[ 3.663558] PM: Starting manual resume from disk
[ 3.663560] PM: Resume from partition 8:5
[ 3.663561] PM: Checking hibernation image.
[ 3.663715] PM: Error -22 checking image file
[ 3.663716] PM: Resume from disk failed.
[ 3.674712] kjournald starting. Commit interval 5 seconds
[ 3.674718] EXT3-fs: mounted filesystem with ordered data mode.
[ 4.219782] udev[316]: starting version 164
[ 4.377981] input: Power Button as /devices/LNXSYSTM:00/LNXPWRBN:00/input/input2
[ 4.377987] ACPI: Power Button [PWRF]
[ 4.378240] pci_hotplug: PCI Hot Plug PCI Core version: 0.5
[ 4.449842] piix4_smbus 0000:00:07.3: Host SMBus controller not enabled!
[ 4.450420] input: PC Speaker as /devices/platform/pcspkr/input/input3
[ 4.455191] shpchp: Standard Hot Plug PCI Controller Driver version: 0.4
[ 4.456219] ACPI: AC Adapter [ACAD] (on-line)
[ 4.467668] processor LNXCPU:00: registered as cooling_device0
[ 4.511340] input: ImPS/2 Generic Wheel Mouse as /devices/platform/i8042/serio1/input/input4
[ 4.642627] parport_pc 00:09: reported by Plug and Play ACPI
[ 4.642858] parport0: PC-style at 0x378, irq 7 [PCSPP,TRISTATE]
[ 4.716384] Error: Driver 'pcspkr' is already registered, aborting...
[ 4.925110] Adding 731128k swap on /dev/sda5. Priority:-1 extents:1 across:731128k
[ 5.020374] EXT3 FS on sda1, internal journal
[ 5.050900] loop: module loaded
[ 5.937385] e1000: eth0 NIC Link is Up 1000 Mbps Full Duplex, Flow Control: None
[ 5.939335] ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 5.941001] ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 16.227487] eth0: no IPv6 routers present
[ 1259.256807] ISO 9660 Extensions: Microsoft Joliet Level 3
[ 1259.274672] ISO 9660 Extensions: RRIP_1991A
** Model information
sys_vendor: VMware, Inc.
product_name: VMware Virtual Platform
product_version: None
chassis_vendor: No Enclosure
chassis_version: N/A
bios_vendor: Phoenix Technologies LTD
bios_version: 6.00
board_vendor: Intel Corporation
board_name: 440BX Desktop Reference Platform
board_version: None
** Loaded modules:
Module Size Used by
nls_utf8 1208 1
isofs 27432 1
nls_base 6377 2 nls_utf8,isofs
loop 11623 0
snd_pcm 60151 0
snd_timer 15502 1 snd_pcm
snd 45998 2 snd_pcm,snd_timer
soundcore 4566 1 snd
parport_pc 18855 0
snd_page_alloc 6217 1 snd_pcm
parport 27682 1 parport_pc
psmouse 49985 0
evdev 7352 2
serio_raw 3752 0
ac 2192 0
container 2389 0
shpchp 26216 0
pcspkr 1699 0
i2c_piix4 8328 0
processor 29871 0
button 4650 0
pci_hotplug 21587 1 shpchp
i2c_core 15451 1 i2c_piix4
ext3 106534 1
jbd 37077 1 ext3
mbcache 5050 1 ext3
sd_mod 29697 3
crc_t10dif 1276 1 sd_mod
sg 23893 0
sr_mod 12250 1
cdrom 28567 1 sr_mod
ata_generic 3239 0
BusLogic 19300 2
ata_piix 21124 1
libata 133264 2 ata_generic,ata_piix
thermal 11610 0
floppy 49087 0
e1000 85469 0
thermal_sys 11942 2 processor,thermal
scsi_mod 126261 5 sd_mod,sg,sr_mod,BusLogic,libata
** PCI devices:
00:00.0 Host bridge [0600]: Intel Corporation 440BX/ZX/DX - 82443BX/ZX/DX Host bridge [8086:7190] (rev 01)
Subsystem: VMware Virtual Machine Chipset [15ad:1976]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Kernel driver in use: agpgart-intel
00:01.0 PCI bridge [0604]: Intel Corporation 440BX/ZX/DX - 82443BX/ZX/DX AGP bridge [8086:7191] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle+ MemWINV+ VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
Status: Cap- 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Bus: primary=00, secondary=01, subordinate=01, sec-latency=64
Secondary status: 66MHz+ FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B+
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
00:07.0 ISA bridge [0601]: Intel Corporation 82371AB/EB/MB PIIX4 ISA [8086:7110] (rev 08)
Subsystem: VMware Virtual Machine Chipset [15ad:1976]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
00:07.1 IDE interface [0101]: Intel Corporation 82371AB/EB/MB PIIX4 IDE [8086:7111] (rev 01) (prog-if 8a [Master SecP PriP])
Subsystem: VMware Virtual Machine Chipset [15ad:1976]
Control: I/O+ Mem- BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64
Region 0: [virtual] Memory at 000001f0 (32-bit, non-prefetchable) [size=8]
Region 1: [virtual] Memory at 000003f0 (type 3, non-prefetchable) [size=1]
Region 2: [virtual] Memory at 00000170 (32-bit, non-prefetchable) [size=8]
Region 3: [virtual] Memory at 00000370 (type 3, non-prefetchable) [size=1]
Region 4: I/O ports at 10e0 [size=16]
Kernel driver in use: ata_piix
00:07.3 Bridge [0680]: Intel Corporation 82371AB/EB/MB PIIX4 ACPI [8086:7113] (rev 08)
Subsystem: VMware Virtual Machine Chipset [15ad:1976]
Control: I/O+ Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin ? routed to IRQ 9
00:07.7 System peripheral [0880]: VMware Virtual Machine Communication Interface [15ad:0740] (rev 10)
Subsystem: VMware Virtual Machine Communication Interface [15ad:0740]
Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 9
Region 0: I/O ports at 1080 [size=64]
Region 1: Memory at d0000000 (64-bit, non-prefetchable) [size=8K]
Capabilities: [40] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [58] MSI-X: Enable- Count=2 Masked-
Vector table: BAR=1 offset=00000000
PBA: BAR=1 offset=00001000
00:0f.0 VGA compatible controller [0300]: VMware SVGA II Adapter [15ad:0405] (prog-if 00 [VGA controller])
Subsystem: VMware SVGA II Adapter [15ad:0405]
Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 9
Region 0: I/O ports at 10f0 [size=16]
Region 1: Memory at d8000000 (32-bit, prefetchable) [size=64M]
Region 2: Memory at d0800000 (32-bit, non-prefetchable) [size=8M]
[virtual] Expansion ROM at c0000000 [disabled] [size=32K]
Capabilities: [40] Vendor Specific Information: Len=00 <?>
00:10.0 SCSI storage controller [0100]: BusLogic BT-946C (BA80C30) [MultiMaster 10] [104b:1040] (rev 01)
Subsystem: BusLogic BT-946C (BA80C30) [MultiMaster 10] [104b:1040]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64 (1500ns min, 63750ns max)
Interrupt: pin A routed to IRQ 17
Region 0: I/O ports at 10c0 [size=32]
Region 1: Memory at d0002000 (32-bit, non-prefetchable) [size=32]
[virtual] Expansion ROM at c0008000 [disabled] [size=16K]
00:11.0 PCI bridge [0604]: VMware PCI bridge [15ad:0790] (rev 02) (prog-if 01 [Subtractive decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64, Cache Line Size: 32 bytes
Bus: primary=00, secondary=02, subordinate=02, sec-latency=68
I/O behind bridge: 00002000-00003fff
Memory behind bridge: d1000000-d23fffff
Prefetchable memory behind bridge: 00000000dc400000-00000000dc9fffff
Secondary status: 66MHz- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI bridge [15ad:0790]
00:15.0 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=03, subordinate=03, sec-latency=0
I/O behind bridge: 00004000-00004fff
Memory behind bridge: d2400000-d24fffff
Prefetchable memory behind bridge: 00000000d4400000-00000000d44fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #160, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4149
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:15.1 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=04, subordinate=04, sec-latency=0
I/O behind bridge: 00008000-00008fff
Memory behind bridge: d2800000-d28fffff
Prefetchable memory behind bridge: 00000000d4800000-00000000d48fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #161, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4151
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:15.2 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=05, subordinate=05, sec-latency=0
I/O behind bridge: 0000c000-0000cfff
Memory behind bridge: d2c00000-d2cfffff
Prefetchable memory behind bridge: 00000000dcb00000-00000000dcbfffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #162, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4159
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:15.3 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=06, subordinate=06, sec-latency=0
Memory behind bridge: d3000000-d30fffff
Prefetchable memory behind bridge: 00000000dcd00000-00000000dcdfffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #163, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4161
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:15.4 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=07, subordinate=07, sec-latency=0
Memory behind bridge: d3400000-d34fffff
Prefetchable memory behind bridge: 00000000dcf00000-00000000dcffffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #164, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4169
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:15.5 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=08, subordinate=08, sec-latency=0
Memory behind bridge: d3800000-d38fffff
Prefetchable memory behind bridge: 00000000dd100000-00000000dd1fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #165, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4171
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:15.6 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=09, subordinate=09, sec-latency=0
Memory behind bridge: d3c00000-d3cfffff
Prefetchable memory behind bridge: 00000000dd300000-00000000dd3fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #166, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4179
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:15.7 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=0a, subordinate=0a, sec-latency=0
Memory behind bridge: d4000000-d40fffff
Prefetchable memory behind bridge: 00000000dd500000-00000000dd5fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #167, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4181
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:16.0 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=0b, subordinate=0b, sec-latency=0
I/O behind bridge: 00005000-00005fff
Memory behind bridge: d2500000-d25fffff
Prefetchable memory behind bridge: 00000000d4500000-00000000d45fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #192, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4189
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:16.1 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=0c, subordinate=0c, sec-latency=0
I/O behind bridge: 00009000-00009fff
Memory behind bridge: d2900000-d29fffff
Prefetchable memory behind bridge: 00000000d4900000-00000000d49fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #193, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4191
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:16.2 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=0d, subordinate=0d, sec-latency=0
I/O behind bridge: 0000d000-0000dfff
Memory behind bridge: d2d00000-d2dfffff
Prefetchable memory behind bridge: 00000000d4b00000-00000000d4bfffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #194, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4199
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:16.3 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=0e, subordinate=0e, sec-latency=0
Memory behind bridge: d3100000-d31fffff
Prefetchable memory behind bridge: 00000000d4d00000-00000000d4dfffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #195, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41a1
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:16.4 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=0f, subordinate=0f, sec-latency=0
Memory behind bridge: d3500000-d35fffff
Prefetchable memory behind bridge: 00000000d4f00000-00000000d4ffffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #196, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41a9
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:16.5 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=10, subordinate=10, sec-latency=0
Memory behind bridge: d3900000-d39fffff
Prefetchable memory behind bridge: 00000000d5100000-00000000d51fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #197, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41b1
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:16.6 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=11, subordinate=11, sec-latency=0
Memory behind bridge: d3d00000-d3dfffff
Prefetchable memory behind bridge: 00000000d5300000-00000000d53fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #198, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41b9
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:16.7 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=12, subordinate=12, sec-latency=0
Memory behind bridge: d4100000-d41fffff
Prefetchable memory behind bridge: 00000000d5500000-00000000d55fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #199, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41c1
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:17.0 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=13, subordinate=13, sec-latency=0
I/O behind bridge: 00006000-00006fff
Memory behind bridge: d2600000-d26fffff
Prefetchable memory behind bridge: 00000000d4600000-00000000d46fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #224, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41c9
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:17.1 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=14, subordinate=14, sec-latency=0
I/O behind bridge: 0000a000-0000afff
Memory behind bridge: d2a00000-d2afffff
Prefetchable memory behind bridge: 00000000dca00000-00000000dcafffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #225, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41d1
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:17.2 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=15, subordinate=15, sec-latency=0
I/O behind bridge: 0000e000-0000efff
Memory behind bridge: d2e00000-d2efffff
Prefetchable memory behind bridge: 00000000dcc00000-00000000dccfffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #226, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41d9
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:17.3 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=16, subordinate=16, sec-latency=0
Memory behind bridge: d3200000-d32fffff
Prefetchable memory behind bridge: 00000000dce00000-00000000dcefffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #227, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41e1
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:17.4 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=17, subordinate=17, sec-latency=0
Memory behind bridge: d3600000-d36fffff
Prefetchable memory behind bridge: 00000000dd000000-00000000dd0fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #228, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 41e9
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:17.5 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=18, subordinate=18, sec-latency=0
Memory behind bridge: d3a00000-d3afffff
Prefetchable memory behind bridge: 00000000dd200000-00000000dd2fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #229, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4142
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:17.6 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=19, subordinate=19, sec-latency=0
Memory behind bridge: d3e00000-d3efffff
Prefetchable memory behind bridge: 00000000dd400000-00000000dd4fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #230, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 414a
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:17.7 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=1a, subordinate=1a, sec-latency=0
Memory behind bridge: d4200000-d42fffff
Prefetchable memory behind bridge: 00000000dd600000-00000000dd6fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #231, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4152
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:18.0 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=1b, subordinate=1b, sec-latency=0
I/O behind bridge: 00007000-00007fff
Memory behind bridge: d2700000-d27fffff
Prefetchable memory behind bridge: 00000000d4700000-00000000d47fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #256, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 415a
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:18.1 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=1c, subordinate=1c, sec-latency=0
I/O behind bridge: 0000b000-0000bfff
Memory behind bridge: d2b00000-d2bfffff
Prefetchable memory behind bridge: 00000000d4a00000-00000000d4afffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #257, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4162
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:18.2 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=1d, subordinate=1d, sec-latency=0
I/O behind bridge: 0000f000-0000ffff
Memory behind bridge: d2f00000-d2ffffff
Prefetchable memory behind bridge: 00000000d4c00000-00000000d4cfffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #258, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 416a
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:18.3 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=1e, subordinate=1e, sec-latency=0
Memory behind bridge: d3300000-d33fffff
Prefetchable memory behind bridge: 00000000d4e00000-00000000d4efffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #259, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4172
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:18.4 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=1f, subordinate=1f, sec-latency=0
Memory behind bridge: d3700000-d37fffff
Prefetchable memory behind bridge: 00000000d5000000-00000000d50fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #260, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 417a
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:18.5 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=20, subordinate=20, sec-latency=0
Memory behind bridge: d3b00000-d3bfffff
Prefetchable memory behind bridge: 00000000d5200000-00000000d52fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #261, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4182
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:18.6 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=21, subordinate=21, sec-latency=0
Memory behind bridge: d3f00000-d3ffffff
Prefetchable memory behind bridge: 00000000d5400000-00000000d54fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #262, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 418a
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
00:18.7 PCI bridge [0604]: VMware PCI Express Root Port [15ad:07a0] (rev 01) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 32 bytes
Bus: primary=00, secondary=22, subordinate=22, sec-latency=0
Memory behind bridge: d4300000-d43fffff
Prefetchable memory behind bridge: 00000000d5600000-00000000d56fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA+ VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: [40] Subsystem: VMware PCI Express Root Port [15ad:07a0]
Capabilities: [48] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] Express (v2) Root Port (Slot+), MSI 00
DevCap: MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- RBE- FLReset-
DevCtl: Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 5GT/s, Width x32, ASPM L0s, Latency L0 <64ns, L1 <1us
ClockPM- Surprise- LLActRep+ BwNot-
LnkCtl: ASPM Disabled; RCB 64 bytes Disabled- Retrain- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 5GT/s, Width x32, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
SltCap: AttnBtn+ PwrCtrl+ MRL- AttnInd- PwrInd- HotPlug+ Surprise-
Slot #263, PowerLimit 240.000W; Interlock- NoCompl+
SltCtl: Enable: AttnBtn- PwrFlt- MRL- PresDet- CmdCplt- HPIrq- LinkChg-
Control: AttnInd Unknown, PwrInd Unknown, Power+ Interlock-
SltSta: Status: AttnBtn- PowerFlt- MRL- CmdCplt- PresDet- Interlock-
Changed: MRL- PresDet- LinkState-
RootCtl: ErrCorrectable- ErrNon-Fatal- ErrFatal- PMEIntEna- CRSVisible-
RootCap: CRSVisible-
RootSta: PME ReqID 0000, PMEStatus- PMEPending-
DevCap2: Completion Timeout: Not Supported, TimeoutDis- ARIFwd-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- ARIFwd-
LnkCtl2: Target Link Speed: 2.5GT/s, EnterCompliance- SpeedDis-, Selectable De-emphasis: -6dB
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance De-emphasis: -6dB
LnkSta2: Current De-emphasis Level: -6dB
Capabilities: [8c] MSI: Enable+ Count=1/1 Maskable+ 64bit+
Address: 00000000fee0100c Data: 4192
Masking: 00000001 Pending: 00000000
Kernel driver in use: pcieport
02:00.0 Ethernet controller [0200]: Intel Corporation 82545EM Gigabit Ethernet Controller (Copper) [8086:100f] (rev 01)
Subsystem: VMware PRO/1000 MT Single Port Adapter [15ad:0750]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV+ VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
Status: Cap+ 66MHz+ UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0 (63750ns min), Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 18
Region 0: Memory at d1020000 (64-bit, non-prefetchable) [size=128K]
Region 2: Memory at d1000000 (64-bit, non-prefetchable) [size=64K]
Region 4: I/O ports at 2000 [size=64]
[virtual] Expansion ROM at dc400000 [disabled] [size=64K]
Capabilities: [dc] Power Management version 2
Flags: PMEClk- DSI+ D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [e4] PCI-X non-bridge device
Command: DPERE- ERO+ RBC=512 OST=1
Status: Dev=ff:1f.0 64bit+ 133MHz+ SCD- USC- DC=simple DMMRBC=2048 DMOST=1 DMCRS=16 RSCEM- 266MHz- 533MHz-
Kernel driver in use: e1000
** USB devices:
not available
-- System Information:
Debian Release: 6.0.5
Architecture: i386 (x86_64)
Kernel: Linux 2.6.32-5-amd64 (SMP w/1 CPU core)
Locale: LANG=en_US.UTF-8, LC_CTYPE=en_US.UTF-8 (charmap=UTF-8)
Shell: /bin/sh linked to /bin/dash
Versions of packages linux-image-2.6.32-5-amd64 depends on:
ii debconf [debconf-2.0] 1.5.36.1 Debian configuration management sy
ii initramfs-tools [linux-initra 0.98.8 tools for generating an initramfs
ii linux-base 2.6.32-45 Linux image base package
ii module-init-tools 3.12-2+b1 tools for managing Linux kernel mo
Versions of packages linux-image-2.6.32-5-amd64 recommends:
pn firmware-linux-free <none> (no description available)
ii libc6-i686 2.11.3-3 Embedded GNU C Library: Shared lib
Versions of packages linux-image-2.6.32-5-amd64 suggests:
pn grub | lilo <none> (no description available)
pn linux-doc-2.6.32 <none> (no description available)
Versions of packages linux-image-2.6.32-5-amd64 is related to:
pn firmware-bnx2 <none> (no description available)
pn firmware-bnx2x <none> (no description available)
pn firmware-ipw2x00 <none> (no description available)
pn firmware-ivtv <none> (no description available)
pn firmware-iwlwifi <none> (no description available)
pn firmware-linux <none> (no description available)
pn firmware-linux-nonfree <none> (no description available)
pn firmware-qlogic <none> (no description available)
pn firmware-ralink <none> (no description available)
pn xen-hypervisor <none> (no description available)
-- debconf-show failed
Regards,
Peter Cao
