Your message dated Tue, 12 Jan 2010 13:29:10 +0000 with message-id <20100112132910.GK11456@radis.liafa.jussieu.fr> and subject line Re: Bug#564878: xserver-xorg-video-intel: Incorrect rendering with celestia has caused the Debian Bug report #564878, regarding xserver-xorg-video-intel: Incorrect rendering with celestia to be marked as done. This means that you claim that the problem has been dealt with. If this is not the case it is now your responsibility to reopen the Bug report if necessary, and/or fix the problem forthwith. (NB: If you are a system administrator and have no idea what this message is talking about, this may indicate a serious mail system misconfiguration somewhere. Please contact owner@bugs.debian.org immediately.) -- 564878: http://bugs.debian.org/cgi-bin/bugreport.cgi?bug=564878 Debian Bug Tracking System Contact owner@bugs.debian.org with problems
--- Begin Message ---
- To: Debian Bug Tracking System <submit@bugs.debian.org>
- Subject: xserver-xorg-video-intel: Incorrect rendering with celestia
- From: Sam Morris <sam@robots.org.uk>
- Date: Tue, 12 Jan 2010 12:22:43 +0000
- Message-id: <[🔎] 20100112122243.1235.18259.reportbug@durandal>

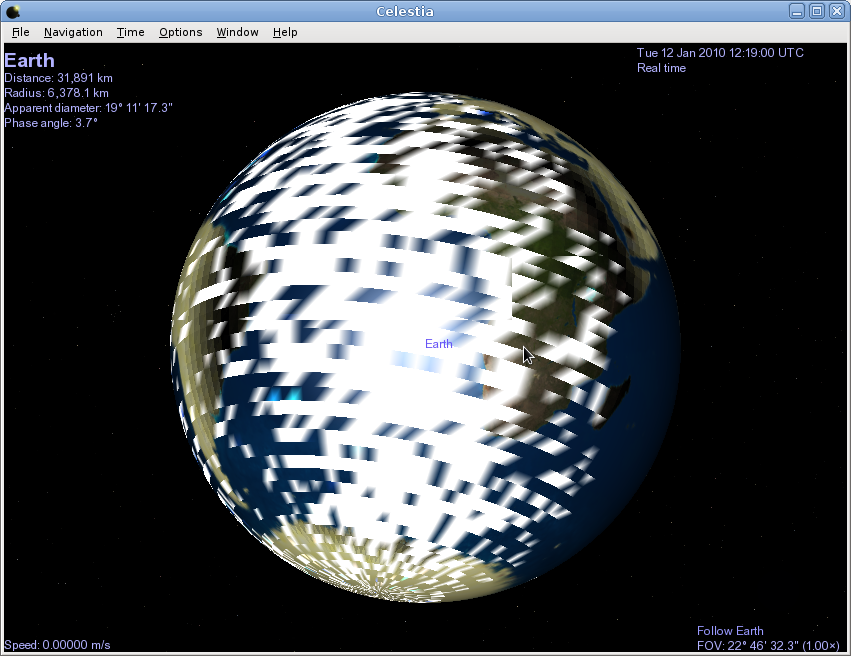

Package: xserver-xorg-video-intel Version: 2:2.9.1-1 Severity: normal With the current intel drivers, rendering in Celestia is back to a decent speed. But the textures are all screwed up. See the attached screenshot. This message is produced: Mesa 7.6.1 implementation error: Unsupported opcode 13 (CMP) in vertex shader Please report at bugzilla.freedesktop.org -- Package-specific info: /var/lib/x11/X.roster does not exist. /var/lib/x11/X.md5sum does not exist. X server symlink status: lrwxrwxrwx 1 root root 13 Apr 9 2008 /etc/X11/X -> /usr/bin/Xorg -rwxr-xr-x 1 root root 1868064 Oct 13 10:43 /usr/bin/Xorg /var/lib/x11/xorg.conf.roster does not exist. VGA-compatible devices on PCI bus: 00:02.0 VGA compatible controller: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller (rev 03) /var/lib/x11/xorg.conf.md5sum does not exist. Xorg X server configuration file status: -rw-r--r-- 1 root root 826 Apr 27 2009 /etc/X11/xorg.conf Contents of /etc/X11/xorg.conf: # xorg.conf (X.Org X Window System server configuration file) # # This file was generated by dexconf, the Debian X Configuration tool, using # values from the debconf database. # # Edit this file with caution, and see the xorg.conf manual page. # (Type "man xorg.conf" at the shell prompt.) # # This file is automatically updated on xserver-xorg package upgrades *only* # if it has not been modified since the last upgrade of the xserver-xorg # package. # # If you have edited this file but would like it to be automatically updated # again, run the following command: # sudo dpkg-reconfigure -phigh xserver-xorg Section "Device" Identifier "Configured Video Device" #Option "AccelMethod" "UXA" EndSection Section "ServerFlags" Option "AllowDeactivateGrabs" "true" Option "AllowClosedownGrabs" "true" EndSection Xorg X server log files on system: -rw-r--r-- 1 root root 33256 Jul 17 17:31 /var/log/Xorg.1.log -rw-r--r-- 1 root root 65591 Jan 8 17:40 /var/log/Xorg.20.log -rw-r--r-- 1 root root 204448 Jan 12 10:21 /var/log/Xorg.0.log Contents of most recent Xorg X server log file /var/log/Xorg.0.log: X.Org X Server 1.6.5 Release Date: 2009-10-11 X Protocol Version 11, Revision 0 Build Operating System: Linux 2.6.30-2-amd64 x86_64 Debian Current Operating System: Linux durandal 2.6.32-trunk-amd64 #1 SMP Sat Dec 26 17:13:29 UTC 2009 x86_64 Build Date: 13 October 2009 09:39:10AM xorg-server 2:1.6.5-1 (jcristau@debian.org) Before reporting problems, check http://wiki.x.org to make sure that you have the latest version. Markers: (--) probed, (**) from config file, (==) default setting, (++) from command line, (!!) notice, (II) informational, (WW) warning, (EE) error, (NI) not implemented, (??) unknown. (==) Log file: "/var/log/Xorg.0.log", Time: Wed Jan 6 15:02:40 2010 (==) Using config file: "/etc/X11/xorg.conf" (==) No Layout section. Using the first Screen section. (==) No screen section available. Using defaults. (**) |-->Screen "Default Screen Section" (0) (**) | |-->Monitor "<default monitor>" (==) No device specified for screen "Default Screen Section". Using the first device section listed. (**) | |-->Device "Configured Video Device" (==) No monitor specified for screen "Default Screen Section". Using a default monitor configuration. (==) Automatically adding devices (==) Automatically enabling devices (WW) The directory "/usr/share/fonts/X11/cyrillic" does not exist. Entry deleted from font path. (==) FontPath set to: /usr/share/fonts/X11/misc, /usr/share/fonts/X11/100dpi/:unscaled, /usr/share/fonts/X11/75dpi/:unscaled, /usr/share/fonts/X11/Type1, /usr/share/fonts/X11/100dpi, /usr/share/fonts/X11/75dpi, /var/lib/defoma/x-ttcidfont-conf.d/dirs/TrueType, built-ins (==) ModulePath set to "/usr/lib/xorg/modules" (II) Cannot locate a core pointer device. (II) Cannot locate a core keyboard device. (II) The server relies on HAL to provide the list of input devices. If no devices become available, reconfigure HAL or disable AllowEmptyInput. (II) Loader magic: 0x3b40 (II) Module ABI versions: X.Org ANSI C Emulation: 0.4 X.Org Video Driver: 5.0 X.Org XInput driver : 4.0 X.Org Server Extension : 2.0 (II) Loader running on linux (++) using VT number 7 (--) PCI:*(0:0:2:0) 8086:2a02:144d:c510 Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller rev 3, Mem @ 0xf0000000/1048576, 0xd0000000/268435456, I/O @ 0x00001800/8 (II) Open ACPI successful (/var/run/acpid.socket) (II) System resource ranges: [0] -1 0 0xffffffff - 0xffffffff (0x1) MX[B] [1] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B] [2] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B] [3] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B] [4] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B] [5] -1 0 0x00000000 - 0x00000000 (0x1) IX[B] (II) LoadModule: "extmod" (II) Loading /usr/lib/xorg/modules/extensions//libextmod.so (II) Module extmod: vendor="X.Org Foundation" compiled for 1.6.5, module version = 1.0.0 Module class: X.Org Server Extension ABI class: X.Org Server Extension, version 2.0 (II) Loading extension SELinux (II) Loading extension MIT-SCREEN-SAVER (II) Loading extension XFree86-VidModeExtension (II) Loading extension XFree86-DGA (II) Loading extension DPMS (II) Loading extension XVideo (II) Loading extension XVideo-MotionCompensation (II) Loading extension X-Resource (II) LoadModule: "dbe" (II) Loading /usr/lib/xorg/modules/extensions//libdbe.so (II) Module dbe: vendor="X.Org Foundation" compiled for 1.6.5, module version = 1.0.0 Module class: X.Org Server Extension ABI class: X.Org Server Extension, version 2.0 (II) Loading extension DOUBLE-BUFFER (II) LoadModule: "glx" (II) Loading /usr/lib/xorg/modules/extensions//libglx.so (II) Module glx: vendor="X.Org Foundation" compiled for 1.6.5, module version = 1.0.0 ABI class: X.Org Server Extension, version 2.0 (==) AIGLX enabled (II) Loading extension GLX (II) LoadModule: "record" (II) Loading /usr/lib/xorg/modules/extensions//librecord.so (II) Module record: vendor="X.Org Foundation" compiled for 1.6.5, module version = 1.13.0 Module class: X.Org Server Extension ABI class: X.Org Server Extension, version 2.0 (II) Loading extension RECORD (II) LoadModule: "dri" (II) Loading /usr/lib/xorg/modules/extensions//libdri.so (II) Module dri: vendor="X.Org Foundation" compiled for 1.6.5, module version = 1.0.0 ABI class: X.Org Server Extension, version 2.0 (II) Loading extension XFree86-DRI (II) LoadModule: "dri2" (II) Loading /usr/lib/xorg/modules/extensions//libdri2.so (II) Module dri2: vendor="X.Org Foundation" compiled for 1.6.5, module version = 1.1.0 ABI class: X.Org Server Extension, version 2.0 (II) Loading extension DRI2 (==) Matched intel for the autoconfigured driver (==) Assigned the driver to the xf86ConfigLayout (II) LoadModule: "intel" (II) Loading /usr/lib/xorg/modules/drivers//intel_drv.so (II) Module intel: vendor="X.Org Foundation" compiled for 1.6.5, module version = 2.9.1 Module class: X.Org Video Driver ABI class: X.Org Video Driver, version 5.0 (II) intel: Driver for Intel Integrated Graphics Chipsets: i810, i810-dc100, i810e, i815, i830M, 845G, 852GM/855GM, 865G, 915G, E7221 (i915), 915GM, 945G, 945GM, 945GME, Pineview GM, Pineview G, 965G, G35, 965Q, 946GZ, 965GM, 965GME/GLE, G33, Q35, Q33, GM45, 4 Series, G45/G43, Q45/Q43, G41, B43, Clarkdale, Arrandale (II) Primary Device is: PCI 00@00:02:0 (II) resource ranges after probing: [0] -1 0 0xffffffff - 0xffffffff (0x1) MX[B] [1] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B] [2] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B] [3] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B] [4] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B] [5] -1 0 0x00000000 - 0x00000000 (0x1) IX[B] (II) Loading sub module "vgahw" (II) LoadModule: "vgahw" (II) Loading /usr/lib/xorg/modules//libvgahw.so (II) Module vgahw: vendor="X.Org Foundation" compiled for 1.6.5, module version = 0.1.0 ABI class: X.Org Video Driver, version 5.0 (II) Loading sub module "ramdac" (II) LoadModule: "ramdac" (II) Module "ramdac" already built-in drmOpenDevice: node name is /dev/dri/card0 drmOpenDevice: open result is 8, (OK) drmOpenByBusid: Searching for BusID pci:0000:00:02.0 drmOpenDevice: node name is /dev/dri/card0 drmOpenDevice: open result is 8, (OK) drmOpenByBusid: drmOpenMinor returns 8 drmOpenByBusid: drmGetBusid reports pci:0000:00:02.0 (II) intel(0): Creating default Display subsection in Screen section "Default Screen Section" for depth/fbbpp 24/32 (==) intel(0): Depth 24, (--) framebuffer bpp 32 (==) intel(0): RGB weight 888 (==) intel(0): Default visual is TrueColor (II) intel(0): Integrated Graphics Chipset: Intel(R) 965GM (--) intel(0): Chipset: "965GM" (--) intel(0): Linear framebuffer at 0xD0000000 (--) intel(0): IO registers at addr 0xF0000000 size 1048576 (WW) intel(0): libpciaccess reported 0 rom size, guessing 64kB (II) intel(0): No SDVO device is found in VBT (II) intel(0): 2 display pipes available. (II) Loading sub module "ddc" (II) LoadModule: "ddc" (II) Module "ddc" already built-in (II) Loading sub module "i2c" (II) LoadModule: "i2c" (II) Module "i2c" already built-in (II) intel(0): Output VGA has no monitor section (II) intel(0): Output LVDS has no monitor section (II) intel(0): I2C bus "LVDSDDC_C" initialized. (II) intel(0): Attempting to determine panel fixed mode. (II) intel(0): I2C device "LVDSDDC_C:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "LVDSDDC_C:ddc2" registered at address 0xA0. (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Using EDID range info for horizontal sync (II) intel(0): Using EDID range info for vertical refresh (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "800x600"x0.0 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x0.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x0.0 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x0.0 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x0.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "1152x864"x0.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): Output VGA connected (II) intel(0): Output LVDS connected (II) intel(0): Using fuzzy aspect match for initial modes (II) intel(0): Output VGA using initial mode 1024x768 (II) intel(0): Output LVDS using initial mode 1024x768 (II) intel(0): detected 512 kB GTT. (II) intel(0): detected 7676 kB stolen memory. (==) intel(0): video overlay key set to 0x101fe (==) intel(0): Using gamma correction (1.0, 1.0, 1.0) (**) intel(0): Display dimensions: (470, 300) mm (**) intel(0): DPI set to (55, 65) (II) Loading sub module "fb" (II) LoadModule: "fb" (II) Loading /usr/lib/xorg/modules//libfb.so (II) Module fb: vendor="X.Org Foundation" compiled for 1.6.5, module version = 1.0.0 ABI class: X.Org ANSI C Emulation, version 0.4 (II) intel(0): Comparing regs from server start up to After PreInit (WW) intel(0): Register 0x61200 (PP_STATUS) changed from 0xc0000008 to 0xd000000a (WW) intel(0): PP_STATUS before: on, ready, sequencing idle (WW) intel(0): PP_STATUS after: on, ready, sequencing on (WW) intel(0): Register 0x71024 (PIPEBSTAT) changed from 0x00400206 to 0x80400206 (WW) intel(0): PIPEBSTAT before: status: LBLC_EVENT_ENABLE VSYNC_INT_STATUS SVBLANK_INT_STATUS VBLANK_INT_STATUS (WW) intel(0): PIPEBSTAT after: status: FIFO_UNDERRUN LBLC_EVENT_ENABLE VSYNC_INT_STATUS SVBLANK_INT_STATUS VBLANK_INT_STATUS (==) Depth 24 pixmap format is 32 bpp (II) do I need RAC? No, I don't. (II) resource ranges after preInit: [0] -1 0 0xffffffff - 0xffffffff (0x1) MX[B] [1] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B] [2] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B] [3] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B] [4] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B] [5] -1 0 0x00000000 - 0x00000000 (0x1) IX[B] (II) intel(0): Kernel reported 480512 total, 1 used (II) intel(0): I830CheckAvailableMemory: 1922044 kB available (II) intel(0): [DRI2] Setup complete (**) intel(0): Framebuffer compression disabled (**) intel(0): Tiling enabled (**) intel(0): SwapBuffers wait enabled (==) intel(0): VideoRam: 262144 KB (II) intel(0): Attempting memory allocation with tiled buffers. (II) intel(0): Tiled allocation successful. (II) intel(0): vgaHWGetIOBase: hwp->IOBase is 0x03d0, hwp->PIOOffset is 0x0000 (II) UXA(0): Driver registered support for the following operations: (II) solid (II) copy (II) composite (RENDER acceleration) (==) intel(0): Backing store disabled (==) intel(0): Silken mouse enabled (II) intel(0): Initializing HW Cursor (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00a9efff: front buffer (3072 kB) X tiled (II) intel(0): 0x00b9f000-0x00b9ffff: overlay registers (4 kB) (II) intel(0): 0x00ba0000-0x00ba9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (II) intel(0): using SSC reference clock of 100 MHz (II) intel(0): Selecting standard 18 bit TMDS pixel format. (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is on (II) intel(0): Display plane B is now enabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe B (II) intel(0): RandR 1.2 enabled, ignore the following RandR disabled message. (II) intel(0): DPMS enabled (==) intel(0): Intel XvMC decoder disabled (II) intel(0): Set up textured video (II) intel(0): Set up overlay video (II) intel(0): direct rendering: DRI2 Enabled (--) RandR disabled (II) Initializing built-in extension Generic Event Extension (II) Initializing built-in extension SHAPE (II) Initializing built-in extension MIT-SHM (II) Initializing built-in extension XInputExtension (II) Initializing built-in extension XTEST (II) Initializing built-in extension BIG-REQUESTS (II) Initializing built-in extension SYNC (II) Initializing built-in extension XKEYBOARD (II) Initializing built-in extension XC-MISC (II) Initializing built-in extension XINERAMA (II) Initializing built-in extension XFIXES (II) Initializing built-in extension RENDER (II) Initializing built-in extension RANDR (II) Initializing built-in extension COMPOSITE (II) Initializing built-in extension DAMAGE SELinux: Disabled on system, not enabling in X server (II) AIGLX: enabled GLX_MESA_copy_sub_buffer (II) AIGLX: enabled GLX_SGI_swap_control and GLX_MESA_swap_control (II) AIGLX: GLX_EXT_texture_from_pixmap backed by buffer objects (II) AIGLX: Loaded and initialized /usr/lib/dri/i965_dri.so (II) GLX: Initialized DRI2 GL provider for screen 0 (II) intel(0): Setting screen physical size to 331 x 207 (II) config/hal: Adding input device Video Bus (II) LoadModule: "evdev" (II) Loading /usr/lib/xorg/modules/input//evdev_drv.so (II) Module evdev: vendor="X.Org Foundation" compiled for 1.6.3, module version = 2.2.5 Module class: X.Org XInput Driver ABI class: X.Org XInput driver, version 4.0 (**) Video Bus: always reports core events (**) Video Bus: Device: "/dev/input/event13" (II) Video Bus: Found keys (II) Video Bus: Configuring as keyboard (II) XINPUT: Adding extended input device "Video Bus" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (II) config/hal: Adding input device HID 046a:0023 (**) HID 046a:0023: always reports core events (**) HID 046a:0023: Device: "/dev/input/event8" (II) HID 046a:0023: Found 1 mouse buttons (II) HID 046a:0023: Found scroll wheel(s) (II) HID 046a:0023: Found keys (II) HID 046a:0023: Configuring as keyboard (II) HID 046a:0023: Adding scrollwheel support (**) HID 046a:0023: YAxisMapping: buttons 4 and 5 (**) HID 046a:0023: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 (II) XINPUT: Adding extended input device "HID 046a:0023" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (EE) HID 046a:0023: failed to initialize for relative axes. (II) config/hal: Adding input device AT Translated Set 2 keyboard (**) AT Translated Set 2 keyboard: always reports core events (**) AT Translated Set 2 keyboard: Device: "/dev/input/event1" (II) AT Translated Set 2 keyboard: Found keys (II) AT Translated Set 2 keyboard: Configuring as keyboard (II) XINPUT: Adding extended input device "AT Translated Set 2 keyboard" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (II) config/hal: Adding input device Vega USB 2.0 Camera. (**) Vega USB 2.0 Camera.: always reports core events (**) Vega USB 2.0 Camera.: Device: "/dev/input/event10" (II) Vega USB 2.0 Camera.: Found keys (II) Vega USB 2.0 Camera.: Configuring as keyboard (II) XINPUT: Adding extended input device "Vega USB 2.0 Camera." (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (II) config/hal: Adding input device Sleep Button (**) Sleep Button: always reports core events (**) Sleep Button: Device: "/dev/input/event4" (II) Sleep Button: Found keys (II) Sleep Button: Configuring as keyboard (II) XINPUT: Adding extended input device "Sleep Button" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (II) config/hal: Adding input device Power Button (**) Power Button: always reports core events (**) Power Button: Device: "/dev/input/event3" (II) Power Button: Found keys (II) Power Button: Configuring as keyboard (II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (II) config/hal: Adding input device HID 046a:0023 (**) HID 046a:0023: always reports core events (**) HID 046a:0023: Device: "/dev/input/event7" (II) HID 046a:0023: Found keys (II) HID 046a:0023: Configuring as keyboard (II) XINPUT: Adding extended input device "HID 046a:0023" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (II) config/hal: Adding input device Power Button (**) Power Button: always reports core events (**) Power Button: Device: "/dev/input/event5" (II) Power Button: Found keys (II) Power Button: Configuring as keyboard (II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (II) config/hal: Adding input device Macintosh mouse button emulation (**) Macintosh mouse button emulation: always reports core events (**) Macintosh mouse button emulation: Device: "/dev/input/event0" (II) Macintosh mouse button emulation: Found 3 mouse buttons (II) Macintosh mouse button emulation: Found x and y relative axes (II) Macintosh mouse button emulation: Configuring as mouse (**) Macintosh mouse button emulation: YAxisMapping: buttons 4 and 5 (**) Macintosh mouse button emulation: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 (II) XINPUT: Adding extended input device "Macintosh mouse button emulation" (type: MOUSE) (**) Macintosh mouse button emulation: (accel) keeping acceleration scheme 1 (**) Macintosh mouse button emulation: (accel) filter chain progression: 2.00 (**) Macintosh mouse button emulation: (accel) filter stage 0: 20.00 ms (**) Macintosh mouse button emulation: (accel) set acceleration profile 0 (II) Macintosh mouse button emulation: initialized for relative axes. (II) config/hal: Adding input device SynPS/2 Synaptics TouchPad (II) LoadModule: "synaptics" (II) Loading /usr/lib/xorg/modules/input//synaptics_drv.so (II) Module synaptics: vendor="X.Org Foundation" compiled for 1.6.5, module version = 1.2.0 Module class: X.Org XInput Driver ABI class: X.Org XInput driver, version 4.0 (II) Synaptics touchpad driver version 1.2.0 (**) Option "Device" "/dev/input/event11" (II) SynPS/2 Synaptics TouchPad: x-axis range 1472 - 5472 (II) SynPS/2 Synaptics TouchPad: y-axis range 1408 - 4448 (II) SynPS/2 Synaptics TouchPad: pressure range 0 - 255 (II) SynPS/2 Synaptics TouchPad: finger width range 0 - 0 (II) SynPS/2 Synaptics TouchPad: buttons: left right middle double triple (--) SynPS/2 Synaptics TouchPad: touchpad found (**) SynPS/2 Synaptics TouchPad: always reports core events (II) XINPUT: Adding extended input device "SynPS/2 Synaptics TouchPad" (type: TOUCHPAD) (**) SynPS/2 Synaptics TouchPad: (accel) keeping acceleration scheme 1 (**) SynPS/2 Synaptics TouchPad: (accel) filter chain progression: 2.00 (**) SynPS/2 Synaptics TouchPad: (accel) filter stage 0: 20.00 ms (**) SynPS/2 Synaptics TouchPad: (accel) set acceleration profile 0 (--) SynPS/2 Synaptics TouchPad: touchpad found (II) config/hal: Adding input device Logitech USB Optical Mouse (**) Logitech USB Optical Mouse: always reports core events (**) Logitech USB Optical Mouse: Device: "/dev/input/event6" (II) Logitech USB Optical Mouse: Found 12 mouse buttons (II) Logitech USB Optical Mouse: Found x and y relative axes (II) Logitech USB Optical Mouse: Found scroll wheel(s) (II) Logitech USB Optical Mouse: Configuring as mouse (**) Logitech USB Optical Mouse: YAxisMapping: buttons 4 and 5 (**) Logitech USB Optical Mouse: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 (II) XINPUT: Adding extended input device "Logitech USB Optical Mouse" (type: MOUSE) (**) Logitech USB Optical Mouse: (accel) keeping acceleration scheme 1 (**) Logitech USB Optical Mouse: (accel) filter chain progression: 2.00 (**) Logitech USB Optical Mouse: (accel) filter stage 0: 20.00 ms (**) Logitech USB Optical Mouse: (accel) set acceleration profile 0 (II) Logitech USB Optical Mouse: initialized for relative axes. (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1280x800"x0.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1280x800"x0.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1280x800"x0.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): Allocate new frame buffer 1680x1050 stride 1792 (II) intel(0): New front buffer at 0x15f3000 (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1280x800"x0.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "800x600"x0.0 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x0.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x0.0 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x0.0 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x0.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "1152x864"x0.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "800x600"x0.0 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x0.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x0.0 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x0.0 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x0.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "1152x864"x0.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) AIGLX: Suspending AIGLX clients for VT switch (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Resuming AIGLX clients after VT switch (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00eccfff: front buffer (7352 kB) X tiled (II) intel(0): 0x00f9f000-0x00f9ffff: overlay registers (4 kB) (II) intel(0): 0x00fa0000-0x00fa9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (WW) intel(0): ESR is 0x00000011, page table error (WW) intel(0): PGTBL_ER is 0x00040000, overlay tiling (WW) intel(0): Existing errors found in hardware state. (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is off (II) intel(0): Display plane B is now disabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe none (--) SynPS/2 Synaptics TouchPad: touchpad found (II) Video Bus: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) AT Translated Set 2 keyboard: Device reopened after 1 attempts. (II) Vega USB 2.0 Camera.: Device reopened after 1 attempts. (II) Sleep Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Macintosh mouse button emulation: Device reopened after 1 attempts. (II) Logitech USB Optical Mouse: Device reopened after 1 attempts. (II) AIGLX: Suspending AIGLX clients for VT switch (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Resuming AIGLX clients after VT switch (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00eccfff: front buffer (7352 kB) X tiled (II) intel(0): 0x00f9f000-0x00f9ffff: overlay registers (4 kB) (II) intel(0): 0x00fa0000-0x00fa9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (WW) intel(0): ESR is 0x00000011, page table error (WW) intel(0): PGTBL_ER is 0x00040000, overlay tiling (WW) intel(0): Existing errors found in hardware state. (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is off (II) intel(0): Display plane B is now disabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe none (--) SynPS/2 Synaptics TouchPad: touchpad found (II) Video Bus: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) AT Translated Set 2 keyboard: Device reopened after 1 attempts. (II) Vega USB 2.0 Camera.: Device reopened after 1 attempts. (II) Sleep Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Macintosh mouse button emulation: Device reopened after 1 attempts. (II) Logitech USB Optical Mouse: Device reopened after 1 attempts. (II) AIGLX: Suspending AIGLX clients for VT switch (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Resuming AIGLX clients after VT switch (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00eccfff: front buffer (7352 kB) X tiled (II) intel(0): 0x00f9f000-0x00f9ffff: overlay registers (4 kB) (II) intel(0): 0x00fa0000-0x00fa9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (WW) intel(0): ESR is 0x00000011, page table error (WW) intel(0): PGTBL_ER is 0x00040010, display A pte, overlay tiling (WW) intel(0): Existing errors found in hardware state. (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is off (II) intel(0): Display plane B is now disabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe none (--) SynPS/2 Synaptics TouchPad: touchpad found (II) Video Bus: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) AT Translated Set 2 keyboard: Device reopened after 1 attempts. (II) Vega USB 2.0 Camera.: Device reopened after 1 attempts. (II) Sleep Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Macintosh mouse button emulation: Device reopened after 1 attempts. (II) Logitech USB Optical Mouse: Device reopened after 1 attempts. (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "800x600"x0.0 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x0.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x0.0 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x0.0 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x0.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "1152x864"x0.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) AIGLX: Suspending AIGLX clients for VT switch (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Resuming AIGLX clients after VT switch (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00eccfff: front buffer (7352 kB) X tiled (II) intel(0): 0x00f9f000-0x00f9ffff: overlay registers (4 kB) (II) intel(0): 0x00fa0000-0x00fa9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is off (II) intel(0): Display plane B is now disabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe none (--) SynPS/2 Synaptics TouchPad: touchpad found (II) config/hal: removing device HID 046a:0023 (II) HID 046a:0023: Close (II) UnloadModule: "evdev" (II) config/hal: removing device HID 046a:0023 (II) HID 046a:0023: Close (II) UnloadModule: "evdev" (II) Video Bus: Device reopened after 1 attempts. (II) AT Translated Set 2 keyboard: Device reopened after 1 attempts. (II) Vega USB 2.0 Camera.: Device reopened after 1 attempts. (II) Sleep Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Macintosh mouse button emulation: Device reopened after 1 attempts. (II) Logitech USB Optical Mouse: Device reopened after 1 attempts. (II) config/hal: Adding input device HID 046a:0023 (**) HID 046a:0023: always reports core events (**) HID 046a:0023: Device: "/dev/input/event8" (II) HID 046a:0023: Found 1 mouse buttons (II) HID 046a:0023: Found scroll wheel(s) (II) HID 046a:0023: Found keys (II) HID 046a:0023: Configuring as keyboard (II) HID 046a:0023: Adding scrollwheel support (**) HID 046a:0023: YAxisMapping: buttons 4 and 5 (**) HID 046a:0023: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 (II) XINPUT: Adding extended input device "HID 046a:0023" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (EE) HID 046a:0023: failed to initialize for relative axes. (II) config/hal: Adding input device HID 046a:0023 (**) HID 046a:0023: always reports core events (**) HID 046a:0023: Device: "/dev/input/event7" (II) HID 046a:0023: Found keys (II) HID 046a:0023: Configuring as keyboard (II) XINPUT: Adding extended input device "HID 046a:0023" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (WW) intel(0): i830_uxa_prepare_access: bo map failed (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "800x600"x0.0 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x0.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x0.0 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x0.0 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x0.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "1152x864"x0.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): Allocate new frame buffer 1280x1024 stride 1280 (II) intel(0): New front buffer at 0x13cc000 (II) intel(0): Allocate new frame buffer 1680x1050 stride 1792 (II) intel(0): New front buffer at 0x4906000 (II) AIGLX: Suspending AIGLX clients for VT switch (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Resuming AIGLX clients after VT switch (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00eccfff: front buffer (7352 kB) X tiled (II) intel(0): 0x00f9f000-0x00f9ffff: overlay registers (4 kB) (II) intel(0): 0x00fa0000-0x00fa9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (WW) intel(0): ESR is 0x00000011, page table error (WW) intel(0): PGTBL_ER is 0x00040000, overlay tiling (WW) intel(0): Existing errors found in hardware state. (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is off (II) intel(0): Display plane B is now disabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe none (--) SynPS/2 Synaptics TouchPad: touchpad found (II) Video Bus: Device reopened after 1 attempts. (II) AT Translated Set 2 keyboard: Device reopened after 1 attempts. (II) Vega USB 2.0 Camera.: Device reopened after 1 attempts. (II) Sleep Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Macintosh mouse button emulation: Device reopened after 1 attempts. (II) Logitech USB Optical Mouse: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) AIGLX: Suspending AIGLX clients for VT switch (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Resuming AIGLX clients after VT switch (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00eccfff: front buffer (7352 kB) X tiled (II) intel(0): 0x00f9f000-0x00f9ffff: overlay registers (4 kB) (II) intel(0): 0x00fa0000-0x00fa9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (WW) intel(0): ESR is 0x00000011, page table error (WW) intel(0): PGTBL_ER is 0x00040000, overlay tiling (WW) intel(0): Existing errors found in hardware state. (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is off (II) intel(0): Display plane B is now disabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe none (--) SynPS/2 Synaptics TouchPad: touchpad found (II) Video Bus: Device reopened after 1 attempts. (II) AT Translated Set 2 keyboard: Device reopened after 1 attempts. (II) Vega USB 2.0 Camera.: Device reopened after 1 attempts. (II) Sleep Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Macintosh mouse button emulation: Device reopened after 1 attempts. (II) Logitech USB Optical Mouse: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) AIGLX: Suspending AIGLX clients for VT switch (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Resuming AIGLX clients after VT switch (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00eccfff: front buffer (7352 kB) X tiled (II) intel(0): 0x00f9f000-0x00f9ffff: overlay registers (4 kB) (II) intel(0): 0x00fa0000-0x00fa9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (WW) intel(0): ESR is 0x00000011, page table error (WW) intel(0): PGTBL_ER is 0x00040000, overlay tiling (WW) intel(0): Existing errors found in hardware state. (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is off (II) intel(0): Display plane B is now disabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe none (--) SynPS/2 Synaptics TouchPad: touchpad found (II) Video Bus: Device reopened after 1 attempts. (II) AT Translated Set 2 keyboard: Device reopened after 1 attempts. (II) Vega USB 2.0 Camera.: Device reopened after 1 attempts. (II) Sleep Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Macintosh mouse button emulation: Device reopened after 1 attempts. (II) Logitech USB Optical Mouse: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) HID 046a:0023: Device reopened after 1 attempts. (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "800x600"x0.0 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x0.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x0.0 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x0.0 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x0.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "1152x864"x0.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): Allocate new frame buffer 1024x768 stride 1024 (II) intel(0): New front buffer at 0xd525000 (II) intel(0): using SSC reference clock of 100 MHz (II) intel(0): Selecting standard 18 bit TMDS pixel format. (II) AIGLX: Suspending AIGLX clients for VT switch (II) config/hal: removing device Logitech USB Optical Mouse (II) Logitech USB Optical Mouse: Close (II) UnloadModule: "evdev" (II) config/hal: removing device HID 046a:0023 (II) HID 046a:0023: Close (II) UnloadModule: "evdev" (II) config/hal: removing device HID 046a:0023 (II) HID 046a:0023: Close (II) UnloadModule: "evdev" (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Resuming AIGLX clients after VT switch (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00a9efff: front buffer (3072 kB) X tiled (II) intel(0): 0x00b9f000-0x00b9ffff: overlay registers (4 kB) (II) intel(0): 0x00ba0000-0x00ba9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (II) intel(0): using SSC reference clock of 100 MHz (II) intel(0): Selecting standard 18 bit TMDS pixel format. (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is on (II) intel(0): Display plane B is now enabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe B (--) SynPS/2 Synaptics TouchPad: touchpad found (II) Video Bus: Device reopened after 1 attempts. (II) AT Translated Set 2 keyboard: Device reopened after 1 attempts. (II) Vega USB 2.0 Camera.: Device reopened after 1 attempts. (II) Sleep Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Macintosh mouse button emulation: Device reopened after 1 attempts. (II) config/hal: Adding input device Logitech USB Optical Mouse (**) Logitech USB Optical Mouse: always reports core events (**) Logitech USB Optical Mouse: Device: "/dev/input/event6" (II) Logitech USB Optical Mouse: Found 12 mouse buttons (II) Logitech USB Optical Mouse: Found x and y relative axes (II) Logitech USB Optical Mouse: Found scroll wheel(s) (II) Logitech USB Optical Mouse: Configuring as mouse (**) Logitech USB Optical Mouse: YAxisMapping: buttons 4 and 5 (**) Logitech USB Optical Mouse: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 (II) XINPUT: Adding extended input device "Logitech USB Optical Mouse" (type: MOUSE) (**) Logitech USB Optical Mouse: (accel) keeping acceleration scheme 1 (**) Logitech USB Optical Mouse: (accel) filter chain progression: 2.00 (**) Logitech USB Optical Mouse: (accel) filter stage 0: 20.00 ms (**) Logitech USB Optical Mouse: (accel) set acceleration profile 0 (II) Logitech USB Optical Mouse: initialized for relative axes. (II) config/hal: Adding input device HID 046a:0023 (**) HID 046a:0023: always reports core events (**) HID 046a:0023: Device: "/dev/input/event8" (II) HID 046a:0023: Found 1 mouse buttons (II) HID 046a:0023: Found scroll wheel(s) (II) HID 046a:0023: Found keys (II) HID 046a:0023: Configuring as keyboard (II) HID 046a:0023: Adding scrollwheel support (**) HID 046a:0023: YAxisMapping: buttons 4 and 5 (**) HID 046a:0023: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 (II) XINPUT: Adding extended input device "HID 046a:0023" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (EE) HID 046a:0023: failed to initialize for relative axes. (II) config/hal: Adding input device HID 046a:0023 (**) HID 046a:0023: always reports core events (**) HID 046a:0023: Device: "/dev/input/event7" (II) HID 046a:0023: Found keys (II) HID 046a:0023: Configuring as keyboard (II) XINPUT: Adding extended input device "HID 046a:0023" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (II) PM Event received: Capability Changed I830PMEvent: Capability change (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "800x600"x0.0 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x0.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x0.0 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x0.0 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x0.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "1152x864"x0.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1280x1024"x0.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1680x1050"x0.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): Allocate new frame buffer 2960x1050 stride 3072 (II) intel(0): New front buffer at 0x18e2000 (II) intel(0): using SSC reference clock of 100 MHz (II) intel(0): Selecting standard 18 bit TMDS pixel format. (II) PM Event received: Capability Changed I830PMEvent: Capability change (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1280x800"x0.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): Allocate new frame buffer 1280x800 stride 1280 (II) intel(0): New front buffer at 0x28e2000 (II) PM Event received: Capability Changed I830PMEvent: Capability change (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1280x800"x0.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (II) intel(0): Allocate new frame buffer 1680x1050 stride 1792 (II) intel(0): New front buffer at 0x40e2000 (II) intel(0): I2C bus "CRTDDC_A" initialized. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" registered at address 0x60. (II) intel(0): I2C device "CRTDDC_A:ddc2" registered at address 0xA0. (II) intel(0): I2C device "CRTDDC_A:ddc2" removed. (II) intel(0): I2C device "CRTDDC_A:E-EDID segment register" removed. (II) intel(0): I2C bus "CRTDDC_A" removed. (II) intel(0): EDID for output VGA (II) intel(0): Manufacturer: DEL Model: f010 Serial#: 842027084 (II) intel(0): Year: 2009 Week: 27 (II) intel(0): EDID Version: 1.3 (II) intel(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V (II) intel(0): Sync: Separate (II) intel(0): Max Image Size [cm]: horiz.: 47 vert.: 30 (II) intel(0): Gamma: 2.20 (II) intel(0): DPMS capabilities: Off; RGB/Color Display (II) intel(0): Default color space is primary color space (II) intel(0): First detailed timing is preferred mode (II) intel(0): redX: 0.640 redY: 0.330 greenX: 0.300 greenY: 0.600 (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Supported established timings: (II) intel(0): 720x400@70Hz (II) intel(0): 640x480@60Hz (II) intel(0): 640x480@75Hz (II) intel(0): 800x600@60Hz (II) intel(0): 800x600@75Hz (II) intel(0): 1024x768@60Hz (II) intel(0): 1024x768@75Hz (II) intel(0): 1280x1024@75Hz (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported standard timings: (II) intel(0): #0: hsize: 1152 vsize 864 refresh: 75 vid: 20337 (II) intel(0): #1: hsize: 1280 vsize 1024 refresh: 60 vid: 32897 (II) intel(0): #2: hsize: 1680 vsize 1050 refresh: 60 vid: 179 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 146.2 MHz Image Size: 474 x 296 mm (II) intel(0): h_active: 1680 h_sync: 1784 h_sync_end 1960 h_blank_end 2240 h_border: 0 (II) intel(0): v_active: 1050 v_sync: 1053 v_sync_end 1059 v_blanking: 1089 v_border: 0 (II) intel(0): Serial No: H735H97420PL (II) intel(0): Monitor name: DELL 2209WA (II) intel(0): Ranges: V min: 56 V max: 75 Hz, H min: 30 H max: 83 kHz, PixClock max 160 MHz (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff0010ac10f04c503032 (II) intel(0): 1b130103682f1e782eee95a3544c9926 (II) intel(0): 0f5054a54b00714f8180b30001010101 (II) intel(0): 01010101010121399030621a274068b0 (II) intel(0): 3600da281100001c000000ff00483733 (II) intel(0): 35483937343230504c0a000000fc0044 (II) intel(0): 454c4c203232303957410a20000000fd (II) intel(0): 00384b1e5310000a202020202020002e (II) intel(0): EDID vendor "DEL", prod id 61456 (II) intel(0): Printing probed modes for output VGA (II) intel(0): Modeline "1680x1050"x60.0 146.25 1680 1784 1960 2240 1050 1053 1059 1089 -hsync +vsync (65.3 kHz) (II) intel(0): Modeline "1280x1024"x75.0 135.00 1280 1296 1440 1688 1024 1025 1028 1066 +hsync +vsync (80.0 kHz) (II) intel(0): Modeline "1280x1024"x60.0 108.00 1280 1328 1440 1688 1024 1025 1028 1066 +hsync +vsync (64.0 kHz) (II) intel(0): Modeline "1152x864"x75.0 108.00 1152 1216 1344 1600 864 865 868 900 +hsync +vsync (67.5 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz) (II) intel(0): EDID for output LVDS (II) intel(0): Manufacturer: SEC Model: 4141 Serial#: 0 (II) intel(0): Year: 2006 Week: 0 (II) intel(0): EDID Version: 1.3 (II) intel(0): Digital Display Input (II) intel(0): Max Image Size [cm]: horiz.: 26 vert.: 16 (II) intel(0): Gamma: 2.20 (II) intel(0): No DPMS capabilities specified (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 (II) intel(0): First detailed timing is preferred mode (II) intel(0): GTF timings supported (II) intel(0): redX: 0.580 redY: 0.340 greenX: 0.310 greenY: 0.550 (II) intel(0): blueX: 0.155 blueY: 0.155 whiteX: 0.313 whiteY: 0.329 (II) intel(0): Manufacturer's mask: 0 (II) intel(0): Supported detailed timing: (II) intel(0): clock: 65.3 MHz Image Size: 331 x 207 mm (II) intel(0): h_active: 1280 h_sync: 1296 h_sync_end 1328 h_blank_end 1344 h_border: 0 (II) intel(0): v_active: 800 v_sync: 801 v_sync_end 804 v_blanking: 810 v_border: 0 (II) intel(0): Ranges: V min: 0 V max: 200 Hz, H min: 0 H max: 200 kHz, (II) intel(0): SAMSUNG (II) intel(0): LTN121W1-L03 (II) intel(0): EDID (in hex): (II) intel(0): 00ffffffffffff004ca3414100000000 (II) intel(0): 00100103801a10780a87f594574f8c27 (II) intel(0): 27505400000001010101010101010101 (II) intel(0): 0101010101018319004050200a301020 (II) intel(0): 13004bcf100000190000000f00000000 (II) intel(0): 00000000000a3c046400000000fe0053 (II) intel(0): 414d53554e470a2020202020000000fe (II) intel(0): 004c544e31323157312d4c30330a0094 (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Using hsync ranges from config file (II) intel(0): Using vrefresh ranges from config file (II) intel(0): Printing DDC gathered Modelines: (II) intel(0): Modeline "1280x800"x0.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): EDID vendor "SEC", prod id 16705 (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x960" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1280x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1200" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1792x1344" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1856x1392" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1152x864" (exceeds panel dimensions) (II) intel(0): Not using default mode "1360x768" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1360x768" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1400x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1440x900" (exceeds panel dimensions) (II) intel(0): Not using default mode "1600x1024" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1680x1050" (exceeds panel dimensions) (II) intel(0): Not using default mode "1920x1080" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1200" (monitor doesn't support reduced blanking) (II) intel(0): Not using default mode "1920x1440" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Not using default mode "2048x1536" (exceeds panel dimensions) (II) intel(0): Printing probed modes for output LVDS (II) intel(0): Modeline "1280x800"x60.0 65.31 1280 1296 1328 1344 800 801 804 810 -hsync -vsync (48.6 kHz) (II) intel(0): Modeline "1024x768"x85.0 94.50 1024 1072 1168 1376 768 769 772 808 +hsync +vsync (68.7 kHz) (II) intel(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz) (II) intel(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz) (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz) (II) intel(0): Modeline "832x624"x74.6 57.28 832 864 928 1152 624 625 628 667 -hsync -vsync (49.7 kHz) (II) intel(0): Modeline "800x600"x85.1 56.30 800 832 896 1048 600 601 604 631 +hsync +vsync (53.7 kHz) (II) intel(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz) (II) intel(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz) (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz) (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz) (II) intel(0): Modeline "640x480"x85.0 36.00 640 696 752 832 480 481 484 509 -hsync -vsync (43.3 kHz) (II) intel(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz) (II) intel(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz) (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz) (II) intel(0): Modeline "720x400"x85.0 35.50 720 756 828 936 400 401 404 446 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x400"x85.1 31.50 640 672 736 832 400 401 404 445 -hsync +vsync (37.9 kHz) (II) intel(0): Modeline "640x350"x85.1 31.50 640 672 736 832 350 382 385 445 +hsync -vsync (37.9 kHz) (WW) Open ACPI failed (/var/run/acpid.socket) (Connection refused) (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Suspending AIGLX clients for VT switch (II) Open ACPI successful (/var/run/acpid.socket) (II) AIGLX: Resuming AIGLX clients after VT switch (II) intel(0): Fixed memory allocation layout: (II) intel(0): 0x00000000-0x00000fff: power context (4 kB) (II) intel(0): 0x0077f000: end of stolen memory (II) intel(0): 0x0077f000-0x0fffffff: DRI memory manager (254468 kB) (II) intel(0): 0x10000000: end of aperture (II) intel(0): BO memory allocation layout: (II) intel(0): 0x0077f000: start of memory manager (II) intel(0): 0x0079f000-0x00eccfff: front buffer (7352 kB) X tiled (II) intel(0): 0x00f9f000-0x00f9ffff: overlay registers (4 kB) (II) intel(0): 0x00fa0000-0x00fa9fff: HW cursors (40 kB) (II) intel(0): 0x10000000: end of memory manager (II) intel(0): Output configuration: (II) intel(0): Pipe A is on (II) intel(0): Display plane A is now enabled and connected to pipe A. (II) intel(0): Pipe B is off (II) intel(0): Display plane B is now disabled and connected to pipe B. (II) intel(0): Output VGA is connected to pipe A (II) intel(0): Output LVDS is connected to pipe none (--) SynPS/2 Synaptics TouchPad: touchpad found (II) config/hal: removing device HID 046a:0023 (II) HID 046a:0023: Close (II) UnloadModule: "evdev" (II) config/hal: removing device HID 046a:0023 (II) HID 046a:0023: Close (II) UnloadModule: "evdev" (II) config/hal: Adding input device HID 046a:0023 (**) HID 046a:0023: always reports core events (**) HID 046a:0023: Device: "/dev/input/event7" (II) HID 046a:0023: Found keys (II) HID 046a:0023: Configuring as keyboard (II) XINPUT: Adding extended input device "HID 046a:0023" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (II) config/hal: Adding input device HID 046a:0023 (**) HID 046a:0023: always reports core events (**) HID 046a:0023: Device: "/dev/input/event8" (II) HID 046a:0023: Found 1 mouse buttons (II) HID 046a:0023: Found scroll wheel(s) (II) HID 046a:0023: Found keys (II) HID 046a:0023: Configuring as keyboard (II) HID 046a:0023: Adding scrollwheel support (**) HID 046a:0023: YAxisMapping: buttons 4 and 5 (**) HID 046a:0023: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 (II) XINPUT: Adding extended input device "HID 046a:0023" (type: KEYBOARD) (**) Option "xkb_rules" "evdev" (**) Option "xkb_model" "pc105" (**) Option "xkb_layout" "gb" (**) Option "xkb_options" "lv3:ralt_switch" (EE) HID 046a:0023: failed to initialize for relative axes. (II) Video Bus: Device reopened after 1 attempts. (II) AT Translated Set 2 keyboard: Device reopened after 1 attempts. (II) Vega USB 2.0 Camera.: Device reopened after 1 attempts. (II) Sleep Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Power Button: Device reopened after 1 attempts. (II) Macintosh mouse button emulation: Device reopened after 1 attempts. (II) Logitech USB Optical Mouse: Device reopened after 1 attempts. HAL Information (lshal): udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input' button.has_state = false (bool) button.type = 'power' (string) info.addons.singleton = {'hald-addon-input'} (string list) info.callouts.add = {'debian-setup-keyboard'} (string list) info.capabilities = {'input', 'button', 'input.keys'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/computer' (string) info.product = 'Power Button' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input' (string) input.device = '/dev/input/event5' (string) input.product = 'Power Button' (string) input.x11_driver = 'evdev' (string) input.xkb.layout = 'gb' (string) input.xkb.model = 'pc105' (string) input.xkb.options = 'lv3:ralt_switch' (string) linux.device_file = '/dev/input/event5' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/LNXSYSTM:00/LNXPWRBN:00/input/input5/event5' (string) udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input_0' button.has_state = false (bool) button.type = 'power' (string) info.addons.singleton = {'hald-addon-input'} (string list) info.callouts.add = {'debian-setup-keyboard'} (string list) info.capabilities = {'input', 'button', 'input.keys'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/computer' (string) info.product = 'Power Button' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input_0' (string) input.device = '/dev/input/event3' (string) input.product = 'Power Button' (string) input.x11_driver = 'evdev' (string) input.xkb.layout = 'gb' (string) input.xkb.model = 'pc105' (string) input.xkb.options = 'lv3:ralt_switch' (string) linux.device_file = '/dev/input/event3' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/input/input3/event3' (string) udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input_1' button.has_state = false (bool) button.type = 'sleep' (string) info.addons.singleton = {'hald-addon-input'} (string list) info.callouts.add = {'debian-setup-keyboard'} (string list) info.capabilities = {'input', 'button', 'input.keys'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/computer' (string) info.product = 'Sleep Button' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input_1' (string) input.device = '/dev/input/event4' (string) input.product = 'Sleep Button' (string) input.x11_driver = 'evdev' (string) input.xkb.layout = 'gb' (string) input.xkb.model = 'pc105' (string) input.xkb.options = 'lv3:ralt_switch' (string) linux.device_file = '/dev/input/event4' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0E:00/input/input4/event4' (string) udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input_2' info.capabilities = {'input', 'input.mouse'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/computer' (string) info.product = 'Macintosh mouse button emulation' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input_2' (string) input.device = '/dev/input/event0' (string) input.product = 'Macintosh mouse button emulation' (string) input.x11_driver = 'evdev' (string) linux.device_file = '/dev/input/event0' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/virtual/input/input0/event0' (string) udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input_4' info.addons.singleton = {'hald-addon-input'} (string list) info.callouts.add = {'debian-setup-keyboard'} (string list) info.capabilities = {'input', 'input.keys', 'button'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/computer' (string) info.product = 'Video Bus' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/computer_logicaldev_input_4' (string) input.device = '/dev/input/event13' (string) input.product = 'Video Bus' (string) input.x11_driver = 'evdev' (string) input.xkb.layout = 'gb' (string) input.xkb.model = 'pc105' (string) input.xkb.options = 'lv3:ralt_switch' (string) linux.device_file = '/dev/input/event13' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:01/input/input13/event13' (string) udi = '/org/freedesktop/Hal/devices/platform_i8042_i8042_AUX3_port_logicaldev_input' info.capabilities = {'input', 'input.touchpad'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/platform_i8042_i8042_AUX3_port' (string) info.product = 'SynPS/2 Synaptics TouchPad' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/platform_i8042_i8042_AUX3_port_logicaldev_input' (string) input.device = '/dev/input/event11' (string) input.originating_device = '/org/freedesktop/Hal/devices/platform_i8042_i8042_AUX3_port' (string) input.product = 'SynPS/2 Synaptics TouchPad' (string) input.x11_driver = 'synaptics' (string) linux.device_file = '/dev/input/event11' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/platform/i8042/serio4/input/input11/event11' (string) udi = '/org/freedesktop/Hal/devices/platform_i8042_i8042_KBD_port_logicaldev_input' info.addons.singleton = {'hald-addon-input'} (string list) info.callouts.add = {'debian-setup-keyboard'} (string list) info.capabilities = {'input', 'input.keyboard', 'input.keypad', 'input.keys', 'input.keymap', 'button'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/platform_i8042_i8042_KBD_port' (string) info.product = 'AT Translated Set 2 keyboard' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/platform_i8042_i8042_KBD_port_logicaldev_input' (string) input.device = '/dev/input/event1' (string) input.keymap.data = {'e002:switchvideomode', 'e003:battery', 'e004:prog1', 'e006:wlan', 'e008:brightnessup', 'e009:brightnessdown', 'e031:prog2', 'e033:prog3', 'e034:wlan', '0074:prog1', '0075:www', 'e077:f22', '0078:mail', 'e079:f22'} (string list) input.originating_device = '/org/freedesktop/Hal/devices/platform_i8042_i8042_KBD_port' (string) input.product = 'AT Translated Set 2 keyboard' (string) input.x11_driver = 'evdev' (string) input.xkb.layout = 'gb' (string) input.xkb.model = 'pc105' (string) input.xkb.options = 'lv3:ralt_switch' (string) linux.device_file = '/dev/input/event1' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/platform/i8042/serio0/input/input1/event1' (string) udi = '/org/freedesktop/Hal/devices/usb_device_46a_23_noserial_if0_logicaldev_input' info.addons.singleton = {'hald-addon-input'} (string list) info.callouts.add = {'debian-setup-keyboard'} (string list) info.capabilities = {'input', 'input.keyboard', 'input.keypad', 'input.keys', 'button'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/usb_device_46a_23_noserial_if0' (string) info.product = 'HID 046a:0023' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/usb_device_46a_23_noserial_if0_logicaldev_input' (string) input.device = '/dev/input/event7' (string) input.originating_device = '/org/freedesktop/Hal/devices/usb_device_46a_23_noserial_if0' (string) input.product = 'HID 046a:0023' (string) input.x11_driver = 'evdev' (string) input.xkb.layout = 'gb' (string) input.xkb.model = 'pc105' (string) input.xkb.options = 'lv3:ralt_switch' (string) linux.device_file = '/dev/input/event7' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/pci0000:00/0000:00:1d.7/usb2/2-2/2-2.2/2-2.2:1.0/input/input19/event7' (string) udi = '/org/freedesktop/Hal/devices/usb_device_46a_23_noserial_if1_logicaldev_input' info.addons.singleton = {'hald-addon-input'} (string list) info.callouts.add = {'debian-setup-keyboard'} (string list) info.capabilities = {'input', 'input.keys', 'button'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/usb_device_46a_23_noserial_if1' (string) info.product = 'HID 046a:0023' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/usb_device_46a_23_noserial_if1_logicaldev_input' (string) input.device = '/dev/input/event8' (string) input.originating_device = '/org/freedesktop/Hal/devices/usb_device_46a_23_noserial_if1' (string) input.product = 'HID 046a:0023' (string) input.x11_driver = 'evdev' (string) input.xkb.layout = 'gb' (string) input.xkb.model = 'pc105' (string) input.xkb.options = 'lv3:ralt_switch' (string) linux.device_file = '/dev/input/event8' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/pci0000:00/0000:00:1d.7/usb2/2-2/2-2.2/2-2.2:1.1/input/input20/event8' (string) udi = '/org/freedesktop/Hal/devices/usb_device_46d_c046_noserial_if0_logicaldev_input' info.capabilities = {'input', 'input.mouse'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/usb_device_46d_c046_noserial_if0' (string) info.product = 'Logitech USB Optical Mouse' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/usb_device_46d_c046_noserial_if0_logicaldev_input' (string) input.device = '/dev/input/event6' (string) input.originating_device = '/org/freedesktop/Hal/devices/usb_device_46d_c046_noserial_if0' (string) input.product = 'Logitech USB Optical Mouse' (string) input.x11_driver = 'evdev' (string) linux.device_file = '/dev/input/event6' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/pci0000:00/0000:00:1d.7/usb2/2-2/2-2.1/2-2.1:1.0/input/input16/event6' (string) udi = '/org/freedesktop/Hal/devices/usb_device_ac8_c302_noserial_if0_logicaldev_input' button.has_state = false (bool) info.addons.singleton = {'hald-addon-input'} (string list) info.callouts.add = {'debian-setup-keyboard'} (string list) info.capabilities = {'input', 'button', 'input.keys'} (string list) info.category = 'input' (string) info.parent = '/org/freedesktop/Hal/devices/usb_device_ac8_c302_noserial_if0' (string) info.product = 'Vega USB 2.0 Camera.' (string) info.subsystem = 'input' (string) info.udi = '/org/freedesktop/Hal/devices/usb_device_ac8_c302_noserial_if0_logicaldev_input' (string) input.device = '/dev/input/event10' (string) input.originating_device = '/org/freedesktop/Hal/devices/usb_device_ac8_c302_noserial_if0' (string) input.product = 'Vega USB 2.0 Camera.' (string) input.x11_driver = 'evdev' (string) input.xkb.layout = 'gb' (string) input.xkb.model = 'pc105' (string) input.xkb.options = 'lv3:ralt_switch' (string) linux.device_file = '/dev/input/event10' (string) linux.hotplug_type = 2 (0x2) (int) linux.subsystem = 'input' (string) linux.sysfs_path = '/sys/devices/pci0000:00/0000:00:1a.7/usb1/1-2/1-2:1.0/input/input10/event10' (string) DRM Information from dmesg: [ 0.000000] No AGP bridge found [ 0.973915] Linux agpgart interface v0.103 [ 1.009895] agpgart-intel 0000:00:00.0: Intel 965GM Chipset [ 1.010689] agpgart-intel 0000:00:00.0: detected 7676K stolen memory [ 1.020354] agpgart-intel 0000:00:00.0: AGP aperture is 256M @ 0xd0000000 [ 59.338297] [drm] Initialized drm 1.1.0 20060810 [ 59.417185] [drm] Initialized i915 1.6.0 20080730 for 0000:00:02.0 on minor 0 -- System Information: Debian Release: squeeze/sid APT prefers testing APT policy: (530, 'testing'), (520, 'unstable'), (400, 'experimental') Architecture: amd64 (x86_64) Kernel: Linux 2.6.32-trunk-amd64 (SMP w/2 CPU cores) Locale: LANG=en_GB.utf8, LC_CTYPE=en_GB.utf8 (charmap=UTF-8) Shell: /bin/sh linked to /bin/dash Versions of packages xserver-xorg-video-intel depends on: ii libc6 2.10.2-2 GNU C Library: Shared libraries ii libdrm-intel1 2.4.15-1 Userspace interface to intel-speci ii libdrm2 2.4.15-1 Userspace interface to kernel DRM ii libpciaccess0 0.10.9-1 Generic PCI access library for X ii libxext6 2:1.0.4-1 X11 miscellaneous extension librar ii libxfixes3 1:4.0.4-1 X11 miscellaneous 'fixes' extensio ii libxv1 2:1.0.5-1 X11 Video extension library ii libxvmc1 2:1.0.5-1 X11 Video extension library ii xserver-xorg-core 2:1.6.5-1 Xorg X server - core server xserver-xorg-video-intel recommends no packages. xserver-xorg-video-intel suggests no packages. -- no debconf informationAttachment: Screenshot-Celestia.png
Description: PNG image
--- End Message ---
--- Begin Message ---
- To: Sam Morris <sam@robots.org.uk>, 564878-done@bugs.debian.org
- Subject: Re: Bug#564878: xserver-xorg-video-intel: Incorrect rendering with celestia
- From: Julien Cristau <jcristau@debian.org>
- Date: Tue, 12 Jan 2010 13:29:10 +0000
- Message-id: <20100112132910.GK11456@radis.liafa.jussieu.fr>
- In-reply-to: <[🔎] 20100112124944.GI11456@radis.liafa.jussieu.fr>
- References: <[🔎] 20100112122243.1235.18259.reportbug@durandal> <[🔎] 20100112124944.GI11456@radis.liafa.jussieu.fr>
Version: 7.7-1 On Tue, Jan 12, 2010 at 12:49:44 +0000, Julien Cristau wrote: > On Tue, Jan 12, 2010 at 12:22:43 +0000, Sam Morris wrote: > > > With the current intel drivers, rendering in Celestia is back to a > > decent speed. But the textures are all screwed up. See the attached > > screenshot. > > > > This message is produced: > > > > Mesa 7.6.1 implementation error: Unsupported opcode 13 (CMP) in vertex shader > > Please report at bugzilla.freedesktop.org > > > Can you try libgl1-mesa-{glx,dri} 7.7 (in experimental, although no > amd64 builds at this time)? > Actually I can reproduce this using i965_dri.so from mesa 7.6.1, and it's fixed with 7.7. Closing. Cheers, Julien
--- End Message ---
