Package: src:linux
Version: 3.16.7-ckt20-1+deb8u1
Severity: normal
Tags: upstream
Hello.

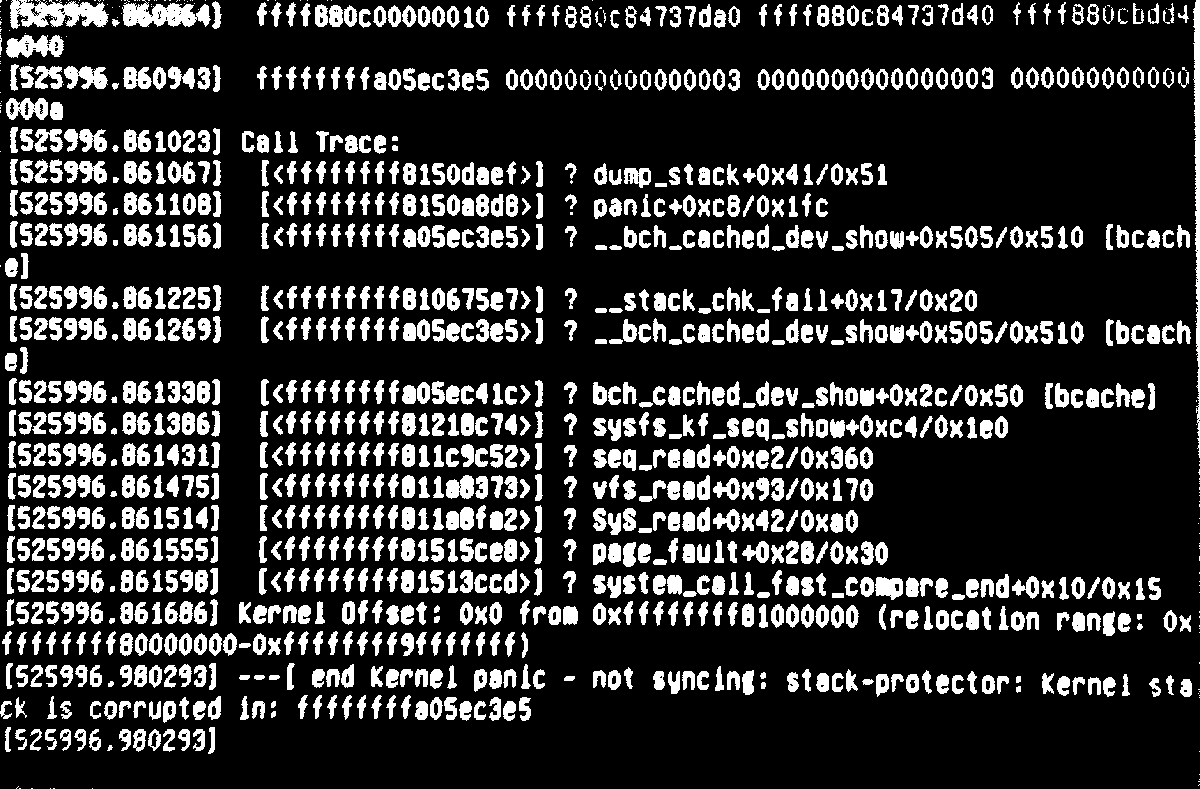

I experienced a bug in module "bcache" of linux kernel (a reduced photo is attached, a less reduced photo you can download from [1]).
[1] https://devel.mephi.ru/dyokunev/public/raw/master/debian/bugreport/2016/bcache-panic/photo_kernelbug-bch_cached_dev_show.jpg
The server is in production so I have no ability to repeat the bug and I tried to recognize a text on the photo (sorry if there're any typos):
[525996.860864] ffff880c00000010 ffff880c84737630 ffff880c84737d40 ffff880cbdd4a040
[525996.860943] ffffffffaOSecaeS 0000000000000003 0000000000000003 000000000000000a
[525996.861023] Call Trace:
{525996.861067] [<ffffffff8150daef>] ? dump_stack+0x41/0x51
[525996.861108] [<ffffffff8150a8d8>] ? panic+0xc8/0x1fc
[525996.861156] [<ffffffffa05ec3e5>l ? __bch_cached_dev_show+0x505/0x510 [bcache]
[525996.861225} [<ffffffff810675e7>] ? __stack_chk_fail+0x17/0x20
[525996.861269) [<ffffffffa05ec3e5>] ? __bch_cached_dev_show+0x505/0x510 [bcache]
[525996.861338] [<ffffffffa05ec41c>] ? bch_cached_dev_show+0x2c/0x50 [bcache]
[525996.861386] [<ffffffff81218c74>] ? sysfs_kf_seq_show+0xc4/0x1e0
[525996.861431] [<ffffffff811c9c52>] ? seq_read+0xe2/0x360
[525996.861475] [<ffffffff011a8313>] ? vfs_read+0x93/0x170
[525996.861514] [<ffffffff811asfa2>] ? SyS_read+0x42/0xa0
[525996.861555] [<ffffffff81515cea>] ? page_fault+0x28/0x30
[525996.861598] [<ffffffff81513ccd>] ? system_call_fast_compare_end+0x10/0x15
[525996.861686] Kernel Offset: 0x0 from 0xffffffff81000000 (relocation range: 0xffffffff80000000-0xffffffff9ffffff)
[525996.980293] ---[ end Kernel panic - not syncing: stack-protector: Kernel stack is corrupted in: ffffffffa05ec3e5
I googled the issue and found [2]. Indeed I was reading files /sys/block/bcache{0,1,2,3}/bcache/writeback_rate_debug every second for debugging purposes. I stopped the processes, reading "writeback_rate_debug" and the bug didn't appear again.
[2] http://www.spinics.net/lists/linux-bcache/msg03173.html
Seems the bug is related to vanilla kernel code but Debian has own patches on the kernel, so I filled this report.
Best regards, Dmitry,
tel. 8 (495) 788-56-99, ext. 8255.
-- Package-specific info:
** Version:
Linux version 3.16.0-4-amd64 (debian-kernel@lists.debian.org) (gcc version 4.8.4 (Debian 4.8.4-1) ) #1 SMP Debian 3.16.7-ckt20-1+deb8u1 (2015-12-14)
** Command line:
BOOT_IMAGE=/boot/vmlinuz-3.16.0-4-amd64 root=UUID=598c2749-c8c2-41ff-ac76-056ea007eb9e ro
** Tainted: O (4096)
* Out-of-tree module has been loaded.
** Model information
sys_vendor: Supermicro
product_name: SYS-6028R-WTR
product_version: 0123456789
chassis_vendor: Supermicro
chassis_version: 0123456789
bios_vendor: American Megatrends Inc.
bios_version: 1.0c
board_vendor: Supermicro
board_name: X10DRW-i
board_version: 1.02
** Loaded modules:
fuse
btrfs
xor
raid6_pq
ufs
qnx4
hfsplus
hfs
minix
ntfs
vfat
msdos
fat
jfs
xfs
dm_mod
iscsi_trgt(O)
cpuid
md_mod
drbd
lru_cache
libcrc32c
crc32c_generic
crc32c_intel
nfsd
auth_rpcgss
oid_registry
nfs_acl
lockd
sunrpc
fcoe
libfcoe
libfc
scsi_transport_fc
scsi_tgt
8021q
garp
stp
mrp
llc
mlx4_ib
ib_sa
ib_mad
ib_core
ib_addr
mlx4_en
mlx4_core
vxlan
x86_pkg_temp_thermal
intel_powerclamp
intel_rapl
coretemp
kvm_intel
iTCO_wdt
kvm
iTCO_vendor_support
crc32_pclmul
aesni_intel
aes_x86_64
lrw
gf128mul
glue_helper
ablk_helper
cryptd
joydev
pcspkr
mei_me
lpc_ich
ioatdma
shpchp
mei
i2c_i801
mfd_core
evdev
wmi
tpm_tis
tpm
ipmi_si
ipmi_msghandler
processor
thermal_sys
acpi_power_meter
acpi_pad
button
ext4
crc16
mbcache
jbd2
hid_generic
usbhid
hid
bcache
sg
sd_mod
crc_t10dif
crct10dif_generic
crct10dif_pclmul
crct10dif_common
ahci
libahci
ehci_pci
igb
i2c_algo_bit
xhci_hcd
ehci_hcd
libata
megaraid_sas
i2c_core
dca
usbcore
ptp
scsi_mod
usb_common
pps_core
** PCI devices:
00:00.0 Host bridge [0600]: Intel Corporation Haswell-E DMI2 [8086:2f00] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 0
Capabilities: <access denied>
00:01.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 1 [8086:2f02] (rev 02) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
I/O behind bridge: 00006000-00006fff
Memory behind bridge: c7400000-c74fffff
Prefetchable memory behind bridge: 0000000090000000-00000000900fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:02.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 2 [8086:2f04] (rev 02) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
I/O behind bridge: 00005000-00005fff
Memory behind bridge: c7100000-c73fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:02.2 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 2 [8086:2f06] (rev 02) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=03, subordinate=03, sec-latency=0
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:03.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 3 [8086:2f08] (rev 02) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=04, subordinate=04, sec-latency=0
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:04.0 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 0 [8086:2f20] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 31
Region 0: Memory at c752c000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
00:04.1 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 1 [8086:2f21] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 39
Region 0: Memory at c7528000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
00:04.2 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 2 [8086:2f22] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin C routed to IRQ 31
Region 0: Memory at c7524000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
00:04.3 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 3 [8086:2f23] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin D routed to IRQ 39
Region 0: Memory at c7520000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
00:04.4 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 4 [8086:2f24] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 31
Region 0: Memory at c751c000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
00:04.5 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 5 [8086:2f25] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 39
Region 0: Memory at c7518000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
00:04.6 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 6 [8086:2f26] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin C routed to IRQ 31
Region 0: Memory at c7514000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
00:04.7 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 7 [8086:2f27] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin D routed to IRQ 39
Region 0: Memory at c7510000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
00:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Capabilities: <access denied>
00:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Capabilities: <access denied>
00:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Capabilities: <access denied>
00:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 02) (prog-if 20 [IO(X)-APIC])
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Region 0: Memory at c7539000 (32-bit, non-prefetchable) [size=4K]
Capabilities: <access denied>
00:11.0 Unassigned class [ff00]: Intel Corporation Wellsburg SPSR [8086:8d7c] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Capabilities: <access denied>
00:11.4 SATA controller [0106]: Intel Corporation Wellsburg sSATA Controller [AHCI mode] [8086:8d62] (rev 05) (prog-if 01 [AHCI 1.0])
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 123
Region 0: I/O ports at 7110 [size=8]
Region 1: I/O ports at 7100 [size=4]
Region 2: I/O ports at 70f0 [size=8]
Region 3: I/O ports at 70e0 [size=4]
Region 4: I/O ports at 7020 [size=32]
Region 5: Memory at c7538000 (32-bit, non-prefetchable) [size=2K]
Capabilities: <access denied>
Kernel driver in use: ahci
00:14.0 USB controller [0c03]: Intel Corporation Wellsburg USB xHCI Host Controller [8086:8d31] (rev 05) (prog-if 30 [XHCI])
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin D routed to IRQ 19
Region 0: Memory at c7500000 (64-bit, non-prefetchable) [size=64K]
Capabilities: <access denied>
Kernel driver in use: xhci_hcd
00:16.0 Communication controller [0780]: Intel Corporation Wellsburg MEI Controller #1 [8086:8d3a] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 11
Region 0: Memory at c7537000 (64-bit, non-prefetchable) [size=16]
Capabilities: <access denied>
00:16.1 Communication controller [0780]: Intel Corporation Wellsburg MEI Controller #2 [8086:8d3b] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin B routed to IRQ 10
Region 0: Memory at c7536000 (64-bit, non-prefetchable) [size=16]
Capabilities: <access denied>
00:1a.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #2 [8086:8d2d] (rev 05) (prog-if 20 [EHCI])
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin C routed to IRQ 18
Region 0: Memory at c7534000 (32-bit, non-prefetchable) [size=1K]
Capabilities: <access denied>
Kernel driver in use: ehci-pci
00:1c.0 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #1 [8086:8d10] (rev d5) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=05, subordinate=05, sec-latency=0
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:1c.4 PCI bridge [0604]: Intel Corporation Wellsburg PCI Express Root Port #5 [8086:8d18] (rev d5) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=06, subordinate=07, sec-latency=0
I/O behind bridge: 00004000-00004fff
Memory behind bridge: c6000000-c70fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:1d.0 USB controller [0c03]: Intel Corporation Wellsburg USB Enhanced Host Controller #1 [8086:8d26] (rev 05) (prog-if 20 [EHCI])
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin C routed to IRQ 18
Region 0: Memory at c7533000 (32-bit, non-prefetchable) [size=1K]
Capabilities: <access denied>
Kernel driver in use: ehci-pci
00:1f.0 ISA bridge [0601]: Intel Corporation Wellsburg LPC Controller [8086:8d44] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Capabilities: <access denied>
Kernel driver in use: lpc_ich
00:1f.2 SATA controller [0106]: Intel Corporation Wellsburg 6-Port SATA Controller [AHCI mode] [8086:8d02] (rev 05) (prog-if 01 [AHCI 1.0])
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 124
Region 0: I/O ports at 7070 [size=8]
Region 1: I/O ports at 7060 [size=4]
Region 2: I/O ports at 7050 [size=8]
Region 3: I/O ports at 7040 [size=4]
Region 4: I/O ports at 7000 [size=32]
Region 5: Memory at c7532000 (32-bit, non-prefetchable) [size=2K]
Capabilities: <access denied>
Kernel driver in use: ahci
00:1f.3 SMBus [0c05]: Intel Corporation Wellsburg SMBus Controller [8086:8d22] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin C routed to IRQ 18
Region 0: Memory at c7531000 (64-bit, non-prefetchable) [size=256]
Region 4: I/O ports at 0580 [size=32]
Kernel driver in use: i801_smbus
00:1f.6 Signal processing controller [1180]: Intel Corporation Wellsburg Thermal Subsystem [8086:8d24] (rev 05)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin C routed to IRQ 5
Region 0: Memory at c7530000 (64-bit, non-prefetchable) [size=4K]
Capabilities: <access denied>
01:00.0 Ethernet controller [0200]: Intel Corporation I350 Gigabit Network Connection [8086:1521] (rev 01)
Subsystem: Super Micro Computer Inc Device [15d9:1521]
Physical Slot: 14
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 26
Region 0: Memory at c7420000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at 6020 [size=32]
Region 3: Memory at c7444000 (32-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: igb
01:00.1 Ethernet controller [0200]: Intel Corporation I350 Gigabit Network Connection [8086:1521] (rev 01)
Subsystem: Super Micro Computer Inc Device [15d9:1521]
Physical Slot: 14
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 28
Region 0: Memory at c7400000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at 6000 [size=32]
Region 3: Memory at c7440000 (32-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: igb
02:00.0 RAID bus controller [0104]: LSI Logic / Symbios Logic MegaRAID SAS-3 3008 [Fury] [1000:005f] (rev 02)
Subsystem: LSI Logic / Symbios Logic Device [1000:9341]
Physical Slot: 3
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 32
Region 0: I/O ports at 5000 [size=256]
Region 1: Memory at c7300000 (64-bit, non-prefetchable) [size=64K]
Region 3: Memory at c7200000 (64-bit, non-prefetchable) [size=1M]
Expansion ROM at c7100000 [disabled] [size=1M]
Capabilities: <access denied>
Kernel driver in use: megaraid_sas
06:00.0 PCI bridge [0604]: ASPEED Technology, Inc. AST1150 PCI-to-PCI Bridge [1a03:1150] (rev 03) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=06, secondary=07, subordinate=07, sec-latency=32
I/O behind bridge: 00004000-00004fff
Memory behind bridge: c6000000-c70fffff
Secondary status: 66MHz+ FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
07:00.0 VGA compatible controller [0300]: ASPEED Technology, Inc. ASPEED Graphics Family [1a03:2000] (rev 30) (prog-if 00 [VGA controller])
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 11
Region 0: Memory at c6000000 (32-bit, non-prefetchable) [size=16M]
Region 1: Memory at c7000000 (32-bit, non-prefetchable) [size=128K]
Region 2: I/O ports at 4000 [size=128]
Expansion ROM at <unassigned> [disabled]
Capabilities: <access denied>
7f:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:13.4 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fac] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:13.5 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fad] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:15.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 2 Thermal Control [8086:2fb4] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:15.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 3 Thermal Control [8086:2fb5] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:15.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 2 ERROR Registers [8086:2fb6] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:15.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 3 ERROR Registers [8086:2fb7] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Region 0: Memory at <ignored> (32-bit, prefetchable) [disabled]
7f:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
7f:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
80:03.0 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 3 [8086:2f08] (rev 02) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=80, secondary=81, subordinate=81, sec-latency=0
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
80:03.2 PCI bridge [0604]: Intel Corporation Haswell-E PCI Express Root Port 3 [8086:2f0a] (rev 02) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=80, secondary=82, subordinate=82, sec-latency=0
Memory behind bridge: fbd00000-fbefffff
Prefetchable memory behind bridge: 00000000c8000000-00000000e87fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
80:04.0 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 0 [8086:2f20] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 55
Region 0: Memory at fbf1c000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
80:04.1 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 1 [8086:2f21] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 63
Region 0: Memory at fbf18000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
80:04.2 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 2 [8086:2f22] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin C routed to IRQ 55
Region 0: Memory at fbf14000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
80:04.3 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 3 [8086:2f23] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin D routed to IRQ 63
Region 0: Memory at fbf10000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
80:04.4 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 4 [8086:2f24] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 55
Region 0: Memory at fbf0c000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
80:04.5 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 5 [8086:2f25] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 63
Region 0: Memory at fbf08000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
80:04.6 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 6 [8086:2f26] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin C routed to IRQ 55
Region 0: Memory at fbf04000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
80:04.7 System peripheral [0880]: Intel Corporation Haswell-E DMA Channel 7 [8086:2f27] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin D routed to IRQ 63
Region 0: Memory at fbf00000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: ioatdma
80:05.0 System peripheral [0880]: Intel Corporation Haswell-E Address Map, VTd_Misc, System Management [8086:2f28] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Capabilities: <access denied>
80:05.1 System peripheral [0880]: Intel Corporation Haswell-E Hot Plug [8086:2f29] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Capabilities: <access denied>
80:05.2 System peripheral [0880]: Intel Corporation Haswell-E RAS, Control Status and Global Errors [8086:2f2a] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Capabilities: <access denied>
80:05.4 PIC [0800]: Intel Corporation Haswell-E I/O Apic [8086:2f2c] (rev 02) (prog-if 20 [IO(X)-APIC])
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Region 0: Memory at fbf20000 (32-bit, non-prefetchable) [size=4K]
Capabilities: <access denied>
82:00.0 Network controller [0280]: Mellanox Technologies MT27500 Family [ConnectX-3] [15b3:1003]
Subsystem: Mellanox Technologies Device [15b3:0076]
Physical Slot: 1
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 66
Region 0: Memory at fbe00000 (64-bit, non-prefetchable) [size=1M]
Region 2: Memory at c8000000 (64-bit, prefetchable) [size=8M]
Expansion ROM at fbd00000 [disabled] [size=1M]
Capabilities: <access denied>
Kernel driver in use: mlx4_core
ff:08.0 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f80] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:08.2 Performance counters [1101]: Intel Corporation Haswell-E QPI Link 0 [8086:2f32] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:08.3 System peripheral [0880]: Intel Corporation Haswell-E QPI Link 0 [8086:2f83] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0b.0 System peripheral [0880]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f81] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0b.1 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f36] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0b.2 Performance counters [1101]: Intel Corporation Haswell-E R3 QPI Link 0 & 1 Monitoring [8086:2f37] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0c.0 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe0] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0c.1 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe1] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0c.2 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe2] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0c.3 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe3] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0c.4 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe4] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0c.5 System peripheral [0880]: Intel Corporation Haswell-E Unicast Registers [8086:2fe5] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0f.0 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff8] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0f.1 System peripheral [0880]: Intel Corporation Haswell-E Buffered Ring Agent [8086:2ff9] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0f.4 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffc] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0f.5 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffd] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:0f.6 System peripheral [0880]: Intel Corporation Haswell-E System Address Decoder & Broadcast Registers [8086:2ffe] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:10.0 System peripheral [0880]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f1d] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:10.1 Performance counters [1101]: Intel Corporation Haswell-E PCIe Ring Interface [8086:2f34] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:10.5 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1e] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:10.6 Performance counters [1101]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f7d] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:10.7 System peripheral [0880]: Intel Corporation Haswell-E Scratchpad & Semaphore Registers [8086:2f1f] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:12.0 System peripheral [0880]: Intel Corporation Haswell-E Home Agent 0 [8086:2fa0] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:12.1 Performance counters [1101]: Intel Corporation Haswell-E Home Agent 0 [8086:2f30] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:13.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2fa8] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:13.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Target Address, Thermal & RAS Registers [8086:2f71] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:13.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2faa] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:13.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fab] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:13.4 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fac] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:13.5 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel Target Address Decoder [8086:2fad] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:13.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 0/1 Broadcast [8086:2fae] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:13.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2faf] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:14.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 Thermal Control [8086:2fb0] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:14.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 Thermal Control [8086:2fb1] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:14.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 0 ERROR Registers [8086:2fb2] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:14.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 1 ERROR Registers [8086:2fb3] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:14.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbe] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:14.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 0 & 1 [8086:2fbf] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:15.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 2 Thermal Control [8086:2fb4] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:15.1 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 3 Thermal Control [8086:2fb5] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:15.2 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 2 ERROR Registers [8086:2fb6] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:15.3 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 0 Channel 3 ERROR Registers [8086:2fb7] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:16.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Target Address, Thermal & RAS Registers [8086:2f68] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:16.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Channel 2/3 Broadcast [8086:2f6e] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:16.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO Global Broadcast [8086:2f6f] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:17.0 System peripheral [0880]: Intel Corporation Haswell-E Integrated Memory Controller 1 Channel 0 Thermal Control [8086:2fd0] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:17.4 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb8] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:17.5 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fb9] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:17.6 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fba] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:17.7 System peripheral [0880]: Intel Corporation Haswell-E DDRIO (VMSE) 2 & 3 [8086:2fbb] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:1e.0 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f98] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:1e.1 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f99] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:1e.2 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9a] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:1e.3 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2fc0] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Region 0: Memory at <ignored> (32-bit, prefetchable) [disabled]
ff:1e.4 System peripheral [0880]: Intel Corporation Haswell-E Power Control Unit [8086:2f9c] (rev 02)
Subsystem: Super Micro Computer Inc Device [15d9:0821]
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:1f.0 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f88] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
ff:1f.2 System peripheral [0880]: Intel Corporation Haswell-E VCU [8086:2f8a] (rev 02)
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
** USB devices:
Bus 004 Device 002: ID 8087:8002 Intel Corp.
Bus 004 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 002: ID 8087:800a Intel Corp.
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 004: ID 0557:2419 ATEN International Co., Ltd
Bus 001 Device 003: ID 0557:7000 ATEN International Co., Ltd Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
-- System Information:
Debian Release: 8.2
APT prefers stable
APT policy: (1100, 'stable'), (800, 'testing'), (700, 'unstable'), (500, 'stable-updates')
Architecture: amd64 (x86_64)
Kernel: Linux 3.16.0-4-amd64 (SMP w/24 CPU cores)
Locale: LANG=en_US.UTF-8, LC_CTYPE=en_US.UTF-8 (charmap=UTF-8)
Shell: /bin/sh linked to /bin/dash
Init: sysvinit (via /sbin/init)
Versions of packages linux-image-3.16.0-4-amd64 depends on:
ii debconf [debconf-2.0] 1.5.56
ii initramfs-tools [linux-initramfs-tool] 0.120
ii kmod 18-3
ii linux-base 3.5
Versions of packages linux-image-3.16.0-4-amd64 recommends:
ii firmware-linux-free 3.3
ii irqbalance 1.0.6-3
Versions of packages linux-image-3.16.0-4-amd64 suggests:
pn debian-kernel-handbook <none>
ii grub-efi 2.02~beta2-22+deb8u1
ii linux-doc-3.16 3.16.7-ckt20-1+deb8u1
Versions of packages linux-image-3.16.0-4-amd64 is related to:
pn firmware-atheros <none>
pn firmware-bnx2 <none>
pn firmware-bnx2x <none>
pn firmware-brcm80211 <none>
pn firmware-intelwimax <none>
pn firmware-ipw2x00 <none>
pn firmware-ivtv <none>
pn firmware-iwlwifi <none>
pn firmware-libertas <none>
ii firmware-linux 0.43
ii firmware-linux-nonfree 0.43
pn firmware-myricom <none>
pn firmware-netxen <none>
pn firmware-qlogic <none>
pn firmware-ralink <none>
pn firmware-realtek <none>
pn xen-hypervisor <none>
-- debconf information excluded
Attachment:
Description: PNG image
