Package: linux-2.6
Version: 2.6.39-3~bpo60+1
Severity: normal
This is on a HP EliteBook8540w. I also see this problem with the 3.2 bpo
kernel. 2.6.32 works fine.

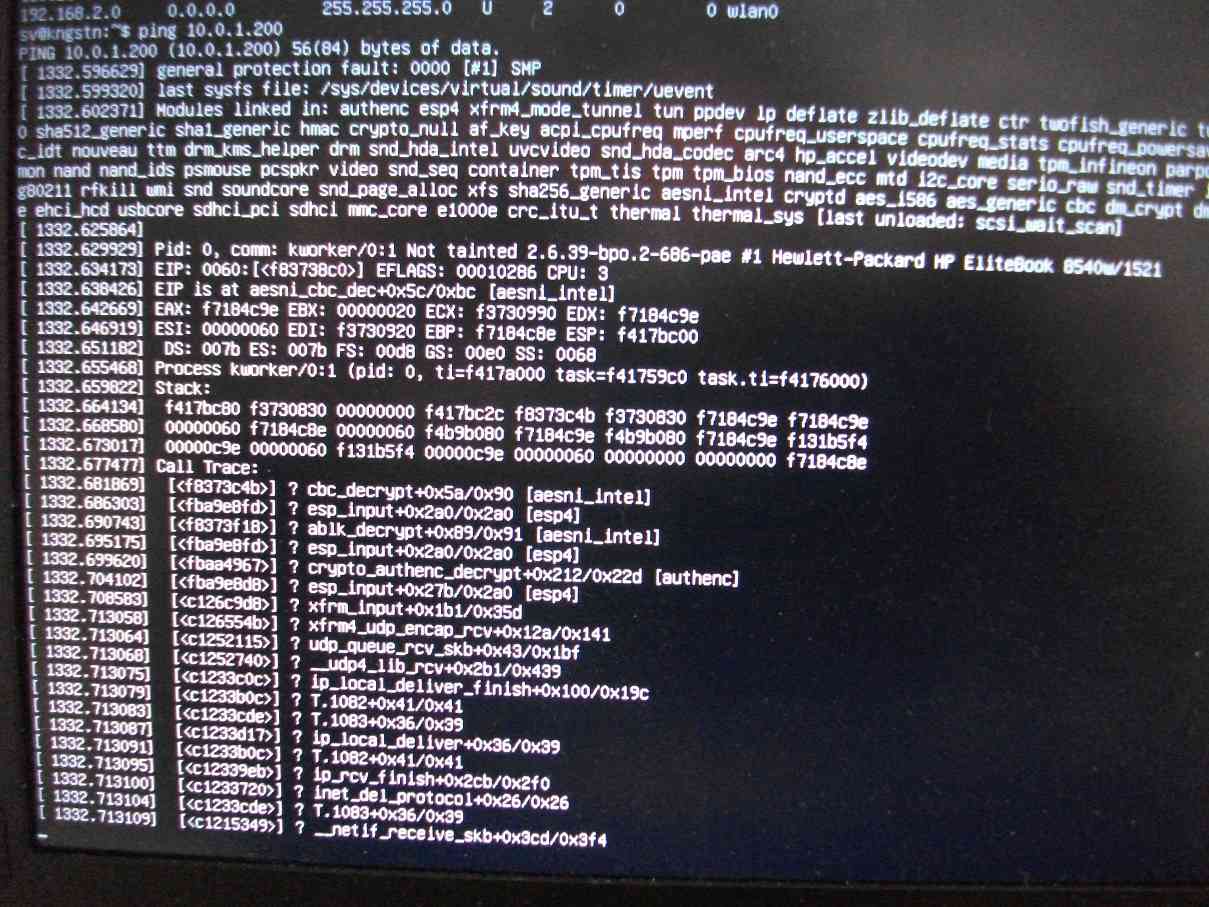

With the aesni_intel module loaded I get an OOPS (screenshot attached) every
time I ping though an ipsec tunnel (setup using ike-qtgui). I don't know if any
package triggers the OOPS or just pings.
When I blacklist aesni_intel, update-initramfs, reboot I can ping through the
tunnel.
FWIW the ipsec endpoint is an Astaro Box, AFAIK version 8.something.
ii ike 2.1.5+dfsg-2 Shrew Soft VPN client - Daemon and libraries
ii ike-qtgui 2.1.5+dfsg-2 Shrew Soft VPN client - Connection manager
-- Package-specific info:
** Version:
Linux version 2.6.39-bpo.2-686-pae (Debian 2.6.39-3~bpo60+1) (norbert@tretkowski.de) (gcc version 4.4.5 (Debian 4.4.5-8) ) #1 SMP Thu Aug 4 11:02:22 UTC 2011
** Command line:
BOOT_IMAGE=/vmlinuz-2.6.39-bpo.2-686-pae root=/dev/mapper/****-root ro quiet
** Not tainted
** Kernel log:
[ 28.930170] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table 4 at offset 0x9131
[ 28.930172] [drm] nouveau 0000:01:00.0: Parsing VBIOS init table at offset 0x9196
[ 28.949967] [drm] nouveau 0000:01:00.0: 0x7A95: Condition still not met after 20ms, skipping following opcodes
[ 28.968681] [drm] nouveau 0000:01:00.0: 3 available performance level(s)
[ 28.968684] [drm] nouveau 0000:01:00.0: 0: memory 135MHz core 135MHz shader 270MHz voltage 800mV
[ 28.968687] [drm] nouveau 0000:01:00.0: 1: memory 324MHz core 405MHz shader 810MHz voltage 850mV
[ 28.968689] [drm] nouveau 0000:01:00.0: 3: memory 790MHz core 550MHz shader 1210MHz voltage 930mV
[ 28.968702] [drm] nouveau 0000:01:00.0: c: memory 950MHz core 550MHz shader 200MHz voltage 930mV
[ 28.968756] [TTM] Zone kernel: Available graphics memory: 432404 kiB.
[ 28.968758] [TTM] Zone highmem: Available graphics memory: 2000030 kiB.
[ 28.968759] [TTM] Initializing pool allocator.
[ 28.968772] [drm] nouveau 0000:01:00.0: Detected 1024MiB VRAM
[ 28.974100] [drm] nouveau 0000:01:00.0: 512 MiB GART (aperture)
[ 29.032527] [drm] nouveau 0000:01:00.0: ACPI backlight interface available, not registering our own
[ 29.032582] [drm] nouveau 0000:01:00.0: ACPI backlight interface available, not registering our own
[ 29.034007] [drm] Supports vblank timestamp caching Rev 1 (10.10.2010).
[ 29.034008] [drm] No driver support for vblank timestamp query.
[ 29.483743] [drm] nouveau 0000:01:00.0: allocated 1920x1080 fb: 0x40000000, bo f6efbe00
[ 29.483791] fbcon: nouveaufb (fb0) is primary device
[ 30.812547] Console: switching to colour frame buffer device 240x67
[ 30.815089] fb0: nouveaufb frame buffer device
[ 30.815090] drm: registered panic notifier
[ 30.815094] [drm] Initialized nouveau 0.0.16 20090420 for 0000:01:00.0 on minor 0
[ 31.548021] loop: module loaded
[ 32.006919] EXT3-fs: barriers not enabled
[ 32.007763] kjournald starting. Commit interval 5 seconds
[ 32.011054] EXT3-fs (sdb1): using internal journal
[ 32.011060] EXT3-fs (sdb1): mounted filesystem with ordered data mode
[ 32.248074] fuse init (API version 7.16)
[ 32.682453] apm: BIOS not found.
[ 33.128262] sshd (1522): /proc/1522/oom_adj is deprecated, please use /proc/1522/oom_score_adj instead.
[ 33.199528] NET: Registered protocol family 15
[ 33.215843] alg: No test for cipher_null (cipher_null-generic)
[ 33.215861] alg: No test for ecb(cipher_null) (ecb-cipher_null)
[ 33.215880] alg: No test for digest_null (digest_null-generic)
[ 33.215899] alg: No test for compress_null (compress_null-generic)
[ 33.355719] padlock_sha: VIA PadLock Hash Engine not detected.
[ 33.490328] e1000e 0000:00:19.0: irq 50 for MSI/MSI-X
[ 33.546065] e1000e 0000:00:19.0: irq 50 for MSI/MSI-X
[ 33.546235] ADDRCONF(NETDEV_UP): eth1: link is not ready
[ 33.555053] input: ACPI Virtual Keyboard Device as /devices/virtual/input/input16
[ 33.833515] Bluetooth: Core ver 2.16
[ 33.833535] NET: Registered protocol family 31
[ 33.833537] Bluetooth: HCI device and connection manager initialized
[ 33.833539] Bluetooth: HCI socket layer initialized
[ 33.833540] Bluetooth: L2CAP socket layer initialized
[ 33.833688] Bluetooth: SCO socket layer initialized
[ 33.848022] ADDRCONF(NETDEV_UP): wlan0: link is not ready
[ 33.864988] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 33.864991] Bluetooth: BNEP filters: protocol multicast
[ 33.883282] Bluetooth: RFCOMM TTY layer initialized
[ 33.883286] Bluetooth: RFCOMM socket layer initialized
[ 33.883287] Bluetooth: RFCOMM ver 1.11
[ 33.887547] Bridge firewalling registered
[ 34.024167] lp0: using parport0 (interrupt-driven).
[ 34.057715] ppdev: user-space parallel port driver
[ 60.665010] wlan0: authenticate with 00:24:fe:05:2d:b1 (try 1)
[ 60.667881] wlan0: authenticated
[ 60.668063] wlan0: waiting for beacon from 00:24:fe:05:2d:b1
[ 60.734226] wlan0: beacon received
[ 60.734261] wlan0: associate with 00:24:fe:05:2d:b1 (try 1)
[ 60.741472] wlan0: RX AssocResp from 00:24:fe:05:2d:b1 (capab=0x431 status=0 aid=1)
[ 60.741477] wlan0: associated
[ 60.744700] ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready
[ 71.466947] wlan0: no IPv6 routers present
** Model information
not available
** Loaded modules:
Module Size Used by
ppdev 12621 0
lp 12858 0
deflate 12495 0
zlib_deflate 21186 1 deflate
ctr 12851 0
twofish_generic 16529 0
twofish_i586 12453 0
twofish_common 20528 2 twofish_generic,twofish_i586
camellia 28953 0
bridge 59217 0
rfcomm 31961 0
stp 12368 1 bridge
bnep 17147 2
bluetooth 92361 10 rfcomm,bnep
crc16 12327 1 bluetooth
serpent 24847 0
blowfish 16576 0
cast5 24773 0
des_generic 20771 0
xcbc 12629 0
rmd160 16584 0
sha512_generic 16649 0
sha1_generic 12511 0
hmac 12649 0
crypto_null 12636 0
af_key 30708 2
acpi_cpufreq 12737 1
mperf 12387 1 acpi_cpufreq
cpufreq_userspace 12520 0
cpufreq_stats 12711 0
cpufreq_powersave 12422 0
cpufreq_conservative 12987 0
binfmt_misc 12778 1
uinput 12984 1
fuse 55666 1
ext3 102125 1
jbd 40818 1 ext3
mbcache 12810 1 ext3
loop 17777 0
snd_hda_codec_hdmi 21870 4
pata_pcmcia 16709 1
nouveau 466433 2
ttm 46736 1 nouveau
arc4 12418 2
drm_kms_helper 26550 1 nouveau
snd_hda_codec_idt 44351 1
joydev 16906 0
drm 129190 3 nouveau,ttm,drm_kms_helper
tpm_infineon 12675 0
ecb 12649 2
snd_hda_intel 21529 1
battery 12957 0
i2c_algo_bit 12706 1 nouveau
snd_hda_codec 57741 3 snd_hda_codec_hdmi,snd_hda_codec_idt,snd_hda_intel
ac 12552 0
snd_hwdep 12906 1 snd_hda_codec
snd_pcm 52731 3 snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec
power_supply 13283 3 nouveau,battery,ac
snd_seq 39172 0
snd_timer 22171 2 snd_pcm,snd_seq
snd_seq_device 12995 1 snd_seq
iwlagn 150691 0
snd 38189 11 snd_hda_codec_hdmi,snd_hda_codec_idt,snd_hda_intel,snd_hda_codec,snd_hwdep,snd_pcm,snd_seq,snd_timer,snd_seq_device
soundcore 12878 1 snd
snd_page_alloc 12841 2 snd_hda_intel,snd_pcm
pcmcia 32024 1 pata_pcmcia
uvcvideo 52490 0
hp_accel 20984 0
lis3lv02d 17483 1 hp_accel
videodev 61226 1 uvcvideo
media 13692 1 videodev
hp_wmi 13058 0
input_polldev 12802 1 lis3lv02d
sparse_keymap 12680 1 hp_wmi
r852 17488 0
sm_common 16434 1 r852
nand 43641 2 r852,sm_common
nand_ids 8209 1 nand
nand_ecc 12412 1 nand
tpm_tis 12949 0
parport_pc 21895 1
tpm 17476 2 tpm_infineon,tpm_tis
i2c_core 19022 5 nouveau,drm_kms_helper,drm,i2c_algo_bit,videodev
wmi 13018 1 hp_wmi
intel_ips 17299 0
mtd 27472 2 sm_common,nand
parport 27018 3 ppdev,lp,parport_pc
tpm_bios 12799 1 tpm
mac80211 164606 1 iwlagn
cfg80211 107076 2 iwlagn,mac80211
pcspkr 12515 0
evdev 17180 17
yenta_socket 22152 0
pcmcia_rsrc 17314 1 yenta_socket
pcmcia_core 17973 3 pcmcia,yenta_socket,pcmcia_rsrc
rfkill 18510 5 bluetooth,hp_wmi,cfg80211
psmouse 45863 0
serio_raw 12758 0
container 12525 0
button 12783 1 nouveau
video 17345 1 nouveau
processor 26983 5 acpi_cpufreq
xfs 528900 1
sha256_generic 16709 2
aesni_intel 17505 24
cryptd 14071 9 aesni_intel
aes_i586 16608 1 aesni_intel
aes_generic 37066 2 aesni_intel,aes_i586
cbc 12659 0
dm_crypt 17809 1
dm_mod 56401 6 dm_crypt
sg 21385 0
sr_mod 17418 0
sd_mod 35060 3
usb_storage 34951 2
cdrom 34631 1 sr_mod
crc_t10dif 12332 1 sd_mod
uas 12975 0
ahci 20897 0
xhci_hcd 54158 0
libahci 22200 1 ahci
libata 132100 3 pata_pcmcia,ahci,libahci
firewire_ohci 26332 0
e1000e 112794 0
firewire_core 42365 1 firewire_ohci
ehci_hcd 34885 0
scsi_mod 134453 6 sg,sr_mod,sd_mod,usb_storage,uas,libata
usbcore 99225 6 uvcvideo,usb_storage,uas,xhci_hcd,ehci_hcd
sdhci_pci 13000 0
sdhci 21405 1 sdhci_pci
mmc_core 56896 1 sdhci
crc_itu_t 12331 1 firewire_core
thermal 13058 0
thermal_sys 17667 3 video,processor,thermal
** Network interface configuration:
# This file describes the network interfaces available on your system
# and how to activate them. For more information, see interfaces(5).
# The loopback network interface
auto lo
iface lo inet loopback
# The primary network interface
allow-hotplug eth0
#NetworkManager#iface eth0 inet dhcp
** Network status:
*** IP interfaces and addresses:
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue state UNKNOWN
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN qlen 1000
link/ether b4:99:ba:ea:d2:af brd ff:ff:ff:ff:ff:ff
3: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP qlen 1000
link/ether 00:24:d7:bf:3f:20 brd ff:ff:ff:ff:ff:ff
inet 192.168.2.124/24 brd 192.168.2.255 scope global wlan0
inet6 fe80::224:d7ff:febf:3f20/64 scope link
valid_lft forever preferred_lft forever
4: pan0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN
link/ether 7e:fa:78:b4:41:8b brd ff:ff:ff:ff:ff:ff
*** Device statistics:
Inter-| Receive | Transmit
face |bytes packets errs drop fifo frame compressed multicast|bytes packets errs drop fifo colls carrier compressed
lo: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
eth1: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
wlan0: 147927 495 0 0 0 0 0 0 22229 164 0 0 0 0 0 0
pan0: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
*** Protocol statistics:
Ip:
258 total packets received
0 forwarded
0 incoming packets discarded
163 incoming packets delivered
137 requests sent out
Icmp:
0 ICMP messages received
0 input ICMP message failed.
ICMP input histogram:
0 ICMP messages sent
0 ICMP messages failed
ICMP output histogram:
Tcp:
4 active connections openings
0 passive connection openings
0 failed connection attempts
0 connection resets received
1 connections established
84 segments received
107 segments send out
0 segments retransmited
0 bad segments received.
0 resets sent
Udp:
28 packets received
0 packets to unknown port received.
0 packet receive errors
25 packets sent
UdpLite:
TcpExt:
1 TCP sockets finished time wait in fast timer
6 delayed acks sent
1 packets directly queued to recvmsg prequeue.
1 bytes directly received in process context from prequeue
60 packet headers predicted
8 acknowledgments not containing data payload received
27 predicted acknowledgments
IpExt:
InMcastPkts: 17
OutMcastPkts: 19
InBcastPkts: 52
InOctets: 84815
OutOctets: 12862
InMcastOctets: 2910
OutMcastOctets: 3002
InBcastOctets: 10024
*** Device features:
eth1: 0x1149a9
lo: 0x201b7c65
pan0: 0xff78e5
wlan0: 0x6000
** PCI devices:
00:00.0 Host bridge [0600]: Intel Corporation Core Processor DRAM Controller [8086:0044] (rev 02)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ >SERR- <PERR- INTx-
Latency: 0
Capabilities: <access denied>
00:01.0 PCI bridge [0604]: Intel Corporation Core Processor PCI Express x16 Root Port [8086:0045] (rev 02) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
I/O behind bridge: 00005000-00005fff
Memory behind bridge: d2000000-d30fffff
Prefetchable memory behind bridge: 00000000c0000000-00000000d1ffffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA+ MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:16.0 Communication controller [0780]: Intel Corporation 5 Series/3400 Series Chipset HECI Controller [8086:3b64] (rev 06)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 10
Region 0: Memory at d7524000 (64-bit, non-prefetchable) [size=16]
Capabilities: <access denied>
00:16.3 Serial controller [0700]: Intel Corporation 5 Series/3400 Series Chipset KT Controller [8086:3b67] (rev 06) (prog-if 02 [16550])
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin B routed to IRQ 17
Region 0: I/O ports at 6050 [size=8]
Region 1: Memory at d752b000 (32-bit, non-prefetchable) [size=4K]
Capabilities: <access denied>
Kernel driver in use: serial
00:19.0 Ethernet controller [0200]: Intel Corporation 82577LM Gigabit Network Connection [8086:10ea] (rev 05)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 50
Region 0: Memory at d7500000 (32-bit, non-prefetchable) [size=128K]
Region 1: Memory at d752a000 (32-bit, non-prefetchable) [size=4K]
Region 2: I/O ports at 6020 [size=32]
Capabilities: <access denied>
Kernel driver in use: e1000e
00:1a.0 USB Controller [0c03]: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller [8086:3b3c] (rev 05) (prog-if 20 [EHCI])
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 16
Region 0: Memory at d7529000 (32-bit, non-prefetchable) [size=1K]
Capabilities: <access denied>
Kernel driver in use: ehci_hcd
00:1b.0 Audio device [0403]: Intel Corporation 5 Series/3400 Series Chipset High Definition Audio [8086:3b56] (rev 05)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 53
Region 0: Memory at d7520000 (64-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: HDA Intel
00:1c.0 PCI bridge [0604]: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 1 [8086:3b42] (rev 05) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
Memory behind bridge: d7400000-d74fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:1c.1 PCI bridge [0604]: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 2 [8086:3b44] (rev 05) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=03, subordinate=43, sec-latency=0
I/O behind bridge: 00003000-00004fff
Memory behind bridge: d3400000-d73fffff
Prefetchable memory behind bridge: 00000000d7700000-00000000d78fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:1c.3 PCI bridge [0604]: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 4 [8086:3b48] (rev 05) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=44, subordinate=44, sec-latency=0
Memory behind bridge: d3300000-d33fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:1c.7 PCI bridge [0604]: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 8 [8086:3b50] (rev 05) (prog-if 00 [Normal decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Bus: primary=00, secondary=45, subordinate=45, sec-latency=0
Memory behind bridge: d3200000-d32fffff
Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR-
BridgeCtl: Parity- SERR- NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
Kernel driver in use: pcieport
00:1d.0 USB Controller [0c03]: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller [8086:3b34] (rev 05) (prog-if 20 [EHCI])
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 20
Region 0: Memory at d7528000 (32-bit, non-prefetchable) [size=1K]
Capabilities: <access denied>
Kernel driver in use: ehci_hcd
00:1e.0 PCI bridge [0604]: Intel Corporation 82801 Mobile PCI Bridge [8086:2448] (rev a5) (prog-if 01 [Subtractive decode])
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR+ FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Bus: primary=00, secondary=46, subordinate=4a, sec-latency=32
I/O behind bridge: 00002000-00002fff
Memory behind bridge: d3100000-d31fffff
Prefetchable memory behind bridge: 00000000d8000000-00000000dbffffff
Secondary status: 66MHz- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort+ <SERR- <PERR-
BridgeCtl: Parity- SERR+ NoISA- VGA- MAbort- >Reset- FastB2B-
PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn-
Capabilities: <access denied>
00:1f.0 ISA bridge [0601]: Intel Corporation Mobile 5 Series Chipset LPC Interface Controller [8086:3b07] (rev 05)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Capabilities: <access denied>
00:1f.2 SATA controller [0106]: Intel Corporation 5 Series/3400 Series Chipset 6 port SATA AHCI Controller [8086:3b2f] (rev 05) (prog-if 01 [AHCI 1.0])
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin A routed to IRQ 51
Region 0: I/O ports at 6048 [size=8]
Region 1: I/O ports at 605c [size=4]
Region 2: I/O ports at 6040 [size=8]
Region 3: I/O ports at 6058 [size=4]
Region 4: I/O ports at 6000 [size=32]
Region 5: Memory at d7527000 (32-bit, non-prefetchable) [size=2K]
Capabilities: <access denied>
Kernel driver in use: ahci
00:1f.6 Signal processing controller [1180]: Intel Corporation 5 Series/3400 Series Chipset Thermal Subsystem [8086:3b32] (rev 05)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
Interrupt: pin C routed to IRQ 18
Region 0: Memory at d7526000 (64-bit, non-prefetchable) [size=4K]
Capabilities: <access denied>
Kernel driver in use: intel ips
01:00.0 VGA compatible controller [0300]: nVidia Corporation GT216 [Quadro FX 880M] [10de:0a3c] (rev a2) (prog-if 00 [VGA controller])
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
Region 0: Memory at d2000000 (32-bit, non-prefetchable) [size=16M]
Region 1: Memory at c0000000 (64-bit, prefetchable) [size=256M]
Region 3: Memory at d0000000 (64-bit, prefetchable) [size=32M]
Region 5: I/O ports at 5000 [size=128]
Expansion ROM at d3080000 [disabled] [size=512K]
Capabilities: <access denied>
Kernel driver in use: nouveau
01:00.1 Audio device [0403]: nVidia Corporation High Definition Audio Controller [10de:0be2] (rev a1)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 16
Region 0: Memory at d3000000 (32-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: HDA Intel
44:00.0 Network controller [0280]: Intel Corporation Centrino Ultimate-N 6300 [8086:4238] (rev 35)
Subsystem: Intel Corporation Centrino Ultimate-N 6300 3x3 AGN [8086:1111]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 52
Region 0: Memory at d3300000 (64-bit, non-prefetchable) [size=8K]
Capabilities: <access denied>
Kernel driver in use: iwlagn
45:00.0 USB Controller [0c03]: NEC Corporation uPD720200 USB 3.0 Host Controller [1033:0194] (rev 04) (prog-if 30)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 19
Region 0: Memory at d3200000 (64-bit, non-prefetchable) [size=8K]
Capabilities: <access denied>
Kernel driver in use: xhci_hcd
46:06.0 FireWire (IEEE 1394) [0c00]: Ricoh Co Ltd R5C832 IEEE 1394 Controller [1180:0832] (rev 06) (prog-if 10 [OHCI])
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64 (500ns min, 1000ns max), Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 20
Region 0: Memory at d3101000 (32-bit, non-prefetchable) [size=2K]
Capabilities: <access denied>
Kernel driver in use: firewire_ohci
46:06.1 SD Host controller [0805]: Ricoh Co Ltd R5C822 SD/SDIO/MMC/MS/MSPro Host Adapter [1180:0822] (rev 25)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 22
Region 0: Memory at d3105000 (32-bit, non-prefetchable) [size=256]
Capabilities: <access denied>
Kernel driver in use: sdhci-pci
46:06.2 System peripheral [0880]: Ricoh Co Ltd R5C592 Memory Stick Bus Host Adapter [1180:0592] (rev 14)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 5
Region 0: Memory at d3103000 (32-bit, non-prefetchable) [size=256]
Capabilities: <access denied>
46:06.3 System peripheral [0880]: Ricoh Co Ltd xD-Picture Card Controller [1180:0852] (rev 14)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 64, Cache Line Size: 64 bytes
Interrupt: pin B routed to IRQ 22
Region 0: Memory at d3102000 (32-bit, non-prefetchable) [size=256]
Capabilities: <access denied>
Kernel driver in use: r852
46:06.4 CardBus bridge [0607]: Ricoh Co Ltd RL5c476 II [1180:0476] (rev bb)
Subsystem: Hewlett-Packard Company Device [103c:1521]
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 168
Interrupt: pin B routed to IRQ 22
Region 0: Memory at d3100000 (32-bit, non-prefetchable) [size=4K]
Bus: primary=46, secondary=47, subordinate=4a, sec-latency=176
Memory window 0: d8000000-dbfff000 (prefetchable)
Memory window 1: dc000000-dffff000
I/O window 0: 00002000-000020ff
I/O window 1: 00002400-000024ff
BridgeCtl: Parity- SERR- ISA- VGA- MAbort- >Reset- 16bInt+ PostWrite+
16-bit legacy interface ports at 0001
Kernel driver in use: yenta_cardbus
ff:00.0 Host bridge [0600]: Intel Corporation Core Processor QuickPath Architecture Generic Non-core Registers [8086:2c62] (rev 02)
Subsystem: Intel Corporation Device [8086:8086]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
ff:00.1 Host bridge [0600]: Intel Corporation Core Processor QuickPath Architecture System Address Decoder [8086:2d01] (rev 02)
Subsystem: Intel Corporation Device [8086:8086]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
ff:02.0 Host bridge [0600]: Intel Corporation Core Processor QPI Link 0 [8086:2d10] (rev 02)
Subsystem: Intel Corporation Device [8086:8086]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
ff:02.1 Host bridge [0600]: Intel Corporation Core Processor QPI Physical 0 [8086:2d11] (rev 02)
Subsystem: Intel Corporation Device [8086:8086]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
ff:02.2 Host bridge [0600]: Intel Corporation Core Processor Reserved [8086:2d12] (rev 02)
Subsystem: Intel Corporation Device [8086:8086]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
ff:02.3 Host bridge [0600]: Intel Corporation Core Processor Reserved [8086:2d13] (rev 02)
Subsystem: Intel Corporation Device [8086:8086]
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0
** USB devices:
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 003: ID 0951:1656 Kingston Technology
Bus 003 Device 002: ID 8087:0020 Intel Corp. Integrated Rate Matching Hub
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 003: ID 5986:03b1 Acer, Inc
Bus 001 Device 002: ID 8087:0020 Intel Corp. Integrated Rate Matching Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
-- System Information:
Debian Release: 6.0.4
APT prefers stable-updates
APT policy: (500, 'stable-updates'), (500, 'stable')
Architecture: i386 (i686)
Kernel: Linux 2.6.39-bpo.2-686-pae (SMP w/4 CPU cores)
Locale: LANG=en_US.utf8, LC_CTYPE=en_US.utf8 (charmap=UTF-8)
Shell: /bin/sh linked to /bin/dash
Versions of packages linux-image-2.6.39-bpo.2-686-pae depends on:
ii debconf [debconf-2.0] 1.5.36.1 Debian configuration management sy
ii initramfs-tools [linux-init 0.99~bpo60+1 tools for generating an initramfs
ii linux-base 3.4~bpo60+1 Linux image base package
ii module-init-tools 3.12-2+b1 tools for managing Linux kernel mo
Versions of packages linux-image-2.6.39-bpo.2-686-pae recommends:
ii firmware-linux-free 2.6.32-41 Binary firmware for various driver
ii libc6-i686 2.11.3-2 Embedded GNU C Library: Shared lib
Versions of packages linux-image-2.6.39-bpo.2-686-pae suggests:
ii grub-pc 1.98+20100804-14+squeeze1 GRand Unified Bootloader, version
pn linux-doc-2.6. <none> (no description available)
Versions of packages linux-image-2.6.39-bpo.2-686-pae is related to:
pn firmware-bnx2 <none> (no description available)
pn firmware-bnx2x <none> (no description available)
ii firmware-ipw2x00 0.28+squeeze1 Binary firmware for Intel Pro Wire
pn firmware-ivtv <none> (no description available)
ii firmware-iwlwifi 0.35~bpo60+1 Binary firmware for Intel Wireless
ii firmware-linux 0.35~bpo60+1 Binary firmware for various driver
ii firmware-linux-nonfree 0.35~bpo60+1 Binary firmware for various driver
pn firmware-qlogic <none> (no description available)
pn firmware-ralink <none> (no description available)
pn xen-hypervisor <none> (no description available)
-- debconf information:
linux-image-2.6.39-bpo.2-686-pae/postinst/ignoring-ramdisk:
linux-image-2.6.39-bpo.2-686-pae/prerm/removing-running-kernel-2.6.39-bpo.2-686-pae: true
linux-image-2.6.39-bpo.2-686-pae/postinst/depmod-error-initrd-2.6.39-bpo.2-686-pae: false
* linux-image-2.6.39-bpo.2-686-pae/postinst/missing-firmware-2.6.39-bpo.2-686-pae:
--
Attachment:
Description: JPEG image
